Hamlet HBCS2D100W User Manual

2d barcode scanner
Hide thumbs Also See for HBCS2D100W:
Table of Contents

Advertisement

Quick Links

Download this manual
2D BARCODE SCANNER
BLUETOOTH INDUSTRIAL BARCODE SCANNER
FOR QR CODES AND LINEAR BARCODES
USER MANUAL
HBCS2D100W
www.hamletcom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBCS2D100W and is the answer not in the manual?

Questions and answers

Related Manuals for Hamlet HBCS2D100W

Summary of Contents for Hamlet HBCS2D100W

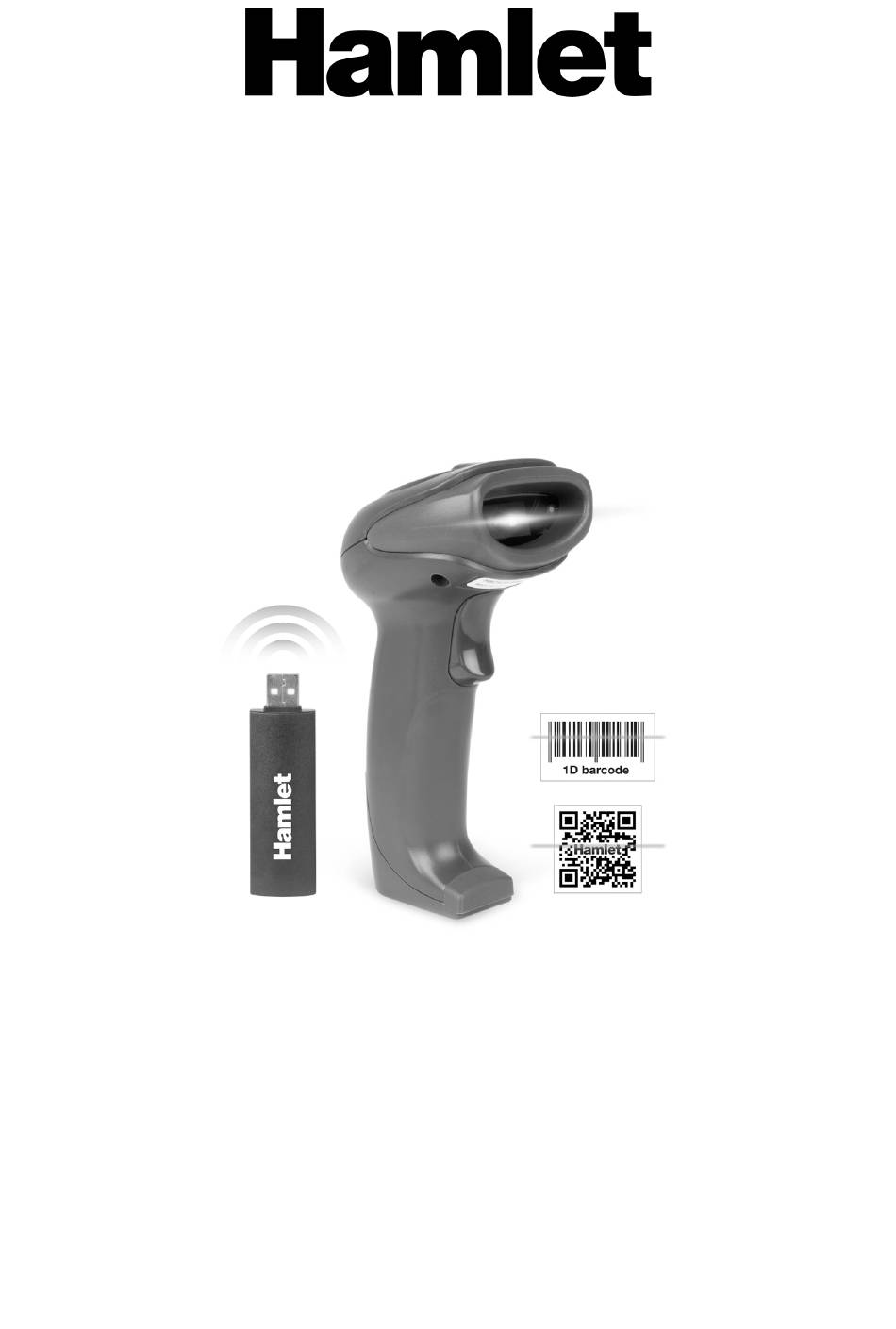

  • Page 1 2D BARCODE SCANNER BLUETOOTH INDUSTRIAL BARCODE SCANNER FOR QR CODES AND LINEAR BARCODES USER MANUAL HBCS2D100W www.hamletcom.com...
  • Page 2 LED Devices Hamlet products using led sources comply with IEC 60825-1, EN 60825-1: 2014. The led classification is marked on one of the labels on the product. Class 1 Led devices are not considered to be hazardous when used for their intended purpose.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ............................... 3 Pairing Instruction.............................. 5 One scanner pair with one receiver ....................... 5 Multiple scanners pair with one receiver ....................5 Scanner connect with Android/iOS device .................... 5 Inventory Mode ..............................6 Turn On/Off Settings Codes ..........................6 Factory Default ..............................
  • Page 4 20.18 RSS ............................... 37 20.19 DM ............................... 38 20.20 PDF417 ..............................38 Appendix A: Default Settings Table .......................... 39 Appendix B: Common Serial Commands ......................... 39 Appendix C: Code ID List ............................40 Appendix D: ASCII table ............................41 Appendix E: Data Codes ............................45 Appendix F: Save or Cancel ............................

  • Page 5: Pairing Instruction

    1 Pairing Instruction One scanner pair with one receiver Note: Insert receiver into PC, and scan this code within 5 minutes, the scanner will connect with PC; scan the code again, the scanner will disconnect with PC. When receiver or scanner power off and on again, they will connect again automatically.

  • Page 6: Inventory Mode

    2 Inventory Mode Enter Inventory Mode Quit Inventory Mode Upload All Data Upload New Data Upload Statistic Data Clear All Data 3 Turn On/Off Settings Codes By turning on the setting code function, the parameter configuration of the scanner can be carried out by scanning the setting code.

  • Page 7: Sleeping Time Settings

    5 Sleeping Time Settings 1. Scan “Factory Default”. 2. Scan “enter into sleeping mode”. 3. Setting sleeping time (minutes). For Example: set 10 minutes as sleeping time, scan numbers “0”, “1”, “0” in order. Note: Sleeping time could be 1 minute to 999 minutes, it’s made of 3 numbers followed by hundreds digit, tens digit, units digit, sleeping time settings must be 3 numbers.

  • Page 8: Users Default Settings

    6 Users Default Settings Except for factory default settings, users could make often used settings as default settings by reading code “Save current settings as user default settings”. If there has been an user default settings, the new operation will replace the previous user default settings.

  • Page 9: Usb Port

    Baud Rate 1200bps 4800bps * 9600bps 14400bps 19200bps 38400bps 57600bps 115200bps USB Port When scanner is connected with the host computer using USB, the scanner can be configured into standard keyboard input mode by scanning “USB Port”. * USB Port 7.2.1 USB Virtual Port When scanner is connected with the host computer using USB, the scanner can be configured into standard keyboard input mode by scanning “USB Virtual Port”.

  • Page 10: Reading Mode

    8 Reading Mode Manual mode Manual mode is the default reading mode, under this mode ,reading engine start to read the barcode when press the trigger, and stop to read code when loose the trigger. Manual mode Under this mode, reading engine will enter into sleep mode automatically after several default min, can set with the below code.
  • Page 11 1000ms 3000ms * 5000ms No limit reading time Interval period time The interval period time range is 0.1~25.5 seconds, size is 0.1 seconds, default time is 1seconds. No Interval time 500ms * 1000ms 1500ms 2000ms Same codes reading delay To avoid read same codes many times, can set the the engine in setting time to read the same codes only one time under this mode.

  • Page 12: Auto-Sensing Mode

    Auto-sensing Mode After setting, no need to press the trigger, the engine start identify the brightness, when the situation changed, engine will start to read once it is stable, when dated transmit, the engine need some time (can set) to identify the brightness, if not, engine work as the situation before, under this mode, user can also press the trigger to start to read, once loose the trigger, engine enter into the self- conduction mode again.
  • Page 13 Image stabilization time It means under the self- conduction mode, the Image stabilization time engine identify the environment and read the code, the time range is 0~25.5 seconds, step size is 0.1 seconds, default stabilization time is 0.4 second. 100ms * 400ms 1000ms 2000ms...

  • Page 14: Command Trigger Mode

    Command Trigger mode Under this mode, engine start to read data after receiving the scan instruction from the host (that is “1” was written into bit from zone bit 0x0002), and stop reading after data transmitted. Command Trigger mode Attention: under this mode, trigger command instruction is: 7E 00 08 01 00 02 01 AB CD. The engine receive the instruction, will output 7 byte responding first and start to read at the same time (responding is :02 00 00 01 00 33 31).

  • Page 15: Lighting & Aiming

    9 Lighting & Aiming Lighting Lighting could provide supplementary lighting for shooting to read, when light beam illuminate reading aim,to improve reading ability and adaptability in weak ligh. The user could set it to one of the following states according to the application.

  • Page 16: Beeper Sound Settings

    10 Beeper Sound Settings 10.1 All Beeper Sounds Buzzers will be set to active/passive when scanning “Buzzer Driving Frequency”, also set passive buzzer driving Frequency. Buzzer Driving Frequency Buzzer Driving Frequency Passive Low Frequency Passive Medium Frequency Buzzer Driving Frequency Buzzer Driving Frequency Passive High Frequency Active Driving...

  • Page 17: Beeper Sound Of Successful Reading

    10.2 Beeper Sound of Successful Reading Beeper sound of successful reading will be forbidden after reading “ Disable Beeper sound of successful reading”, beeper sound of successful reading will recover after reading “ Enable Beeper Sound of Successful Reading”. Disable Beeper Sound of Enable Beeper Sound of Successful Reading Successful Reading...

  • Page 18: Data Encoding Format

    11 Data Encoding Format In order to reading module enable to read all kinds of Chinese barcode encoding format, by reading “Input Data Encoding Format” could be set. * Input Data Encoding Input Data Encoding Format Format GBK UNICODE Input Data Encoding Format Input Data Encoding Format AUTO UTF8...

  • Page 19: Keyboard Language Settings

    12 Keyboard Language Settings In order to make host of all countries user this equipment, by reading corresponding countries keyboard language could be set. * USA Czech France Germany Hungary Italy Japanese Spanish...

  • Page 20: Image Reverse

    13 Image Reverse In application, we will encounter the mirror or vertical flip image, as shown in the following figure. When the barcode in reverse, can be set up by scanning the corresponding code into mirror reverse mode. Enter Mirror Reverse Mode * Exit Mirror Reverse Mode Note: In Mirror Reverse Mode, only can identify the mirror flip the bar code, if you need to identify normal barcode or set code, please exit mirror reverse mode.

  • Page 21: Data Editing

    15 Data Editing In practical application, sometimes we need to edit the identified data and then output it to make the data distinguishing and data disposing more convenient. Data Editing Including: • Adding Prefix • Adding Suffix • Getting sections of the decoding information •...

  • Page 22: Suffix

    15.2 Suffix Adding Suffix Suffix is the character string could be changed by users, which would scan (permission of adding Suffix) to add. Permission of adding Suffix No adding Suffix Changing Suffix Scan the “Changing Suffix” and combine the data installation code. User could change the contents of the suffix and use two values of HEX to represent the suffix.
  • Page 23 CODE ID Default Scan “CODE ID default” code, corresponding CODE ID of each code could recover to default, default CODE ID could consult Appendix C. All codes’ CODE ID recovering default Changing of CODE ID User could change corresponding CODE ID of each code by scanning corresponding installation code and combining scanning data installation code.
  • Page 24 CODE ID of changing CODE ID of changing CODE 39 CODE 93 CODE ID of changing CODE ID of changing CODE BAR Interleaved 2 of 5 CODE ID of changing CODE ID of changing Industrial 25 Matrix 2 of 5 CODE ID of changing CODE ID of changing CODE 11...

  • Page 25: Ending Character

    CODE ID of changing CODE ID of changing DATA MATRIX Limited PDF417 17 Ending Character In order to let the host can quickly distinguish the decoding result, can open this function. Read the "Ending character" to open this function, if read successfully, corresponding ending character is added by reading module after decoding data.
  • Page 26 Only transfer the [End] Only transfer the [Center] segments segments Modify the length of [Start] M Scan [Interception Length M before modified], and combine the relative setting code to modify the length of the start segments, the length of the start segments is up to 255 characters. [Interception Length M before modified] is represented by a hexadecimal character, the corresponding Hexadecimal value conversion table of “Length M”...
  • Page 27 Only transfer [End] segments Example: When the decoding information is "1234567890123ABC", output the last 13 bytes "4567890123ABC". 1. By checking the character table, the corresponding hexadecimal character of decimal data "3" is "03". 2. Ensure the setting code is enabled, if not, please scan setting code of “Enable setting code”. 3.

  • Page 28: Rf Information

    19 RF Information RF (Read Fail) information refers that in some modes the reading module can output the information defined by the user freely. The user or program can do some adjustment or operations when detecting this information. * Do not send RF Send RF information information Modify RF Information...

  • Page 29: Enable / Disable Configuration For Types Of Barcodes

    20 Enable / Disable Configuration for Types of Barcodes 20.1 All barcodes reads By scanning below setting code will enable or disable to read all the support types of barcodes. Enable to read all the types Disable to read all the types * Return to default type 20.2 Rotation function of barcode...

  • Page 30: Ean8

    20.4 EAN8 By scanning below setting code will enable or disable to read EAN8. * Enable EAN8 Disable EAN8 20.5 UPCA By scanning below setting code will enable or disable to read UPCA. * Enable UPCA Disable UPCA 20.6 UPCE0 By scanning below setting code will enable or disable to read UPCE0.

  • Page 31: Code128

    20.8 Code128 Enable or disable Code128 by scanning below setting code. * Enable Code128 Disable Code128 Set the min. length of Code128 by scanning below setting code. Code128 Min. Length 0 * Code128 Min. Length 4 Set the max. Length of Code128 by scanning below setting code. * Code128 Max.

  • Page 32: Code93

    Set the max. Length of Code39 by scanning below setting code. * Code39 Max. Length 32 Code39 Max. Length 255 20.10 Code93 Enable or disable Code93 by scanning below setting code. * Enable Code93 Disable Code93 Set the min. length of Code93 by scanning below setting code. Code93 Min.

  • Page 33: Codebar

    20.11 CodeBar Enable or disable CodeBar by scanning below setting code. * Enable CodeBar Disable CodeBar Set to send or not send CodeBar start-stop symbol by scanning below setting code. Send CodeBar start-stop * Not send CodeBar start- symbol stop symbol Set the min.

  • Page 34: Interleaved 2 Of 5

    20.13 Interleaved 2 of 5 Enable or disable Interleaved 2 of 5 by scanning below setting code. Enable Interleaved 2 of 5 * Disable Interleaved 2 of 5 Set the min. length of Interleaved 2 of 5 by scanning below setting code. Interleaved 2 of 5 Min.

  • Page 35: Matrix 2 Of 5

    Set the max. Length of Industrial 25 by scanning below setting code. * Industrial 25 Max. Length Industrial 25 Max. Length 20.15 Matrix 2 of 5 Enable or disable Matrix 2 of 5 by scanning below setting code. Enable Matrix 2 of 5 * Disable Matrix 2 of 5 Set the min.

  • Page 36: Code11

    20.16 Code11 Enable or disable Code11 by scanning below setting code. Enable Code11 * Disable Code11 Set the min. Length of Code11 by scanning below setting code. Code11 Min. Length 0 * Code11 Min. Length 4 Set the max. Length of Code11 by scanning below setting code. * Code11 Max.

  • Page 37: Rss

    Read the following setup code to set the maximum reading length for the MSI bar code. * The MSI information has a The MSI information has a minimum length of 32 minimum length of 255 20.18 RSS Read the following setup code to set the RSS-14 barcode enable/disable read. Enable to read RSS-14 * Disable to read RSS-14 Read the following setup code to set the allowed RSS bar code to allow / disable reading.

  • Page 38: Pdf417

    Read the following setup code to set the length of the RSS bar code. * The minimum length of The minimum length of the the RSS message is 32 RSS message is 255 20.19 DM Read the following setting code to set the DM bar code enable/disable reading. * Allow reading DM Prohibit reading DM 20.20 PDF417...

  • Page 39: Appendix A: Default Settings Table

    Appendix A: Default Settings Table Parameter name Default Setting Remarks Interface Baud rate 9600 Check Data bits 8bits TTL-232 Stop bits 1bits Hardware flow No hardware flow control control Mode parameter Default read mode Manual Read Mode Parameter range: Serial trigger Single reading 0.1-25.5 seconds, the steps of 0.1s;...

  • Page 40: Appendix C: Code Id List

    Appendix C: Code ID List Corresponding Barcode Type Flag address characters EAN-13 0x91 EAN-8 0x92 UPC-A 0x93 UPC-E0 0x94 UPC-E1 0x95 Code 128 0x96 Code 39 0x97 Code 93 0x98 Codabar 0x99 Interleaved 2 of 5 0x9A Industrial 2 of 5 0x9B Matrix 2 of 5 0x9C...

  • Page 41: Appendix D: Ascii Table

    Appendix D: ASCII table Hexadecimal Decimal Character...
  • Page 42 Hexadecimal Decimal Character " & < >...
  • Page 43 Hexadecimal Decimal Character...
  • Page 44 Hexadecimal Decimal Character...

  • Page 45: Appendix E: Data Codes

    Appendix E: Data Codes 0 ~ 9...

  • Page 46: Appendix F: Save Or Cancel

    A – F Appendix F: Save or Cancel After reading the data code to scan the "Save" set code to read the data saved. If an error occurs while reading the data code, you can cancel reading the wrong data. If you read the "read one bit of data before reading", you will cancel the last read if you read a setting code and read the data "A", "B", "C", and "D"...
