I N N O V A T I V E S A U N A T E C H N O L O G Y

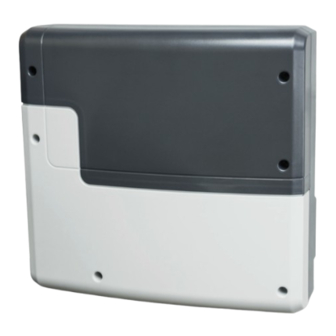

LSG 18 / LSG 18H
Leistungsschaltgerät | Contactor box
Montage- und Gebrauchsanweisung
D
Assembly and operating instruction
EN
Made in Germany
IPx4
29344556 / 48.19
Druck-Nr. / Print no.
Technische Änderungen vorbehalten / Technical changes reserved

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSG 18 and is the answer not in the manual?

Questions and answers

Summary of Contents for EOS LSG 18

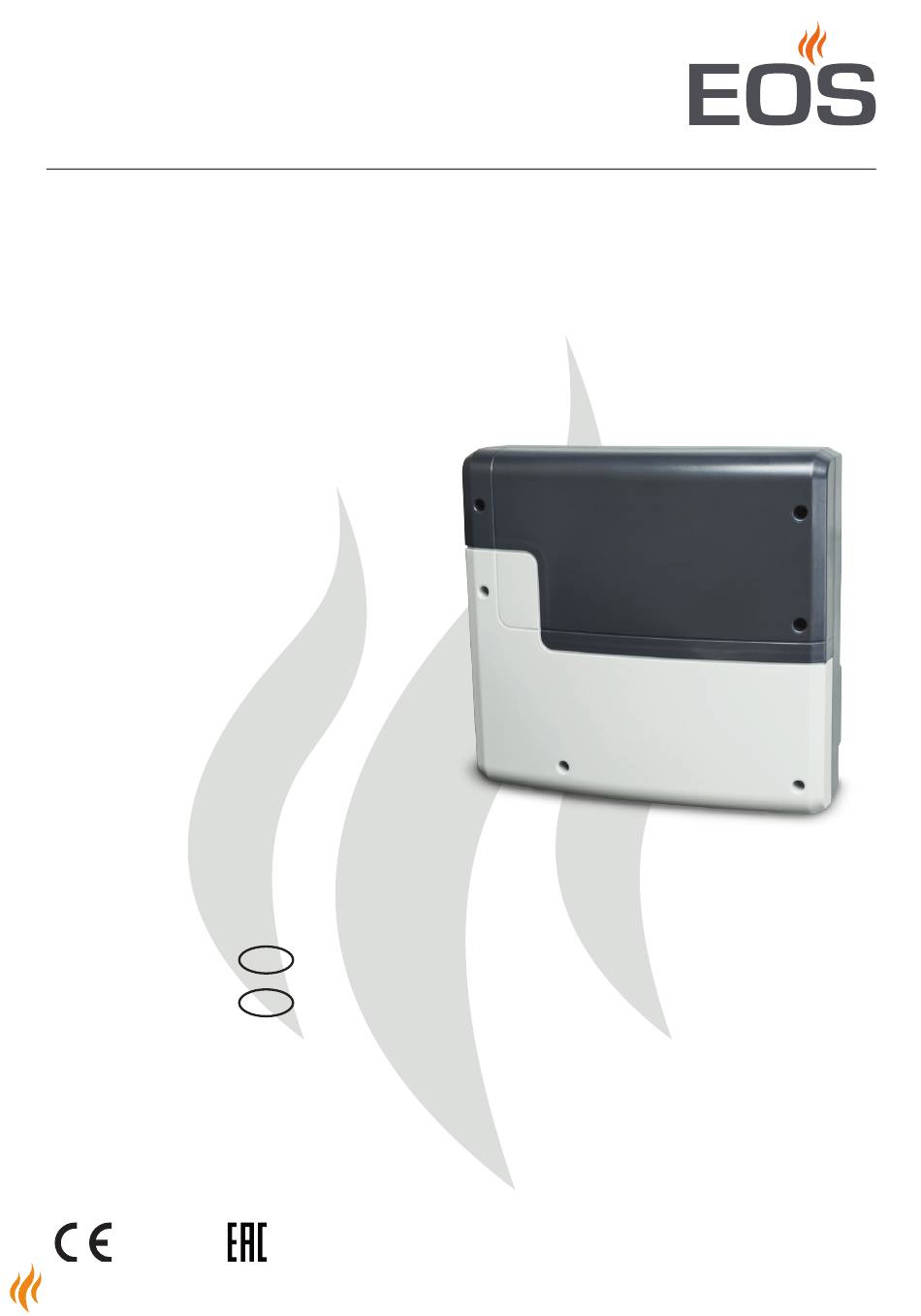

  • Page 1 I N N O V A T I V E S A U N A T E C H N O L O G Y LSG 18 / LSG 18H Leistungsschaltgerät | Contactor box Montage- und Gebrauchsanweisung Assembly and operating instruction...
  • Page 3: Table Of Contents

    Deutsch Inhalt Vorwort ................................4 Bestimmungsgemäße Verwendung .....................4 Allgemeine Hinweise ..........................4 Wichtige Hinweise ............................5 Lieferumfang ..............................7 Technische Daten ............................7 Installationsanweisung ..........................8 Montage ................................9 Montage Leistungsschaltgerät ....................... 10 Installationsschema ..........................12 Schaltplan ..............................13 Recycling ..............................14 Service Adresse ............................14 Allgemeine Servicebedingungen (ASB) ..................15...
  • Page 4: Vorwort

    Vorwort Allgemeine Sicherheitsbestimmungen Sehr geehrte Kundin, sehr geehrter Kunde, Dieses Gerät ist nicht dafür bestimmt von Sie haben ein hochwertiges technisches Gerät • erworben, mit welchem Sie lange Jahre Freude Kindern oder Personen mit verringerten am Saunabaden haben werden. Dieses Gerät physischen, sensorischen oder mentalen wurde nach den aktuellen europäischen Sicher- heitsnormen konstruiert, geprüft und im Herstel-...
  • Page 5: Wichtige Hinweise

    Die Anlage muss bei allen Installations- • Inspizieren Sie die Saunakabine • und Reparaturarbeiten allpolig vom Netz vor jeder Inbetriebnahme! Achten Sie getrennt werden, d.h. Sicherungen bzw. insbesondere darauf, das keine Gegen- Hauptschalter ausschalten. stände auf dem Saunaheizer oder auf Die Sicherheits- und Installationshinweise •...
  • Page 6 Achtung! Sehr geehrter Kunde, nach den gültigen Vorschriften ist der elektrische Anschluss des Saunaofens sowie der Saunasteue- rung nur durch einen Fachmann eines au- torisierten Elektrofachbetriebes zulässig. Wir weisen Sie daher bereits jetzt darauf hin, dass im Falle eines Garantieanspru- ches eine Kopie der Rechnung des aus- führenden Elektrofachbetriebes vorzule- gen ist.
  • Page 7: Lieferumfang

    Lieferumfang Überprüfen Sie das Gerät nach Erhalt auf Vollständigkeit. Zum Lieferumfang gehören: • 1 Stück Leistungsschaltgerät • 1 Stück Polybeutel mit 4 Stück Durchführungstüllen 3 Stück Montageschrauben 4 Stück Kabelverschraubungen • 1 Montage- und Gebrauchsanweisung Achtung! Sicherungseinsätze gehören nicht zum Lieferumfang Technische Daten Nennspannung: 400 V 3 N AC 50 Hz...
  • Page 8: Installationsanweisung

    Installationsanweisung für Leistungsschaltgerät Das Leistungsschaltgerät wird serienmäßig für eine Spannung von 400 V AC 3N mit einer maxima- len Schaltleistung von 35 A je Phase und mit Sicherheitsabschaltung, in Verbindung mit unseren Saunasteuergeräten, geliefert. Montage und Anschluß der Sauna-Einrichtungen und anderer elektrischer Betriebsmittel dürfen nur durch einen Fachmann erfolgen, dabei ist VDE 0100 Teil 703 zu beachten.
  • Page 9: Montage

    Montage • Leistungsschaltgerät an einer Wand im Aufstellungsraum der Saunakabine oder dem Technik- raum montieren. • Beachten Sie, dass von den eingebauten Schaltschützen Geräusche bei den Schaltvorgängen entstehen. Daher empfehlen wir, das Lastschaltgerät nicht an einer Wand der Saunakabine zu montieren.
  • Page 10: Montage Leistungsschaltgerät

    Montage Leistungsschaltgerät Das Leistungsteil darf nur außerhalb der Kabine montiert werden. Empfohlene Montageorte sind Kabinenaußenwand bzw. Technikraum oder Montageanordnungen die den baulichen Gegeben- heiten vor Ort angepasst sind. Sind bereits Leerrohre für die elektrischen Installationen vorhan- den, ist die Position des Leistungsteils durch diese vorbestimmt. Zur Montage verfahren Sie bitte nach folgender Anweisung: ! Achtung: Das Gerät darf nicht in geschlossenen Schaltschränken oder in einer ge- schlossenen Holzverkleidung installiert werden!
  • Page 11 2. In die obere mittlere Bohrung drehen Sie eine der Holzschrauben. An dieser Schraube wird das Leistungsteil eingehängt. Lassen Sie zu diesem Zweck die Schraube ca. 3 mm herausstehen (De- tail in Abb. 2). Abb. 2 Abstand zur Wand unbedingt einhalten wegen Hinterlüftung Abb.
  • Page 12: Installationsschema

    (von hinten) Kabelverschraubung Durchführungen für: Durchführung für mit Zugentlastung Netz-, Ofen-, Verdampferzuleitung, Steuerleitung (von unten) entfällt bei LSG 18 Installationsschema für LSG 18 und LSG 18 H Verdampfer Saunaofen Steuergerät vaporizer sauna heater Leistungsschaltgerät control unit évaporateur poêle de sauna...
  • Page 13: Schaltplan

    Schaltplan für LSG 18 und LSG 18 H Leistungsschaltgerät LSG 18 H entfällt bei LSG 18 Contactor box LSG 18 H not for LSG18 L1 L2 Sicherungen fuse D01 PE PE L1 L2 2x 16 A Wm N Achtung! Anschluß...
  • Page 14: Recycling

    Nicht mehr gebrauchte Geräte / Leuchtmittel sind gem. Richtlinie 2012/19/EU bzw. ElektroG zum Recyceln bei einer Wertstoffsammelstelle abzugeben. Nicht mit dem Hausmüll entsor- gen. Service Adresse EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de...
  • Page 15: Allgemeine Servicebedingungen (Asb)

    V. Gewährleistung gelten die Allgemeinen Geschäftsbedingungen des Tech- nikherstellers in ihrer jeweils gültigen Fassung, die unter Die Gewährleistung wird nach den derzeit gültigen www.eos-sauna.com/agb abgerufen werden können. gesetzlichen Bestimmungen übernommen. Sämtliche Stand: 08/2018 Verpackungen unserer Produkte sind für den Stückgut-...
  • Page 16 English Contents Preface and Intended use ........................17 General information ..........................17 General safety precautions ........................17 Scope of delivery ............................20 Technical data............................20 Installation instructions .......................... 21 Installation ..............................22 Installation power switchgear ......................23 Installations diagram ..........................25 Wiring diagram ............................
  • Page 17: Preface And Intended Use

    Preface General safety precautions This device is not intended to be used by Dear customer, • you have purchased a high-quality electronic children or persons with reduced physi- device with which you will enjoy your sauna for cal, sensory or mental abilities. many years to come.
  • Page 18 Please note the safety and installation The vaporizer can be integrated with the • information from the sauna heater man- heater or mounted as a separate device in ufacturer. the cabin. Make sure to observe the specifications • and instructions of the sauna cabin man- ufacturer.
  • Page 19 ! Attention! Dear customer, according to the valid regulations, the electrical connection of the sauna heater and the control box has to be carried out through the specialist of an authorized electric shop We would like to draw your attention that in case of a warranty claim, you are kindly requested to present a copy of the invoice of the executive electric shop.
  • Page 20: Scope Of Delivery

    Scope of delivery Check the device for completeness upon receipt. The delivery includes: • 1 Power extension unit • 1 Poly bag with 4 rubber cable glands 3 mounting screws 4 cable glands • 1 installation and operation manual, Attention! Fuse links are not included in the scope of delivery Technical data Voltage (power supply): 400 V 3 N AC 50 Hz...
  • Page 21: Installation Instructions

    Power switchgear installation instructions The standard power switchgear supplied is rated at 380-400 V AC (3N) and a maximum switching capacity of 35 A per phase and features a safety shutdown mechanism if installed together with our sauna control units. Only a qualified electrician working for an authorised electric company and taking account of VDE 0100 Part 703 may install and hook up sauna equipment and other electric utilities.
  • Page 22: Installation

    Installation • Mount the power switchgear on a wall of the room the sauna cabin is installed in or of the en- gineering room. • Do not mount this piece of switchgear on a wall of the sauna cabin because switching of the contactors may produce a lot of noise.
  • Page 23: Installation Power Switchgear

    Power switchgear installation The main electronic unit (relay box) may be installed only outside the sauna cabin. The recom- mended places of installation are the outer sauna wall or the engineering room (plant room). If empty ducts for connection cables are already available, then they usually predetermine the in- stallation position..
  • Page 24 2. Use the upper central screw to hang the relay box. Make sure that this screw stands out approx. 3 mm (detail in Fig. 2). Fig. 2 Mind to keep the ventilation distance to the wall Fig. 2.1 3. Hang the housing on the upper central screw in the upper central mounting hole. Insert the supplied rubber cable glands into the openings of the bottom of the housing (from below or from behind, as desired) and then guide the connection cables through these openings.
  • Page 25: Installations Diagram

    (from back) cable gland and feedthrough for: feedthrough strain relief mains, heater, vaporizer supply cable control line (from below) not for LSG 18 LSG 18H / LSG 18 installation diagram Verdampfer Saunaofen Steuergerät vaporizer sauna heater Leistungsschaltgerät control unit évaporateur poêle de sauna...
  • Page 26: Wiring Diagram

    LSG 18 H / LSG 18 wiring diagram Leistungsschaltgerät LSG 18 H entfällt bei LSG 18 Contactor box LSG 18 H not for LSG18 L1 L2 Sicherungen fuse D01 PE PE L1 L2 2x 16 A Wm N Attention! Anschluß...
  • Page 27: Recycling

    2012/19/EU. Do not dispose it with the normal household waste. Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de...
  • Page 28: General Terms And Conditions Of Service

    The manufacturers General Terms and Conditions of Business, which can be found at www.eos-sauna.com/ V. Liability agb, shall apply in addition to the foregoing terms and conditions of service.
