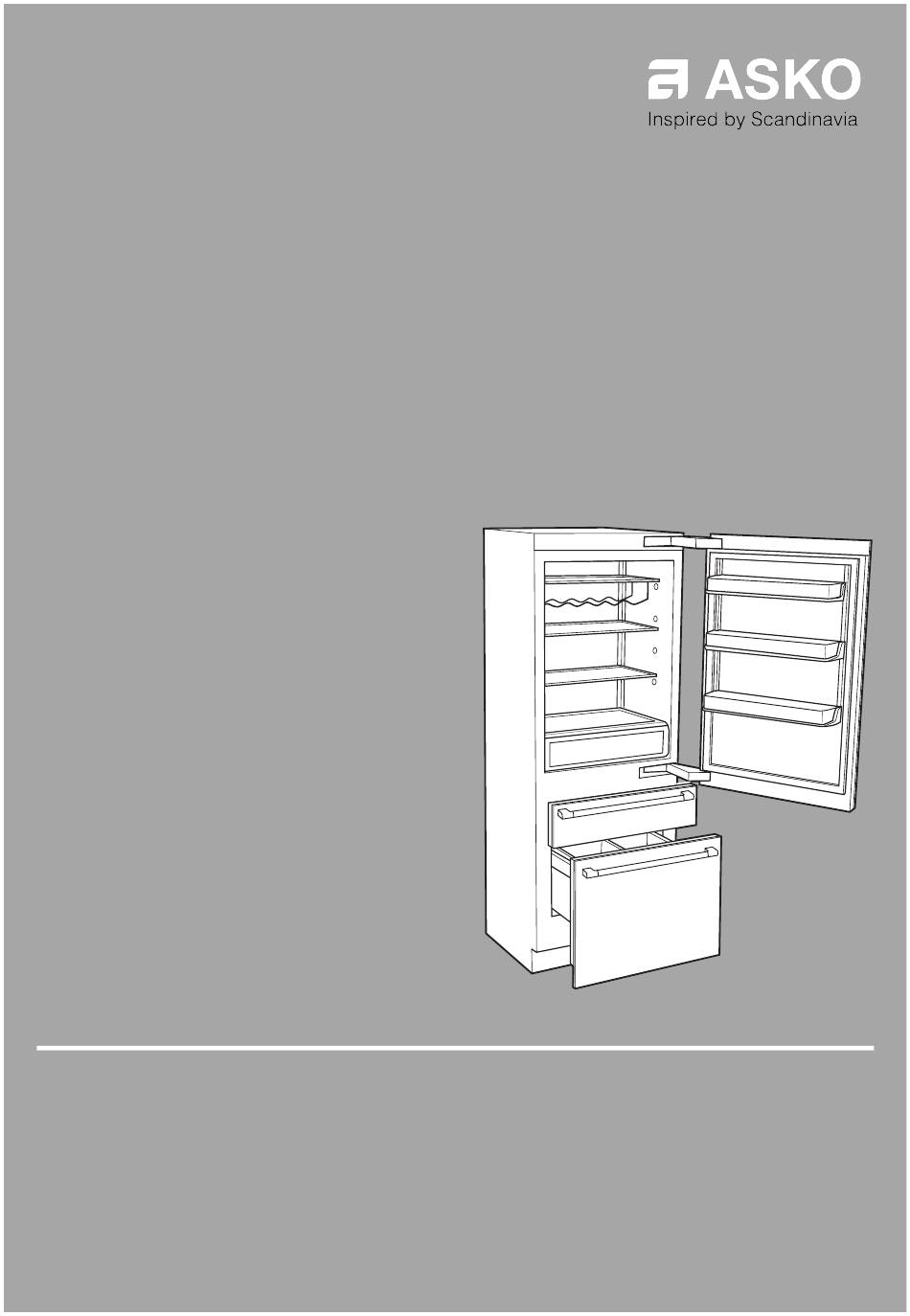

- Page 1 INSTRUCTIONS FOR USE RFN2826S REFRIGERATOR WITH FREEZER EN (GB) (IE)
-
Page 2: Table Of Contents
Contents Introduction ..........LED lighting ..........Dear customer! ..........Accessing the icemaker and freezer Safety instructions ........drawer ............Safety of children and vulnerable people ..Water filter cartridge ........General safety ..........Operating the appliance ......Installation ............ Alarm ............Electrical connection ........ -
Page 3: Introduction
Introduction Dear customer! Congratulations on choosing this Asko refrigerator with freezer. This product is designed with simple operation and optimum comfort in mind. These instructions for use explain how you can make best use of this appliance. These instructions contain information about the operation of the appliance and background information that may be of help to you during its use. -
Page 4: Safety Instructions
Safety instructions Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Safety of children and vulnerable people •... - Page 5 Safety instructions - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications. WARNING! •...
-
Page 6: Installation
Safety instructions Installation WARNING! This appliance should only be connected by a registered installer. • Remove all the packaging. • Do not install or use a damaged appliance. • Obey the installation instruction supplied with the appliance. • WARNING! To avoid any hazard resulting from poor stability of the appliance, make sure it is installed as instructed. -
Page 7: Use
Safety instructions • All electrical connections should be made by a qualified electrician. • Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. • Always use a correctly installed shockproof socket. •... -
Page 8: Care And Cleaning
Safety instructions • Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer. • Be careful not to cause damage to the refrigerant circuit. It contains isobutene (R600a), a natural gas with a high level of environmental compatibility. - Page 9 Safety instructions • Remove the door to prevent children and pets to be closed inside of the appliance. • The refrigerant circuit and the insulation materials of this appliance are ozone friendly. • The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
-
Page 10: Installation And Connection
Installation and connection Selecting the location • Place the appliance in a dry and well aired room. The permitted ambient temperature range for the appliance depends on the appliance's climate class, which is shown on the type plate. • Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc., and do not expose it to direct sunlight. -
Page 11: How To Connect Electricity
Installation and connection How to connect electricity Connect the appliance to the power mains using a connection cable. The wall outlet should be fitted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information on the appliance. The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. -
Page 12: Description Of The Appliance
Description of the appliance A Fresh food section 1. Fresh Food Shelves 2. Wine rack 3. Vegetable bin 4. Fresh Food Door Bins B Freezer Drawer 5. Icemaker C Customizable Drawer Vegetable pan The Vegetable Pan in the fresh-food section of the refrigerator has LED strip lighting above the drawer. -
Page 13: Lighted Vegetable Drawer Shelf
Description of the appliance Lighted vegetable drawer shelf The lighted vegetable drawer shelf provides lighting for the lower compartments. The lights are recessed into the shelf to illuminate the drawers below. A. Lighted Vegetable Drawer Shelf B. LED lights are located under the shelf at the front C. -
Page 14: Door Bins
Description of the appliance To adjust shelves: Tilt the shelf up at the front and slide it up or down along the back wall to the placement you want. Handle glass shelves carefully. Rough handling of tempered glass can cause it to shatter. To remove shelves: NOTE: To remove a shelf, all shelves under it must first be removed. -
Page 15: Customizable Drawer
Description of the appliance Customizable drawer The customizable drawer can be used as a freezer or as a fresh-food refrigerator. To customize your drawer: Press the ZONE indicator on the control pad to select the customizable drawer. Recommended Temperatures for Customizable Drawer: Button Function Temperature... -
Page 16: Water Filter Cartridge
Description of the appliance Water filter cartridge A. Water filter cartridge The water filter cartridge is located below the customizable drawer on the lower-right side of the appliance. To Replace the Filter: While the filter cartridge may last up to 1 year, replacement frenquency will depend on ice usage. -
Page 17: Operating The Appliance
Operating the appliance Fresh Food - Solid Door Unit Upper Drawer - Freezer Lower Drawer - Customizable The temperature display shows the actual temperature of the fresh-food compartment, freezer drawer or customizable drawer when each one is selected by toggling the ZONE indicator. The actual temperature will vary from the set temperature based on factors such as frequency of door openings, amount of food, defrost cycling and room temperature. -
Page 18: Alarm
Operating the appliance Customizable Drawer Temperature Ranges High Freezer -21°C -14°C Chill 1°C 8°C NOTE: Setting the controls to OFF stops cooling, but does not shut off electrical power to the unit . All readings in °C will be rounded. Alarm To turn the Alarm feature on, press and hold the ALARM button for 3 seconds. -
Page 19: Child Control Lockout
Operating the appliance After the icemaker has been turned on again, there will be a delay of about 45 minutes before the icemaker resumes operations. NOTE: In homes with lower-than-average water pressure, you may hear the icemaker water valve cycle on several times when making one batch of ice. WARNING! Icemaker works best between 300 kPa (3 bar inlet water pressure) and 800 kPa (8 bar inlet water pressure) home water pressure. -
Page 20: Storing And Freezing Food
Storing and freezing food Recommended distribution Fresh food section • Upper section: canned food, bread, wine and pastas, etc. • Middle section: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food, etc. • Lower section: meat, meat produce, delicatessen. •... -
Page 21: Storing Fresh Food In The Refrigerator
Storing and freezing food • Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. • Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. -
Page 22: Thawing Frozen Food
Storing and freezing food • Make sure that the food does not thaw during transport. An increase in its temperature will shorten the storage life and harm the quality of the food. Recommended storage times of frozen food in the freezer Type of food Storage life Fruit, beef... -
Page 23: Maintenance
Maintenance Cleaning outside Door handles and trim Clean with a cloth dampened with soapy water. Dry with a soft cloth. Keep the outside clean. Wipe with a clean cloth lightly dampened with mild liquid dish detergent. Dry with a clean, soft cloth. Do not wipe the refrigerator with a soiled dish cloth or wet towel. -
Page 24: Faults Table
Faults table Questions? Use this problem solver! PROBLEM POSSIBLE CAUSE • May be in defrost cycle when refrigerating system does not Refrigerator system does not operate for about 45 minutes. operate • Temperature control in the OFF position. • If interior light is not on, refrigerator may not be plugged in at wall outlet . - Page 25 Faults table Table continued from last page PROBLEM POSSIBLE CAUSE The flow of refrigerant through the freezer cooling coils may make a gurgling sound like boiling water. Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle. You may hear cracking or popping sounds when the refrigerator is first plugged in or during/after the defrost cycle.
- Page 26 Faults table Table continued from last page PROBLEM POSSIBLE CAUSE • Old cubes need to be discarded. Ice cubes have odor/taste • Ice storage bin needs to be emptied and washed. • Unsealed packages in freezer may be transmitting odor/taste to ice cubes.
- Page 27 The instructions for use can also be found on our website: www.asko.com 826969...
