1、Product Overview
SMPA-R1505G PLAYERI is a smart player box that supports Windows and Linux operating systems.
Customers can develop their own under this system. (for detailed configuration, please refer to
the product configuration parameter table of SMPA-R1505G Player box). Customers can use the
player box to provide multimedia content of the display through documents or network

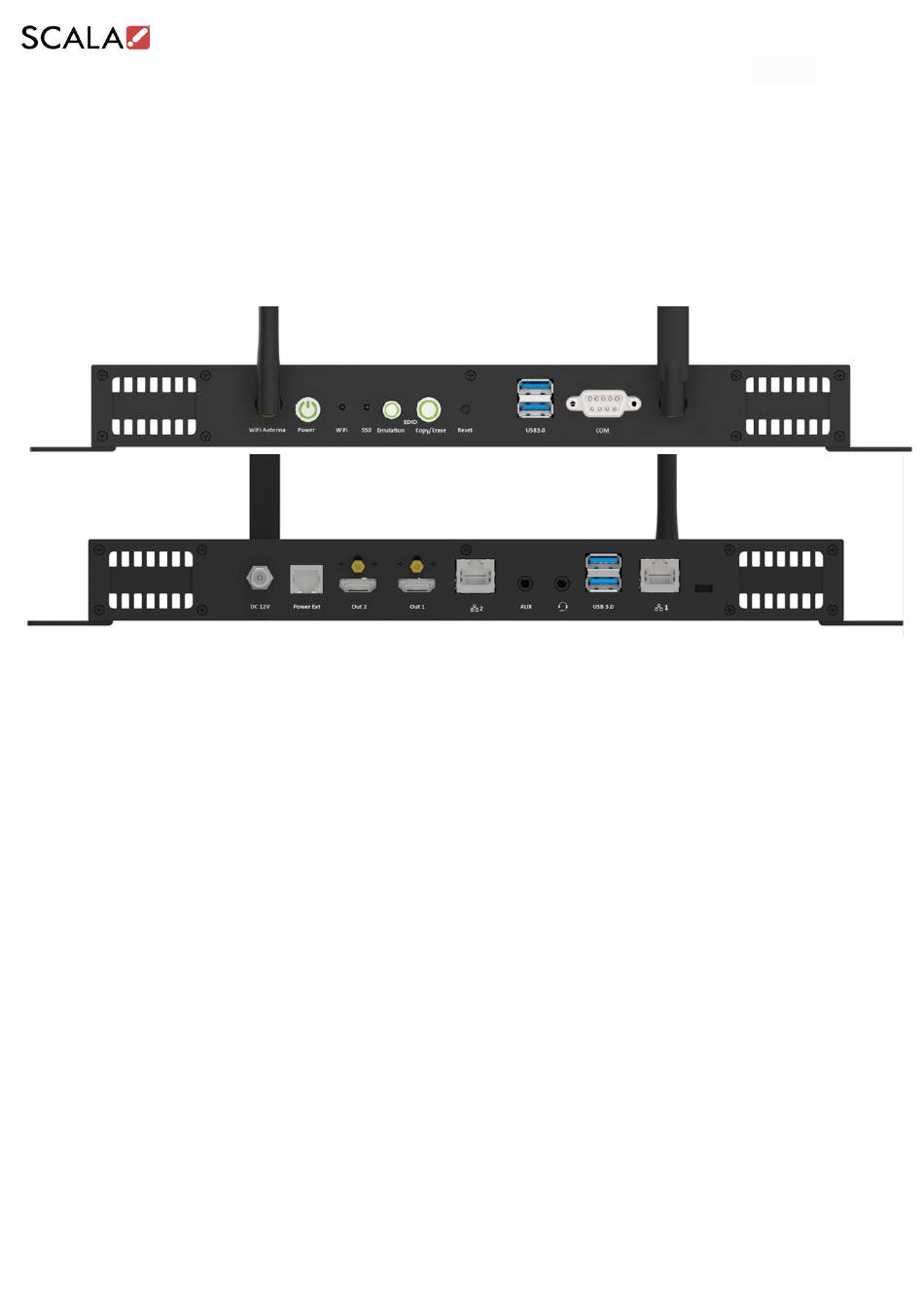

Figure 1、Product interface diagram：
2、Boot up
1）、Connecting power supply
Connect the 12V / 5A power adapter of the accessory to the power socket, connect the DC
anti disconnection connector of the adapter to the DC12V socket of the equipment, and tighten
the nut;
2）、Key switch and status indication
Press the power button to turn on the device, power is always on green. Hold down the power
button for 8 to 10 seconds, the system shuts down and the power is always bright red.
3、Instructions
1）、External display：
The player box HDMI out is connected with the external display HDMI in through the HDMI
cable to realize the display interface output;
The external device can input interface data through the player box HDMI in, and the player
box can synchronously output the display interface from the HDMI out to the external display.
(The HDMI in is option)
Figure 2: display desktop
