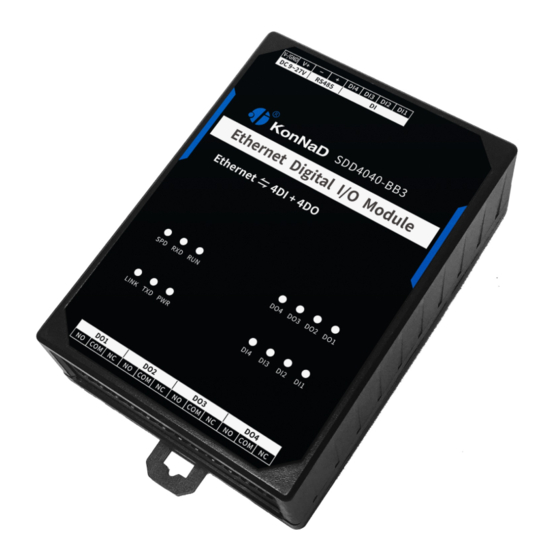

- Page 1 All manuals and user guides at all-guides.com Last updated: 2019-12-13 C2000-A2-SDD4040-BB3 User Manual Ethernet ⇋ 4DI + 4DO Remote I/O Module — Ethernet Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com C2000-A2-SDD4040-BB3 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 All manuals and user guides at all-guides.com C2000-A2-SDD4040-BB3 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
Communication Distance 100m Industrial Protocols Standard Modbus TCP Protocol Protocol Mode Support TCP Server/Client Mode Downstream Serial Serial Standard RS485 Port No. of Ports Connector Terminal block Cascade Connection/Transparent RS485 cascade connection Transmission SinoCon Co., Ltd. www.sinoconsys.com 5 / 12... - Page 6 9~27VDC Current 280mA @ 12VDC Physical Characteristics Dimensions 75*105*30mm Installation Din-rail or wall Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 6 / 12...
-
Page 7: Apprearance
All manuals and user guides at all-guides.com C2000-A2-SDD4040-BB3 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Running indicator Steady on：Device exception Flashing：Flashes every 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. www.sinoconsys.com 8 / 12... -
Page 9: Port Description
Digital output normally close RVV 2*1.0 Ethernet Ethernet RJ45 Ethernet port CAT-5e Downstream Serial 485+ 、 RS485+, RS485- (downward) RVSP 2*1.0 Port 485- Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative SinoCon Co., Ltd. www.sinoconsys.com 9 / 12... -
Page 10: Product Dimensions
All manuals and user guides at all-guides.com C2000-A2-SDD4040-BB3 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 All manuals and user guides at all-guides.com C2000-A2-SDD4040-BB3 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 12 / 12...
