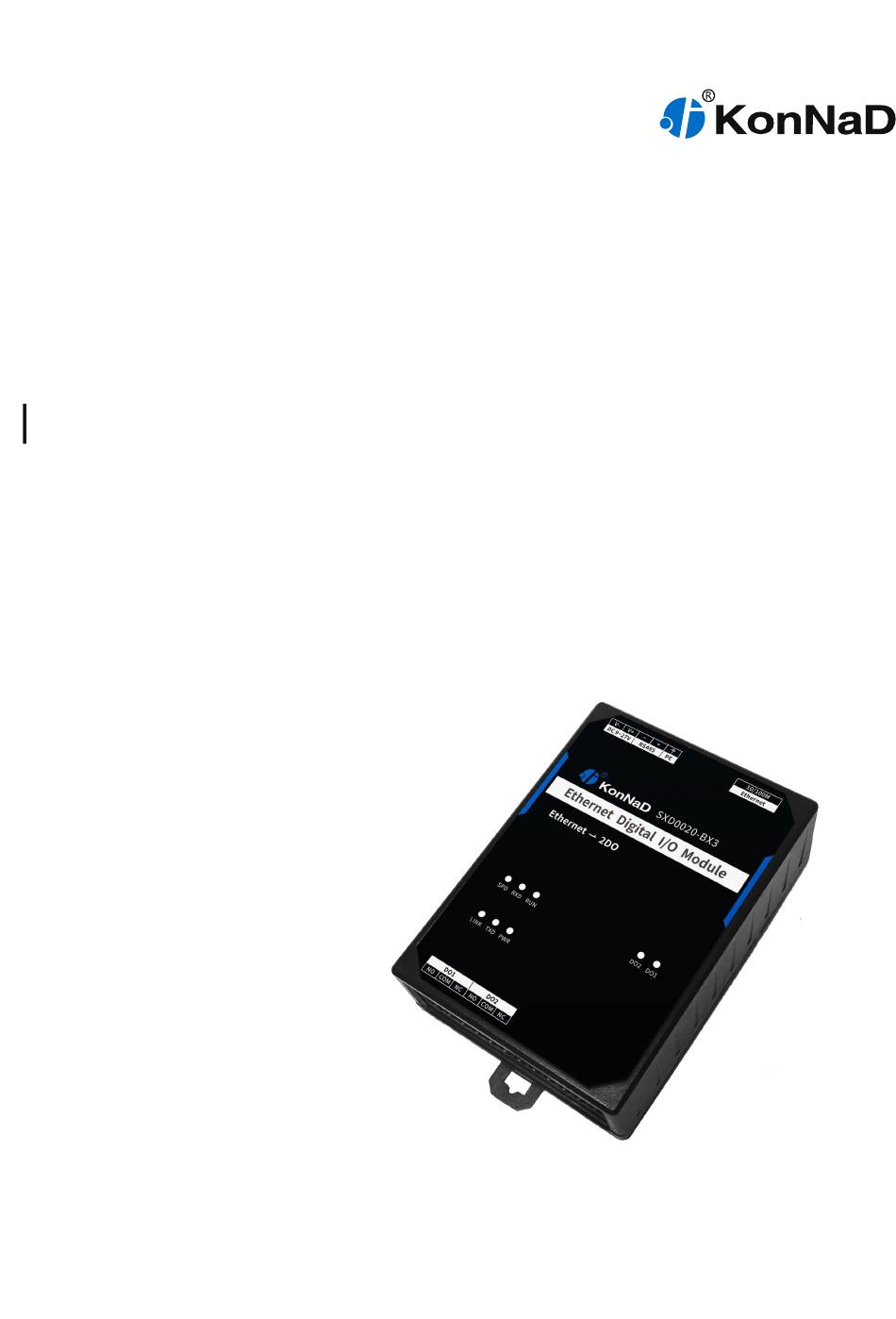

- Page 1 Last updated: 2020-1-10 C2000-A1-SDD1010-AB3 User Manual Ethernet ⇋ 1DI + 1DO Remote I/O Module — Ethernet Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
5.2.6. Wirte Single DI Positive Pulse Count (0x06) 5.2.7. Write DI Level Change Count (0x10) 5.2.8. Read DI Status of Cascading Device (0x02) 5.2.9. Write DO Status of Cascading Device (0x0F) 6. Package Contents 7. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 34... - Page 3 Copyright Notice ©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
-
Page 4: Getting Started
Plug the network cable into the Ethernet port of the device, and the other end of the network cable is plugged into the computer or router. The SPD is steady on, the LINK is flashing, which indicates the device has been properly connected to the network SinoCon Co., Ltd. www.sinoconsys.com 4 / 34... -
Page 5: Software Installation & Device Debug
Double-click on the searched device or select the device and click the Set . Set the "Network parameters" of the device to the same network segment as the computer, set the "mode" to "Server mode", and then click OK . SinoCon Co., Ltd. www.sinoconsys.com... - Page 6 0 is open between COM and NO and the DO indicator will be off. Click on the Pen Icon to control the point value of the device. Note: Refer to Software Tools for more detailed information. SinoCon Co., Ltd. www.sinoconsys.com 6 / 34...
- Page 7 C2000-A1-SDD1010-AB3 User Manual Refer to Registers for information on "Secondary Development". SinoCon Co., Ltd. www.sinoconsys.com 7 / 34...
-
Page 8: Hardware Description
Communication Distance 100m Industrial Protocols Standard Modbus TCP Protocol Protocol Mode Support TCP Server/Client Mode Downstream Serial Serial Standard RS485 Port No. of Ports Connector Terminal block Cascade Connection/Transparent RS485 cascade connection Transmission SinoCon Co., Ltd. www.sinoconsys.com 8 / 34... - Page 9 9~27VDC Current 160mA @ 12VDC Physical Characteristics Dimensions 75*105*30mm Installation Din-rail or wall Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 9 / 34...
-
Page 10: Apprearance
C2000-A1-SDD1010-AB3 User Manual 2.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 10 / 34... -
Page 11: Indicators
Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Running indicator Steady on：Device exception Flashing：Flashes every 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. www.sinoconsys.com 11 / 34... -
Page 12: Port Description
485+ 、 RS485+, RS485- (downward) RVSP 2*1.0 Port 485- Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative Used for reliable grounding of the device, surge RVV 2*0.5 protection SinoCon Co., Ltd. www.sinoconsys.com 12 / 34... -
Page 13: Product Dimensions
C2000-A1-SDD1010-AB3 User Manual 2.5. Product Dimensions unit: mm（inch） 2.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 13 / 34... -
Page 14: Product Features
65535, and then it can be re-counted from 0. Logic level count Indicate the sum of the number of positive/negative pulse changes. The initial value can be written. After writing, SinoCon Co., Ltd. www.sinoconsys.com 14 / 34... -
Page 15: Filter Parameters
When set to manually clear, DI positive/negative pulse count and DI logic level count value will not be cleared every time, and need to be cleared manually. (Manually write the value 0 to clear) SinoCon Co., Ltd. www.sinoconsys.com 15 / 34... -
Page 16: Software Tools
4. Clear Password: Clear password of Ethernet type devices. If you need to clear the password, please contact customer service. 5. Assistant: Help you debug the device, including Network Assistant, Serial Port Assistant, Analog Conversion, Binary Conversion. SinoCon Co., Ltd. www.sinoconsys.com 16 / 34... -
Page 17: Use Software
Double-click the searched device or click the Set to pop up the dialog box to configure the basic parameters of the device (default IP address 10.1.1.10/subnet mask 255.0.0.0/gateway 10.1.1.200), the device parameters are described below: SinoCon Co., Ltd. www.sinoconsys.com 17 / 34... - Page 18 Click Next or Cascading device to enter the "Cascading device" setting item. Here, you can add our RS485 IO device as a cascade device. If you do not need to cascade the RS485 IO device as a cascade device, the settings here can be ignored. SinoCon Co., Ltd. www.sinoconsys.com 18 / 34...
-
Page 19: View Device Status
"Manual", the pulse count will not be clear after each reading (the maximum value is 65535 and then reset to zero), which needs to be manually cleared (manually write value 0 to clear). SinoCon Co., Ltd. www.sinoconsys.com... -
Page 20: Control Device Status
The "Power on state" of DO can be controlled. When "DO1 Mode" is "Level mode", the "DO1 Power-on state" is set to 1. After the device is powered off and powered on, the DO1 indicator will be on. SinoCon Co., Ltd. www.sinoconsys.com... -
Page 21: Remote Settings
Remote Set . Click Remote Set in the upper-left corner of the software, the pop-up dialog box to fill in the device IP address, the port 21678 is the default, you can configure the device parameters. SinoCon Co., Ltd. www.sinoconsys.com 21 / 34... -
Page 22: Protocol
0: specify the IP address 0x03，0x06，0x10 automatically (default), 1: obtain or specify automatically the IP address the IP address Same format as Modbus TCP port 40114 Reserved field Read as 0, write invalid 0x03，0x06，0x10 SinoCon Co., Ltd. www.sinoconsys.com 22 / 34... - Page 23 2 registers with name "1234" and return 0x32 0x31 0x34 0x33 40165 Reserved field Reserved 0x03，0x06，0x10 DO1 status 0: OFF, 1: ON 0x01，0x05，0x0F DO1 power- 0: OFF, 1: ON 0x01，0x05，0x0F on state SinoCon Co., Ltd. www.sinoconsys.com 23 / 34...
-
Page 24: Examples
Modbus Protocol. The Unit ID of the device is fixed as "FF" and the Unit ID of the cascading device is its RS485 address. 5.2.1. Read DO Status (0x01) Take the case of acquisition 1 channel DO as an example. The command is as follows: 0x 000100000006FF0100640001 SinoCon Co., Ltd. www.sinoconsys.com 24 / 34... -
Page 25: Write Do Status (0X0F)
NO are close. Close DO1, the command is as follows: 0x000100000008FF0F006400010101 Command Field Description 0001 Transaction ID 2 Bytes, identification of a Modbus Request/Response transaction 0000 Protocol ID 2 Bytes, 0000 = Modbus protocol SinoCon Co., Ltd. www.sinoconsys.com 25 / 34... -
Page 26: Write Single Do Status (0X05)
0x000100000006FF050064FF00 Command Field Description 0001 Transaction ID 2 Bytes, identification of a Modbus Request/Response transaction 0000 Protocol ID 2 Bytes, 0000 = Modbus protocol 0006 Length Field 2 Bytes, number of following bytes SinoCon Co., Ltd. www.sinoconsys.com 26 / 34... -
Page 27: Read Di Status (0X02)
1 Byte, FF = Master device Function Code 1 Byte, 02 = Read 00C8 Starting Address 2 Bytes, address of the first register 0001 Quantity of Registers 2 Bytes, the number of required registers SinoCon Co., Ltd. www.sinoconsys.com 27 / 34... -
Page 28: Read Di Positive Pulse Active State (0X02)
2 Bytes, the number of required registers Assuming the DI1 channel generates a valid positive pulse, the command returned by the device is as follows: 0x000100000005FF03020001 Command Field Description 0001 Transaction 2 Bytes, identification of a Modbus Request/Response transaction SinoCon Co., Ltd. www.sinoconsys.com 28 / 34... -
Page 29: Wirte Single Di Positive Pulse Count (0X06)
In the response from the device we get: 0x 000100000006FF06012E000F Command Field Description 0001 Transaction ID 2 Bytes, identification of a Modbus Request/Response transaction 0000 Protocol ID 2 Bytes, 0000 = Modbus protocol SinoCon Co., Ltd. www.sinoconsys.com 29 / 34... -
Page 30: Write Di Level Change Count (0X10)
0x 000100000006FF1001300001 Command Field Description 0001 Transaction ID 2 Bytes, identification of a Modbus Request/Response transaction 0000 Protocol ID 2 Bytes, 0000 = Modbus protocol 0006 Length Field 2 Bytes, number of following bytes SinoCon Co., Ltd. www.sinoconsys.com 30 / 34... -
Page 31: Read Di Status Of Cascading Device (0X02)
2 Bytes, number of following bytes Unit ID 1 Byte, 01 = RS485 address of the cascading device Function Code 1 Byte, 02 = Read Starting Address 2 Bytes, address of the first register SinoCon Co., Ltd. www.sinoconsys.com 31 / 34... -
Page 32: Write Do Status Of Cascading Device (0X0F)
1 Byte, 01 = RS485 address of the cascading device Function Code 1 Byte, 0F = Write 0064 Starting Address 2 Bytes, address of the first register 0004 Quantity of Registers 2 Bytes, the number of required registers SinoCon Co., Ltd. www.sinoconsys.com 32 / 34... - Page 33 C2000-A1-SDD1010-AB3 User Manual 6. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 33 / 34...
-
Page 34: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 34 / 34...
