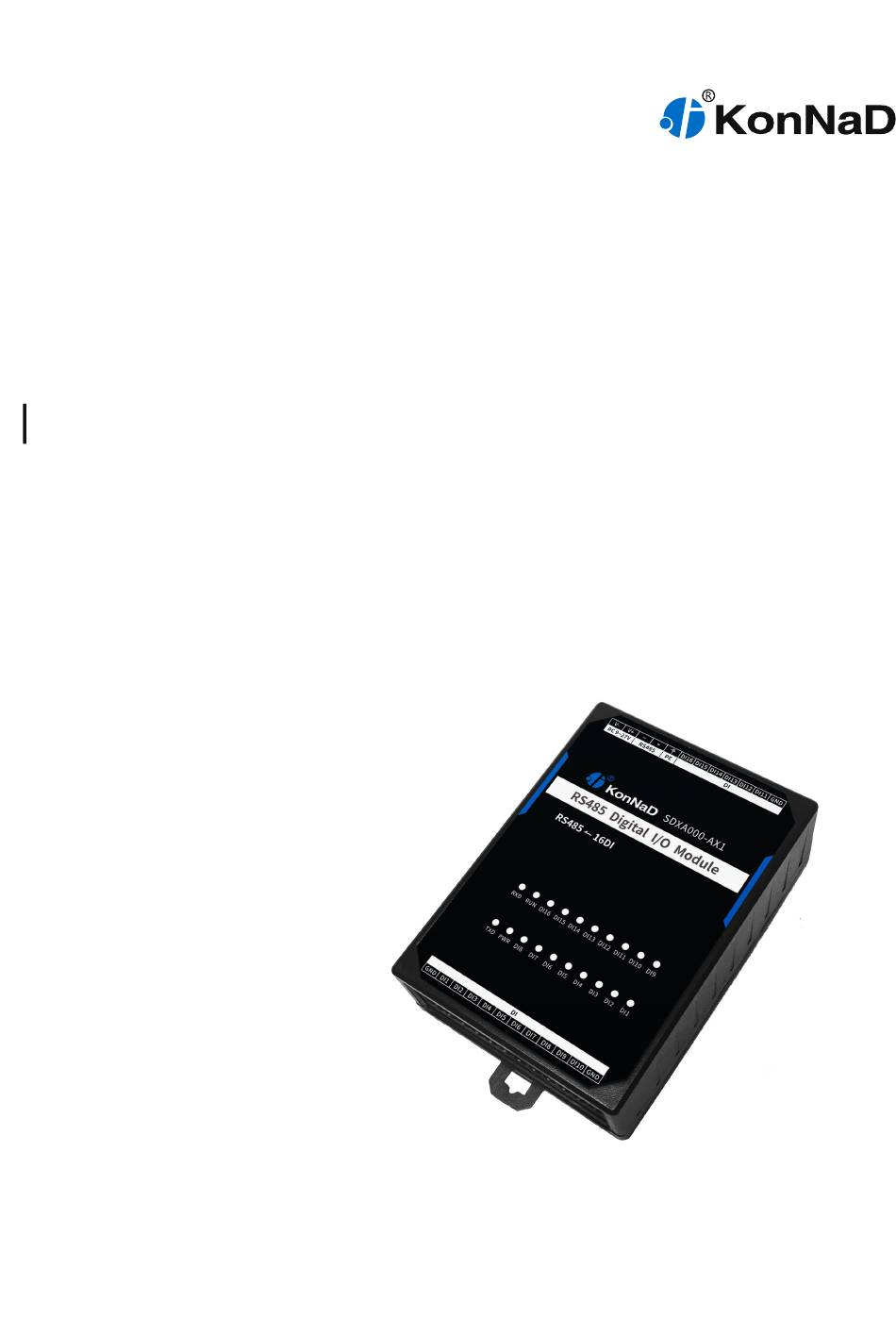

- Page 1 Last updated: 2020-3-27 C2000-A2-SDXA000-AX1 User Manual RS485 ← 16DI Remote I/O Module — RS485 Digital I/O Module SinoCon Co., Ltd.
-
Page 2: Table Of Contents
5.1.1. Baud Rate Code 5.2. Examples 5.2.1. Read DI Status (0x02) 5.2.2. Read DI Filter Parameters (0x03) 5.2.3. Write Single DI Filter Parameters (0x06) 5.2.4. Write DI Filter Parameters (0x0F) 6. Package Contents 7. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 26... - Page 3 Copyright Notice ©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
-
Page 4: Getting Started
• Connect the device to the host computer through RS485 to USB converter, and you can acquire the value of DI Value through the software. Refer to Indicators for the meaning of LED indicators. SinoCon Co., Ltd. www.sinoconsys.com 4 / 26... -
Page 5: Software Installation & Device Debugging
· Address range: range from 1 to 255, default 1 to 10; · Timeout interval (ms): default 200. Click Search to find the device through the port for RS485 to USB. Note: if no device can be found. SinoCon Co., Ltd. www.sinoconsys.com 5 / 26... - Page 6 · DI1 ~ DI16: The value 0 indicates "Open", the value 1 indicates "Short to GND". Use a wire to short the DI1 and GND, you can see that the DI1 indicator is on. As shown below: Note: Refer to Software Tools for more detailed information. Registers Refer to for information on "Secondary Development". SinoCon Co., Ltd. www.sinoconsys.com 6 / 26...
-
Page 7: Hardware Description
9~27VDC Current 80mA @ 12VDC Physical Characteristics Dimensions 75*105*30mm Installation Din-rail or wall Environmental Limits Operating Temperature -40℃ ~ 85℃ Storage Temperature -60℃ ~ 125℃ Ambient Relative Humidity 5% ~ 95% RH, non-condensing SinoCon Co., Ltd. www.sinoconsys.com 7 / 26... -
Page 8: Apprearance
C2000-A2-SDXA000-AX1 User Manual 2.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 8 / 26... -
Page 9: Indicators
Steady on：Normal power supply Off：No power or abnormal power supply, please check if the voltage range is 9~27VDC Running indicator Steady on：Device exception Flashing：Flashes every 1 second when the device is ready Off：Device exception SinoCon Co., Ltd. www.sinoconsys.com 9 / 26... -
Page 10: Port Description
Upstream Serial 485+、 RS485+, RS485- (upstream) RVSP 2*0.5 Port 485- Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative Used for reliable grounding of the device, surge RVV 2*0.5 protection SinoCon Co., Ltd. www.sinoconsys.com 10 / 26... -
Page 11: Product Dimensions
C2000-A2-SDXA000-AX1 User Manual 2.5. Product Dimensions unit: mm（inch） 2.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 11 / 26... -
Page 12: Product Features
When set to manually clear, DI positive/negative pulse count and DI logic level count value will not be cleared every time, and need to be cleared manually. (Manually write the value 0 to clear) SinoCon Co., Ltd. www.sinoconsys.com 12 / 26... -
Page 13: Software Tools
4. Clear Password: Clear password of Ethernet type devices. If you need to clear the password, please contact customer service. 5. Assistant: Help you debug the device, including Network Assistant, Serial Port Assistant, Analog Conversion, Binary Conversion. SinoCon Co., Ltd. www.sinoconsys.com 13 / 26... -
Page 14: Use Software
· Timeout interval (ms): default 200. Click Search to find the device, and select the device found, click Set in the header toolbar or double-click the device found to set parameters for the device. SinoCon Co., Ltd. www.sinoconsys.com 14 / 26... -
Page 15: View Device Status
· Address: The RS485 address for the device ranges from 1 to 255. 4.2.2. View Device Status Click Refresh at the bottom left screen to view the device point value information, as shown below: SinoCon Co., Ltd. www.sinoconsys.com 15 / 26... -
Page 16: Control Device Status
(manually write value 0 to clear). 4.2.3. Control Device Status The software can change the state of the device by changing the point value. SinoCon Co., Ltd. www.sinoconsys.com 16 / 26... - Page 17 C2000-A2-SDXA000-AX1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 17 / 26...
-
Page 18: Protocol
AI parameter Only valid for devices 0x06，0x10 recovery factory with AI channels, mode restore AI configuration parameters after writing. It does not work for other devices without AI channels. 40016 Reserved field Reserved SinoCon Co., Ltd. www.sinoconsys.com 18 / 26... - Page 19 After writing, count from the written value 40248 DI1 ~ Range from 0x0000- 0x03，0x06，0x10 DI16 negative pulse 0xffff, any value can count be written. After writing, count from the written value SinoCon Co., Ltd. www.sinoconsys.com 19 / 26...
-
Page 20: Baud Rate Code
0x5a01, the serial port parameters and name address can be modified within 10s. 5.1.1. Baud Rate Code Value of register Baud rate 0x0000 1200 0x0001 2400 0x0002 4800 0x0003 9600 0x0004 19200 0x0005 38400 0x0006 57600 0x0007 115200 SinoCon Co., Ltd. www.sinoconsys.com 20 / 26... -
Page 21: Examples
5.2.2. Read DI Filter Parameters (0x03) Assume that the RS485 address of the device is 1, take the case of acquisition 16 channels DI filter parameters as an example. The command is as follows: SinoCon Co., Ltd. www.sinoconsys.com 21 / 26... -
Page 22: Write Single Di Filter Parameters (0X06)
Field bytes 00010001000100010001000100010001 Data 4 bits means 1 channel 0001 is 1 00140014001400140014001400140014 0014 is 20(H) 6603 2 Bytes, CRC16 Check Frame ≥ 3.5 chars silence 5.2.3. Write Single DI Filter Parameters (0x06) SinoCon Co., Ltd. www.sinoconsys.com 22 / 26... -
Page 23: Write Di Filter Parameters (0X0F)
Assume that the RS485 address of the device is 1, take the case of writing "1" into DI1-DI8 and "20" into DI9-DI16 as an example. The command is as follows: 0x 0110011800102000010001000100010001000100010001001400140014001400140014001400146827 Command Field Description SinoCon Co., Ltd. www.sinoconsys.com 23 / 26... - Page 24 0118 Starting Address 2 Bytes, address of the first register 0010 Quantity of Registers 2 Bytes, the number of required registers 403E CRC Check 2 Bytes, CRC16 Frame End ≥ 3.5 chars silence SinoCon Co., Ltd. www.sinoconsys.com 24 / 26...
- Page 25 C2000-A2-SDXA000-AX1 User Manual 6. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 25 / 26...
-
Page 26: Warranty Policy
8. Our company's responsibility for the manufacture, sale and use of the products shall not exceed the original cost of the products. The company does not assume any joint responsibility. 9. The right to interpret this clause belongs to the company. SinoCon Co., Ltd. www.sinoconsys.com 26 / 26...
