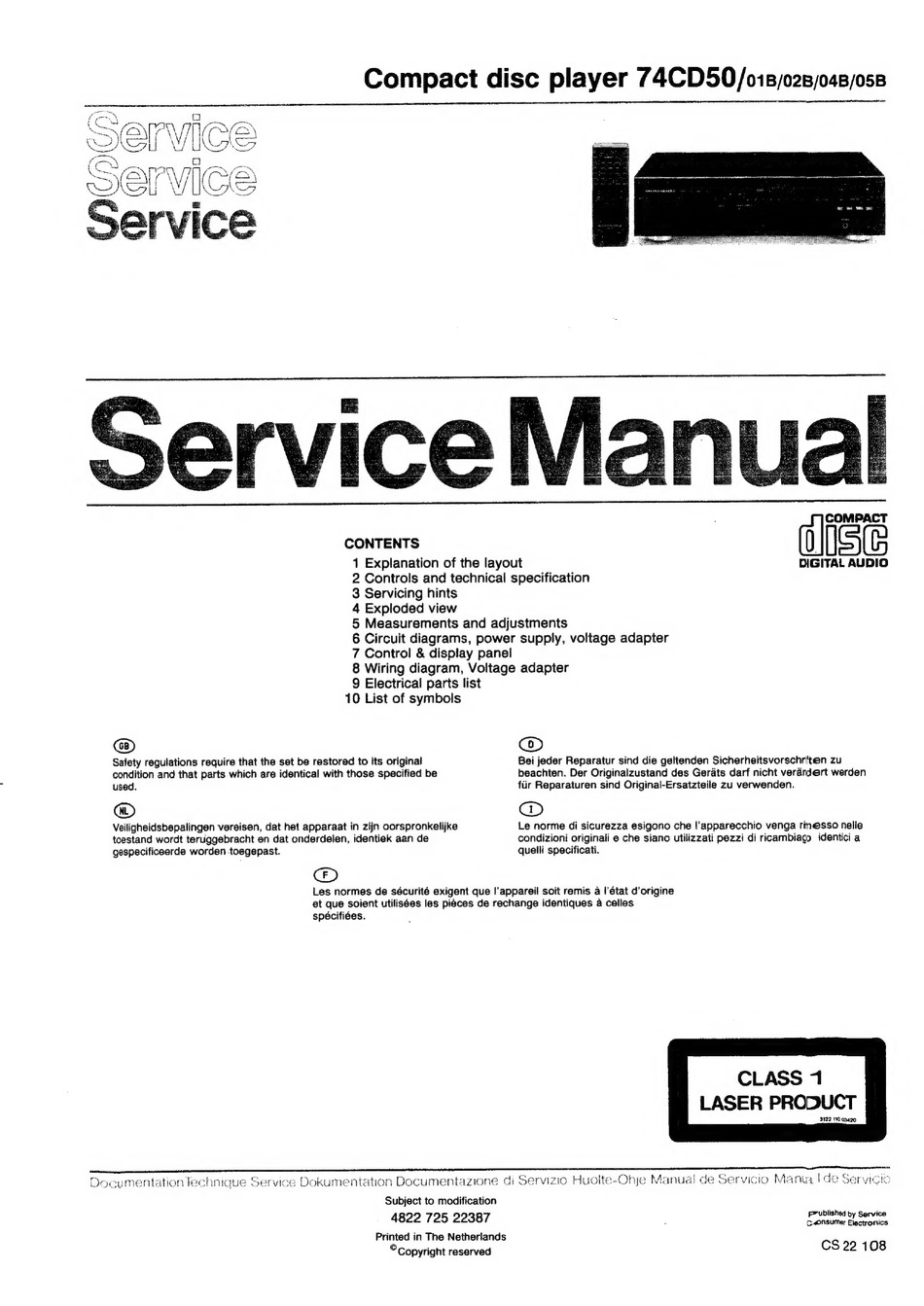

Compact disc player 74CD50/o015/028/048/058
CONTENTS
Ist:
1 Explanation of the layout
DIGITAL AUDIO
2 Controls and technical specification
3 Servicing hints
4 Exploded view
5 Measurements and adjustments
6 Circuit diagrams, power supply, voltage adapter
7 Control & display panel
8 Wiring diagram, Voltage adapter
9 Electrical parts list
10 List of symbols
@
Safety regulations require that the set be restored to its original
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriten zu
condition and that parts which are identical with those specified be
beachten. Der Originalzustand des Gerats darf nicht veraéndert werden
used.
fir Reparaturen sind Original-Ersatzteile zu verwenden.
@®
>)
Veiligheidsbepalingen vereisen, dat het apparaat in zijn oorspronkelijke
Le norme di sicurezza esigono che l''apparecchio venga rinesso nelle
toestand wordt teruggebracht en dat onderdelen, identiek aan de
condizioni originali e che siano utilizzati pezzi di ricambiago
identici a
gespecificeerde worden toegepast.
quelli specificati.
©
Les normes de sécurité exigent que |'appareil soit remis a l'état d'origine
et que soient utilisées les pieces de rechange identiques a celles
spécifiées.
CLASS 11
LASER PRODUCT
3122 110 03420
Documentation lechniaue
Subject to modification
4822 725 22387
Fee by Service
Consumer Electronics
Printed in The Netheriands
©Copyright reserved
CS 22 108
