Summary of Contents for Pelgrim PKS4178K

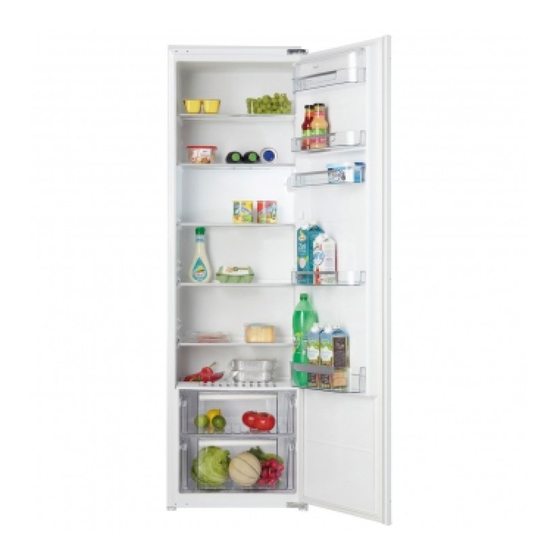

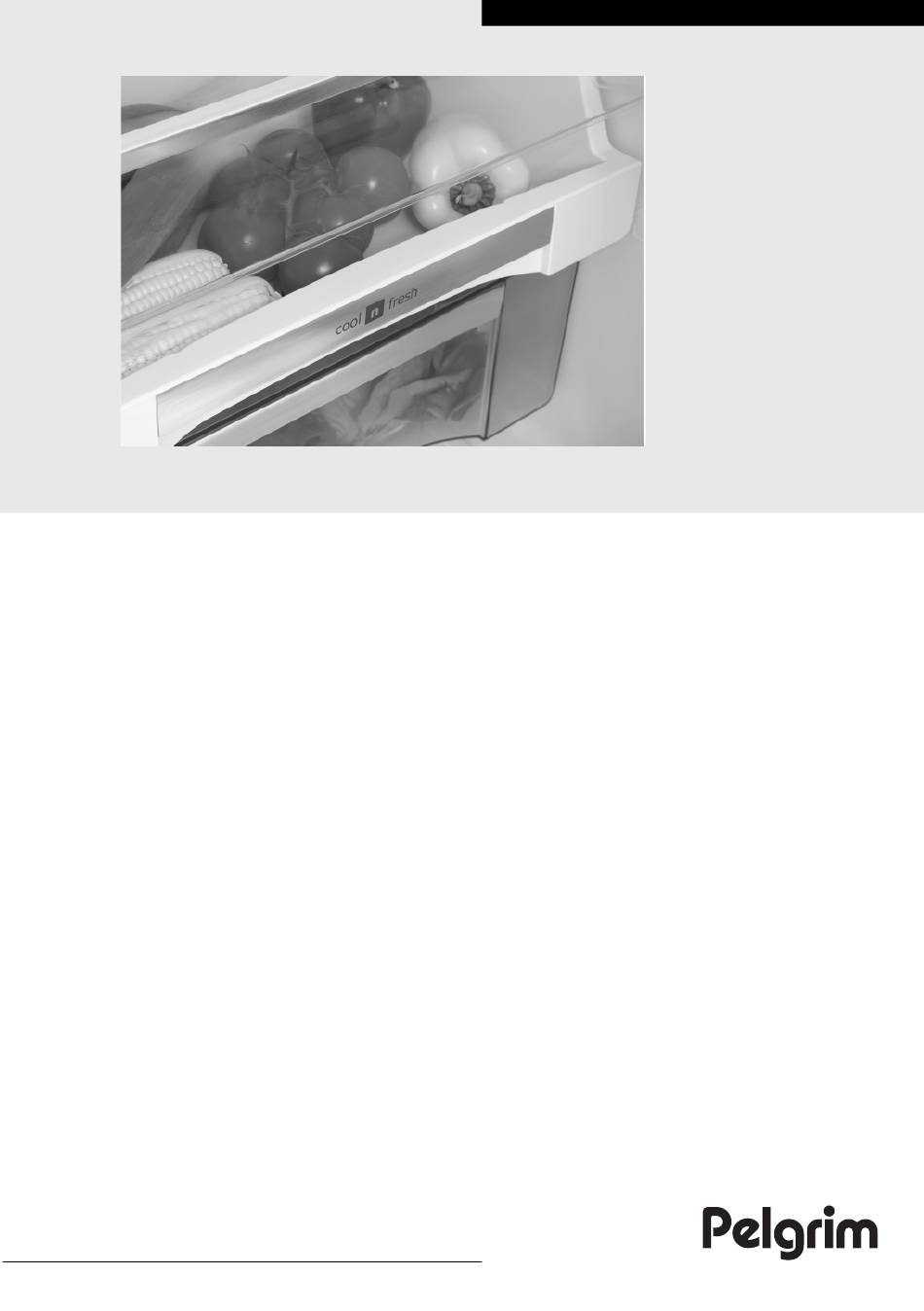

- Page 1 PKS4178K PKS5088K PKD5088K PKS5102K PKD5102K PKS5122K PKD5122K Instructions for use fridge...
-
Page 2: Table Of Contents
Refrigerator Thank you for your confi dence in buying our appliance and congratulations on the excellent choice. We hope it will successfully serve its purpose for many years. The appliance is intended solely for household use. Refrigerator (hereinafter: the appliance) is used in households for storage of fresh food at temperatures above 0°C. -
Page 3: Before Fi Rst Operation
Before fi rst operation • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: A Few Tips On How To Save Power With Your Refrigerator-Freezer Combo
• Warning: To prevent any pollution be careful not to damage the insulation or refrigeration tubes at the rear wall during the installation, cleaning and disposal of the appliance. • Warning: Do not use any electrical devices inside the appliance, except for those explicitly recommended by the manufacturer. -
Page 5: Description Of The Appliance
Description of the appliance Interior equipment of the appliance will typically vary according to the specifi c model. 1 Interior light 5 Storage compartment 2 Control panel 6 Refrigerator door pans (options: deep, 3 Adjustable glass shelves shallow; covered or no cover) 4 Pull-out glass shelf (adjustable height) 7 Door bottle rack... -
Page 6: Installation And Connections
Installation and connections Selecting the location • Place the appliance in dry and well aired room. The appliance operates best at temperature ranges indicated in the chart be- low. Relevant class of the appliance is indicated on the rating plate. Class Ambient temperature SN (subnormal) - Page 7 • The appliance is fi tted with spacers to be mounted on the top edge of the condenser. They prevent the rear of the appliance to be pushed too close to the wall. Spacers are fabricated universally regarding the different distance of the condenser from the cabinet, so make sure to position them properly.
-
Page 8: Changing The Direction Of Opening The Door
Changing the Direction of Opening the Door Freestanding appliance Necessary tools: ring spanner No.8, screwdriver, torque 25 Tilt the appliance so that the bottom hinge can be unscrewed and proceed with disassembling as shown in the Figure 3. Then fi x the assembly parts again in the opposite turn. Use the attached opposite hinge insert piece. -
Page 9: Appliance With Mechanic Control
Appliance with mechanic control A Temperature setting and on/off knob Turning the appliance Turn on: rotate the thermostat knob clockwise towards position 7. on/off Turn off: rotate the knob back to position STOP (0). Setting the temperature • When the environment temperature is normal, a medium setting is recommended. -
Page 10: Refrigerator Accessories
Refrigerator accessories (Equipment depends on the model) Shelf • Shelves can be optionally placed on the guides inside the appliance. To remove the shelf, fi rst slide it out as far as the guide allows it, then slightly lift it up and pull it out. Quickly perishable food should be stored on the back i.e. -
Page 11: Storage Of Food In The Refrigerator
Storage of food in the refrigerator Important precautions • Proper use of the appliance, adequately packed food, correct and hints temperature and hygienic precautions produce substantial impact on the quality of stored food. • Always respect the best before date, printed on the packaging. •... -
Page 12: Defrosting The Appliance
Defrosting the appliance Automatic defrosting of Refrigerator needs no special defrosting procedure, because ice the refrigerator deposited at the inner back wall is defrosted automatically. Ice deposited on the inner back wall during the compressor operation is defrosted when the compressor stops operating, and condensed water drops are drained through the outlet in the inner back wall into the drain pan situated above the compressor where it evaporates. -
Page 13: Cleaning The Appliance
Cleaning the appliance Prior any cleaning attempt disconnect the appliance from the mains (see the control chapter for ON/OFF function), and pull the power cord from the mains wall outlet. Make sure to remove traces of any cleansing agents you had been using. -
Page 14: Troubleshooting Guide
Troubleshooting guide Fault: Cause/Remedy The appliance does not • Check if there is power in the socket and if the appliance is operate after connection to the switched on. mains: Cooling system operates • Ambient temperature too high. continuously without •... -
Page 15: Noise Level
Noise level The refrigerator – freezer appliances are cooled by the refrigeration system with a compressor (assisted by fan in certain models) whose operation may produce certain noise. The level of such noise depends upon the location, correct use and age of the appliance. - Page 16 COOLER 54-2 MEH PEL en (10-14)
