Page 1

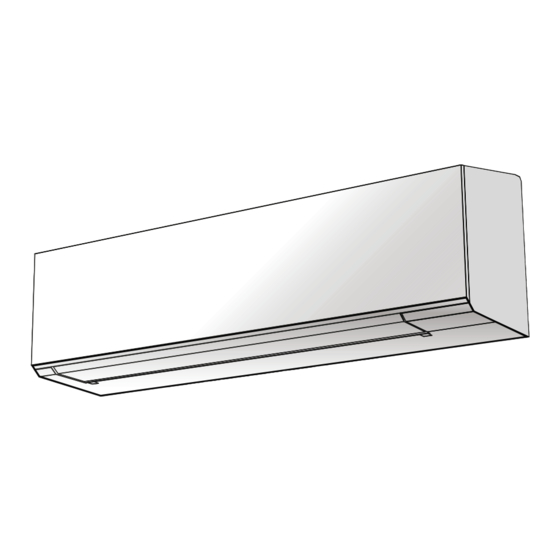

OWNER’S MANUAL ENGLISH ENGLISH AIR CONDITIONER (SPLIT TYPE) For general public use Indoor unit RAS-B07, 10, 13, 16J2KVSG-E Outdoor unit RAS-07, 10, 13, 16J2AVSG-E RAS-10, 13, 16J2AVSG-E1 1118350286-2...
PRECAUTIONS FOR SAFETY Read the precautions in this manual carefully before This appliance is fi lled with R32. operating the unit. Warning indications on the air conditioner unit Warning indication Description CAUTION CAUTION BURST HAZARD BURST HAZARD Open the service valves before the operation, Open the service valves before the operation, otherwise there might be the burst.
Page 3
PRECAUTIONS FOR SAFETY ● This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ●...
INDOOR UNIT DISPLAY COOLING / HEATING / FAN ONLY OPERATION 1 ECO (White) 1. Press : Select Cool , Heat or Fan only 2 Wi-Fi access (White) w 3 Hi-Power (White) 2. Press : Set the desired temperature. Min. 17°C, Max. 30°C, 4 Timer (White) Fan Only: No temperature indication 5 Operation mode...
Page 5
COMFORT SLEEP OPERATION TIMER OPERATION For comfortable sleep, automatically control air fl ow and automatically turn Set the timer when the air conditioner is operating. OFF (Except in DRY mode). Setting the ON Timer Setting the OFF Timer 1. Press : Select 1, 3, 5 or 9 hrs for OFF timer operation.
TEMPORARY OPERATION TROUBLESHOOTING (CHECK POINT) In case of the misplaced or discharged remote control The unit does not operate. Cooling or Heating is abnormally low. ● Pressing the RESET button, the unit can start or ● The power main switch is ●...
Page 7
9. Adding or editing the program. To delete programs The program can be set to perform on all the required The individual program days until is pressed to confi rm the setting. 1. Press 10. If adding or editing a program is required, please ●...
