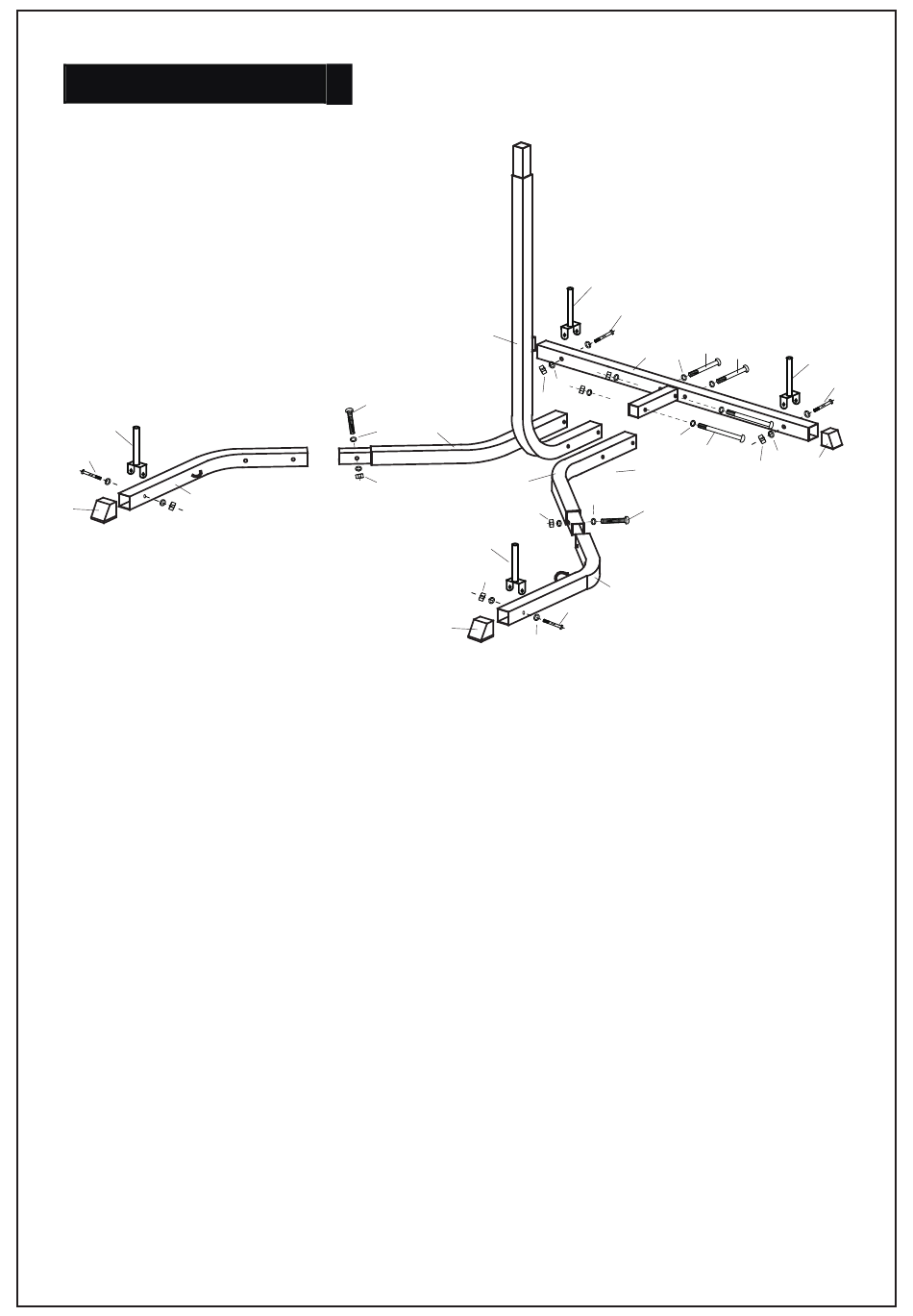

ASSEMBLY DRAWING

Step 1
5
16
1
13
22
Assembly of the base frame
1)Assemble the foot cap (13) to the front base tube(1) and back
base tube (2).
2)Screw together the base pipe (4) and front base tube (1), secured
with M10x60 hex bolt (17-2pc s ), M10 washer (20-4pcs) and M10 Nylon
Nut (22- 2pcs).
3)Screw together the base tube (4) and lower stand tube(3) to the back
base tube (2), secured with M10x150 hex bolt (14-2pcs) , M10x 65 hex
bolt (16-2pcs) , M10 washer (20-6pcs) and M10 nylon nut (22-2pcs).
4)Screw together the weight plate tube (5) to the back base tube (2)
and front base tube (1),
washer (20-8pcs) and M10 nylon nut (22-4pcs).
3
17
20
4
4
22
5
22
13
secured with M10x65 hex bolt (16-4pcs), M10
5
5
16
16
2 20
20
22
20
14
11
20
22 17
1
16
20
16
5
16
20
13
22
