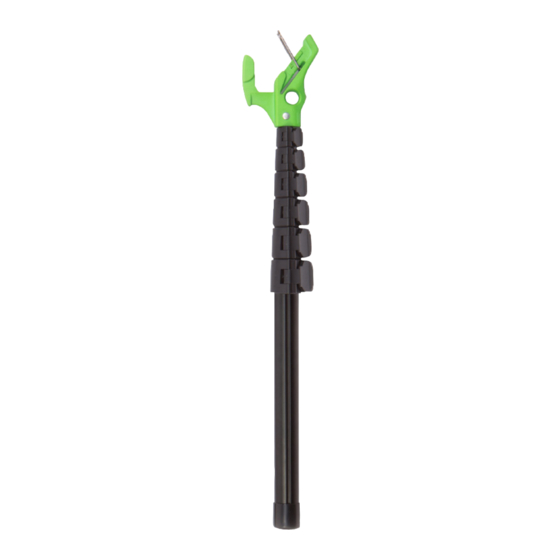

BETA STICK EVO
CLAMP REPAIR INSTRUCTIONS
a
b
DISASSEMBLE COMPONENTS OF BROKEN CLAMP
Open the broken clamp.
1
Slide out the pin holding
the clamp in place, and
remove the clamp.
Turn the Beta Stick over so a small
2
black plastic piece falls out.
This is the friction locking mechanism.
Slide the clamp housing up
3
toward the top of the stick.

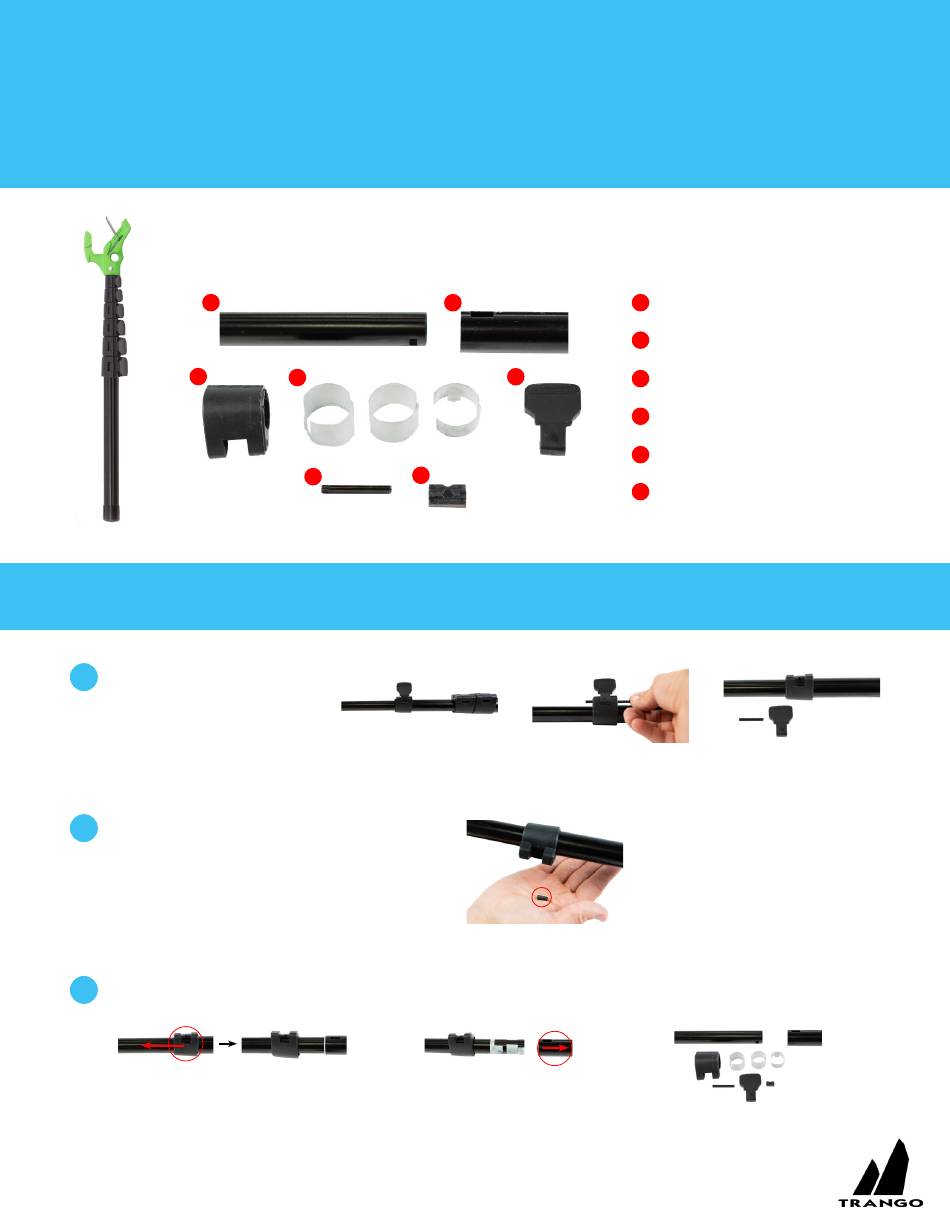

BETA STICK CLAMP COMPONENTS
a
c
e
f
Pull the lower pole
down and apart.
a
Pole segments (2x)
b
Clamp housing
d
c
Plastic clamp sleeves (3x)
d
Clamp
e
Clamp pin
f
Friction locking mechanism
Remove the clamp sleeves
and the clamp housing.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trango BETA STICK EVO
Summary of Contents for Trango BETA STICK EVO
- Page 1 BETA STICK EVO CLAMP REPAIR INSTRUCTIONS BETA STICK CLAMP COMPONENTS Pole segments (2x) Clamp housing Plastic clamp sleeves (3x) Clamp Clamp pin Friction locking mechanism DISASSEMBLE COMPONENTS OF BROKEN CLAMP Open the broken clamp. Slide out the pin holding the clamp in place, and remove the clamp.
- Page 2 REPAIR AND REASSEMBLE CLAMP With all parts and pieces Assemble the plastic clamp sleeves on the smaller separated, put the clamp pole segment. Slide the larger white sleeve on housing on the smaller below the clamp housing. Then slide the second diameter pole segment.
