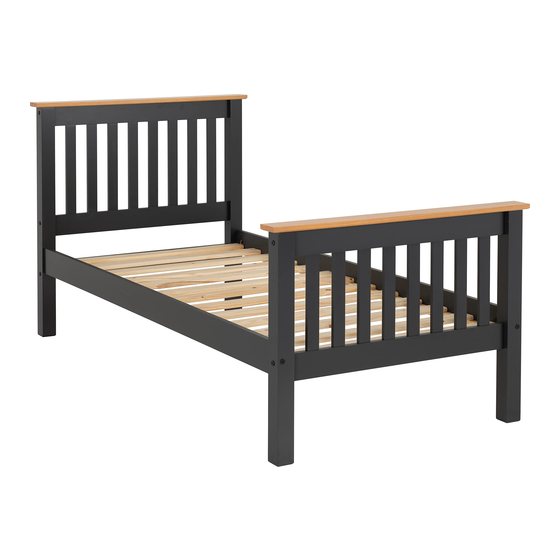

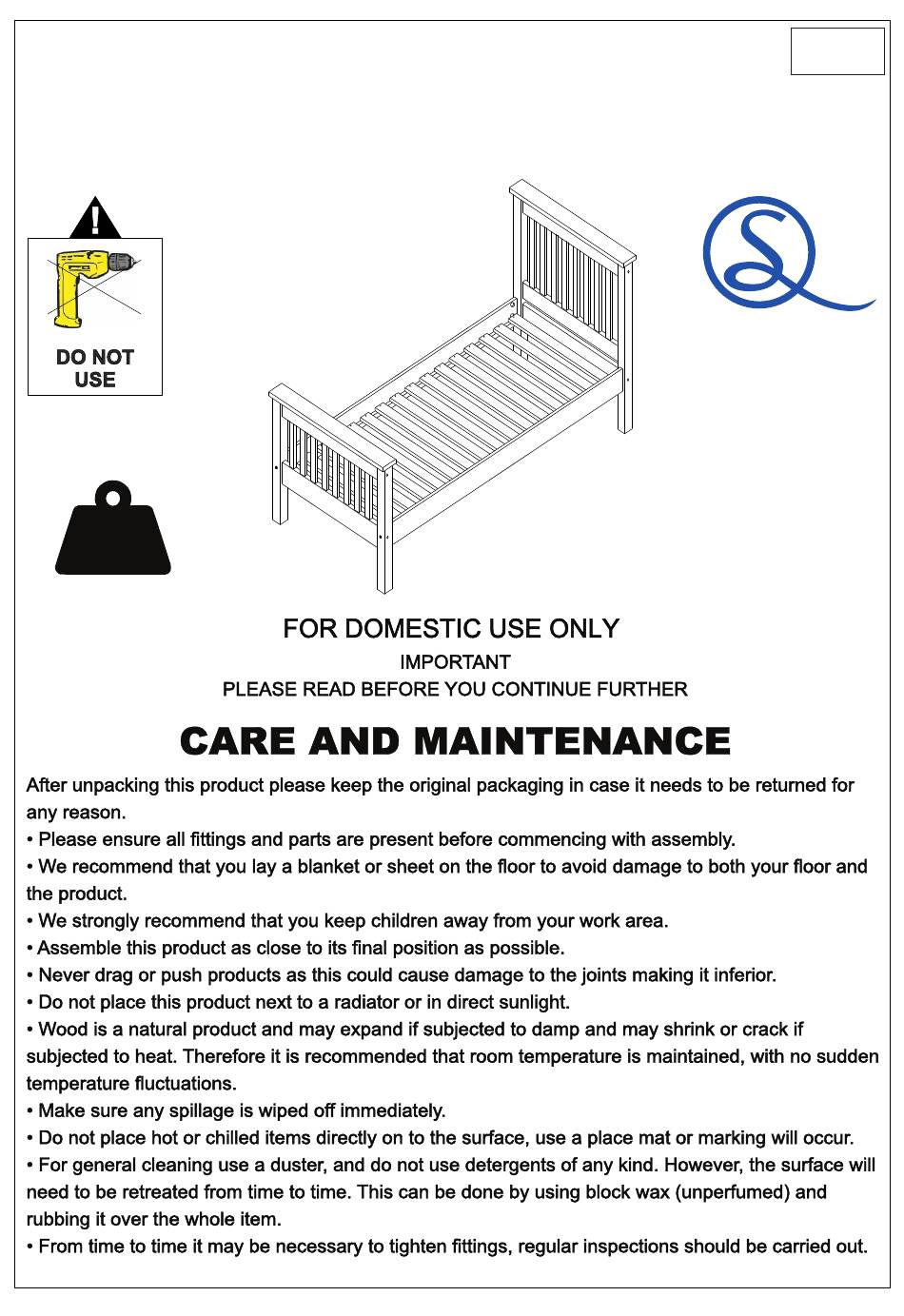

- Page 1 SEC/SW/05/21/DC2 GREY / OAK EFFECT 55531 MONACO 3' HIGH END BED ASSEMBLY INSTRUCTIONS 100KG MAX WEIGHT Page 01...
-
Page 2: Parts List
SEC/SW/05/21/DC2 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage. -
Page 3: Tools Required
SEC/SW/05/21/DC2 FITTINGS Ø8 x 50mm Ø4,0 x 30mm 17mm SPACER 87mm Ø3,5 x 30mm Ø7 x 100mm 17mm TOOLS REQUIRED Page 03... - Page 4 SEC/SW/05/21/DC2 STEP 1 PARTS REQUIRED SIDERAIL HEADBOARD CROSSBEAM HARDWARE REQUIRED Ø8 x 50mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 2 PARTS REQUIRED HEADBOARD PANEL FOOTBOARD PANEL HARDWARE REQUIRED Ø8 x 50mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
- Page 5 SEC/SW/05/21/DC2 STEP 3 PARTS REQUIRED HEADBOARD PANEL Ø7 x 100mm HEADBOARD RIGHT POST (NATURAL) HEADBOARD LEFT POST (GREEN) HEADBOARD CROSSBEAM HARDWARE REQUIRED NATURAL Ø7 x 100mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 4 PARTS REQUIRED FOOTBOARD RIGHT POST (NATURAL) Ø7 x 100mm...
- Page 6 SEC/SW/05/21/DC2 STEP 5 PARTS REQUIRED SIDERAIL Ø7 x 100mm NATURAL NATURAL HARDWARE REQUIRED TOOLS REQUIRED STEP 6 PARTS REQUIRED TOP PLINTH HARDWARE REQUIRED Ø3,5 x 30mm TOOLS REQUIRED Page 06...
- Page 7 SEC/SW/05/21/DC2 STEP 7 PARTS REQUIRED SLATS HARDWARE REQUIRED Ø4,0 x 30mm SPACER 87mm TOOLS REQUIRED STEP 8 PARTS REQUIRED HARDWARE REQUIRED TOOLS REQUIRED 100KG MAX WEIGHT Page 07...
