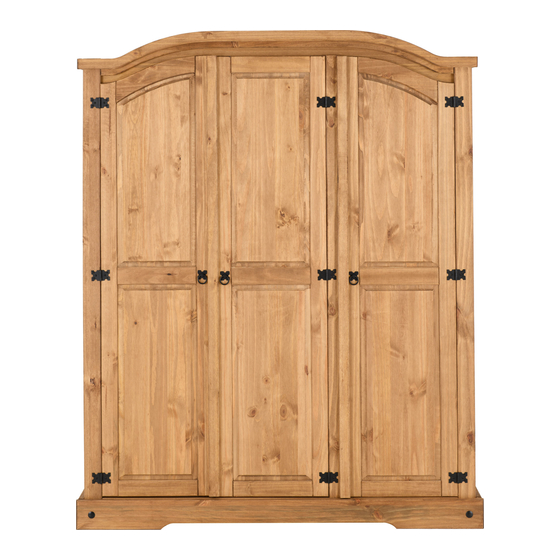

Seconique CORONA 3 DOOR WARDROBE Assembly Instructions Manual
Hide thumbs Also See for CORONA 3 DOOR WARDROBE:

Advertisement

Quick Links

SEC/SY/08/23/MY1
CORONA 3 DOOR WARDROBE
ASSEMBLY INSTRUCTIONS
IMPORTANT
PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the CORONA 3 DOOR WARDROBE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seconique CORONA 3 DOOR WARDROBE

  • Page 1 SEC/SY/08/23/MY1 CORONA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER FOR DOMESTIC USE ONLY CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
  • Page 2 SEC/SY/08/23/MY1 Part Number Part Code Part Description Quantity Carton S100-101-023-MY1-01 Top Panel S100-101-023-MY1-02 Right Side Panel S100-101-023-MY1-03 Le Side Panel S100-101-023-MY1-04 Base S100-101-023-MY1-05 Centre Panel S100-101-023-MY1-06 Large Shelf Fixed S100-101-023-MY1-07 Le Front Upright S100-101-023-MY1-08 Right Front Upright S100-101-023-MY1-09 Centre Front Upright S100-101-023-MY1-10 Top Back Plinth S100-101-023-MY1-11...
  • Page 3: Tools Required

    SEC/SY/08/23/MY1 FITTINGS FITTINGS Ø 4,5 x 30mm Ø 8 x 30mm Ø 3,5 x 30mm Ø 4,5 x 25mm 10 x 10 Ø 4,0 x 45mm Ø 8 x 40mm Ø 3,5 x 16mm Ø 4,0 x 20mm TOOLS REQUIRED * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly.
  • Page 4 SEC/SY/08/23/MY1 STEP 1 PARTS REQUIRED TOP PANEL 01 - 06 - LARGE SHELF FIXED 10 - TOP BACK PLINTH 28 - SMALL FIXED SHELF HARDWARE REQUIRED Ø 8 x 30mm Ø 8 x 40mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
  • Page 5 SEC/SY/08/23/MY1 STEP 3 PARTS REQUIRED 02 - RIGHT SIDE PANEL 03 - LEFT SIDE PANEL 12 - HANGING RAIL SUPPORT HARDWARE REQUIRED Ø 8 x 30mm Ø 3,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 4 PARTS REQUIRED CENTRE PANEL...
  • Page 6 SEC/SY/08/23/MY1 STEP 5 PARTS REQUIRED 05 - CENTRE PANEL 09 - CENTRE FRONT UPRIGHT HARDWARE REQUIRED Ø 3,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 6 PARTS REQUIRED RIGHT SIDE PANEL RIGHT FRONT UPRIGHT TOP SIDE PLINTH BOTTOM SIDE PLINTH HARDWARE REQUIRED...
  • Page 7 SEC/SY/08/23/MY1 STEP 7 PARTS REQUIRED LEFT SIDE PANEL LEFT FRONT UPRIGHT TOP SIDE PLINTH BOTTOM SIDE PLINTH HARDWARE REQUIRED Ø 4,5 x 30mm Ø 3,5 x 30mm Ø 4,5 x 25mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
  • Page 8 SEC/SY/08/23/MY1 STEP 9 PARTS REQUIRED 04 - BASE 06 - LARGE SHELF FIXED HARDWARE REQUIRED Ø 4,5 x 30mm Ø 4,0 x 45mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 10 PARTS REQUIRED 01 - TOP PANEL 28 - SMALL FIXED SHELF...
  • Page 9 SEC/SY/08/23/MY1 STEP 11 PARTS REQUIRED 02 - RIGHT SIDE PANEL 03 - LEFT SIDE PANEL HARDWARE REQUIRED Ø 4,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 12 PARTS REQUIRED BOTTOM FRONT PLINTH HARDWARE REQUIRED Ø...
  • Page 10 SEC/SY/08/23/MY1 STEP 13 PARTS REQUIRED HARDWARE REQUIRED Ø 4,5 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 14 PARTS REQUIRED HANGING RAIL ADJUSTABLE SHELF HARDWARE REQUIRED TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
  • Page 11 SEC/SY/08/23/MY1 STEP 15 For your future reference order number should be here PARTS REQUIRED SMALL BACK PANEL LARGE BACK PANEL BACK STRUT (BOTTOM) BACK STRUT (UPPER) HARDWARE REQUIRED 10 x 10 TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage.
  • Page 12 SEC/SY/08/23/MY1 STEP 17 PARTS REQUIRED 14 - DOOR STRIP 22 - LEFT DOOR HARDWARE REQUIRED Ø 3,5 x 16mm Ø 4,0 x 20mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 18 PARTS REQUIRED 23 - CENTRE DOOR HARDWARE REQUIRED Ø...
  • Page 13 SEC/SY/08/23/MY1 STEP 19 PARTS REQUIRED 14 - DOOR STRIP 24 - RIGHT DOOR HARDWARE REQUIRED Ø 3,5 x 16mm Ø 4,0 x 20mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 20 PARTS REQUIRED LEFT DOOR CENTRE DOOR RIGHT DOOR HARDWARE REQUIRED...
  • Page 14: Parts Required

    SEC/SY/08/23/MY1 STEP 21 Serious or fatal injuries can occur from furniture tipping PARTS REQUIRED recommend that it is permanently fixed to the wall. Wall fixings are not supplied with this product as different wall materials require different types of fixing devices. Please make sure you use fixings suitable for the walls in your home.
