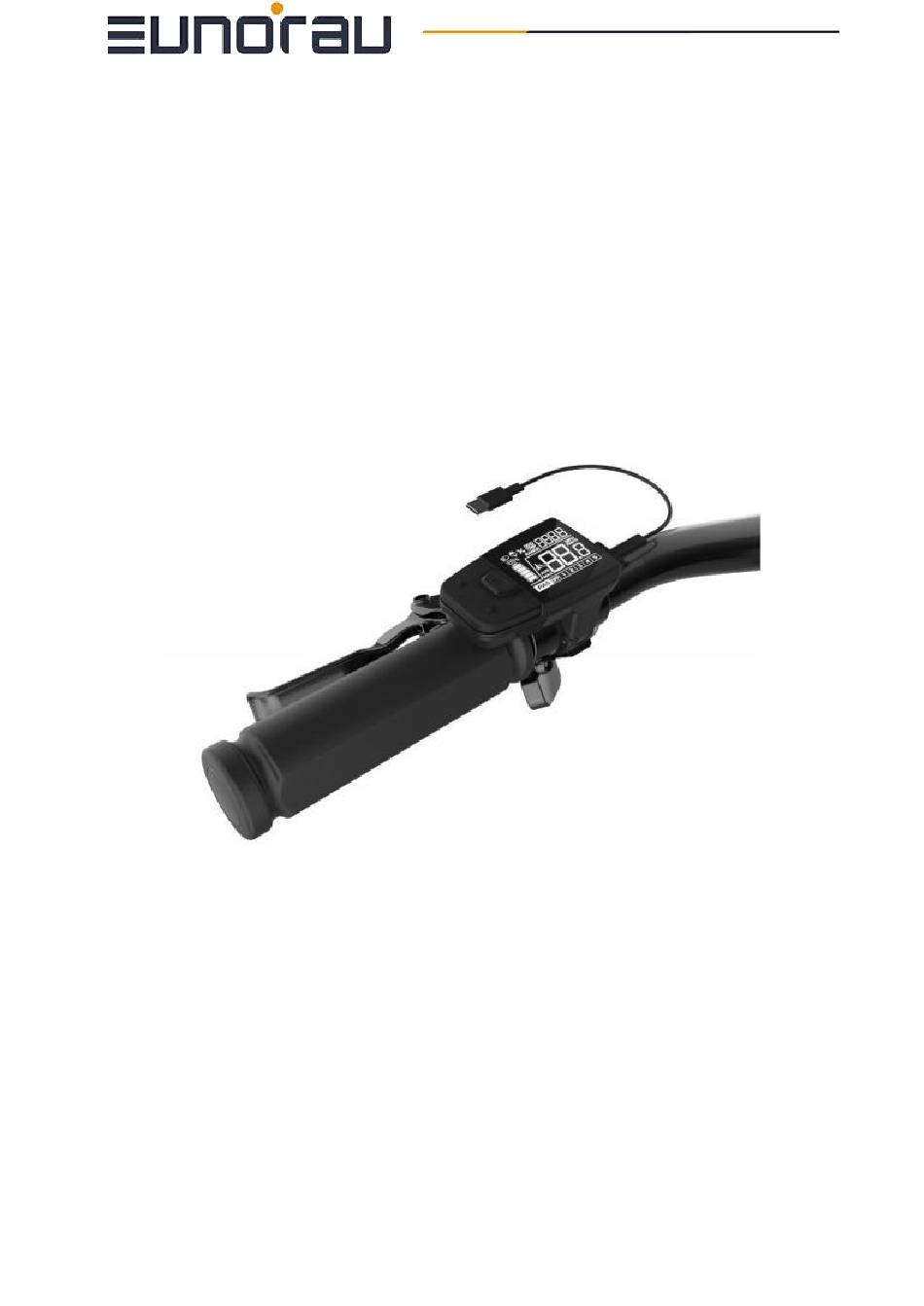

A. Product introduction 1. Product name and model LCD display for electric power assist bikes Model: DM01 2. Product Introduction IMD craft,2.5D chamfer, 4H extra hard glass screen B/W contrast, 1.3-inch VA segment LCD Integrated one-piece button, perfect hand feeling...
68.5mm 41.3mm 42mm 5. Display coding rules As shown as above picture, Production serial number Manufacture year and week number Manufacture factory code, M1, M2, M3 Hardware version number, C-CAN, U-UART, last 2 numbers means version(may omit) Product model...
A08.01-36V2570XX Parameter character value (reserved) Parameter character value (wheel size value, 700C=70, 27.5=27) Parameter character value(speed limit information, range from 04 to 46 arameter character value voltage , 24/36/43/48/52 , can be expanded Customer software version number ) (may omit) Customer code B.
④ Speed display: Real-time speed,maximum speed,average speed ⑤ Battery power indicate in percentage and levels. ⑥ Endurance mileage indicate ⑦ Headlight on/off status indication and control ⑧ Mileage indicate: Subtotal mileage (TRIP), total mileage (ODO) ⑨ 6km/h walk assist function ⑩...
Boot interface, after turn on the display for 2 seconds, all segments of the display are on. After communication build, display gets the assist level information, TRIP/ODO information and so on. Show the real-time information from controller.(information can be customized). 4.2 Basic interface and operation Light indicate Diagnosis tool connection...
4.3 Function interface introduction Boot interface and basic function interface After display turn on, the segments will all turned on for 2 seconds, display communicate normally and enter the basic function interface. Display get the assist level information from controller and get BMS information from battery. Others are real-time information.
Page 10
Maximum value is 9999KM. When the value exceed 9999KM, keep the last 4 numbers. ODO value will need service tool to do the clearance. ODO miles doesn’t show unit. The unit mode is the same as the speed, and can be set in the system unit setting. Endurance mileage indicate Display reads the endurance mileage information from controller and show after icon on the top.
Error code indicate Display show the icon according to the information get from the system. And show Detailed error code in the function area and blink in 1Hz. When the error code indicated, display will not show ODO ,TRIP ,RANGE icon and other functions are normal. Motor will act according to the error information.
Page 12
Unit setting interface Backlight level setting Sleep time setting interface interface Unit setting interface Speed limit setting interface Wheel size setting interface The interface of the settings above check part 7 for the operation for the setting function operation.
5. Button Definition 5.1 Button name: Power button Adjust up mode Adjust down Walk mode Power button: Turn on/off the display Adjust button: adjust the assist power level while riding and setting function when setting operation. Mode button: function interface switch and enter to parameter setting interface. Walk mode button: activate the walk assist function 5.2 Definition of button operation: Operatio...
6. Basic function operation 6.1 Turn on/off the display When the display and controller connected well, long press button when display is off, display will show boot interface then enter the basic interface and work. Long press button when display is on, then display will be turned off. If no operation on the display for the time setting exceed the sleep time, display speed is 0, and current to display lower than 1A, display will be turned off automatically.
Page 15
*if the system without the RANGE information from BMS, display will not put the RANGE on the screen.
6.4 Light control function When the ebike is on with battery, long press button to turn on the front light, at the same time, the light icon show on the screen to indicate light on status. Long press button to turn the lights off.
6.7 Battery power indicate and the assist power output Battery power information show the battery level and percentage. The battery are 5 levels according to the battery capacity. When the battery capacity is lower than 5% or the voltage is lower than under voltage, display will enter under voltage mode.
4. When the voltage is lower than the under voltage(considering the current influence the voltage, change to the voltage value when the current is 0). Before communicate build after turn on the display, display will not show battery percentage information. Battery bar show full level and blink at 2Hz. When the battery information read, battery bar stop blink and show the percentage information.
Page 20
Value= 3 back light level 100% Auto Value=0-30 Step=5 min SLP= Auto sleep shutdow 0 means display n time will not auto shutdown Value= 12, Default value=26; 14,16, *when Wheel size DIA=Wheel 20,24, setting value=CCF, diameter 26,27, customer can 27.5,28 enter wheel ,...
Page 21
short press M to switch to next data, long press M to confirm the data of each digit. During the switch, the 4 digit on the screen’s right up corner blink from the thousandths field at 2Hz. After wheel data entered and confirmed, long press M to exit the setting and back to the up level interface.
Reference table for the corresponding circumference value of common wheel diameter: 8. Data clearance When display is on and show TRIP interface, long press M button to clear the TRIP information, after long-press M the icon blinked in 1Hz, if you short press M during 30s, the data be cleaned.
9. Error information Display can warn the bike faults and show error codes on the interface when faults are detected. Detailed error code show on the function area and blink at 1Hz. When error code shown, display will not show ODO,TRIP,RANGE icon, other functions show normally. User press M button in error status, display can show ODO,TRIP,RANGE icon and data.
The standard outlet of the display DM05 is in the form of a designated waterproof connector. The standard outlet needs to match the corresponding conversion wire. Eunorau has set a corresponding standard for conversion wire length and interface standards. If the standard setting cannot be met, specially customized conversion wires are required.
D. Note In the use of the display, pay attention to the security, do not plug the display in and out when the power is on; Try to avoid exposure in harsh environments like heavy rain, heavy snow, and strong sunlight When the display can’t be used normally, it should be sent to repair as soon as possible...
