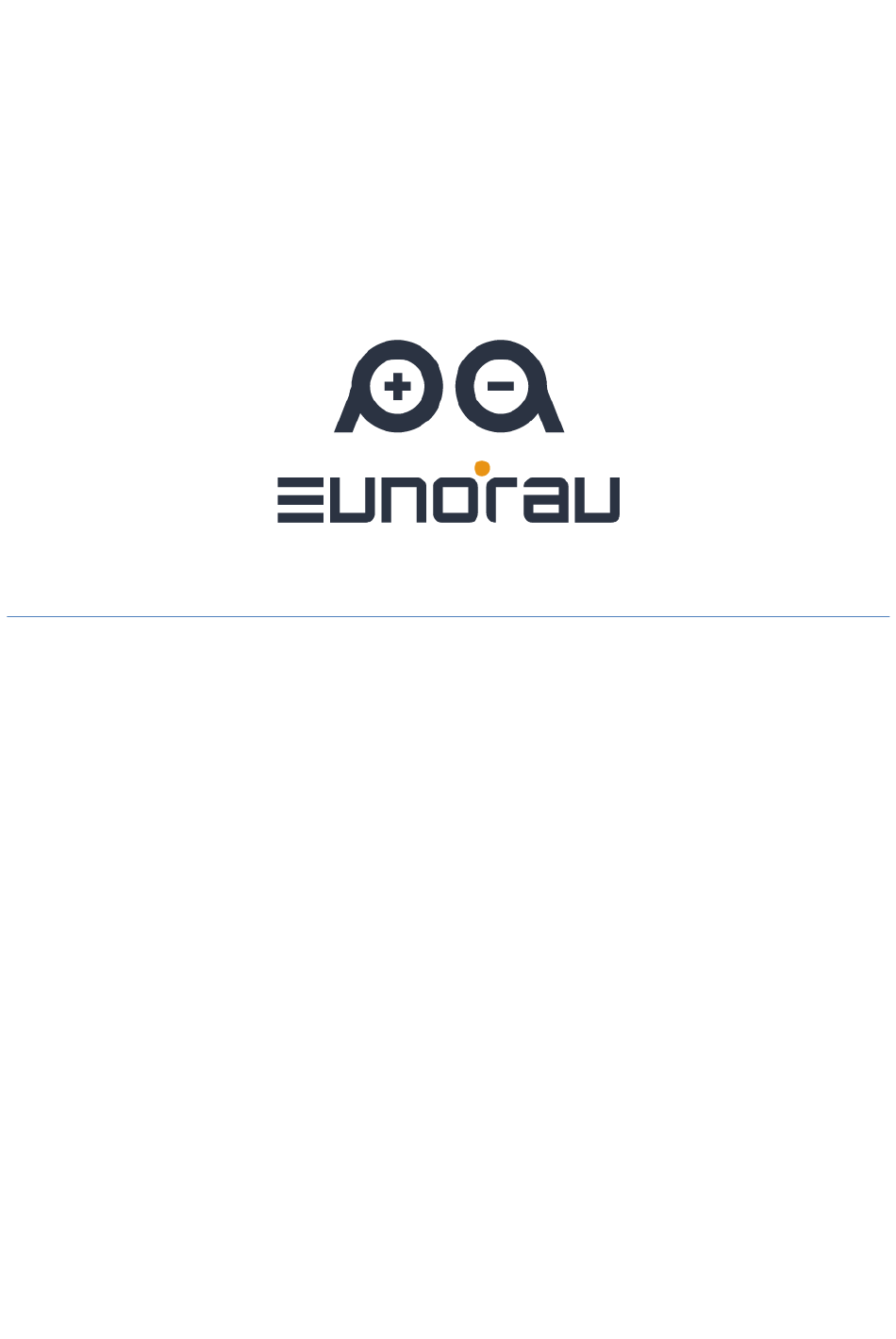

  • Page 1 CDE8 specification Eunorau E-Mobility USA Corp Preface...
  • Page 2 Eunorau E-Mobility USA Corp To ensure better performance of your e-bike, please read through the CDE8 inspection carefully before using it. We will inform you of all the details, including the installation and setting of the hardware and normal use of the display with the most concise words.

  • Page 3: Table Of Contents

    Eunorau E-Mobility USA Corp Contents 1. Product introduction ..................3 2. Function introduction ..................4 3. Button definition ....................4 4. Operating instruction ..................5 a.Power on/off ......................5 b. Level to adjust ....................5 c. Turn on/off light ....................5 d. Implement function....................5 e. Battery power indication ..................5 5.

  • Page 4: Product Introduction

    Eunorau E-Mobility USA Corp 1. Product introduction CDE8 products use the LCD screen, double side printed board, nylon buckle, ABS material shell, and dip plastic parts. Under the temperature ranging from -20℃ to 60℃, the shell material can ensure the good mechanical performance of the products.

  • Page 5: Function Introduction

    Eunorau E-Mobility USA Corp 2. Function introduction CDE8 is a multi-function LED display. The main functions include the power switch, battery power indication, level indication and adjust, and headlamps switch function. With another CDBL_C product of our company will greatly simplify the handlebar cable.

  • Page 6: Operating Instruction

    Eunorau E-Mobility USA Corp Figure 3 4. Operating instruction Power on/off At the off state, clicking button can turn on the display; And then press button for 3 seconds will power off the display. Level to adjust After power on the display, when the first LED lighten in the ASSIT row, it means level 1;...

  • Page 7: Cable Outlet Instruction

    Eunorau E-Mobility USA Corp LED light in BATTERY row means battery power indication. When the LED shows the last bar, means the power is too lower, you should charge your e-bike immediately. 5. Cable outlet instruction Figure 4 6. Quality assurance and warranty scope Warranty: A.

  • Page 8: Error Code Definition Table

    Eunorau E-Mobility USA Corp C. Shell scratch or breakage after leaving the factory. D. Wiring scratch or breakage. E. Malfunction or damage caused by the force majored (fire, earthquake etc. ) or natural disasters (lightening etc.) F. Beyond Warranty period.
  • Page 9 Eunorau E-Mobility USA Corp Battery voltage is too low to protect, under voltage protection. After the system power on, check whether the brake is working properly. If the brake signal is less than 0.75V for very a long time, there is something wrong with the brake.
  • Page 10 Eunorau E-Mobility USA Corp If there is something wrong with the 5 cables between the controller and display: (1) If the display can’t power on and there is no display on the screen, the reasons may be: the power supply connector between controller and battery is not connected well or there is something wrong with the cable (the red, black ,blue cable of any 1 cables) between display and controller.
