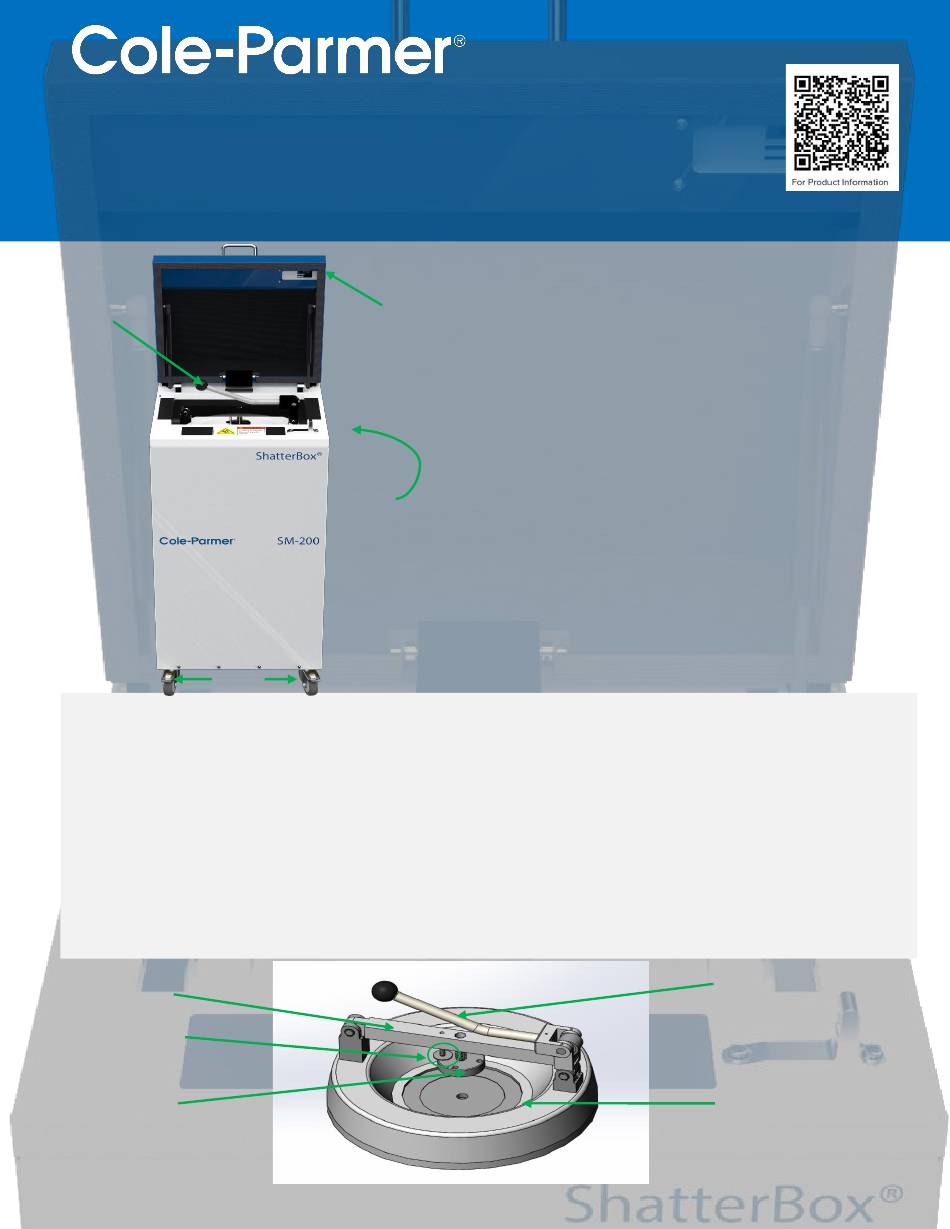

Cole Parmer SM-200 Shatterbox Quick Start Manual

SM-200 Shatterbox
Rock and Mineral Grinder (Ring and Puck Mill) for Spectroscopy Applications
Quick Start Guide
For 115V (04578-25)
Clamp
Locking
Casters
Step 1. First swing the clamp lever to the right side of the cabinet and the clamp arm to the left. Then place a
grinding container squarely in the recess of the capsule retainer. (If the container is not firmly seated, it can
work itself loose during grinding.)
Step 2. When the grinding container is in place, swing the clamp arm to the right, so the guide fits over the
boss (raised protuberance) in the center of the container lid. Then bring up the clamp lever so that the open
gate at its base fits over the end clamp arm; the roller in the clamp lever assembly should rest in the curved
recess of the clamp arm. Swing the clamp lever over to the left.
Step 3. Adjust the clamp by turning guide (clockwise or counter clockwise) while holding up locking pin (see
section 4.4 of manual for more detailed instructions). Close the lid and press Run button.
Clamp Arm
Locking Pin
Guide
(adjustment knob)
1300-87017QSG-1G, REV 3
How To Operate SM-200 Shatterbox®
▪
Lock casters. Connect the powercord to the AC
Lid
Inlet located at the back of unit. Power On the unit.
▪
Never operate the Shatterbox without a grinding
container and friction disc clamped firmly in place.
▪
The cam-action of the clamp makes it possible to
hold any Shatterbox grinding container firmly in
place without applying excessive pressure to the
lever. The clamp can also be adjusted easily for
containers of different heights, or to compensate
AC Inlet
for wear.
and ON/OFF
Switch (back
▪
of unit
) It is absolutely necessary to adjust the clamp
properly before using Shatterbox.
▪
If the lever meets strong resistance, STOP! The
clamp is not properly adjusted and must be
loosened. Overtightening the clamp can break
the cam mechanism.
Clamp Lever
Grinding Dish
Capsule Retainer
Cole-Parmer®
