Summary of Contents for Cerwin-Vega LA Series

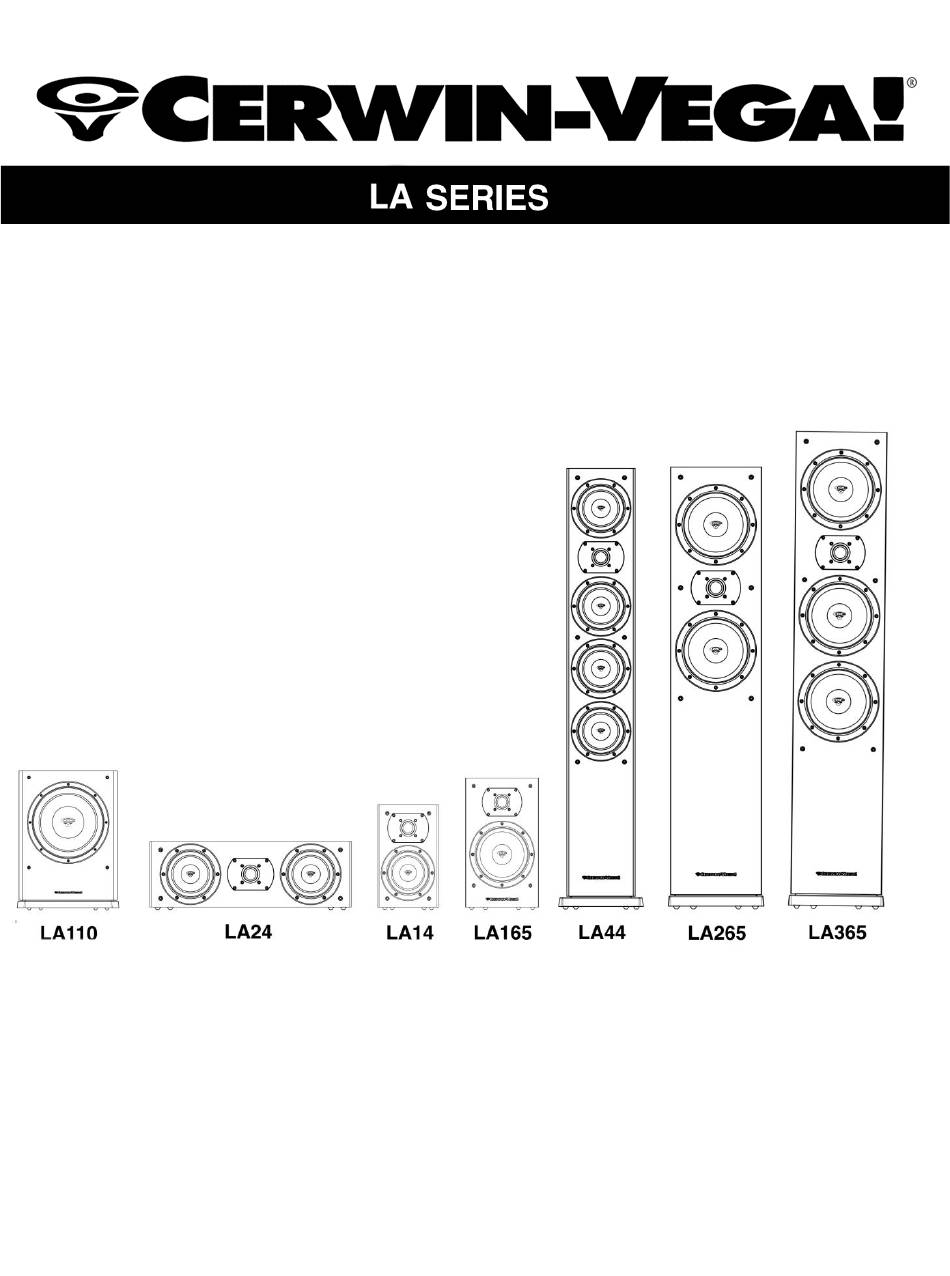

- Page 1 OWNER'S MANUAL...
-
Page 2: Important Safety Instructions
Congratulations! Welcome to the Cerwin-Vega family! You’ve joined a growing group of audio enthusiasts who have turned to Cerwin-Vega for some of the most advanced audio reproduction systems available. All Cerwin-Vega products are thoroughly tested to ensure that they meet or exceed our performance specifications. - Page 3 N’EXPOSEZ PAS CET ARTIC WARNING: Changes or modifications to this unit is prohibited and any changes made that are not expressly approved by Cerwin-Vega! Inc in writing will void the warranty and any subsequent claims that arise and made to Cerwin-Vega! Connections 1.
- Page 4 Connecting your Front Speakers: The passive speakers all use an input terminal cup type of connection as shown in Figure 1 below. Figure 1: Speaker Terminal Connection Note: it is recommended that you turn your receiver and or amplifier volume down to a minimum that you plan to use to power your speakers and then power off the receiver and or amplifier before attempting to connect speaker wires to your receiver and or amplifier.
- Page 5 Connecting your Center Channel: Referencing figure 3 below, the center channel is a passive speaker and audio connections are made via the input terminal cup either using a banana style of plug or simply unscrewing the metal hex nut connector and placing the wire into the hole in the shaft then retighten the connection.
- Page 6 Connecting your Surround Sound Speakers: Referencing figures 4 & 5 below, the surrounds are passive speakers positioned typical just behind where the person sits to the left and right sides. Connections to the left and right channel surrounds are made via the input terminal cups. Connections can be made using either a banana style of plug or simply unscrewing the metal hex nut connector and placing the wire into the hole in the shaft then retighten the connection.
- Page 7 Connecting your Surround Sound Speakers (continued) Figure 5 Connection showing either using the LA14 as your surround speaker or instead using the LA165 speakers...
- Page 8 The following controls refer only to the LA110 subwoofer. 1. PHASE: speaker phase (0° to 180°) refers to sound waves arriving to the listener from multiple speaker boxes in the room at the same time being in step with each other. Sometimes for various reasons not covered in these instructions, speaker sounds from a speaker can arrive out of phase as compared to other speakers which can cause a diminished overall sound to arrive at the listeners positions.
- Page 9 SPECIFICATIONS: LA14 LA165 LA24 LA256 4” 2-WAY 6.5”” 2-WAY 4” 2-WAY 6.5” 3-Way BOOKSHELF BOOKSHELF SPEAKER CENTER CHANNEL Tower Speaker SPEAKER SPEAKER Frequency 35Hz to 20KHz 33Hz to 20KHz 35Hz to 20KHz 28Hz to 20KHz Response Power Handling 110W 150W 150W 265W Sensitivity SPL...
- Page 10 LA110 10” SUBWOOFER SPEAKER “A/B” Amplifier Class: Frequency Response: 22Hz-200Hz MAX Power Output: 100W RMS / 200W PEAK THD @Rated Power: <1% ，300W limiter Rated Power Signal to Noise (+A) >85dBm Standby power consumption: <0.5W Low Level Input Sensitivity Rated 170mV Power LFE Input Sensitivity Rated Power...
-
Page 11: Troubleshooting
Troubleshooting Symptoms Causes Solutions Lower volume or receiver level Amplifier is at maximum output control Receiver tone controls are set too Set bass flat; use tone controls Bass sounds distorted high sparingly Distortion with volume control Repair defective receiver, near minimum Defective receiver or preamplifier, preamplifier or replace speaker or shorted speaker wires... - Page 12 HOME PRODUCTS WARRANTY: LA SERIES If at any time your CERWIN-VEGA LA Series home This warranty is subject to the following limitations: product malfunctions as a result of faulty materials or workmanship, CERWIN-VEGA or one of CERWIN- This warranty does not cover the following items listed...
- Page 13 MUST ACCOMPANY ALL REQUESTS FOR WARRANTY THE MERCHANDISE, WHETHER IN CONTRACT OR IN COVERAGE. TORT, EVEN IF CERWIN-VEGA OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND CERWIN-VEGA SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.FOR MERCHANDISE PURCHASED FROM AN...
