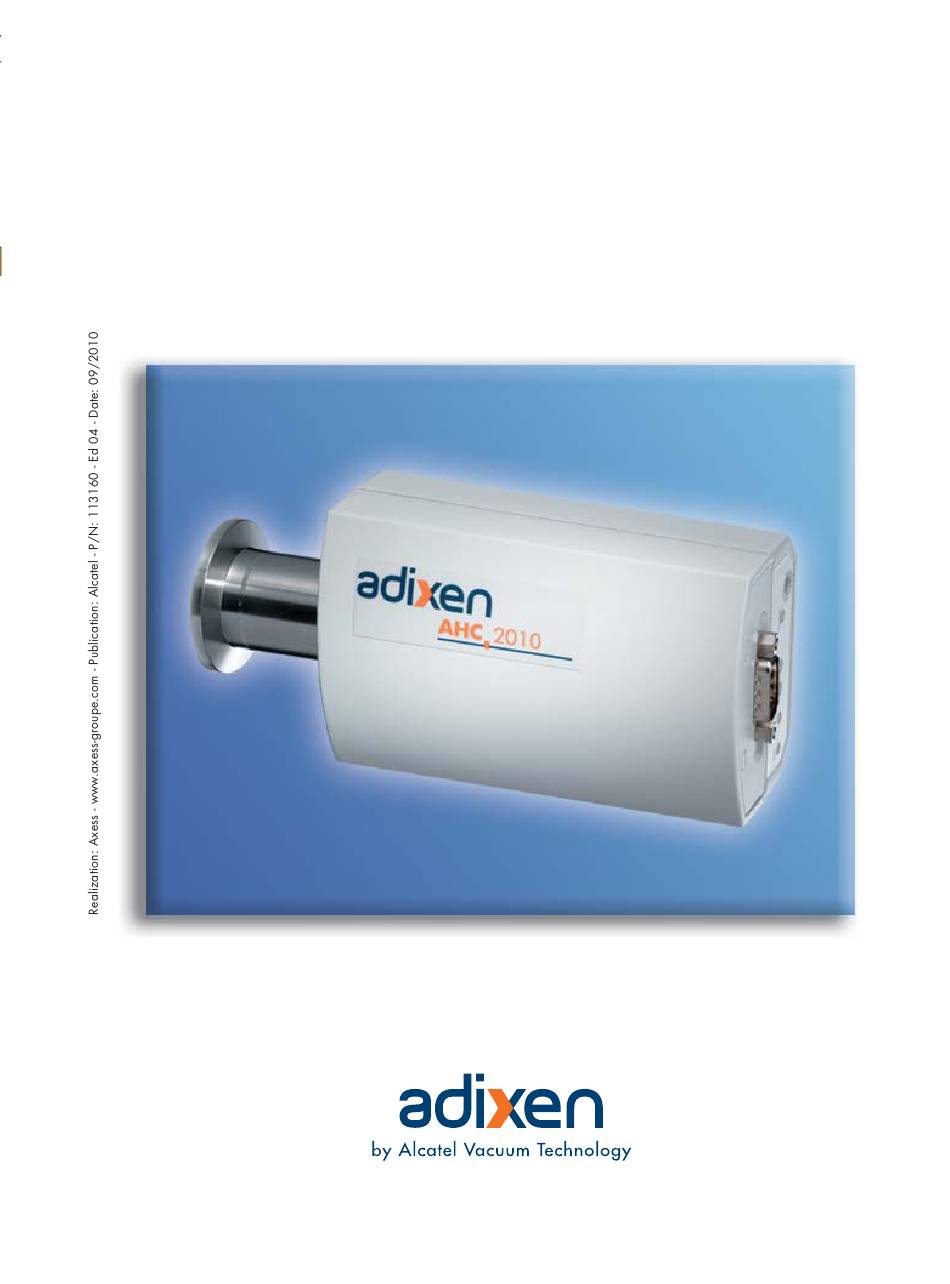

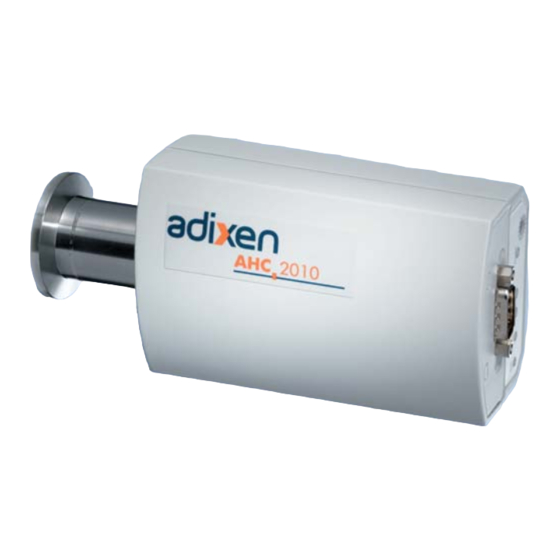

- Page 1 AHC 2010 User’s Manual Alcatel Vacuum Technology France - 98, avenue de Brogny - BP 2069 - 74009 Annecy cedex - FRANCE Tel. (33) 4 50 65 77 77 - Fax. (33) 4 50 65 77 89 Web site: www.adixen.com...
-
Page 2: Table Of Contents
This type of warning is used to indicate an imminent risk that can cause serious injury or death if instructions are not followed. Alcatel Vacuum Technology France - User’s Manual AHC 2010 1/15... -
Page 3: Safety
Any modification could cause damage or personnel injury. Skilled personnel All work described in this document should be carried out only by qualified persons who have suitable technical training and the necessary experience. Alcatel Vacuum Technology France - User’s Manual AHC 2010 2/15... -
Page 4: Responsibility And Warranty
- Accessories Description Gauge cable length (5 m) 112752 Gauge cable length (10 m) 112753 Gauge cable length (20 m) 112754 “D-Sub“ 9P (female) 114848 connector (for custom equipment connections) Alcatel Vacuum Technology France - User’s Manual AHC 2010 3/15... -
Page 5: Technical Data
DN25 ISOKF, DN40 ISOKF, DN40CF-F Operating position Any orientation Internal volume 12.9 cm Recevable maximum pressure 2 bars ® Materials exposed to vacuum Tungsten, SUS304, Pt/Mo, glass, Kovar Filament material Alcatel Vacuum Technology France - User’s Manual AHC 2010 4/15... - Page 6 Install a circuit breaker on the power source. Disregarding these instructions can cause damage and/or injury. (1) ”D-Sub” 9P (female) connector is available to allow the gauge to be connected directly to customer equipment. ( 3 p. 3). Alcatel Vacuum Technology France - User’s Manual AHC 2010 5/15...
-
Page 7: Gauge Installation
This gauge is designed to operate in any orientation. Install the gauge horizontally for higher accuracy. Install this gauge away from drastic temperature changes (away from any heat sources or fans) for higher accuracy. Alcatel Vacuum Technology France - User’s Manual AHC 2010 6/15... -
Page 8: Operation
AHC 2010 - 0/10 V + SP use to enter set point data ( 6 p. 10) AHC 2010 - RS485 + SP use to enter network address (refer to RS485 Communication Manual) Alcatel Vacuum Technology France - User’s Manual AHC 2010 7/15... - Page 9 1.00 RS485 Signal output RS485 communication is available on the connector Pins 1(+) and 8(–) . (AHC 2010 - RS485 + SP) Refer to the RS485 Communication Manual for details. Alcatel Vacuum Technology France - User’s Manual AHC 2010 8/15...
- Page 10 = 2 , torr = 1 or Pascal = any other position. Switch selector Exponent +6 +5 +4 +3 +2 +1 0 –1 –-2 –3 –4 –5 –6 –7 –8 –9 Alcatel Vacuum Technology France - User’s Manual AHC 2010 9/15...
- Page 11 (1 = Torr, any other setting = Pascal) – End of process – Note: For the AHC2010 -RS485+SP models, the set points are modified only via the RS485 interface (refer to the RS485 Communication Manual). Alcatel Vacuum Technology France - User’s Manual AHC 2010 10/15...
-
Page 12: Gauge Removal
- Place a protective cap on the fitting to prevent foreign substances from entering the gauge. - If the gauge must be stored, we advise to keep it away from heat, moisture an dust ( 4 p. 4). Alcatel Vacuum Technology France - User’s Manual AHC 2010 11/15... -
Page 13: Maintenance
- Remove the sensor from the electronics ( 8 p. 12), - Using an ohmmeter, check the filament resistance, 0,25 - If the measured value is out of range, replace the sensor. Alcatel Vacuum Technology France - User’s Manual AHC 2010 12/15... -
Page 14: Returning The Products
Be sure to follow the shipping regulations of all involved countries and forwarding companies and enclose a duly completed «Safety Questionnaire» available on our web site before shipping any products back to the manufacturer. Alcatel Vacuum Technology France - User’s Manual AHC 2010 13/15... -
Page 15: Decontamination And Product Recycling
Other components Such components must be separated according to their materials and recycled. Alcatel Vacuum Technology France - User’s Manual AHC 2010 14/15... -
Page 16: Declaration Of Conformity
- Declaration of Conformity Alcatel Vacuum Technology France - User’s Manual AHC 2010 15/15...
