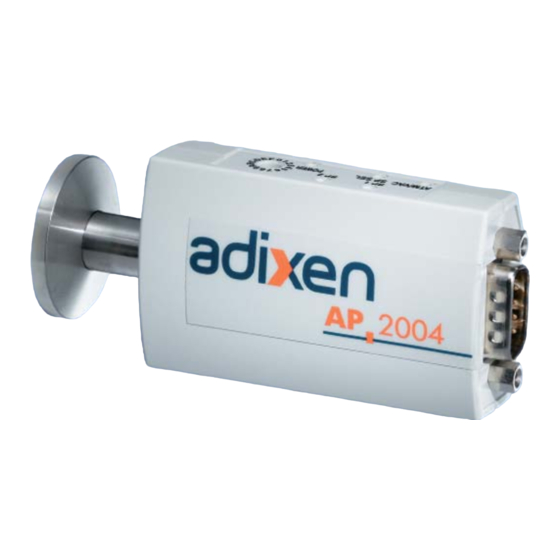

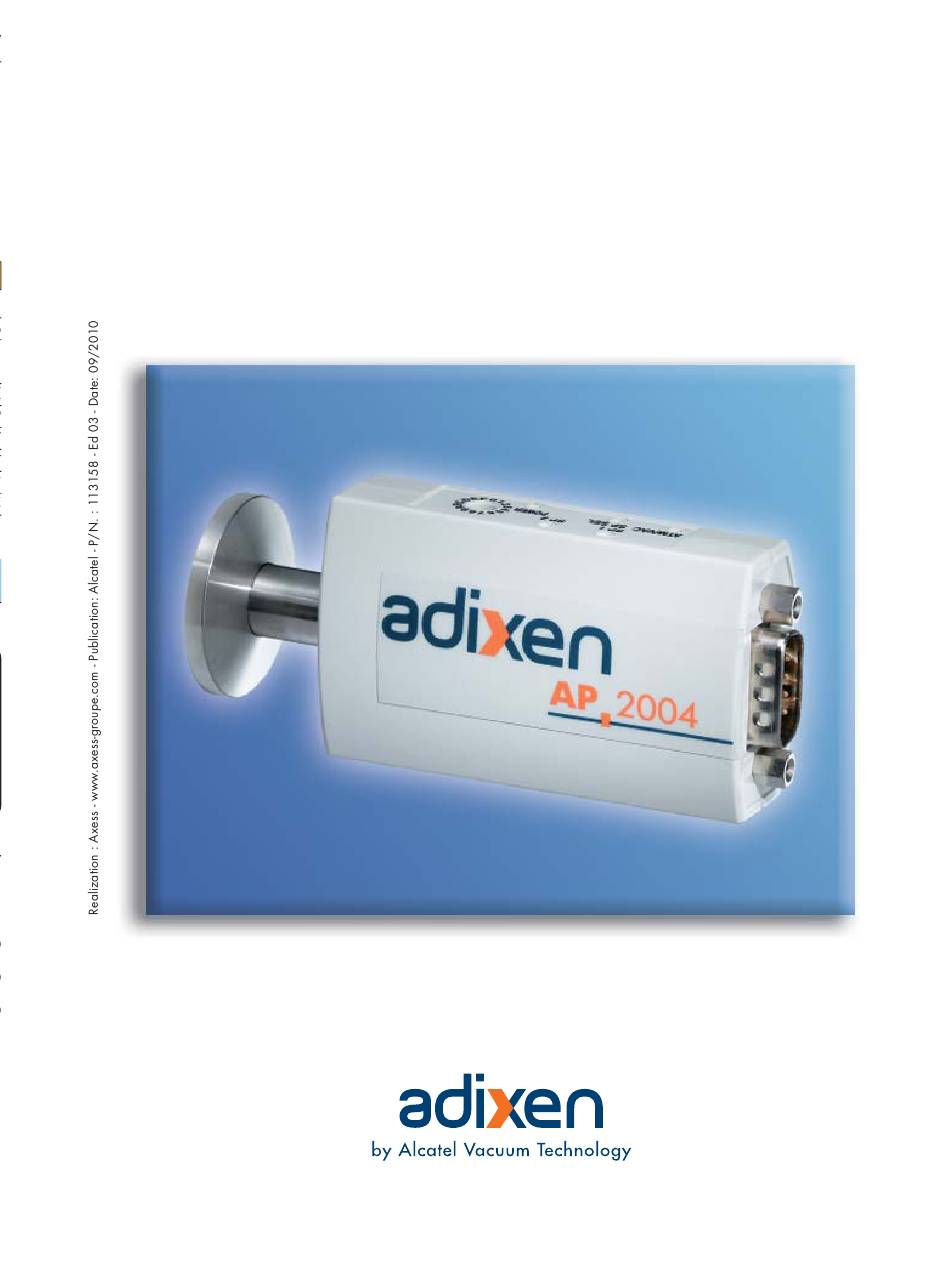

- Page 1 AP/APN 2004 User’s Manual Alcatel Vacuum Technology France - 98, avenue de Brogny - BP 2069 - 74009 Annecy cedex - FRANCE Tel. (33) 4 50 65 77 77 - Fax. (33) 4 50 65 77 89 Web site: www.adixen.com...
-
Page 2: Table Of Contents
This type of warning is used to indicate an imminent risk that can cause serious injury or death if instructions are not followed. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 1/15... -
Page 3: Safety
Any modification could cause damage or personnel injury. Skilled personnel All work described in this document should be carried out only by qualified persons who have suitable technical training and the necessary experience. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 2/15... -
Page 4: Responsibility And Warranty
- Accessories Description Gauge cable length (5 m) 112752 Gauge cable length (10 m) 112753 Gauge cable length (20 m) 112754 “D-Sub“ 9P (female) 114848 connector (for custom equipment connections) Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 3/15... -
Page 5: Technical Data
Recevable maximum pressure 10 bars (conform to connection accessories) Materials exposed to vacuum SUS304, SUS316, SUS304, SUS316, Fe / Ni+Au-plant- Fe / Ni, AL ® ing, Glass,Kovar Filament material Tungsten Nickel Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 4/15... - Page 6 Install a circuit breaker on the power source. Disregarding these instructions can cause damage and/or injury. (1) ”D-Sub” 9P (female) connector is available to allow the gauge to be connected directly to customer equipment. ( 3 p. 3). Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 5/15...
-
Page 7: Installation
These gauges are designed to operate in any orientation. Install the gauges horizontally for higher accuracy. Install this gauge away from drastic temperature changes (away from any heat sources or fans) for higher accuracy. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 6/15... -
Page 8: Operation
Switch selector AP/APN 2004 0/10 V + SP use to enter set point data ( 6 p. 10) AP 2004 - RS485 + SP use to enter network address (refer to RS485 communication Manual) Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 7/15... - Page 9 CO, N RS485 Signal output RS485 communication is available on the connector Pins 1(+) and 8(–) . (AP 2004 - RS485 + SP) Refer to the RS485 Communication Manual for details. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 8/15...
- Page 10 Follow this example to set up the set points (refer also to table next page): set point 1: 5 x 10 = 500 mbar –1 set point 2: 8 x 10 = 0.8 mbar Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 9/15...
- Page 11 (1 = Torr, any other setting = Pascal) – End of process – Note: For the AP2004-RS485+SP models, the set points are modified only via the RS485 interface. (refer to the RS485 Communication Manual) Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 10/15...
-
Page 12: Gauges Removal
- Place a protective cap on the fitting to prevent foreign substances from entering the gauge. - If the gauge must be stored, we advise to keep it away from heat, moisture an dust ( 4 p. 4). Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 11/15... -
Page 13: Maintenance
- Remove the sensor from the electronics ( 8 p. 12), - Using an ohmmeter, check the filament resistance, 85 Ω AP 54 Ω APN - If the measured value is out of range, replace the sensor.. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 12/15... -
Page 14: Returning The Products
Products that are not clearly declared as “free of harmful substances“ are decontaminated at the expense of the customer. Products not accompanied by a duly completed “Safety Questionnaire“ are returned to the sender at his own expense. Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 13/15... -
Page 15: Decontamination And Product Recycling
Alcatel Vacuum Technology and including all their assemblies and sub-assemblies. This obligation does not include the cost of transporting the product to a reprocessing centre, nor the cost of the service which will be invoiced on to the customer. -
Page 16: Declaration Of Conformity
- Declaration of Conformity Alcatel Vacuum Technology France - User’s Manual AP/APN 2004 15/15...
