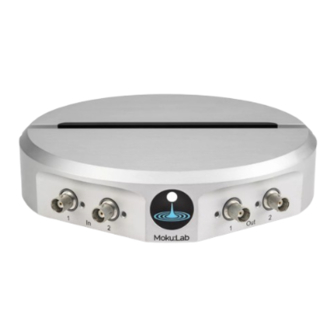

Moku:Lab
Quick start guide
Moku:Lab
Power button / status LED
Analog inputs
Powering on & off
Connect the power supply to the DC power port on
1
the rear of Moku:Lab.
Press and hold the power button for two seconds
2
until the status LED turns orange.
Wait for the status LED to turn blue / white.
3
To turn off your Moku:Lab, press and hold the power button for two seconds until the status LED turns
X
orange. Wait until the orange light turns off before unplugging.
Installing the Moku: app
iPad app
Open the App Store on your iPad.
1
Search for the Moku: app and verify that the
2
publisher is Liquid Instruments.
Download and install Moku: app on your iPad.
3
Open the Moku: app and when prompted for
4
permission to find and connect to devices on the
local network, grant access to discover and connect
to your Moku:Lab.
Moku:Lab Quick Start Guide (v23-0510)
Analog outputs
DC power
10 MHz ref. output
SD card slot
Micro-USB data port
Ethernet port
Powered off
Initializing /
Powering down
Desktop app
Download the software from
1
Website > Products > Software > Desktop
Windows: Run the installer and follow the prompts
2
to install the Moku: app.
Mac: Drag the icon to your Applications folder to
install the application.
Kensington Lock slot
10 MHz ref. input
External trigger input
USB charge port
Powered on
Liquid Instruments
Apps.
liquidinstruments.com
