Tecnar accuraspray CS Quick Setup Manual

Before
you begin

Unpacking the parts

The box should contain the following items:
1. Controller
2. HMI unit

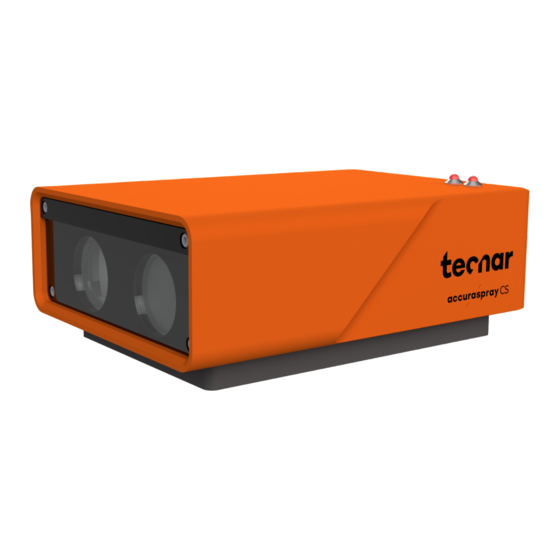

3. Sensor head
4. Air filter and hoses
5. Substrate pyrometer and its support bracket (optional)
6. Communication cable, laser power cable and safety switch cable
7. Safety glasses
Carefully open the box, remove the content
pictured and set it on a work surface.
Register Now
Activate your warranty.
Get your free virtual training.
Registration
Using QR Code
or online :
spraysensors.tecnar.com
/registration
Quick set-up guide
Online monitoring of cold spray
processes for the shop floor
Activate your warranty to start receiving
benefits.
Our easy registration process ensures that
you get the most from your sensor and enjoy
peace of mind with your warranty.
- Get free virtual training
- Download manuals and procedures
- Get update alerts
- Chat with the technical team
- Take advantage of your warranty
1
2
3
4
5
6
7
ENGINEERING SEAL
Class 4 laser product warning:
Danger: invisible laser radiation.
Avoid eye or skin exposure
to direct or scattered radiation.
(Emitted wavelength:
900 - 1000nm, maximum output
power: 40W)
Please refer to the user manual
40101-00075 laser safety section
for more information.
