ROUTINE SERVICE MANUAL

0473

PN 504-2033

Issue 1j 04/2005

Pneupac paraPAC

P200/P200D/P220D

Level 1: Periodic Performance Checks

Smiths Medical International Ltd

Bramingham Business Park

Enterprise Way

Luton LU3 4BU

England

Tel: (44) (0) 1582 430000

Fax: (44) (0) 1582 430001

Email:

info@smiths-medical.com

Website:

www.smiths-medical.com

Need help?

Do you have a question about the paraPAC P200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smiths paraPAC P200

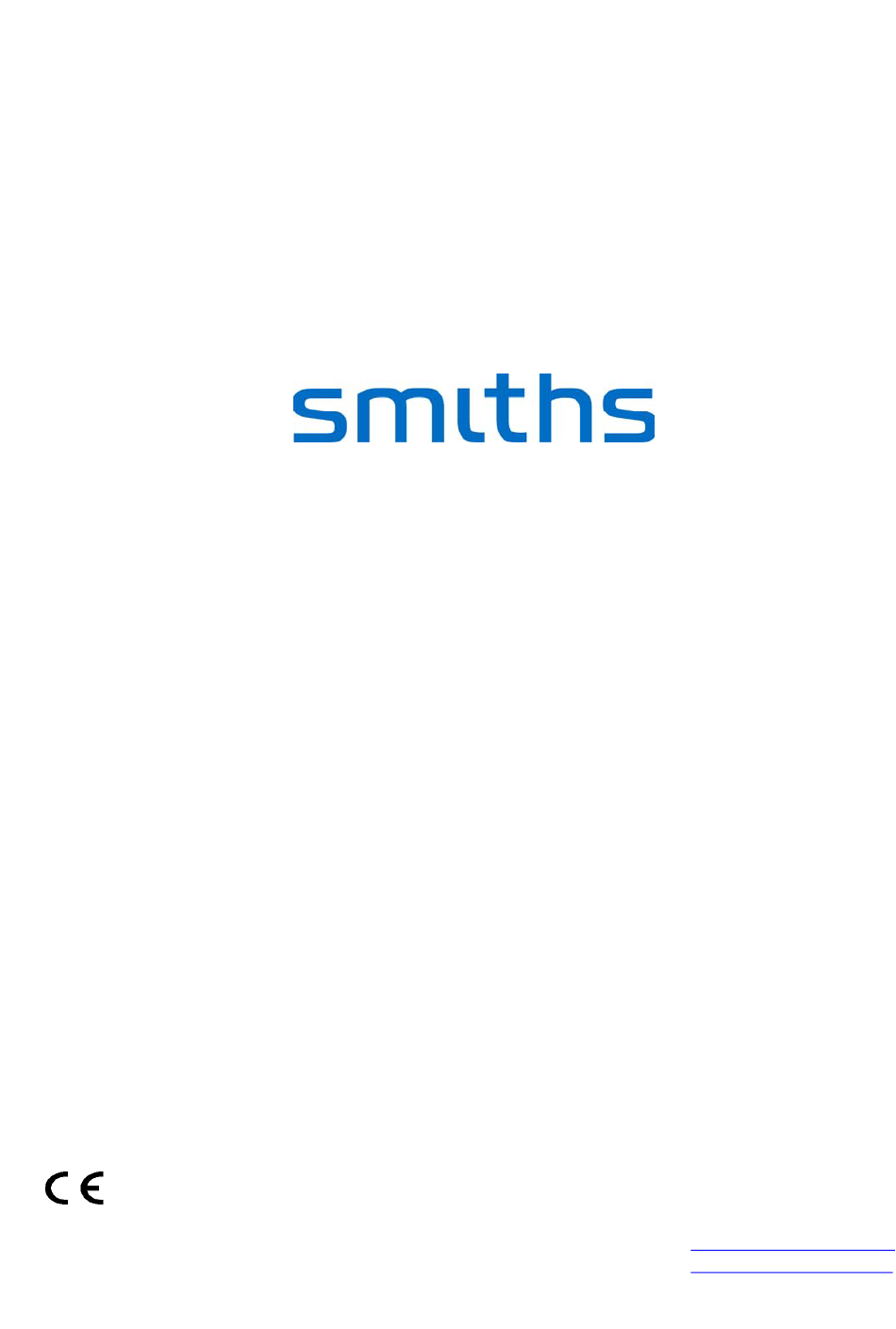

Page 1 Level 1: Periodic Performance Checks Smiths Medical International Ltd Bramingham Business Park Enterprise Way Luton LU3 4BU England Tel: (44) (0) 1582 430000 Fax: (44) (0) 1582 430001 0473 Smiths Medical International Ltd. ©2004 Email: info@smiths-medical.com PN 504-2033 Website: www.smiths-medical.com Issue 1j 04/2005...
Page 2 This procedure is the property of Smiths Medical International Ltd. Copyright for all purposes is vested in Smiths Medical. The reproduction of this procedure in whole or in part is prohibited without express consent in writing. This procedure is offered for use only with equipment manufactured or specifically recommended Smiths Medical.
Page 3 INTENTIONALLY BLANK 504-2033 Iss. 1j April 2005...
Page 4 To ensure that this equipment is maintained to the requirements of the Directive only accessories, ancillaries and spares authorised by the manufacturer should be fitted. All such parts sold by Smiths Medical have /CE incorporated in their order code. Parts that are not marked with /CE are only for sale outside the countries bound by the Directive.
Page 5 b) SAFETY INFORMATION FOR MEDICAL GAS CYLINDERS The warnings on the previous page relating to the use of oxygen are particularly relevant to gas cylinders and cylinder pressure regulators. All personnel handling medical gas cylinders should have adequate knowledge of the properties of the gas, precautions to be taken and the correct operation of the equipment.
Page 6 SECTION TWO TEST SCHEDULE FOR PERIODIC CHECKING OF paraPAC P200/200D/220D Report Details Check condition of Carry Case. Check condition of Regulator Assembly Check condition of cylinder key. Check Regulator output. Check condition of Input Hose. Check condition of paraPAC. Check condition of patient hose.
Page 7 TEST SCHEDULE FOR PERIODIC CHECKING OF paraPAC P200/200D/220D (continued) Check Oxygen Therapy unit. Check condition of face masks (child and adult) and sterile packed airways. Check contents of customer cylinder. Check User Handbook. Record repairs and replacements. 504-2033 Iss. 1j...
Page 8 SECTION THREE PROCEDURE FOR PERIODIC CHECKING OF paraPAC P200/200D/220D Record the serial number and model of the paraPAC and, where applicable, the serial number located on the regulator assembly body. Using the Pneupac datecode chart, check if the regulator assembly requires the recommended 4 - 5 year complete disassembly service (refer also to Maintenance Manual 504-2008 for High Pressure Regulator Assembly).
Page 9 Check condition of cylinder key Replace if cracking is apparent. Check attachment cable is not frayed or damaged. Replace if necessary. Check Regulator output Fit a new seal (500-276) to the Regulator Assembly. Connect the pin-index yoke to a cylinder at least three quarters full. iii) Connect the Test Unit to the outlet connector of the Regulator Assembly.
Page 10 Regulator Test Unit 500-A615 Check the Condition of the Input Hose From 1 January 2002 pressure hoses are date coded and should be replaced after 5 years. Check the label on hose for replacement date. Check the hose for damage, cuts and abrasions. iii) Check that there is no internal damage to the hose by feeling the rigidity of the hose and looking for sloppiness.
Page 11 Check the condition of the paraPAC (continued) The Variable Relief knob should align with the calibration marks at each end of the scale. If the index mark on any knob side or end cap is misaligned it must be corrected before further calibration checks are carried out.
Page 12 Reassemble the Patient Valve ensuring that the valve element is inserted the correct way round and that the annular disc is correctly seated. Recommend replacement if necessary. Check the performance of the paraPAC P200/200D/220D (including alarm functions) 10.1 Check function of the Main Pneumatic Switch Check that the Main Pneumatic switch is in the 'Off' or 'Demand' position.
Page 13 10.2 Check function of Air Entrainment N.R.V. Set the Tidal Volume to 200 mL, the Frequency control to 25 breaths per minute and the Relief valve to maximum. Select 'No Air Mix'. iii) With a Patient hose and patient valve connected completely occlude the outlet port of the patient valve and note the movement of the needle on the Inflation Pressure Monitor on the front of the ventilator.
Page 14 Remove the patient circuit, patient valve and mask. If an HMEF was not used, clean the patient valve as instructed in the User’s Manual. 10.4 Check Frequency with No Air Mix Connect a Pneupac backpressure device and ratePAC to the outlet port of the ventilator module.
Page 15 10.6 Check Tidal Volume, with No Air Mix Connect a calibrated respirometer to the outlet port of the backpressure device. Select ‘No Air Mix’. iii) Set a backpressure as in 10.4 ii). iii) Using the table below to set the controls and the Pneupac calibration chart for the respirometer, check the tidal volume of the ventilator across the whole range.
Page 16 illuminate. After 1 second the electronic audible alarm should also sound. The High pressure alarm will continue to sound for 10 seconds after removal of each closure. Pressure Relief (set) Pressure Relief (actual) >12 1300 < 28 32 – 48 48 –...
Page 17 Check the output from the Nebuliser connection on paraPAC P220D Remove the plug from the Nebuliser connection and connect a calibrated 0-100 psi gauge to the connection. Set the Frequency control to 8 bpm and the Flow control to maximum. iii) Select the ‘On’...
Page 18 SECTION FOUR SPARE PARTS FOR paraPAC P200/200D/220D Part No. Description 500-A4518/CE Input connector assembly W9151/CE Conical Sintered Filter W5520/CE Retaining O-ring for Sintered Filter W7149/CE CMV/Demand, Relief Pressure, Air Mix/No Air Mix Control Knob W7150/CE CMV/Demand, Air Mix/No Air Mix,...
Page 19 SPARE PARTS FOR paraPAC P200/200D/220D (continued) Part No. Description 510A1584 Complete Nebuliser Set for P22D 510A1582 Nebuliser Assembly 510A1591 4mm Plug W6894 Water Reservoir 1025U-04-01/350mm 4mmPolyurethane tube 510A2666 Complete EP Option Circuit 510A1768 Filter Kit 510-A1619 Patient Valve Adaptor W7541...
