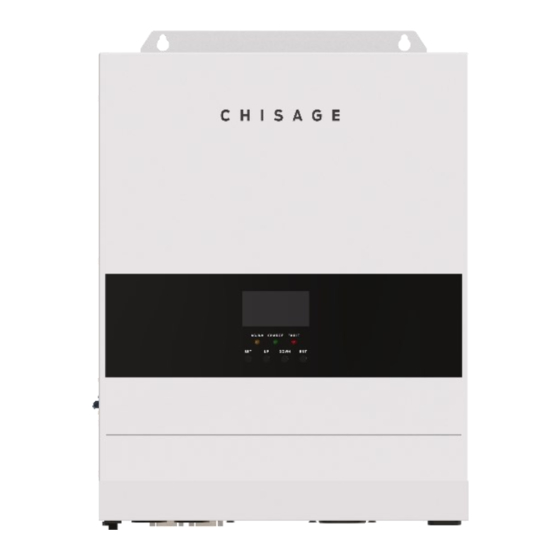

CHISAGE CEP4850-EU-80-H User Manual

Solar off grid hybrid inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Solar off grid hybrid inverter
User Manual
Product models:
CEP4850-EU-80-H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CEP4850-EU-80-H and is the answer not in the manual?

Questions and answers

Related Manuals for CHISAGE CEP4850-EU-80-H

Summary of Contents for CHISAGE CEP4850-EU-80-H

  • Page 1 Solar off grid hybrid inverter User Manual Product models: CEP4850-EU-80-H...
  • Page 2 Important Safety Instruction Please maintain the manual for reference in the future The manual comprises all safety, installation and operation instruction for CE48-H Solar Energy Storage and Solar off grid hybrid inverter. Before installation and use, please carefully read all instructions and notices in the manual. There is unsafe voltage inside the solar off grid hybrid inverter.

  • Page 3: Table Of Contents

    Table of Contents 1. General information ........................1 1.1 Product overview and characteristics .................... 1 1.2 Basic system introduction ......................... 2 1.3 Appearance ............................3 1.4 Dimension drawing ..........................4 2. Installation Instruction ....................... 4 2.1 Installation precautions ........................4 2.2 Wiring specifications and circuit breaker selection ..............
  • Page 4 5.1 Dry node function ..........................32 5.2 RS485 communication function ....................32 5.3 USB communication function ......................32 5.4 Parallel communication function (parallel operation only) ........... 33 5.5 Current sharing detection function (parallel operation only) ..........33 6. Protection ........................... 34 6.1 Protection function ...........................

  • Page 5: General Information

    1. General information 1.1 Product overview and characteristics CEP series is a new type of mixed solar energy storage inverting & control all-in-one machine integrating solar energy storage & municipal power charge storage and AC sine wave output. It adopts DSP control and advanced control algorithm to achieve characteristics of high response speed, high reliability and high industrial standard.

  • Page 6: Basic System Introduction

    11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc. 1.2 Basic system introduction The figure below shows the system application scenario of this product. A complete system includes the following parts: 1.

  • Page 7: Appearance

    1.3 Appearance ① ⑩ Overload protector RS485-1 communication port ② ⑪ ON/OFF rocker switch Dry contact port ③ ⑫ AC input port Cooling fan ④ ⑬ AC output port Battery port ⑤ ⑭ Grounding screw hold Cooling fan ⑥ ⑮ RS485-2 communication port PV port Current sharing port...

  • Page 8: Dimension Drawing

    1.4 Dimension drawing 2. Installation Instruction 2.1 Installation precautions Please read this manual carefully prior to installation to familiarize yourself with the installation steps. Be very careful when installing the battery. Wear safety goggles when installing a lead-acid liquid battery. ➢...

  • Page 9: Wiring Specifications And Circuit Breaker Selection

    Please refer to the table below for PV input wire diameter and switch: ➢ Recommended wire Maximum PV input Recommended types of Type diameter current air switch or breaker CEP4850-EU-80-H 6mm2/10AWG 2P—25A Note: the voltage in parallel shall not exceed maximum PV input open-circuit voltage.

  • Page 10: Installation And Wiring

    Maximum bypass Type diameter input current air switch or breaker CEP4850-EU-80-H 10mm2/7AWG 2P—40A Note: There is already an appropriate circuit breaker at the Mains input wiring terminal, so it is not necessary to add one more. Recommended battery input wire diameter and switch selection ➢...
  • Page 11 Current sharing cable Installation step: Step 1: Determine the installation position and the space for heat dissipation. Determine the installation position of the off-grid Hybrid Inverter, such as wall surface; when installing the off-grid Hybrid Inverter, ensure that there is enough air flowing through the heat sink, and space of at least 200m m to the left and right air outlets of the inverter shall be left to ensure natural convection heat dissipation.
  • Page 12 AC input/output wiring method: ① Before AC input/output wiring, disconnect the external breaker at first and then confirm whether the cable used is thick enough. Please refer to chapter “ 2.2 Wiring Specification and Breaker type”; ② Correctly connect AC input wire in accordance with cable sequence and terminal position shown in the figure below.
  • Page 13 Before wiring, disconnect external breaker at first, and confirm whether the used cable is thick enough.  Please refer to chapter “2.2 Wiring Specification and Breaker Type”; ②Correctly connect PV input wire in accordance with cable sequence and terminal position shown in the figure below.

  • Page 14: Parallel Machine Wire Connection

    correctly connected with wires; a breaker must be installed at the battery end and selected based on chapter “2.2 Wiring Specification and Breaker Type”. Before wiring, make sure to break the breaker to prevent strong electric spark generated during wiring. At the same time, avoid battery short circuit during the wiring process;...
  • Page 15 When using the parallel operation function, the following connecting lines (package accessories) shall be firmly and reliably connected: DB15 Parallel communication line*1: Current sharing detection line*1: 2.4.2 Precautions for connecting the parallel connecting lines Warning: Battery wiring: Parallel connection in single three phase: Ensure that all all-in-one solar charger inverters are connected to the same battery, with BAT + connected to BAT + , BAT - connected to BAT -, and that the connection is correct with the same wiring length and line diameter before power on and start-up, so as to avoid the abnormal operation of parallel system output caused by wrong connection.
  • Page 16 Diagram. PV wiring: When the inverters are connected in parallel output, the solar panels should be connected to each inverter separately. The maximum open circuit voltage and input current limits for each device must be followed when connecting the PV modules. Otherwise damage to the device may result. Wiring of parallel communication line: Parallel connection in single or three phase: Our company's parallel communication line is a DB15 standard computer cable with shielding function.
  • Page 17 In case of parallel operation with multiple inverters, the schematic diagram of parallel connection is as follows: a） Two all-in-one solar charger inverters of the system connected in parallel: b） Three all-in-one solar charger inverters of the system connected in parallel:...
  • Page 18 c） Four all-in-one solar charger inverters of the system connected in parallel: d） Five all-in-one solar charger inverters of the system connected in parallel: e） Six all-in-one solar charger inverters of the system connected in parallel:...
  • Page 19 2.4.4 Schematic diagram of parallel connection in spilit phase The parallel communication line and current sharing detection line of the all-in-one solar charger inverter need to be locked with screws after connecting. The schematic diagram is as follows: In case of parallel operation with multiple inverters, the schematic diagram of parallel connection is as follows: Parallel Operation in three phase : a）...
  • Page 20 c） Five all-in-one solar charger inverters of the system connected in three phase: 3+1+1 system: 2+2+1 system:...
  • Page 21 d） Six all-in-one solar charger inverters of the system connected in three phase: 2+2+2 system: 3+2+1 system: 4+1+1 system:...

  • Page 22: Operating Mode

    Note: 1) Before starting up and running, please check whether the connection was correct to avoid any abnormalities in the system. 2) All wiring must be fixed and reliable to avoid wire drop during use. 3) When the AC output is wired to the load, it shall be properly wired according to the requirements of the electrical load equipment to avoid damage to the load equipment.

  • Page 23: Output Mode

    PV charging can be activated. 3. Mixed charge: PV and mains hybrid charging. PV MPPT charging is a priority, and when PV energy is insufficient, the mains supply supplements. When the PV energy is sufficient again, the mains stops charging. This is the fastest charging mode, suitable for the areas where power grid is unstable, providing sufficient backup power supply at any time.

  • Page 24: Operation Instruction For Lcd Screen

    Switch to inverter only when the mains fail (when there was mains power, switch to mains power for charging and power supply). Then, the unit is equivalent to a backup UPS, suitable for areas with unstable grid. Switching does not affect PV charging. Power supply priority：Utility -> Solar -> Battery. Battery priority mode: ➢...

  • Page 25: Introduction To Operation Keys

    4.2 Introduction to operation keys Function Key Description Enter/Exit Settings menu Previous choice DOWN Next choice Confirm/Enter Options under the settings menu, 4.3 Introduction to indicator light Indicator light Color Description Steady on: Mains output AC/INV Yellow Flash: Inverter output Flash: Fast charging CHARGE Green...
  • Page 26 voltage range) Indicating that PV input end Indicating that AC output is in has been connected to solar overload state battery panel Indicating percentage of AC Indicating that machine has output load, been connected to battery, indicating 0%~24% load indicating 0%~24% percentage, battery remaining indicating 25%~49% load...
  • Page 27 Parameter display at right side of screen: output parameter Indicating output voltage, output current, output active power, output apparent power, battery discharge current, software version; under setting mode, displaying the setting parameter under the parameter item code set currently Arrow display Indicating charge from charge circuit ⑤...

  • Page 28: Setting Parameter

    Model Battery Voltage Rating Model Output Power Rating Model PV Voltage Rating Model PV Current Rating RS485 Address Number Phase Sequence Number 4.5 Setting parameter Buttons operation instructions: Press the “SET” button to enter the setup menu and exit the setup menu.
  • Page 29 Wide mains input voltage range of 230V [03] APL machine: 90~280V AC Input Voltage Range Narrow mains input voltage range of 230V [03] UPS default machine: 170~280V When the parameter [01] =SBU, the battery Battery Power voltage is lower than the set value, and the to Utility [04] 43.6Vdefault output is switched from the inverter to the mains.
  • Page 30 charge voltage is 56.8V; for 15 strings, default constant-voltage charge voltage is 53.2V; for 14 strings, default constant-voltage charge voltage is 49.2V; allow adjustable. [08] N13/N14 Ternary lithium battery; which is adjustable. Boost charge voltage setting; the setting range is Battery boost [09] 57.6V default 48V~58.4V, with step of 0.4V;...
  • Page 31 battery Battery Equalizing charge voltage; setting range: equalization [17] 58.4V default 48V~58.4V, with a step of 0.4V; valid for vented voltage lead-acid battery and sealed lead-acid battery Equalizing charge time; setting range: Battery [18] 120 5min~900min, with a step of 5 minutes; valid for equalized time default vented lead-acid battery and sealed lead-acid...
  • Page 32 Alarm beep is disabled when the status of the Beeps while [26] DIS main input source changes primary source Alarm beep is enabled when the status of the is interrupted [26] ENA default main input source changes It is disabled to automatically switch to the Mains [27] DIS when the inverter is overloaded.
  • Page 33 When the parameter [32] setting item =BMS, you can choose to match the battery manufacturer's BMS protocol to communicate with BMS for the lithium battery protection. Battery BMS communication PAC=PACE，RDA=Ritar，AOG=ALLGRAND BATTERY， OLT=OLITER，HWD=SUNWODA, DAQ=DAKING, WOW=SRNE, PYL=PYLONTECH，UOL=WEILAN Battery [35] 52V Low voltage Setting range 44V~58.4V default recovery...

  • Page 34: Battery Type Parameters

    4.6 Battery type parameters For Lead-acid Battery : Battery type Sealed lead Colloidal lead Vented lead User-defined acid battery acid battery acid battery (USE) Parameters (SLD) (GEL) (FLD) Overvoltage disconnection voltage 40～60V Equalizing charge voltage 58.4V 56.8V 59.2V (Adjustable) 40～60V Boost charge voltage 57.6V 56.8V...
  • Page 35 For Lithium Battery : Lithium Lithium Lithium Ternary Ternary Battery type iron iron iron User- lithium lithium phosphate phosphate phosphate defined battery battery Parameters battery battery battery (USE) (N13) (N14) (L16) (L15) (L14) Overvoltage disconnection voltage Equalizing charge 40～60V voltage (Adjustable) 53.2V 57.6V...

  • Page 36: Other Function

    5. Other Function 5.1 Dry node function Working principle: this dry node can control the switch of diesel generator to charge the battery. ① Under normal conditions, in this terminal, NC-N point is closed and NO-N point is opened; ② when the battery voltage reaches the low-voltage disconnection voltage point, the coil of the relay is energized and NO-N point is closed and NC-N point opened.

  • Page 37: Parallel Communication Function (Parallel Operation Only)

    5.4 Parallel communication function (parallel operation only) This port is used for parallel communication, through which the parallel modules can communicate with each other. Each inverter has two DB15 ports, one for the male connector and the other for the female connector. When connecting, make sure to connect the male connector of the inverter with the female connector of the inverter to be paralleled, or connect the female connector of the inverter to the male connector of the inverter to be paralleled.

  • Page 38: Protection

    6. Protection 6.1 Protection function Protection Note Function PV current/power limiting When charging current or power of the PV array configured exceeds the protection PV rated, it will charge at the rated. At night, the battery is prevented from discharging through the PV PV night reverse-current module because the battery voltage is greater than the voltage of PV protection...

  • Page 39: Meaning Of Fault Code

    protection maximum value and lasts for 1 minute, the AC input would switched to load. When the battery is reversely connected or the inverter is short- Battery input protection circuited, the battery input fuse in the inverter will blow out to prevent the battery from being damaged or causing a fire.
  • Page 40 【13】 OverloadBypass Bypass overload protection 【14】 OverloadInverter Inverter overload protection 【15】 AcOverCurrHw Inverter overcurrent hardware protection 【17】 InvShort Inverter short circuit protection 【19】 OverTemperMppt Buck heat sink over temperature protection 【20】 OverTemperInv Inverter heat sink over temperature protection 【21】 FanFail Fan failure 【22】...

  • Page 41: Some Fault Troubleshooting

    communication protocol Check the BMS fault type and troubleshoot 【59】 BMS alarm battery problems BMS battery low 【60】 BMS alarm battery low temperature temperature alarm BMS battery over 【61】 BMS alarm battery over temperature temperature alarm BMS battery over 【62】 BMS alarm battery over current current alarm BMS low battery...
  • Page 42 Inconsistent AC input Check whether the parallel AC inputs are from the same 【39】 source in parallel mode input interface. Inconsistent system Check whether the software version of each inverter is 【42】 firmware version in consistent. parallel mode...

  • Page 43: Troubleshooting

    7. Troubleshooting In order to maintain the best long-term performance, it is recommended to conduct following ➢ checks twice a year. 1. Make sure that the airflow around the unit is not blocked and remove any dirt or debris from the heat sink.

  • Page 44: Technical Parameter

    8. Technical Parameter Models CEP4850-EU-80-H Parallel mode Permitted parallel number AC mode Rated input voltage 220/230Vac (170Vac~280Vac) ±2% Input voltage range (90Vac-280Vac) ±2% Frequency 50Hz/ 60Hz (Auto detection) 47±0.3Hz ~ 55±0.3Hz (50Hz); Frequency Range 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection...
  • Page 45 Power saving mode self- Load≤50W consumption AC charging Battery type Lead acid or lithium battery Maximum charge current (can be 0-60A set) Charge current error ± 3Adc Charge voltage range 40 –58Vdc Short circuit protection Circuit breaker and blown fuse Circuit breaker specifications Overcharge protection Alarm and turn off charging after 1 minute...
