DUROMAX XP13000E Service Manual

Hide thumbs Also See for XP13000E:
Table of Contents

Advertisement

Quick Links

Download this manual

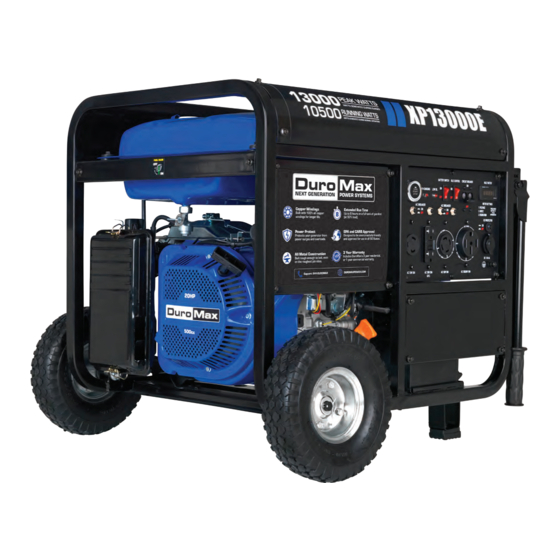

XP13000E
S
E
R
V
I
C
E
M
A
N
U A
L
REV: XP13000E-03132023
5800 Ontario Mills Pkwy
This manual provides information regarding the
Ontario, CA 91764 USA
operation and maintenance of these products. We
www.duromaxpower.com
have made every effort to ensure the accuracy of the
Call our Customer Care Team Toll Free 8-5 pm PST Mon-Fri
information in this manual. We reserve the right to
844-DUROMAX
change this product at any time without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for DUROMAX XP13000E

Summary of Contents for DUROMAX XP13000E

  • Page 1 XP13000E REV: XP13000E-03132023 5800 Ontario Mills Pkwy This manual provides information regarding the Ontario, CA 91764 USA operation and maintenance of these products. We www.duromaxpower.com have made every effort to ensure the accuracy of the Call our Customer Care Team Toll Free 8-5 pm PST Mon-Fri information in this manual.

  • Page 3: Table Of Contents

    CONTENTS Generator Components Generator Components ....................6 Maintenance and Care Maintenance Schedule ....................8 Break-In Period ....................... 9 High Altitude Operation ....................9 Changing the Carburetor Main Jet ................10 Checking the Oil ......................14 Changing the Oil ......................15 Cleaning the Air Filter ....................
  • Page 4 CONTENTS Generator Diagrams Common Engine Parts ....................39 Wiring Diagram ......................46 Maintenance Log Maintenance Log......................47...

  • Page 6: Generator Components

    5. Power Panel - Contains the start switch, plugs, meters, and circuit breakers. 6. Handles - Longest handles of any DuroMax model allow easy movement across any surface. 7. Battery - 12V dc battery that powers the electric start system. (Behind cover plate) 8.
  • Page 7 12. Battery Switch 11. Low Oil Alert 13. Idle Control 10. Charging Light 14. Circuit Breaker 9. Engine Switch 15. Multimeter 16. 12V Auto 21. Circuit Protectors 20. 120V 3-Prong Twist Lock 17.120/240V 4-Prong Receptacle 19. 120V 3-Prong GFCI Receptacle 18.

  • Page 8: Maintenance And Care

    MAINTENANCE AND CARE Proper routine maintenance of your generator is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING: Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously injured or killed. Always follow the inspection, maintenance recommendations, and schedules in this instruction manual.

  • Page 9: Break-In Period

    Operation at altitudes below 3,000 feet (900 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage. Note: Jet kits available for purchase upon request, please contact us at 844-DUROMAX to set up your parts order.

  • Page 10: Changing The Carburetor Main Jet

    MAINTENANCE AND CARE (CONTINUED) Changing the Carburetor Main Jet Remove the filter cover screw Remove the filter cover screw and remove air filter cover. NOTE: Carburetor should be drained of all gasoline prior to servicing. Remove element and holder Remove the air filter element and element holder from air filter.
  • Page 11 Remove air filter hose Remove air filter hose clip with pliers and remove hose from behind air filter. Remove carburetor solenoid Remove both Phillips screws attaching carburetor solenoid with a standard Phillips screwdriver. Remove carburetor bowl bolt Remove the carburetor bowl bolt located under the solenoid with a 14 mm socket wrench.
  • Page 13 MAINTENANCE AND CARE (CONTINUED) Changing the Carburetor Main Jet (Continued) Determine main jet location The carburetor jet is located inside the center metal tube of the carburetor. Remove main jet Remove the main jet with a flat head screwdriver. If necessary gently tap the carburetor to allow the jet and emulsion tube to fall out.

  • Page 14: Checking The Oil

    (see “Adding Oil” portion of the “Maintenance” section). The oil will be visible in the oil fill spout when full. Be sure to replace the cap when finished checking oil. Model Number XP13000E Engine Oil Capacity 40.5 fl. oz (1.2 L)

  • Page 15: Changing The Oil

    Changing the Oil CAUTION: Worn out or dirty oil does not cool the generator properly and can lead to catastrophic engine damage. In addition to regular oil changes, it is necessary to drain the oil from the crankcase if it has become contaminated with water or dirt.

  • Page 16: Cleaning The Air Filter

    MAINTENANCE AND CARE (CONTINUED) Cleaning the Air Filter Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Check that the air cleaner is free of excessive dirt after every use. CAUTION: Improper maintenance may cause less air to enter the engine or dirty air to enter the engine causing overheating and engine wear.
  • Page 17 Wash cleaner element Wash the sponge-like elements in household dish detergent and warm water. Dry cleaner element Pat dry on a dry cloth and allow the elements to dry completely. Add engine oil to elements Soak the dry elements in a small amount of engine oil. Ring out any excess oil.

  • Page 18: Spark Plug Maintenance

    MAINTENANCE AND CARE (CONTINUED) Spark Plug Maintenance The spark plug is important for proper engine operation. SPARK PLUG A good spark plug should be intact, free of deposits, and CONSULT MANUAL properly gapped. BEFORE REMOVING CAUTION: Improper maintenance may cause reduced fuel economy, misfires, trouble starting, or damage to the spark plug threads.
  • Page 19 Measure plug gap Measure the plug gap with a gauge. The gap should be 0.7-0.8 mm (0.028-0.031 in). Clean and re-gap If you are re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base and then re-gap the spark plug.

  • Page 20: Emptying The Gas Tank

    MAINTENANCE AND CARE (CONTINUED) Emptying the Gas Tank If you have been using gasoline in your generator, before storing your generator for extended periods of time you should drain your generator fuel tank of gasoline. CAUTION: Do not store fuel from one season to another.
  • Page 21 Drain gas from the generator With a funnel underneath the fuel valve to catch the gas, turn the fuel valve to the “ON” position. Drain all the gas from the generator. Shut fuel valve OFF Turn the fuel valve to the “OFF” position. Replace fuel filter cup Reinstall the fuel filter cup.

  • Page 22: Cleaning The Fuel Filter Cup

    MAINTENANCE AND CARE (CONTINUED) Cleaning the Fuel Filter Cup Shut fuel valve OFF Turn the fuel valve to the “OFF” position. Remove fuel filter cup Unscrew the fuel filter cup from the fuel valve using a wrench. Clean filter cup Clean the cup of all sediment using a rag or brush.

  • Page 23: Transporting The Generator

    Transporting the Generator Empty the gas tank Fully drain your gas tank as shown in “Emptying the Gas Tank” on page 20-21. Disconnect the spark plug Pull on spark plug cap to disconnect spark plug from ignition wire. CAUTION: Do not obstruct any ventilation openings and keep the generator in a cool dry area.

  • Page 24: Storing The Generator For Same Day Use

    MAINTENANCE AND CARE (CONTINUED) Storing the Generator for Same Day Use Turn the main breaker OFF Move the main breaker to the “OFF” position. Run the generator Allow the generator to run for 3-5 minutes. Turn the generator off Hold the start button for 3 seconds to shut off the generator. Turn battery switch OFF/ Store Turn the battery switch to the “OFF”...

  • Page 25: Storing The Generator For Use Within 30 Days

    Storing the Generator for Use Within 30 Days Turn breaker OFF and run Follow steps 1 and 2 as shown on “Storing the Generator For Same Day Use” on page 24. Shut fuel valve OFF and run dry Shut the fuel valve “OFF” and allow generator to run until it stalls out.

  • Page 26: Storing The Generator For Longer Than 30 Days

    MAINTENANCE AND CARE (CONTINUED) Storing the Generator for Longer Than 30 Days Turn breaker OFF and run Follow steps 1 and 2 as shown on “Storing the Generator For Same Day Use” on page 24. Shut fuel valve OFF and run dry Shut the fuel valve “OFF”...
  • Page 27 Drain the carburetor Remove drain bolt from carburetor and drain small amount of fuel in carburetor bowl. Remove spark plug Remove spark plug as shown in “Spark Plug Maintenance” on page 18. Add oil to cylinder Add 2 tablespoons of 10W-30 motor oil directly into the spark plug hole, and pull the recoil to lubricate cylinder.

  • Page 28: Check And Adjust Valve Clearance

    MAINTENANCE AND CARE (CONTINUED) Check and Adjust Valve Clearance The engine intake and exhaust valve clearance should be checked and if necessary adjusted every 300 hours of use or 12 month period, whichever comes first. CAUTION: If the valve clearance isn’t maintained, this can cause the engine to run less efficiently and potentially cause engine damage.
  • Page 29 Set valves to top dead center Place screwdriver into spark plug hole to help determine the position of the piston, then slowly pull the recoil rope until the piston rises to the top position and both valves are closed (compression step). Check intake valve clearance The intake valve is on the right side of the cylinder head.

  • Page 30: Specifications

    SPECIFICATIONS Model Number XP13000E AC Rated Wattage 10,500 W AC Surge Wattage 13,000 W AC Rated Voltage 120/240V Dimensions 29”L x 30”W x 26”H Weight 236 lbs Recommended Oil 10W-30 Engine Displacement 500 cc Gasoline Capacity 8.3 gal Oil Capacity 40.5 fl.

  • Page 31: Torque Values

    Torque Values Part Description Torque Value Oil Drain Bolt 18.5 ± 1.5 ft. lbs. (24 ± 2 N·m) Crankcase Cover Bolt 20.5 ± 1.5 ft. lbs. (28 ± 2 N·m) Flywheel Nut 70 ± 3 ft. lbs. (95 ± 4 N·m) Ignition Coil Bolt 7.5 ±...

  • Page 33: Troubleshooting

    TROUBLESHOOTING Problem Description Solution Engine switch is “OFF” Set engine switch to “RUN” Fuel valve is “CLOSED” Turn the fuel valve to “OPEN” Choke is open Close the choke The engine is out of fuel Add fuel The engine will not Fuel is old or contaminated Change fuel start...

  • Page 34: Changing/Inspecting The Carbon Brushes

    TROUBLESHOOTING (CONTINUED) Changing/ Inspecting the Carbon Brushes The carbon brushes in conjunction with the AVR regulates power from the generator. The carbon brushes are wearable parts and should be inspected every 250 running hours. Remove generator cover Remove the 2 bolts of the generator cover then pull the cover off the generator.
  • Page 35 Install new brush Install new carbon brush with bolt. Connect AVR wires Insert and connect the 2 wires from the AVR, be sure to connect + and – correctly. Replace generator cover Replace the back cover of the generator and secure it with the 2 bolts.

  • Page 36: Changing/Inspecting The Avr

    TROUBLESHOOTING (CONTINUED) Changing / Inspecting the AVR Changing/ Inspecting the AVR The carbon brushes in conjunction with the AVR regulates power from the generator. If the generator is overheated or overloaded, the AVR may be damaged and require replacement. Remove generator cover Remove the 2 bolts of the generator cover then pull the cover off the generator.
  • Page 37 Disconnect wires from brush Remove the 2 wires from the AVR on the carbon brush. Install new AVR Install the new AVR with the 2 bolts. Reconnect wires to brush Insert and connect the 2 wires from the AVR, be sure to connect + and –...
  • Page 38 TROUBLESHOOTING (CONTINUED) Changing / Inspecting the AVR Changing/ Inspecting the AVR (Continued) Replace generator cover Replace the back cover of the generator and secure it with the 2 bolts.
  • Page 39 COMMON ENGINE PARTS Common Engine Parts 1. Bearing 90548-0202-CLA0 2. Oil Sensor 37060-Z080120-0000 3. Oil Drain Bolt 11007-Z080110-00A0 4. Crankcase 11310-Z0D0110-0BA0 5. Starting Motor Assembly 09100-Z170410-0000 6. Crankcase Cover 11411-Z0D0110-0BA0 7. Oil Fill Cap/Dipstick 15010-Z080330-Q500 8. Crankshaft Bearing 90547-0208-CLAE 9. Crankcase Cover Gasket 11001-Z0D0110-00A0...
  • Page 40 COMMON ENGINE PARTS (CONTINUED) Common Engine Parts (Continued) 10. Valve Cover 12410-Z0J0211-00A0 11. Breather Tube 17004-Z0D0110-00A0 12. Valve Cover Gasket 12004-Z0J0510-00A0 13. Spark Plug 30010-Z010210-00A0 14. Cylinder Head Assembly 12140-Z0D0210-0BA9 15. Cylinder Head Gasket 12131-Z0D0210-00A0 18 19 20 19 16. Crankshaft Assembly 13300-Z0D0110-CLAT 17.
  • Page 41 22. Spacer/Cylinder Gasket 17002-Z0D0110-0000 23. Carburetor Spacer 16003-Z0D0110-0001 24. Spacer/Carburetor Gasket 16001-Z100110-00A0 25. Carburetor Assembly 16100-Z0D0210-00M1 26. Carburetor/Air Filter Gasket 17001-Z0D0110-00A0 27. Gasoline Fuel Line 90686-Z0Y0110-00M0 28. Camshaft Assembly 14200-Z0D0110-00A9 29. Throttle Return Spring 16012-Z080110-00A0 30. Recoil Starter Assembly 28200-Z710110-BG00 31.
  • Page 42 COMMON ENGINE PARTS (CONTINUED) Common Engine Parts (Continued) 33. Fuel Valve 16750-YA40211-0000 34. Breather Valve 15150-Y1Z0110-00A0 35. Fuel Filter 16652-Y020120-00A0 36. Fuel Tank Cap 16730-Y020610-H7A0 37. Fuel Tank Assembly 16620-YDK0110-BGA0 38. Ignition Coil Assembly 30400-Z310311-0001 39. Air Filter Assembly 17100-Z0D0110-0009 40.
  • Page 43 43. Stator and Rotor Assembly 31300-YC20110-0000 44. Brush Assembly 31320-Y030120-0000 45. AVR 30060-YBC0110-0000 46. Stator Support 30021-Y030310-00A0 47. Stator End Cap 30022-Y030110-BG00 48. CO Sensor Alarm 35720-YE30110-0000 49. Battery 31110-Y9X0110-00A0 50. Negative Battery Cable 31112HY130310-0000 51. Positive Battery Cable 31114HY130310-0000...
  • Page 44 COMMON ENGINE PARTS (CONTINUED) Common Engine Parts (Continued) 52. Handle Assembly 54110-YDK0110-H600 53. Handle Grips 54101-Y020110-0000 54. Motor Mounts 51012HY030120-0000 55. Cotter Pin 90501-0436-01A0 56. Wheel 44110-YDK0110-0000 57. Axle 44020-YDK0110-0100 58. Axle Bolt 90332-Y110610-0000 59. Support Leg 51016-YDK0110-H6A0 60. Support Pad 51014HYDK0110-0000...
  • Page 46 WIRING DIAGRAM...
  • Page 47 MAINTENANCE LOG Maintenance Log As a best practice it’s recommended to keep a log of the engine hours and maintenance to ensure your engine is always operating to its full potential. Date Engine Hours Maintenance Performed...
  • Page 48 MAINTENANCE LOG (CONTINUED) Date Engine Hours Maintenance Performed...
  • Page 49 Date Engine Hours Maintenance Performed...
  • Page 50 MAINTENANCE LOG (CONTINUED) Date Engine Hours Maintenance Performed...
  • Page 51 Date Engine Hours Maintenance Performed...
  • Page 52 MAINTENANCE LOG (CONTINUED) Date Engine Hours Maintenance Performed...
  • Page 54 5800 Ontario Mills Parkway Ontario, CA 91764 United States 844-DUROMAX REV: XP13000E-03132023...
