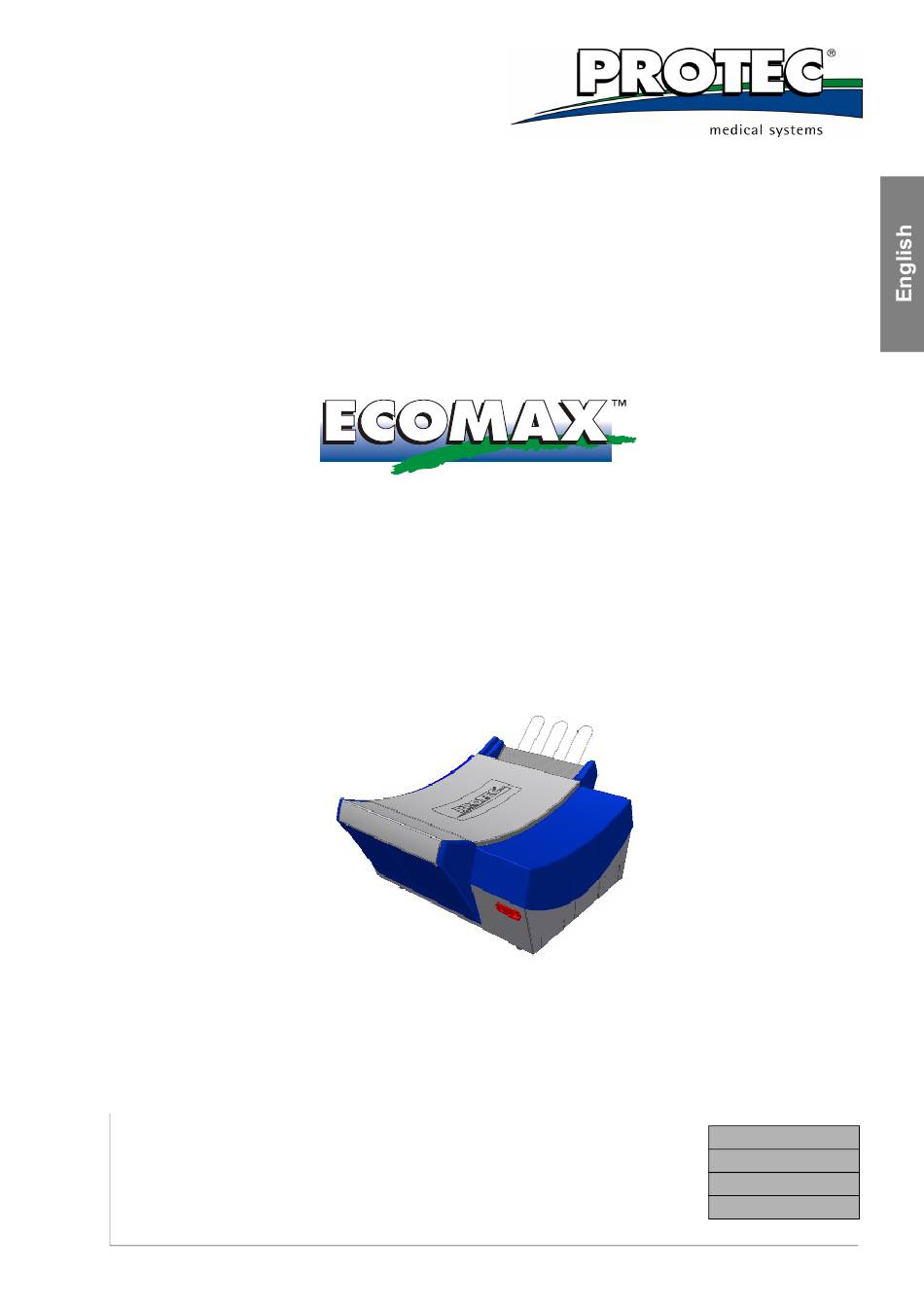

Protec ECOMAX EQ009 Operation Manual

Film processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PROTEC GmbH & Co. KG
Lichtenberger Strasse 35, D-71720 Oberstenfeld, Germany
Telephone: +49-7062-9255-0 e-mail: service@protec-med.com
Film Processor
Operation Manual
Machine No.:
Type:
Installation Date:
Status:
August 2007/1.2
Subject to change
