P-1611 Gas Valve Outlet Line
Installation Instructions- CX
Warning
This replacement kit shall be installed by a qualified service agent in accordance with these
instructions and all applicable codes and requirements of the authority having jurisdiction. If the
information in these instructions is not followed exactly a fire, an explosion or production of
carbon monoxide may result causing property damage, personal injury or loss of life.
The qualified service agency is responsible for the proper installation of this kit. The installation
is not proper and complete until the operation is checked as specified in these instructions.
150-245
150-271
When to Install the P-1611 Gas Valve Outlet Line Replacement
Kit
Install the P-1611 kit if you need to replace a damaged or leaking gas valve outlet line.
IBC Technologies Inc.
-
120-523E0
August 28, 2023

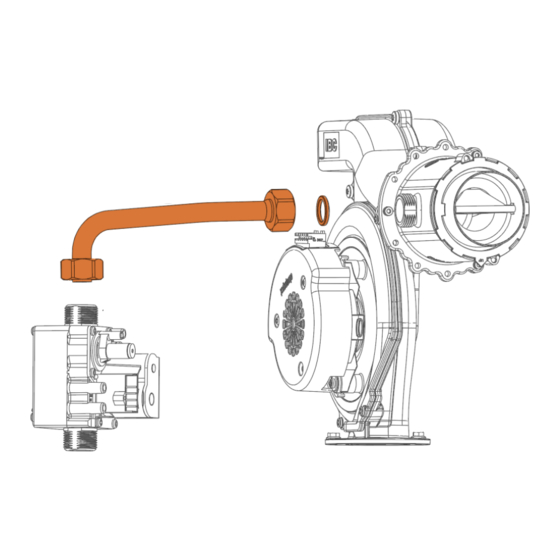

Gas Valve Outlet Line - CX
Part #
251-222
Gas Line Coupler
250-811
¾" BSPP, Gas Line Nut
O-Ring, 2mm X 15 ID
O-Ring, 209 SQ C/s Ring Buna N70
251-225
Gas Line Nut Retainer Clip
- Released Document
Description
1-844-432-8422
Quantity
1
2
1
1
1
|
www.ibcboiler.com
1 of 3
