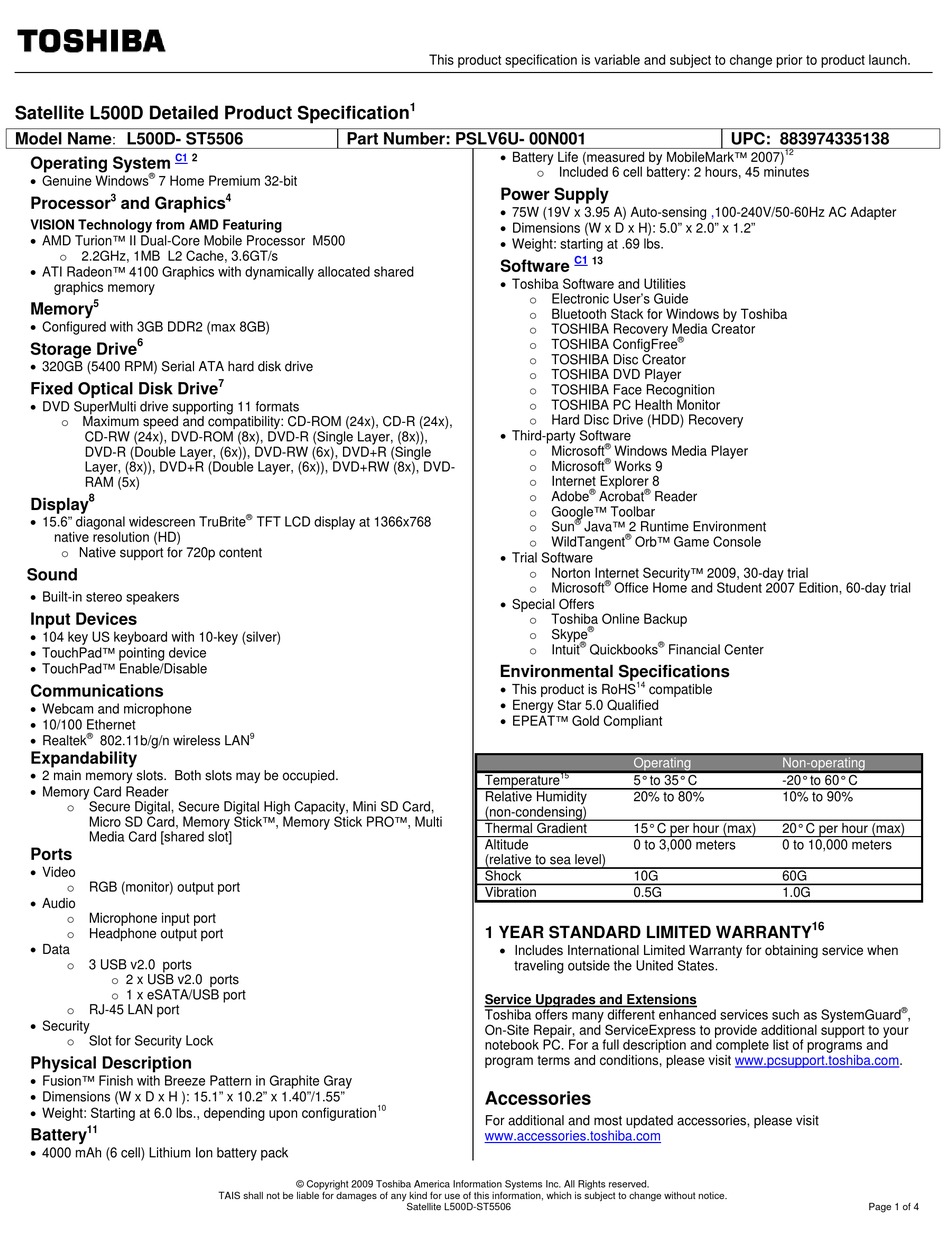

Satellite L500D Detailed Product Specification
Model Name
L500D- ST5506
:
C1
2
Operating System
Genuine Windows
®
7 Home Premium 32-bit
3
Processor
and Graphics
VISION Technology from AMD Featuring
AMD Turion™ II Dual-Core Mobile Processor M500
2.2GHz, 1MB L2 Cache, 3.6GT/s
o
ATI Radeon™ 4100 Graphics with dynamically allocated shared
graphics memory
5
Memory
Configured with 3GB DDR2 (max 8GB)
6
Storage Drive
320GB (5400 RPM) Serial ATA hard disk drive
Fixed Optical Disk Drive
DVD SuperMulti drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
8
Display
15.6" diagonal widescreen TruBrite
native resolution (HD)
o Native support for 720p content
Sound
Built-in stereo speakers
Input Devices
104 key US keyboard with 10-key (silver)
TouchPad™ pointing device
TouchPad™ Enable/Disable
Communications
Webcam and microphone
10/100 Ethernet
Realtek
®
802.11b/g/n wireless LAN
Expandability
2 main memory slots. Both slots may be occupied.
Memory Card Reader
Secure Digital, Secure Digital High Capacity, Mini SD Card,
o
Micro SD Card, Memory Stick™, Memory Stick PRO™, Multi
Media Card [shared slot]
Ports
Video
RGB (monitor) output port
o
Audio
Microphone input port
o
Headphone output port
o
Data
3 USB v2.0 ports
o
o 2 x USB v2.0 ports
o 1 x eSATA/USB port
RJ-45 LAN port
o
Security
Slot for Security Lock
o
Physical Description
Fusion™ Finish with Breeze Pattern in Graphite Gray
Dimensions (W x D x H ): 15.1" x 10.2" x 1.40"/1.55"
Weight: Starting at 6.0 lbs., depending upon configuration
11
Battery
4000 mAh (6 cell) Lithium Ion battery pack
Part Number: PSLV6U- 00N001
4
7
®
TFT LCD display at 1366x768
9
10
© Copyright 2009 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
Battery Life (measured by MobileMark™ 2007)
Included 6 cell battery: 2 hours, 45 minutes
o
Power Supply
75W (19V x 3.95 A) Auto-sensing ,100-240V/50-60Hz AC Adapter
Dimensions (W x D x H): 5.0" x 2.0" x 1.2"
Weight: starting at .69 lbs.
C1
Software
Toshiba Software and Utilities
Electronic User's Guide
o
Bluetooth Stack for Windows by Toshiba
o
TOSHIBA Recovery Media Creator
o
TOSHIBA ConfigFree
o
TOSHIBA Disc Creator
o
TOSHIBA DVD Player
o
TOSHIBA Face Recognition
o
TOSHIBA PC Health Monitor
o
Hard Disc Drive (HDD) Recovery
o
Third-party Software
Microsoft
o
Microsoft
o
Internet Explorer 8
o
Adobe
o
Google™ Toolbar
o
®
Sun
Java™ 2 Runtime Environment
o
WildTangent
o
Trial Software
Norton Internet Security™ 2009, 30-day trial
o
Microsoft
o
Special Offers
Toshiba Online Backup
o
Skype
o
®
Intuit
o
Environmental Specifications
This product is RoHS
Energy Star 5.0 Qualified
EPEAT™ Gold Compliant
15
Temperature
Relative Humidity
(non-condensing)
Thermal Gradient
Altitude
(relative to sea level)
Shock
Vibration
1 YEAR STANDARD LIMITED WARRANTY
Includes International Limited Warranty for obtaining service when
traveling outside the United States.
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard
On-Site Repair, and ServiceExpress to provide additional support to your
notebook PC. For a full description and complete list of programs and
program terms and conditions, please visit www.pcsupport.toshiba.com.
Accessories
For additional and most updated accessories, please visit
www.accessories.toshiba.com
Satellite L500D-ST5506
UPC: 883974335138
13
®
®
Windows Media Player
®
Works 9
®
®
Acrobat
Reader
®
Orb™ Game Console
®
Office Home and Student 2007 Edition, 60-day trial
®
®
Quickbooks
Financial Center
14
compatible
Operating
5° to 35° C
20% to 80%
15° C per hour (max)
0 to 3,000 meters
10G
0.5G
12
Non-operating
-20° to 60° C
10% to 90%
20° C per hour (max)
0 to 10,000 meters
60G
1.0G
16
®
,
