I.D. AL - VideoPlayer VP200HD - Video/Audio player - User manual
3 - INSTALLATION
A REMPLACER
5
6
7
First use: VP200HD is factory setting configured with parameters by default and the player must
operate on inserting a prepared media dedicated to ( chapter 4 ).
1 - Insert a prepared USB flash memory.
USB connector: You can connect a USB flash drive or an external hard drive.
® Waves System
1
2
8
9
10
11
USB key

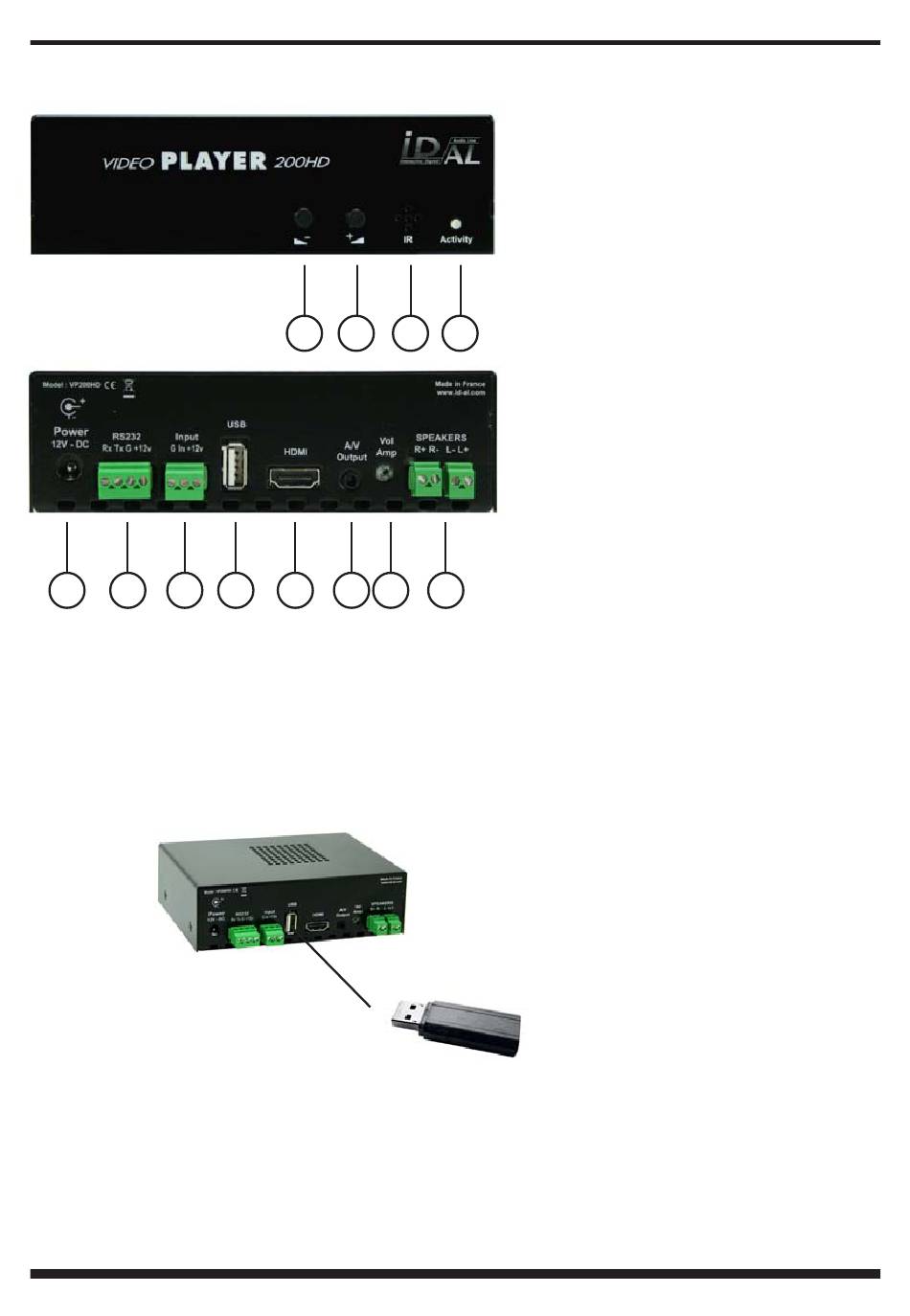

1 - Volume -
2 - Volume +
3 - Infrared sensor
4 - Activity led
3
4
5 - Power supply of the player
6 - Serial link RS 232
7 - Input on dry contact
8 - USB host for flash drive
9 - Video/audio HDMI output
10 - Analog video/audio output
11 - Amplifier volume
12 - Amplified outputs for speakers
12
- 5 -
V 1.0 - 2013
