- Page 1 MANUAL Enfan Horizontal circulation Version: 2023-05 Page 1 of 32...
-
Page 2: Foreword
FOREWORD This user manual is intended for users of these fans and technicians who install and maintain them. The manual and operating instructions are bundled together in a single document. Each chapter is numbered and, where necessary, divided into sections. The table of contents on page 2 contains an overview of the chapters and paragraphs, with references to page numbers. -
Page 3: Table Of Contents
Attachment bracket to the lattice ..................13 4.3.2 Installation of the bracket to the fan................... 13 How to suspend the Enfan using suspension brackets for FG035 fan ......... 14 4.4.1 Installation of het bracket to the lattice ................14 4.4.2 Attaching the brackets to the fan .................. -
Page 4: Identification

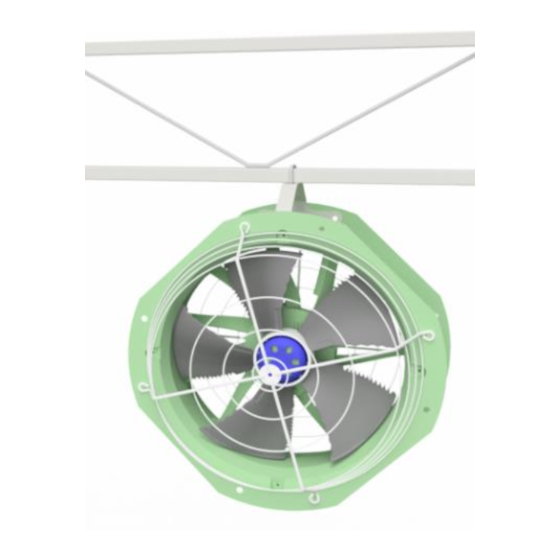

1.1 General 1.1.1 Description of the device The Enfan consists of a fan mounted vertically on a lattice shelf using suspension brackets and mounting brackets. Various accessories are available, such as an inflow/outflow grid and power cord with plug, where the latter depends on the type of fan. It is also possible to order an outflow guide flap so that air is expelled in a certain direction. -
Page 5: Diagram Of The System
6. Long suspension bracket 3. ZG045 Ventilator Figure 1 Diagram of the Enfan The long and short suspension brackets can be used on either the ZN045 as the ZG045 fan. There spacers are required if the long suspension brackets are applied at the ZG045 or FG035. -
Page 6: Users
Generally, the Enfan is not operated directly, but controlled by an operator or user via a control box. These users or operators must be at least 18 years old, employed by the company where the Enfan is installed, and designated by the management as competent and authorized to operate the Enfan. -
Page 7: Description
When working on the Enfan, always make sure the plug is disconnected from the power supply! This prevents the fan starting unexpectedly or unintentionally. Only use self-locking nuts to mount the Enfan. Failure to do so may result in parts vibrating loose and falling off. -
Page 8: Installation
8x self-locking nuts m8 4x bolts m8x20 10x washers m8 Table 2 Enfan parts There will be delivered one set of suspension brackets at every Enfan model. Table 2 shows all the different possible suspensions at every Enfan model. Page 8 of 32... - Page 9 Options Set outflow grid for Enfan ZN045 + ZG045 1x outflow grid for ZN045 + ZG045 4x torx screws Set inflow grid for Enfan ZN045 1x inflow grid for ZN045 4x torx screws Set inflow grid for Enfan ZG045 1x inflow grid for ZG045...
-
Page 10: How To Suspend The Enfan Using Long Suspension Brackets
4.2 How to suspend the Enfan using long suspension brackets 4.2.1 Mount bracket on lattice shelf • Attach the two suspension brackets (3) to the lattice shelf (2); Use two M8 clamps (4), four M8 standard washers or fender washers (1) and four M8 self-locking nuts (5);... -
Page 11: Attach Fan To Bracket
4.2.3 Attach fan to bracket • Attach the fan (1) to the suspension brackets (3); Use two M8 x 20 bolts (2), four M8 fender washers (6) and two M8 self-locking nuts (5); ▪ See Figure 4; When there is an inflow or outflow grid applied at the ZN045 fan, there will be delivered torx screws with it. - Page 12 • Attach the ZG045 fan (1), and optionally the inflow grid (2), to the suspension brackets (3); Use four M8x70 bolts (4), two spacers (7), eight M8 washers (6) and four M8 self- locking nuts (5). ▪ See Figure 5 & Figure 6; The outflow grid can be attached to the fan with four torx screws.
-
Page 13: How To Suspend The Enfan Using Short Suspension Brackets
4.3 How to suspend the Enfan using short suspension brackets 4.3.1 Attachment bracket to the lattice • Attach the suspension bracket (3) to the lattice (6); Use a rivet M8 (4), two M8 washers (1) and two M8 self-locking nuts (2);... -
Page 14: How To Suspend The Enfan Using Suspension Brackets For Fg035 Fan
4.4 How to suspend the Enfan using suspension brackets for FG035 fan The suspension brackets for the FG035 fan are special developed to attach this fan to the lattice. This special developed suspension brackets fix the fan and optionally outflow grid. With the help of these suspension brackets it’s possible to mount the fan on three different heights. -
Page 15: Attaching The Brackets To The Fan
4.4.2 Attaching the brackets to the fan • Attach the fan (1) to the suspension brackets (3) with the optionally outflow grid (2); Use four M8 x 20 bolts(4), eight M8 washers (6) and four M8 self-locking nuts (5) for the attachment of the fan (1) to the suspension brackets (3);... - Page 16 Figure 11 Attachment of the FG035 fan to the suspension brackets Page 16 of 32...
-
Page 17: Air Flow Guide Plates
4.5.1 Configuration of the air flow guide plates The number of guide plates attached to the Enfan and their orientation are vital for determining the air flow. The configurations with one guide plate are shown in Figure 12. The left configuration restricts the airflow downwards whilst the right restricts the flow upwards. -
Page 18: Assembling The Air Flow Guide Plates
4.5.2 Assembling the air flow guide plates To attach the guide plates to the Enfan, the mounting bracket must first be attached to the fan. One can also choose to attach the guide plates to the mounting bracket before connecting the bracket to the Enfan. - Page 19 4x lock nut m5 Figure 16 Connecting two air flow guide plate to mounting bracket The Enfan comes with an outlet grill which can be mounted in front of the fan outlet by means of four torx screws. Whenever air flow guides plates are used in combination with the outlet grill, the plates need to mounted in reversed position.
-
Page 20: Connecting The Thermostatic Switch
CONNECTING THE THERMOSTATIC SWITCH A thermostatic switch is built in to the winding of every fan as standard. When connected, this switch turns the motor off if voltage levels are exceeded and the internal temperature rises above 100 °C. The motor gets too hot if the fan becomes blocked, or similar. Connecting the fan in this way increases its life span. -
Page 21: Operation/Using For The First Time
OPERATION/USING FOR THE FIRST TIME Operating the Enfan is simple: if it is connected to the power supply it will start ventilating, if it is disconnected it will stop ventilating. It is possible to set the speed by adjusting the voltage at the plug with something like a control transformer or inverter. -
Page 22: Connection Diagram Zn045 Ec-Fan 200-277 V Ac ~1 50/60 Hz
6.1.4 Connection diagram ZN045 EC-fan 200-277 V AC ~1 50/60 Hz Figure 21: Connecting diagram ZN045-6IL The power cable for the ZN045 is an 1-phase cable. This power cable must be connected to the following terminals inside the terminal box of the fan (see Figure 21): −... -
Page 23: Connection Diagram Zg045 And Fg035
6.1.5 Connection diagram ZG045 and FG035 Figure 22 (left) Connecting diagram ZG045 and FG035 Figure 23 (right) Connecting feedback circuit in the ZG045 and FG035 The power cable for the ZG045 and the FG035 is an 1-phase cable. This power cable must be connected to the following terminals inside the terminal box of the fan (see Figure 22): −... -
Page 24: Maintenance
The ventilator may become blocked due to obstructions on the inlet or outlet side. In many cases, however, it means that the fan has reached the end of its service life, and the Enfan must be replaced. The inlet or outlet side of the fan could be soiled. As a result, the resistance rises, the motor becomes hot, and the thermostatic switch trips. -
Page 25: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY (In accordance with Annex IIA of the Machinery Directive 2006/42/EC) Van der Ende Pompen Aartsdijkweg 23 2676 LE Maasdijk Nederland declare, under sole responsibility, that the following machine; ® Enfan to which this declaration relates is in conformity with the following directives;... -
Page 26: Ukca Declaration Of Conformity
UKCA DECLARATION OF CONFORMITY UKCA DECLARATION OF CONFORMITY Van der Ende Pompen Aartsdijkweg 23 2676 LE Maasdijk Nederland declare, under sole responsibility, that the following machine; ® Enfan to which this declaration relates is in conformity with the following directives;... -
Page 27: Attachments
ATTACHMENTS • Enfan mounting brackets • CE declaration concerning fan • UKCA declaration concerning fan Page 27 of 32... -
Page 28: Enfan Mounting Brackets
Enfan mounting brackets FN035 a. mounting with set of long suspension brackets 72800011 * b. mounting with set of long suspension brackets 72800011 and spacer ring 56024630 c. mounting with set of short suspension brackets 72800000 d. mounting with set of short suspension brackets 72800000 * Options A and B can be performed with the old suspension bracket 55022890 as long as stock extends. -
Page 29: Ce Declaration Concerning The Fan
CE declaration concerning the fan Page 29 of 32... -
Page 30: Ukca Declaration Concerning The Fan
UKCA Declaration concerning the fan Page 30 of 32... - Page 31 Page 31 of 32...
- Page 32 Aartsdijkweg 23, 2676 LE Maasdijk, The Netherlands +31 174 51 50 50 · info@vanderendegroup.com · www.vanderendegroup.com Page 32 of 32...
