132992310

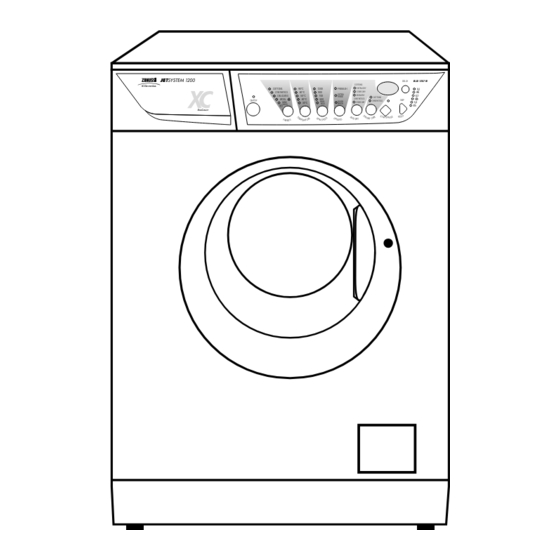

WASHER-DRYER
WJD 1257 W
WJD 1257 S
WJD 1357 S
WJD 1457 W
JETSYSTEM 1200
INSTRUCTION BOOKLET
WJD 1257 W
COTTONS
COTTONS
90°C
1200
PREWASH
EXTRA DRY
SYNTHETICS
60°C
900
STORE DRY
EXTRA
IRON DRY
DELICATES
50°C
700
RINSE
WOOL
40°C
500
SYNTHETICS
COTTONS
QUICK
SYNTHETICS
SKIP
HAND
30°C
RINSE
STORE DRY
WASH
HOLD
WASH
X
TRA
C
APACITY
GB
Advertisement
Table of Contents
Related Manuals for Zanussi Electrolux WJD 1257 W
Summary of Contents for Zanussi Electrolux WJD 1257 W
- Page 1 WASHER-DRYER WJD 1257 W WJD 1257 S WJD 1357 S WJD 1457 W JETSYSTEM 1200 WJD 1257 W COTTONS COTTONS 90°C 1200 PREWASH EXTRA DRY SYNTHETICS 60°C STORE DRY EXTRA IRON DRY DELICATES 50°C RINSE WOOL 40°C SYNTHETICS COTTONS QUICK...
-
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Maintenance and Cleaning 20-21 Descaling Important Safety Information After each wash Maintenance wash Your New Washer-Dryer External cleaning Description of the Appliance Cleaning the dispenser drawer Door locked light Cleaning the drawer recess Cleaning the filter 20-21 Detergent dispenser drawer The dangers of freezing... -
Page 4: Your New Washer-Dryer
Your New Washer-Dryer Your new washer-dryer, fitted with the Zanussi “JET SYSTEM”, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Control Panel 3 Door locked light 4 Door opening handle JETSYSTEM 1200 WJD 1257 W COTTONS PREWASH EXTRA DRY COTTONS 90°C 1200 SYNTHETICS 60°C STORE DRY EXTRA IRON DRY DELICATES 50°C... -
Page 6: The Control Panel
The Control Panel WJD 1257 W COTTONS EXTRA DRY 1200 PREWASH COTTONS 90°C STORE DRY SYNTHETICS 60°C IRON DRY ° 50°C AA40 DELICATES COTTONS 40°C SYNTHETICS WOOL SKIP SYNTHETICS QUICK RINSE HAND STORE DRY 30°C WASH HOLD WASH 9 10... - Page 7 7 AUTO DRY button • Drain only - Press the SKIP/RESET button once, so as to cause This button allows you to choose the required degree of the DRAIN light to light up, then press the drying for cottons and synthetics: START/PAUSE button.
- Page 8 • Delay start, a time value indicated in hours and selected by means of the relevant button. 2.05 While the programme is running (after you have pressed the START/PAUSE button), the displayed The delay time is displayed for 3 seconds, then the time value decreases by one unit every minute.
- Page 9 10 START/PAUSE button A normal wash cycle consists of the following phases, Wash - Rinses - Spin and is confirmed by the This button has three functions: illumination of the corresponding LED,s. • Start: after you have selected the desired programme and options, press this button to start the machine.
- Page 10 12 DELAY START button 13 Programme phase indicator lights This button makes it possible to delay the starting of the programme by up to 24 hours. The delay you have When you select a programme, the lights relevant to the selected is shown on the display for about 3 seconds;...
-
Page 11: Operating Sequence
Operating Sequence 4. Switch the machine on WASHING Before the first wash, we recommend that you run a Press the ON/OFF button to switch the machine on. The cotton cycle at 60°C, without any laundry in the display will show three blinking dashes or a blinking machine, to remove any manufacturing residue from the zero. -
Page 12: Select The Temperature
6. Select the temperature 9. Select the DELAY START Press the TEMPERATURE button if you wish to select Before you start the programme, if you wish the a temperature value different from the one proposed by starting to be delayed, press the DELAY START button the washing machine. -
Page 13: How To Change A Programme During Its Cycle
11. How to change a programme After approximately 3 minutes, you can open the door. during its cycle Pay attention to the level and temperature of the water in the machine! Before you make any change, you must pause the When you close the door and press the ON/OFF button machine by pressing the START/PAUSE button. -
Page 14: Drying 2.5 Kg Of Cotton
5. At the end of the programme press SKIP/RESET DRYING 2.5 KG OF COTTON button to clear the memory and switch the machine You have for example just machine-washed and spun at off by depressing ON/OFF button. 1200 rpm 5 kg (11 lb) of laundry. 6. -
Page 15: Washing And Drying Hints
Washing and Drying Hints Do NOT overload the machine. Weigh the laundry the Some stains such as fruit, wine, grass, rust etc. are first few times you use the appliance. difficult to remove and should be treated before washing with specific products, which can be found The average weights of the most common items are in most household shops. -
Page 16: Which Detergent To Use
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 17: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 18: Washing Programmes
Washing programmes Type of Consumption* laundry and Programme/ Description of Load Available options Energy Water Time symbols on temperature programme litres h/min. labels 5 kg Cottons Main wash at SPIN SPEED 2.34 White cotton: 60°-90°C 60°-90°C RINSE HOLD e.g. sheets, 3 rinses PREWASH tablecloths,... -
Page 19: Drying Programmes
Drying Programmes Timed drying Degree of drying Type of fabric Max. load Spin speed Drying time mins 1200 80-90 2.5 kg 1300 75-85 Extra dry Cotton and linen 1400 70-80 Ideal for (bathrobes, bath towelling 1200 60-70 towels, etc.) materials 1.5 kg 1300 55-65... -
Page 20: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the C0067 C0066 machine. -
Page 21: The Dangers Of Freezing
If the filter is blocked and the machine is unable to drain you will need to drain the water manually from the machine at this stage. To do this, unhook the drain hose from the standpipe or sink and hold the end of the hose over a bowl on the floor. -
Page 22: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 23: Service And Spare Parts
Please note that a valid purchase receipt or For Customer Service in Ireland please contact us at the guarantee documentation is required for in- guarantee service calls. address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Mod. -
Page 24: Guarantee Conditions
Standard guarantee conditions Appliances found to be in use within a commercial environment, plus those which are subject to rental We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI Products of Zanussi Electrolux manufacture which ELECTROLUX appliance or any part thereof is proved are NOT marketed by Zanussi Electrolux. -
Page 25: Installation Instructions
Cotton, linen 2.5 kg Synthetics 2 kg SPIN SPEED Maximum 1200 rpm ( WJD 1257 W) 1200 rpm ( WJD 1257 S ) 1300 rpm ( WJD 1357 S ) 1400 rpm (WJD 1457 W) CONSUMPTION DATA FOR WASHING Energy 0.95 kWh... -
Page 26: Unpacking
Fill all the holes with the plastic plugs supplied with the Unpacking instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 27: Water Inlet
Water inlet Connect the hose supplied with the machine to a tap with a 3/4” thread. Do not use already employed hoses. P1074 The standpipe should have an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe. P1088 Installation should comply with local water authority 38 mm.(1/ ") diameter... -
Page 28: Levelling
If you intend the drain hose to empty into a sink, make Warning sure that the sink is empty and the plug hole is not The machine should NOT be placed on deep pile blocked. Use the plastic “U-Piece” supplied. carpeting. -
Page 29: Electrical Connection
Electrical connection The wire coloured brown must be connected to the terminal marked «L» or coloured red. Any electrical work required to install this appliance Upon completion there must be no cut, or stray strands should be carried out by a qualified electrician or of wire present and the cord clamp must be secure over competent person. - Page 30 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
