Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Wash Care Symbols Washing Programmes Important Safety Information Drying Programmes Your New Washer-Dryer Maintenance and Cleaning 20-21 Description of the Appliance Descaling Detergent dispenser drawer After each wash Child safety feature Maintenance wash The Control Panel External cleaning 6-10 Cleaning the dispenser drawer... -
Page 4: Your New Washer-Dryer
Your New Washer-Dryer This new machine, which is fitted with the New Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. ● The special wool programme with its new delicate In the interest wash system treats your woollens with extreme care. -
Page 5: Description Of The Appliance

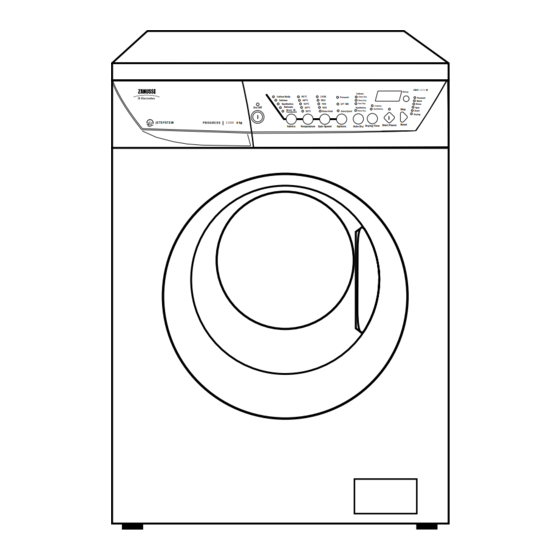

Description of the Appliance 1 Detergent dispenser drawer 2 Control Panel 3 Door opening handle 4 Drain pump ZWD 1272 W Cottons 95°C 1200 Cotton Daily Prewash Extra Dry Prewash Cottons 60°C Store Dry Wash Synthetics 50°C 40° AA Iron Dry... -
Page 6: The Control Panel
• for cotton: 1,400 rpm (ZWD 1472 W - 1472 S) relevant to the selected programme will light up. The 1,200 rpm (ZWD 1272 W); machine will propose a temperature and automatically • for synthetic fabrics, wool and fabrics to be hand- select the maximum spin value provided for the washed: 900 rpm;... - Page 7 7 “Auto Dry” button Then select the previously selected washing programme by means of the “Fabrics” button. If you wish to drain This button allows you to choose the required degree of and spin press the “Skip/Reset” button in order to select drying for cottons and synthetics: the “Spin”...
- Page 8 • Duration of washing programme in hours and Important! minutes, after you have selected a programme. The first time you use the machine, when you switch it on, it may display a blinking zero. This is due to the fact that the machine has performed a washing cycle during the manufacturer’s inspection tests, and this cycle has not been erased after its completion.
- Page 9 10 “Start/Pause” button Prewash This button has two functions: Wash • Start: after you have selected the desired programme Rinse and options, press this button to start the machine. The Spin light above the button will stop flashing and remain lit. Drain If you have selected a delay time by means of the Drying...
- Page 10 12 “Delay” button 13 Programme phase indicator lights This button makes it possible to delay the starting of the programme selected from 30 min - 60 min - 90 min, 2 When you select a programme, the lights relevant to the hours and then by 1 hour up to a maximum of 23 hours.
-
Page 11: Operating Sequence
Operating Sequence 4. Switch the machine on WASHING Press the “On/Off” button to switch the machine on. Before the first wash we recommend that you run a The display will show three blinking dashes or a cotton cycle at 95°C, with the machine empty, in order blinking zero. -
Page 12: Select The Temperature
The relevant light will light up. Delay If you select the “Rinse Hold” option, the machine will stop at the end of the programme with the water still in the tub. ZWD 1272 W ZWD 1472 W - S 1200 1400 Rinse Hold Rinse Hold 10. -
Page 13: How To Change An Option Or A Programme During Its Cycle
11. How to change an option or After approximately 3 minutes, you can open the door. a programme during its cycle Pay attention to the level and temperature of the water in the machine! Before you make any change, you must pause the When you close the door and press the “On/Off”... -
Page 14: Drying 3 Kg Of Cotton
4. Press the “Start/Pause” button to start the DRYING 3 KG OF COTTON programme. You have for example just machine-washed and spun at 1200 rpm 6 kg of laundry. They are cotton fabrics of medium weight which you want to iron as soon as they are dry. Press the “Skip/Reset”... -
Page 15: Washing And Drying Hints
Washing and Drying Hints ● Do NOT overload the machine. Weigh the laundry the Some stains such as fruit, wine, grass, rust etc. are first few times you use the appliance. difficult to remove and should be treated before washing with specific products, which can be found The average weights of the most common items are in most household shops. -
Page 16: Which Detergent To Use
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 17: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 18: Washing Programmes
Washing programmes Cotton programmes Consumption* Type of laundry Programme/ Description of Load Available options and symbols on Water temperature programme Energy kWh labels litres Main wash at Cotton daily SPIN SPEED 6 kg White cotton: 60°- 95°C RINSE HOLD 60° - 95°C e.g. -
Page 19: Drying Programmes
Drying Programmes Timed drying Degree of drying Type of fabric Max. load Spin speed Drying time mins 1200 3 kg Extra dry Cotton and linen 1400 Ideal for (bathrobes, bath towelling towels, etc.) 1200 materials 1.5 kg 1400 1200 3 kg 1400 Cotton and linen (towels, T-shirts,... -
Page 20: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you To aid cleaning, the top part of the additive compartment must DISCONNECT the appliance from the electricity should be removed. supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 21: Cleaning The Water Inlet Filter
Cleaning the water inlet filter • Pull out the emergency emptying hose, place it in the container and remove its cap. If your water is very hard or contains traces of lime • When no more water comes out, unscrew the pump deposit, the water inlet filter may become clogged. -
Page 22: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 23: Service And Spare Parts
For Customer Service in Ireland please contact us at the guarantee documentation is required for in- address below: guarantee service calls. Zanussi Electrolux - Electrolux Group (Irl) Ltd Long Mile Road - Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 24: Guarantee Conditions
Standard guarantee conditions ● Appliances found to be in use within a commercial environment, plus those which are subject to rental We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI ●... -
Page 25: Installation Instructions
Drying Cotton, linen 3 kg Synthetics 2 kg SPIN SPEED Maximum 1200 rpm (ZWD 1272 W) 1400 rpm (ZWD 1472 W - ZWD 1472 S) CONSUMPTION DATA FOR WASHING Energy 1.02 kWh 6 KG NORMALLY SOILED COTTON Water 49 litres ITEMS AT 60°C + OPTION 40°AA SELECTED... -
Page 26: Unpacking
Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 27: Water Inlet
Water inlet Connect the hose supplied with the machine to a tap with a 3/4” thread. Do not use already employed hoses. “U” piece supplied P1199 Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose and standpipe. -
Page 28: Levelling
2. Onto a sink outlet spigot. Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and If the outlet spigot has not been used before, remove displacement of the machine during operation. any blanking plug that may be in place. Some vibration is inevitable, especially if mounted on a wooden floor. -
Page 29: Electrical Connection
The wires in the mains lead are coloured in accordance with the following code: Green and Yellow - Earth Blue - Neutral Brown - Live GREEN & YELLOW SHOWER SINK TOILET BATH BIDET WASHING BROWN MACHINE DISHWASHER RAINWATER BLUE 'RUN-OFF' CORD CLAMP P1041 FOUL DRAIN... - Page 30 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
