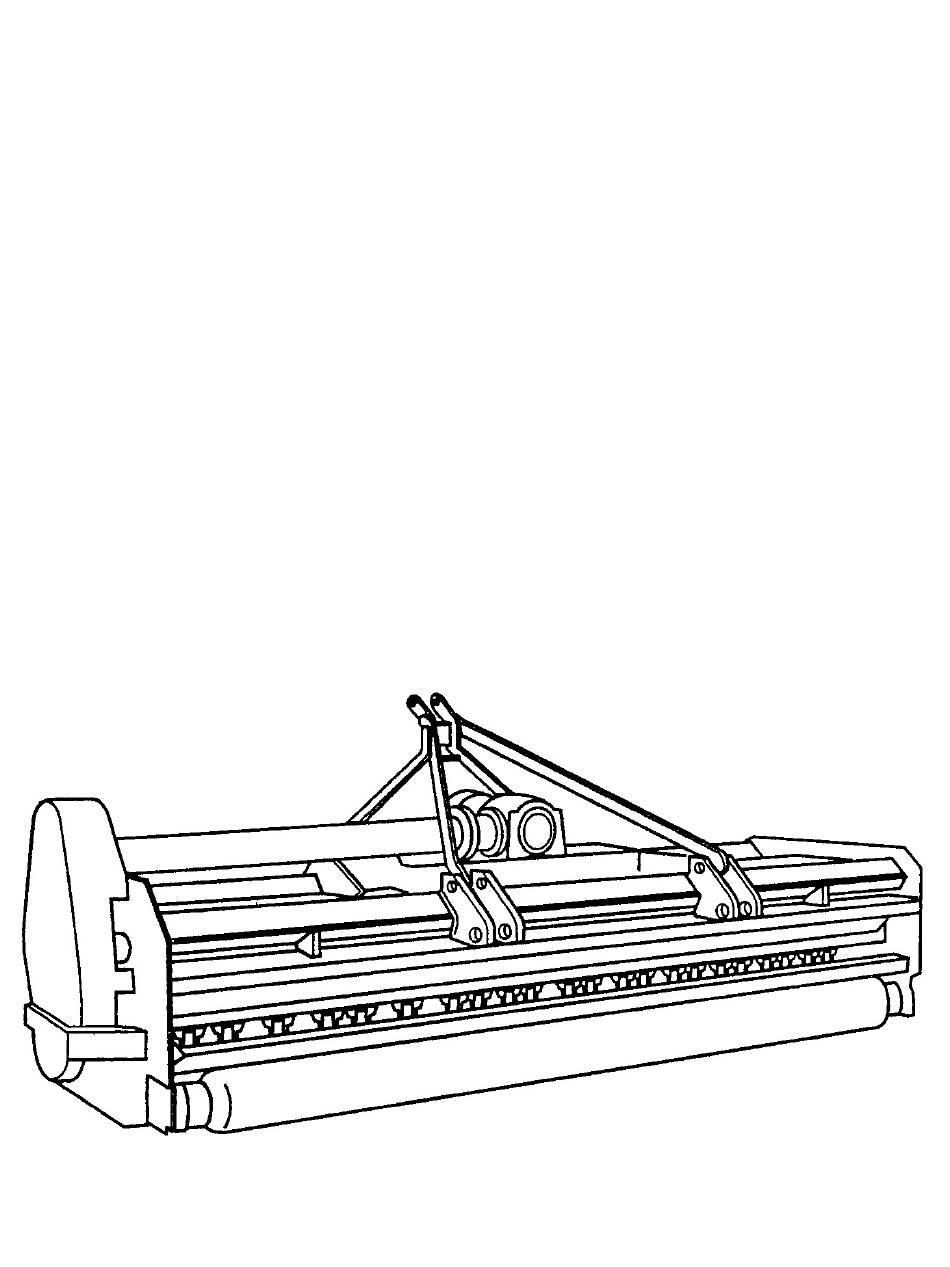

- Page 1 BEFCO ® Operator’s Manual HURRICANE Heavy Duty Flail Mower H80-076, H80-090, H80-100 (serial #256963 & below) The operator’s manual is a technical service guide and must always accompany the machine. Manual 971-394B October 2019...
-
Page 2: Signal Words
SAFETY Take note! This safety alert symbol found throughout this manual is used to call your attention to instructions involving your personal safety and the safety of others. Failure to follow these instructions can result in injury or death. This symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! - Page 3 4.09 - Driveline 4.10 - Overrunning Clutch 5 - REPAIR PROCEDURES 5.01 - Gearbox 5.02 - Rotor Shaft 5.03 - Suggested Spare Parts 5.04 - Storage 6 - TROUBLESHOOTING 7 - PRE-DELIVERY CHECKLIST 8 - WARRANTY PARTS MANUAL BEFCO NDEX...
-
Page 4: General Information
1. Cleaning, transporting, mailing and service call charges. 2. Normal wear items such as belts, blades, bearings, drivelines, shear pins, slip clutches, etc. 3. Depreciation or damage caused by normal wear, accidents, improper maintenance, improper protection or improper use. See Chapter 8 - Warranty. BEFCO ENERAL NFORMATION... -
Page 5: Model And Serial Number Id
Attached to the frame is an ID plate showing the model and the serial number. Record your implement model and serial number in the space provided below. Your dealer needs this information to give you prompt, efficient service when you order parts. BEFCO ENERAL NFORMATION... -
Page 6: Safety Precautions
6. Operate only in daylight or good artificial light. 7. Ensure mower is properly mounted, adjusted and in good operating condition. 8. Ensure that all safety shielding and safety signs are properly installed and in good condition. BEFCO AFETY RECAUTIONS... -
Page 7: Starting And Stopping
6. Allow no riders on tractor or mower. 7. Allow moving parts to stop before repair. 8. Securely support mower before working underneath. Additional warning and operating decals are available at no extra charge. Please specify model and serial number when ordering. BEFCO AFETY RECAUTIONS... - Page 8 ’ URRICANE PERATOR ANUAL Fig. 2 - Safety decals - implement; replace immediately if damaged. right side left side BEFCO AFETY RECAUTIONS...
- Page 9 ’ URRICANE PERATOR ANUAL Safety decals - driveline; replace immediately if damaged. placed on outer shield placed on outer tube BEFCO AFETY RECAUTIONS...
-
Page 10: Operational Safety
2. Do not operate the tractor and mower when you are tired, sick or when using medication. 3. Keep all helpers and bystanders at least 100 yards from a flail mower. Only properly trained people should operate this machine. See Section 4.08 - Reverse Rotor Direction. See Section 3.03 - Cutting Height Adjustment. BEFCO PERATION... - Page 11 Without this weight, tractor could tip over, causing personal injury or death. The weight may be attained with a front end loader, front wheel weights, ballast in tires or front tractor weights. When attaining a minimum 20% of BEFCO PERATION...
- Page 12 It is his responsibility to ensure that the customer is aware of all safety aspects and operational procedures for the mower. He must also fill out the Pre-Delivery Checklist prior to delivering the mower. See Chapter 4 - Maintenance. See Chapter 7 - Pre-Delivery Checklist. BEFCO PERATION...
-
Page 13: Cutting Height Adjustment
The cutting height changes by adjusting the position of the rear roller. The machine has 8 different cutting height positions. The cutting height is adjustable from ¾” to 6”. Cutting lower than 2” under most circumstances should be avoided. BEFCO PERATION... -
Page 14: Pre-Operational Check
DANGER: Stay clear of rotating driveline. Entanglement in rotating driveline can cause serious injury. Disengage PTO, engage parking brake or place transmission in “Park”, shut off the tractor and remove the key before working See Table 1, page 28. BEFCO PERATION... -
Page 15: Attaching To The Tractor
See Table 2, page 28. See Section 4.09 - Driveline, for instructions on how to determine correct driveline length and procedures for shortening the driveline. BEFCO PERATION... - Page 16 10. Checking the tractor tires for the proper pressure in accordance with the tractor’s operator’s manual. 11. Checking that the PTO shield, belt shield, front rubber strip and all other shielding are on the machine and securely in place. See Section 4.03 - Blade Maintenance. See Section 4.03 - Blade Maintenance. BEFCO PERATION...
-
Page 17: Working Speed
Mow extremely tall grass twice. On the first pass use a high cutting height. On the second pass, position the mower at the desired height and, when practical, mow at a right angle of travel to the first pass. BEFCO PERATION... -
Page 18: Uneven Terrain
6. Slow down on sharp turns and slopes to prevent tipping or loss of control. 7. Avoid tipping the mower while cutting. 8. Watch for holes, roots or other hidden objects. Do not use near the edge of a gully, ditch or stream bank. BEFCO PERATION... - Page 19 4. Always disengage PTO before raising the implement to transport position. 5. When raising the mower be sure the PTO driveline does not hit either the mower or the tractor. 6. During transport the mower should not be lifted over 14”-16” from the ground. BEFCO PERATION...
-
Page 20: Maintenance Safety
12. Never replace hex bolts with less than grade five bolts unless otherwise specified, i.e. shear bolts 13. Where replacement parts are necessary for periodic maintenance and servicing, genuine replacement parts must be used to restore your equipment to original Refer to Table 1 - Torque Specifications, page 28. BEFCO AINTENANCE... - Page 21 DANGER: The beginning of abnormal vibrations from the rotor may mean it is out of balance. A single broken or missing blade is enough to cause this. An See Section 4.03 - Blade Maintenance. See Table 1, page 28. See Section 4.05 - Belt Tension. BEFCO AINTENANCE...
-
Page 22: Blade Maintenance
4. Ensure the cutting edge of the blades is the leading edge in the direction of rotation. 5. Replace the bolt and torque the nut to 95 N.m. (70 lb.ft). Fig. 5 1. "U" support 2. lock nut 3. blade bolt 4. pivot ring 5. blade BEFCO AINTENANCE... -
Page 23: Blade Options
This leaves the grass with a rippled cut. Also available is a straight “dethatching” blade which is used in unison with either of the other two. This blade cuts into grass roots and brings the dead thatch to the top (see fig. 6). BEFCO AINTENANCE... -
Page 24: Belt Tension
Check the tension of both belts (see fig. 7) by applying a force of 12-15 lb. pushing against each belt halfway between the pulleys. The belt deflection should be between ”- ”. Fig. 7 1. upper pulley belt deflection 2. belts 5/16"-3/8" 3. belt tensioner 4. lower pulley 5. adjustment bolt BEFCO AINTENANCE... -
Page 25: Belt Replacement
5. Ensure that the belt is at the proper tension (see fig. 7). 6. Replace the belt shield. 4.07 - Reverse Gearbox Direction The H80 flail mower in its standard configuration is to be used with a tractor that has a shaft that turns clockwise. BEFCO AINTENANCE... - Page 26 In the collapsed position the driveline should be approximately 2” from bottoming out to prevent possible damage to the tractor or implement. When the driveline is in the maximum extended position, the ideal minimum overlap of the two halves should be approximately 6” (see fig. 9). BEFCO AINTENANCE...
-
Page 27: Overrunning Clutch
The mower is supplied with a PTO driveline that comes equipped with an overrunning clutch. The PTO yoke end is attached to the tractor’s PTO, while the end with the overrunning clutch is attached to the mower. The purpose of the overrunning clutch is to transmit power in one direction only. BEFCO AINTENANCE... - Page 28 1117 2080 8464 3/4” - 6” 2 CX ASAE 6 H80-090 45-80 90” 97” 1251 2080 8465 3/4” - 6” 2 CX ASAE 6 H80-100 50-80 100” 107” 1410 2080 8466 3/4” - 6” 2 CX ASAE 6 BEFCO AINTENANCE...
-
Page 29: Repair Procedures
8. Slide the rotor from the right side panel and then from the left side. To replace the rotor, follow the above instructions in reverse order. See Section 4.05 - Belt Tension. See Section 4.06 - Belt Replacement. See Section 4.05 - Belt Tension. See Section 4.06 - Belt Replacement. BEFCO EPAIR ROCEDURES... -
Page 30: Suggested Spare Parts
WARNING: Be sure to store the implement on a hard level surface and away from people especially children. Note: The machine demolition operations should be carried out in compliance with all federal, state and local environment protection laws. See Chapter 4 - Maintenance. BEFCO EPAIR ROCEDURES... -
Page 31: Troubleshooting
Grass is too high. Cut in two passes at tractor tires tracks. a slower ground speed. Mower not running at rated PTO Set tractor throttle for 540 rpm. rpm. Mower not level. Level mower with tractor hitch arms. Wrapping or material buildup. Clean rotor. BEFCO ROUBLESHOOTING... -
Page 32: Pre-Delivery Checklist
IMPORTANT: Warranty is not valid unless Pre-Delivery Checklist and Warranty Registration form in Operator’s Manual is completed in detail and mailed to the Company. Model Number: __________ Serial Number: __________ Delivery Date: __________ Dealer’s Signature: __________ BEFCO ELIVERY HECKLIST... -
Page 33: Warranty
1. LIMITED WARRANTY BEFCO, Inc. herein referred to as the Company, warrants its machines and related accessories, hereafter referred to as the Machine, to be free from defects in material and workmanship, for a period of twelve (12) months from the date of invoice to the first registered owner;... - Page 34 6. WARRANTY SERVICE Warranty Service must be performed by a dealer authorized by BEFCO. If the warranty service requested is approved, the owner shall pay only for labor beyond the rate allowed, for overtime labor, and for any mileage charge for transporting the equipment to and from the dealer’s shop.
-
Page 35: Warranty Registration
Operator’s Manual and literature published by the Company. Inspected by: Date: Date: Dealer’s Signature: Customer’s Signature: This registration along with a copy of the invoice must be sent to BEFCO, Inc. within 14 days of date of purchase. - Page 36 Place stamp here BEFCO, Inc. Warranty Department P.O. Box 6036 Rocky Mount, NC 27802-6036...
-
Page 37: Parts Manual
BEFCO ® Parts Manual HURRICANE Heavy Duty Flail Mower H80-076, H80-090, H80-100 (serial #256963 & below) Parts Manual 05/2010 BEFCO H80-076, 090, 100, 256963- (US).lwp H80-076 Printed on October 11, 2019 H80-090 H80-100 Ver. A & below... - Page 38 ’ URRICANE RAME PERATOR ANUAL H80-076, 090, 100; S #256963 & ERIAL BELOW BEFCO ARTS ANUAL 01/2001...
- Page 39 005-9146 Support, belt tensioner pulley 005-9151 Belt tensioner pulley 005-0142 Bearing 6204-2RS 005-0144 Snap ring, inner Ø47 005-9155 Spacer 009-2276 Nut ES M20-2.50 Z TN 005-9161 Tie rod, belt tensioner adjustment 005-3196 Bracket, belt tensioner adjustment BEFCO ARTS ANUAL 01/2001...
- Page 40 ’ URRICANE RAME PERATOR ANUAL H80-076, 090, 100; S #256963 & ERIAL BELOW BEFCO ARTS ANUAL 01/2001...
- Page 41 950-107B Decal “BEFCO” 950-315B Decal “H80” 950-335B Decal “076” 950-274B Decal “090” 950-337B Decal “100” 950-381B Decal “BEFCO INC” address 971-394B Operator’s & Parts Manual flail mower “Hurricane H80-076, 090, 100 Ver. A (#256963) & below” BEFCO ARTS ANUAL 01/2001...
- Page 42 ’ URRICANE EARBOX AND RIVE HAFT PERATOR ANUAL H80-076, 090, 100; S #256963 & ERIAL BELOW BEFCO ARTS ANUAL 01/2001...
- Page 43 007-4232 Bolt HH M14-2.00x40 C8.8 Z F 003-0358 Nut PT M14-2.00 C6 Z TK 005-9312 Protection support 001-1207 Protection, PTO shaft 001-1208 Bolt HH M06-1.00x12 C4.6 Z F 001-1209 Washer fender Ø6 Z 005-9137 Key 12x8x40 BEFCO ARTS ANUAL 01/2001...
- Page 44 ’ URRICANE EARBOX AND RIVE HAFT PERATOR ANUAL H80-076, 090, 100; S #256963 & ERIAL BELOW BEFCO ARTS ANUAL 01/2001...
- Page 45 BELOW Ref. Part # Description Qty. 050-0687 Gearbox, complete; H80 025-9200 Gearbox & drive shaft, complete; H80-076 035-9200 Gearbox & drive shaft, complete; H80-090 045-9200 Gearbox & drive shaft, complete; H80-100 Ver. A (#256963) & below BEFCO ARTS ANUAL 01/2001...
- Page 46 ’ URRICANE AUGE HEELS PTION PERATOR ANUAL H80-076, 090, 100; S #256963 & ERIAL BELOW BEFCO ARTS ANUAL 01/2001...
- Page 47 005-2886 Inner spacer 005-2889 Bearing L44643-10 005-2888 Oil seal 12194 000-5506 Bolt HH M20-2.50x180 C8.8 Z P 005-2891 Bolt HH 1/2”-20x1.00” G5 Z F 005-2892 Washer lock 1/2” Z 000-5508 Nut HH M20-2.50 C6 Z MD BEFCO ARTS ANUAL 01/2001...
- Page 48 ’ URRICANE RIVELINE VERRUNNING CLUTCH PERATOR ANUAL BEFCO ARTS ANUAL 05/2009...
- Page 49 Locking ring, inner tube 950-463B Decal “DANGER - Rotating driveline, keep away” outer shield 950-464B Decal “DANGER - Guard missing, do not operate” outer tube 90SS6031C Shield, complete 1006065C Chain, anti-rotation 050-0471 Driveline w/overrunning clutch, complete BEFCO ARTS ANUAL 05/2009...
- Page 50 ’ URRICANE RIVELINE LIP CLUTCH PERATOR ANUAL BEFCO ARTS ANUAL 05/2009...
- Page 51 Company. Technical information provided in this manual is approximate, the Company reserves the right to modify or improve the models shown for technical or commercial purposes. Pictures in this manual do not necessarily show the machine as delivered. BEFCO ARTS ANUAL 05/2009...
- Page 52 ® P.O. Box 6036 Rocky Mount, NC 27802-6036 Tel.: 252.977.9920 - Fax: 252.977.9718 www.befco.com ®...
