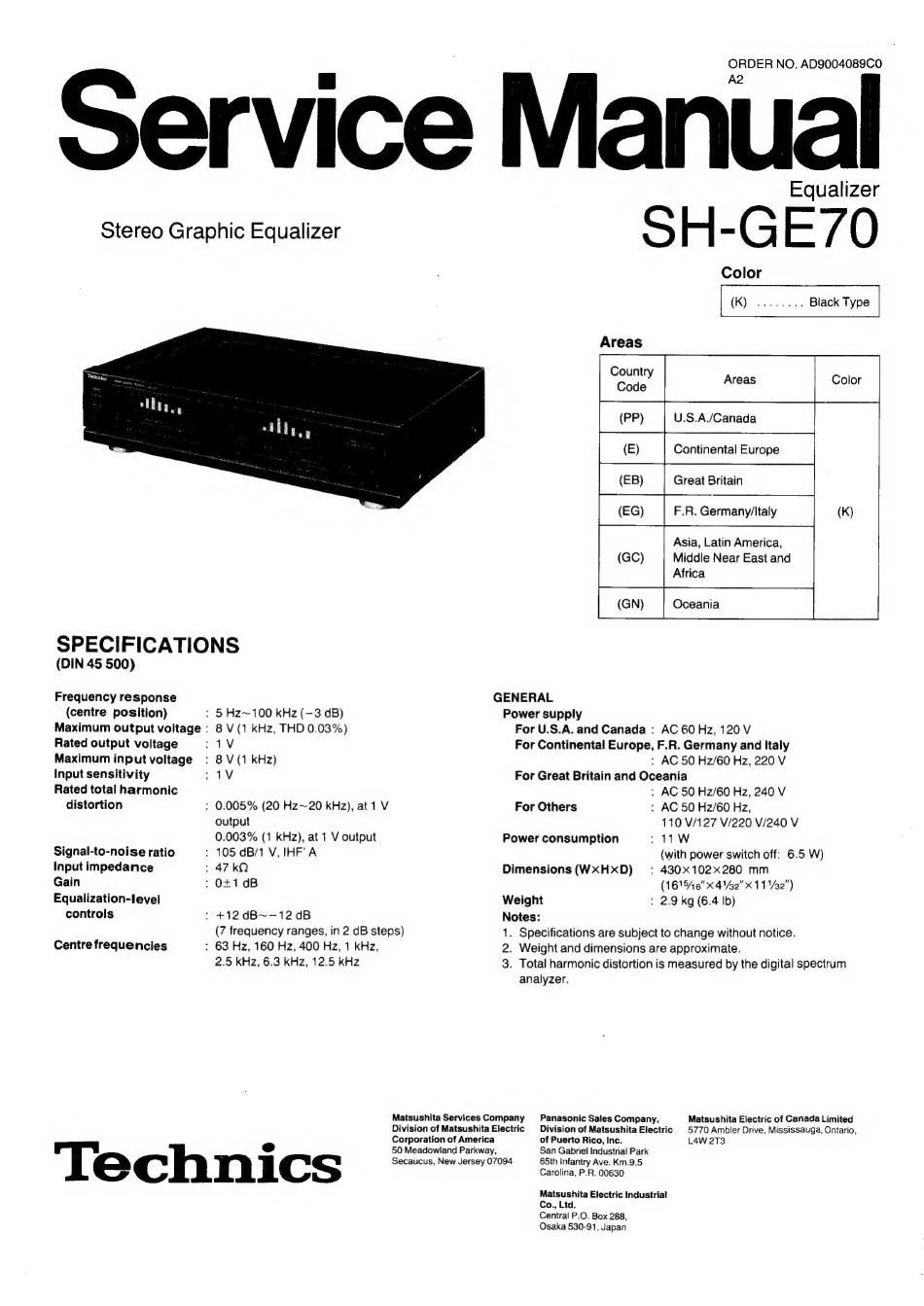

Technics SH-GE70 Service Manual

ORDER NO. AD9004089C0
Service Manual
Equalizer

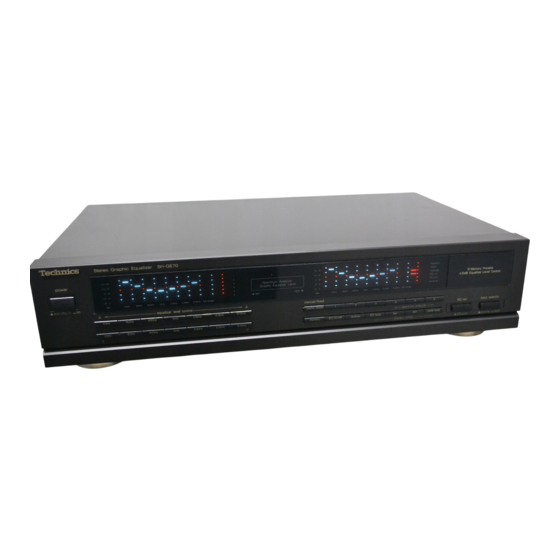

Stereo Graphic Equalizer S H - G E 70
Color
| (K) suecsuaes Black Type
SPECIFICATIONS
(DIN 45 500)
Frequency response
(centre position)
Maximum output voltage :
Rated output voltage
Maximum input voltage
Input sensitivity
Rated total harmonic
distortion
Signal-to-noise ratio
Input inpedance
Gain
Equalization-level
controls
Centre frequencies
Technics
: 5 Hz~100 kHz (—3 dB)
8 V (1 kHz, THD 0.03%)
:1V
: 8V(1 kHz)
:1V
: 0.005% (20 Hz~20 kHz), at 1 V
output
0.003% (1 kHz), at 1 V output
: 105 dB/1 V, IHF' A
» 47kQ
: O+1 dB
: +12 dB~—12 dB
(7 frequency ranges, in 2 dB steps)
: 63 Hz, 160 Hz, 400 Hz, 1 kHz,
2.5 KHz, 6.3 kHz, 12.5 kHz
Matsushita Services Company Panasonic Sales Company,
U.S.A./Canada
Continental Europe
Great Britain
F.R. Germany/ltaly (K)
Asia, Latin America,
Middle Near East and
Africa
Oceania
GENERAL
Power supply
For U.S.A. and Canada : AC 60 Hz, 120 V
For Continental Europe, F.R. Germany and Italy
: AC 50 Hz/60 Hz, 220 V
For Great Britain and Oceania
: AC 50 H2/60 Hz, 240 V
For Others : AC 50 Hz/60 Hz,
110 V/127 V/220 V/240 V
Power consumption > 11W
(with power switch off: 6.5 W)
: 430x 102x280 mm
(161%/6"x 402" x 11 %2")
Weight : 2.9 kg (6.4 Ib)
Notes:
1. Specifications are subject to change without notice.
2. Weight and dimensions are approximate.
3. Total harmonic distortion is measured by the digital spectrum
analyzer.
Dimensions (WxHxD)
Matsushita Electric of Canada Limited
Division of Matsushita Electric Division of Matsushita Electric 5770 Ambler Drive, Mississauga, Ontario,
Corporation of America
50 Meadowland Parkway,
Secaucus, New Jersey 07094
of Puerto Rico, Inc. L4W 2T3
San Gabriel Industrial Park
65th infantry Ave. Km.9.5
Carolina, P.R. 00630
Matsushita Electric Industrial
Co., Ltd.
Central P.O. Box 288,
Osaka 530-91, Japan
