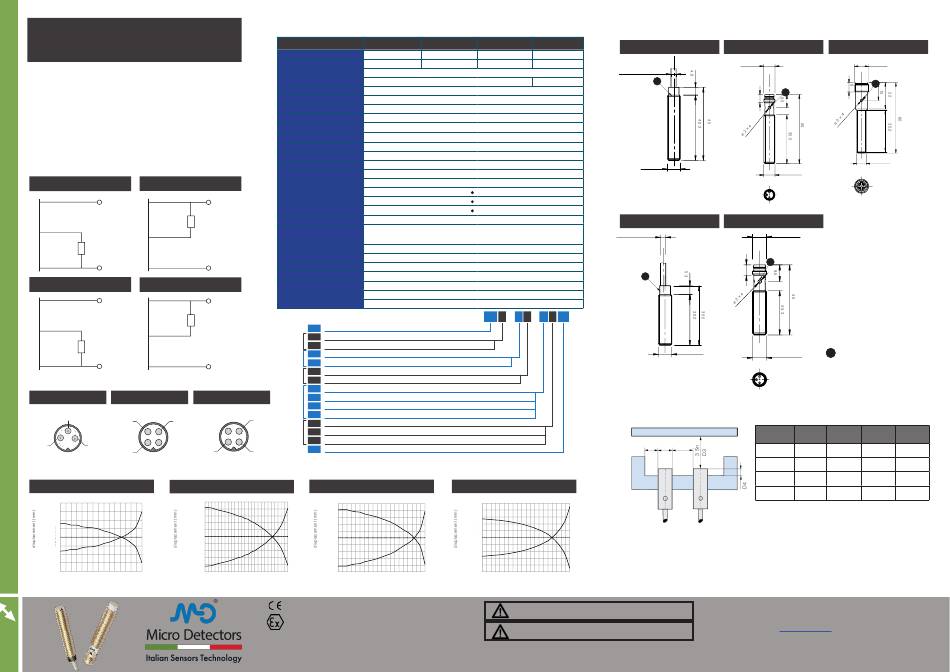

Micro Detectors AE Series Installation Manual

AE
M8 PROXIMITY INDUCTIVE
SENSORS
Installation manual - 826001350 Rev. A - ENG - Created: 16/01/2023
SUPPLIED MATERIAL
• Installation manual
• Safety instructions for dengerous areas
• Declaration of Conformity CE
• Label ATEX marked
GENERAL DESCRIPTION
•Extremely reduced measure
• Metal housing
• LED status indicator 360° visible
• IP 67 housing protection
• Complete protection against electrical damages
• Standard and long distance models
• Standard and short body housing
• CE Mark
• ATEX certified
ELECTRICAL DIAGRAMS OF THE CONNECTIONS
M12 PNP M12 NPN
BN/1 BN/1
+ +
BK/4 = NO
BK/4 = NO
BK/2 = NC
BK/2 = NC
BU/3 BU/3
- -
M8 PNP M8 NPN
BN/1 BN/1
+ +
BK/4
BK/4
BU/3 BU/3
- -
CONNECTORS
M8 M12 - NO M12 - NC
OUT
Supply
OUT NO
(-)
4 4 3 3
4 3
2
1 1 2
1
Supply
Supply
(+) (-) Supply (+)
Supply
(+)
RESPONSE DIAGRAMS
AE*/**-1*
parallel displacement AE*/**-2*
2,5!
4!
2!
3!
1,5!
2!
1!
1!
0,5!
0! 0!
-0,5!
-1!
-1!
-2!
-1,5!
-3!
-2!
-4! -2,5!
0! 0,1! 0,2! 0,3! 0,4! 0,5! 0,6! 0,7! 0,8! 0,9! 1! 1,1! 1,2! 1,3! 1,4! 1,5! 0! 0,1! 0 ,2! 0 ,3! 0 ,4! 0 ,5! 0 ,6! 0 ,7! 0 ,8! 0 ,9! 1! 1,1! 1 ,2! 1 ,3! 1 ,4! 1 ,5! 1 ,6! 1 ,7! 1 ,8! 1 ,9! 2! 2,1! 2 ,2! 2 ,3! 2 ,4! 2 ,5!
d [mm]!
d (mm)
SPECIFICATIONS
Models
AE*/**-1*
nominal sensing
1.5 mm
operating distance
0...1.21 mm
hysteresis
standard target
repeat accuracy
supply voltage range
max ripple content
output current
output voltage drop
no load supply current
leakage current
switching frequency
time delay before availability
ambient temperature range
temperature drift of Sr
short-circuit protection
voltage reversal protection
induction protection
shocks and vibrations
weight
LED indicators
degree of protection
EMC
housing material
sensing face
connection
tightening torque
KEY:
BN = brown;
BK = black;
CODE DESCRIPTION
BU = blue;
WH = white.
AE
series M8 inductive proximity switch
1
Standard body
housing
6 Short body
A
NO output state
output
state
C
NC output state
N
NPN logic output
output
logic
P
PNP logic output
1
Shielded standard 1.5 mm
2 Unshielded standard 2.5 mm
distance
3
Long distance shielded 2 mm
4 Unshielded long distance 4 mm
Supply
A
Axial cable exit
(-)
4 3
4 3 F M8 plug cable exit
connect.
H M12 plug cable exit
1 2
1 2
AN With ATEX Certificate
OUT NC
AE*/**-3*
parallel displacement parallel displacement
2,5!
2!
1,5!
1!
0,5!
0!
-0,5!
-1!
-1,5!
-2!
-2,5!
0! 0,1!0,2!0,3!0,4!0,5!0,6!0,7!0,8!0,9! 1! 1,1!1,2!1,3!1,4!1,5!1,6!1,7!1,8!1,9! 2!
d [mm]! d [mm]!
d (mm) d (mm)
Model AE
Il 3G Ex nA IIC T5 Gc
Il 3D Ex tc IIIB T90°C Dc
Certificate N° : 0802004X
AE*/**-2* AE*/**-3* AE*/**-4*
2.5 mm 2 mm 4 mm
0...2.02 mm 0...1.62 mm 0...3.24 mm
1...20% Sr
8 x 8 mm FE360 12 x 12 mm FE360
5 %
10...30 Vcc
≤ 10 %
≤ 200 mA
≤ 1.8 V @ 200 mA
10 mA
≤10 μA
5 kHz
50 ms
-25...+70 °C
10%
IEC 60947-5-2
16 g plug M8 version
20 g plug M12 version
43 g cable version
yellow LED output state
IP 67 ( EN60529 )
conforming to EMC Directive requirements according to IEC 60947-5-2
nickel-plated brass
PBT
cable 2 m PVC / plug M8 or M12
3 Nm
-
AE 1 / A P 1 A AN
AE*/**-4*
parallel displacement
5!
4!
3!
2!
1!
0!
-1!
-2!
-3!
-4!
-5!
0! 0,2!0,4!0,6!0,8! 1! 1,2!1,4!1,6!1,8! 2! 2,2!2,4!2,6!2,8! 3! 3,2!3,4!3,6!3,8! 4!
d [mm]!
d (mm)
WARNING These products are NOT safety sensors and are NOT suitable for use in
personal safety application.
For ATEX models read carefully safety instruction before installation.
Declaration of conformity
Datasensing S.r.l. declares under its sole responsibility that these products are in conformity with the
EMC directive.
DIMENSIONS (mm)
AE1 /**-*A AE1 /**-*F
M8 x 1
ø 3.1
1 1 1
1 1 1
6
M8 x 1
M8 x 1
AE6/**-*A AE6/**-*F
M8 x 1
ø 3.1
1 1 1
6
1 1 1
M8 x 1
M8 x 1
INSTALLATION
code
D1 D D2
AE*/**-1*
AE*/**-2* ≥ 4 mm
AE*/**-3*
AE*/**-4*
(1) ≥ 0 mm for non magnetic materials
