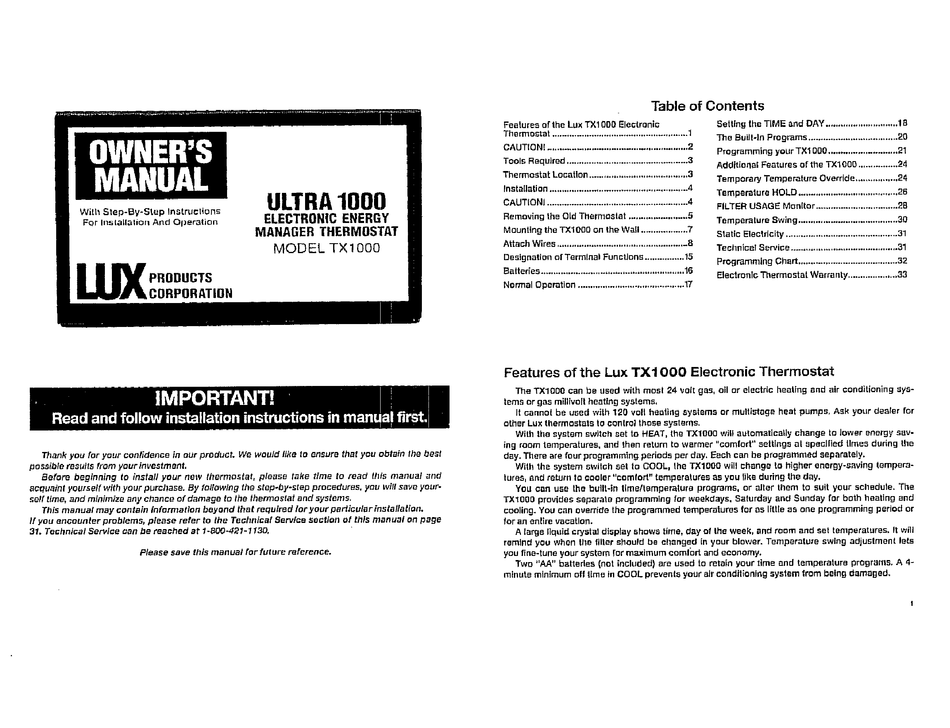

Lux Products ULTRA 1000 Owner's Manual

OWNER'S
MANUAL
ULTRA 1000
ELECTRONIC ENERGY
MANAGER THERMOSTAT
MODEL TX1000
With Step-By-Step Instructions
For Installation And Operation
PRODUCTS
CORPORATION
IMPORTANT! |
|
|
|
Read and follow installation instructions in manual first,
Thank you for your confidence in our product. We would like to ensure that you obtain the best
possible results from your investment.
Before beginning to install your new thermostat, please take time to read this manual and
acquaint yourself with your purchase. By following the step-by-step procedures, you will save your-
self time, and minimize any chance of damage to the thermostat and systems.
This manual may contain information beyond that required for your particular installation,
If you encounter problems, please refer to the Technical Service section of this manual on page
31. Technical Service can be reached at 1-800-421-1130, `
Please save this manual for future reference.
Table of Contents
Features of the Lux TX1000 Electronic Setting the TIME and DAY..
Thermostat
The Built-In Programs.....
CAUTION! Programming your TX1000......
Tools Required. Additional Features of the TX1000.
Thermostat Location Temporary Temperature Override...
Installatio Temperature HOLD.
CAUTION! FILTER USAGE Manito
Removing the Old Thermostat .... Temperature Swing...
Mounting the TX1000 on the Wali. Static Electricity
Batteries Electronic Thermostat Warranty......
Normal Operation ....

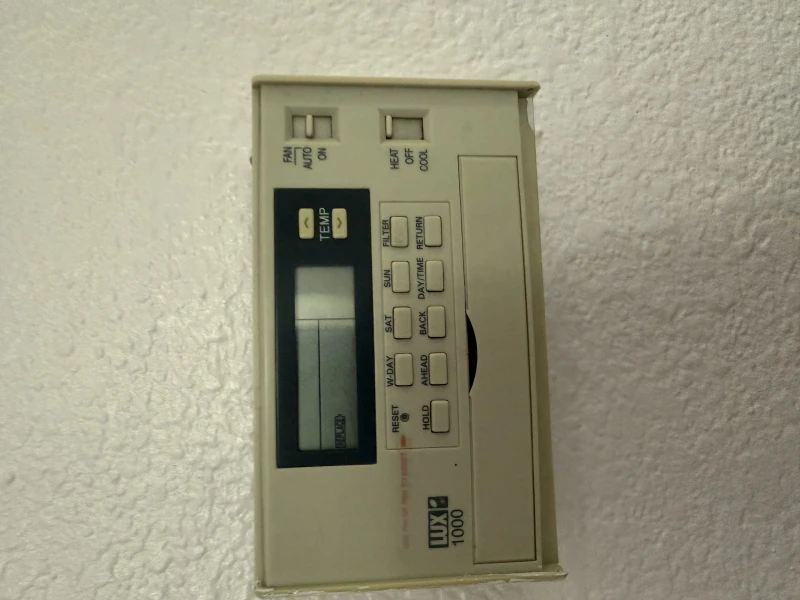

Features of the Lux TX1000 Electronic Thermostat
The TX1000 can be used with most 24 voit gas, oil or electric heating and air conditioning sys-
tems or gas millivolt heating systems.
It cannot be used with 120 volt healing systems or multistage heat pumps, Ask your dealer for
other Lux thermostats to control those systems.
With tha system switch set to HEAT, the TX1000 will automatically change to lower energy sav-
ing room temperatures, and then return to warmer "comfort" settings al specified times during the
day. There are four programming periods per day. Each can be programmed separately.
With the system switch set to COOL, the TX1000 will change to higher energy-saving tempera-
tures, and return ta cooler "comfort" temperatures as you like during the day.
You can use the hullt-in time/tamperature programs, or alter them to suit your schedule. The
TX1000 provides separate programming for weekdays, Saturday and Sunday for both heating and
cooling. You can override the programmed temperatures for as little as ane programming period or
for an entire vacation.
A large liquid crystal display shows time, day of ihe week, and room and set temperatures, It will
remind you when the filler should be changed in your blower. Temperature swing adjustment Iets
you fine-tune your system for maximum comfort and economy.
Two "AA" batteries (not included) are used 1o retain your time and temperature programs. A 4-
minute minimum off iims in COOL prevents your alr conditioning system trom being damaged.
