INSTALLATION AND
OPERATING INSTRUCTIONS
PSP511Ca / PSP511LCa

Programmable Thermostat

WARNING: Use Energizer
®
or DURACELL
®
Energizer
®
is a registered trademark of Eveready Battery Company, Inc.
DURACELL
®
is a registered trademark of The Gillette Company, Inc.
Mt. Laurel, New Jersey 08054, USA
http://www.luxproproducts.com
Thank you for your confidence in our product. To obtain the best results from your
investment, please read these instructions and acquaint yourself with your purchase.
COMPATIBILITY
This thermostat can be used with most single stage 24 volt: gas, oil or electric heating
and/or cooling systems, single stage heat pumps, or gas Millivolt heating systems. It
cannot be used with 3-wire zone valves, 120 volt heating systems, or multi-stage heat
pumps. Ask your dealer for other LUXPRO thermostats to control those systems.
FEATURES
LCD - Liquid Crystal Display
T
U
D
AY
5
36
:
HEAT
F
AN
72
PM
Software
Reset Button
WEEKEND
FAN
WEEKDAY
PROGRAM
R E S E T
PROGRAM
A U T O
O N
R U N
N EX T
LUX
SET
DAY/TIME
HOL D
AIR FILTER
Speed
Dial
®
• Small elegant design
• F/C Temperature Display
• Exclusive LUX Speed Dial
®
• 12/24 Hr Clock Display
• "EL" Illuminated Display
• Adjustable Temperature Differential /
• Air Filter Monitor
Cycle Rate
• 5-2 Day Programming
• User Temperature Offset /
• Energy Star Compliant
Calibration
• 4 Periods Per Day
• System or Battery Powered
• Battery Free Memory Storage
• 5 Minute Minimum Run/Off Time For
• Temporary Temperature Override
Short Cycle and Compressor
• Temperature Hold
Protection
• Keyboard Lockout
Please read ALL of these instructions carefully before beginning
installation. Save them for future reference.
INSTALLATION
TOOLS REQUIRED
• #1 Phillips screwdriver
• Drill with 3/16 in. (4.8mm) bit
• Wire Stripper / Cutter
CAUTION: This thermostat is protected against normal minor static electric
discharges, however to minimize the risk of damaging the unit in extremely dry
weather, touch a grounded metal object before touching your thermostat.
LOCATION
On replacement installations, mount the new thermostat in place of the old one unless
the conditions listed below suggest otherwise. On new installations, follow the
guidelines listed below.
1. Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor, and in a
room that is used often.
2. Do not locate where air circulation is poor, such as in a corner or an alcove, or
behind an open door.
3. Do not install it where there are unusual heating conditions, such as: in direct
sunlight; near a lamp, television, radiator, register, or fireplace; near hot water
pipes in a wall; near a stove on the other side of a wall.
4. Do not locate in unusual cooling conditions, such as: on a wall separating an
unheated room; or in a draft from a stairwell, door, or window.
5. Do not locate in a damp area. This can lead to corrosion that may shorten
thermostat life.
6. If painting or construction work has yet to be completed, cover the unit completely
or do not install it.
WARNING:
• Read instructions carefully before removing any wires from your existing
thermostat.
• This thermostat should be limited to 1.5 amps per terminal, and a maximum
of 2 amps total; higher current than this may cause damage to the thermostat.
• All wiring must conform to the local codes and ordinances that are in your
particular location.
REMOVAL OF OLD UNIT
1. Turn OFF the electricity to all heating and cooling components.
Do not turn the electricity back on until all work is completed.
2. Remove the cover and front portion of your old thermostat to
expose the wiring connections.
3. Write down the letters printed near each wire terminal that is
used, and the color of the wire that is connected to it. Using the
enclosed labels, attach a label to each of your wires so that the
letter matches the marking on your existing thermostat.
4. When they are all labeled, carefully remove the wires one at a time, making sure
that they do not fall back inside the wall. Do not allow any of the bare wire ends to
touch each other, or any parts on the thermostat.
5. Loosen all of the screws on the old thermostat and remove it from the wall.
MOUNTING
1. Strip insulation leaving 3/8 in. (9.5mm) bare wire ends and clean off any corrosion.
2. Fill wall opening with non-combustible insulation to prevent drafts from affecting
the thermostat.
3. Remove the body from the thermostat's base by pressing the thumb latch at the
bottom center of the unit and swinging the body away.
NOTE:
If you are mounting the base to soft material like plasterboard or if you are using the
old mounting holes, the screws may not hold. Drill a 3/16 in. (4.8mm) hole at each
screw, and insert the plastic anchors provided.
4. Hold the base against the wall. Route the wires through the hole below the terminal
block. Position the base for best appearance (to hide any marks from an old
thermostat). Attach the base to the wall with the two screws provided.
CONNECTING THE WIRES
5. Wires must be trapped between the black clamps and the brass
terminals as shown here.
6. Being careful not to overighten them, securely tighten all of the
electrical terminal screws, including any unused ones.
NOTE:
When you are finished performing your installation and setup options, please remove
the thin plastic film that is protecting the LCD display screen on the front of the
thermostat. This plastic may or may not be present, and is evident by the appearance
of fake digits appearing on the display screen.

WIRING INFORMATION

** Complete heating and/or cooling system wiring can be found in the WIRE
IDENTIFICATION AND WIRING SCHEMATICS section of this instruction sheet. The
schematics shown provide component information for brand new installations or
for unreferenced wires.

SETUP OPTIONS

SYSTEM TYPE SETTING:
This setting tells the thermostat about the type of heating and cooling equipment that
it is controlling, so that the system is operated properly. There are two operating
modes based on your system type, "Furnace (Fn)" or "Heat Pump (HP)". If you have a
Furnace, ensure this is set to "Fn". If you have a Heat Pump, ensure this is set to
"HP".
Install two new Energizer
Alkaline Batteries Only.
continuing further. Ensure that the batteries are installed in the proper direction as per
the markings shown in the battery tray. With the thermostat powered by batteries,
press and hold the HOLD button, and then press the Hardware Reset button once on
the back of the unit's circuit board. Continue to hold the HOLD button until "SYS" is
shown on the LCD screen. Use the UP or DOWN buttons to toggle between "Fn" and
52074
"HP" modes. When you are finished, press NEXT. This setting is now complete, and
will not change unless you adjust it again. This is true even in the event of a power
failure, or if a reset button is pressed.
NOTE:
All of the settings, options, and components listed in this section are located on the
rear of the thermostat, on the circuit board.
HARDWARE RESET
The hardware reset is a push button that is located on the right edge of the circuit
board, just above the battery location. This reset button is used by the thermostat to
reset the unit's clock, and read the position of all of the option switches. When any of
the following items are changed, the hardware reset button must be pushed for the
change to be recognized. User temperature programs are not erased when a hardware
reset is performed.
Set Temperature Buttons
HEAT FAN CONTROL
This setting defines the fan operation while in Heat mode, and when the fan is in Auto.
Fan Mode
This setting has no effect while the thermostat is in Cool mode, or if there is no blower
Switch
fan connected to the "G" wire terminal.
GAS: Use this setting if you have a Gas or Oil heating
Temperature
system. In the GAS setting, the heating system itself
Mode Switch
TE ME R ATU R E
controls the operation of the blower fan (if equipped).
H E AT
O F F
ELECTRIC: Use this setting if you have a Heat Pump or
C O O L
Quick Reference
Electric heating system. In the ELEC setting, the heating
system requires the thermostat to control the operation of
Door Instructions
PSP511Ca
LUX
LUX
the blower fan.
The following option settings are all located within a group of small switches labeled 1
through 4 as shown below, and are located in the center of the circuit board.
TIME FORMAT
This determines how the thermostat displays the clock and all other times on the
screen. Switch position OFF is 12 HR, and ON is 24 HR.
TEMPERATURE SCALE
This determines how the thermostat displays all temperatures on the screen. Switch
position OFF is F°, and ON is C°.
FILTER DISPLAY
This determines how the remaining filter life will be displayed when the rotary dial is
turned to the AIR FILTER position. In the Percent (%) mode, the display will count down
the percentage of air filter life remaining before a filter change is recommended. In
the Days mode, the display will count down the number of calendar days remaining
before a filter change is recommended. Switch position OFF is Percent mode, and ON
is Days mode.
BATTERY MONITOR
This determines whether the internal battery voltage monitor watches the condition of
the batteries that are installed in the thermostat. This setting should always remain
enabled unless the thermostat is being powered by System Power alone, without any
batteries present. Switch position OFF is Battery Monitor On (Enabled), and Switch
position ON is Battery Monitor Off (Disabled).

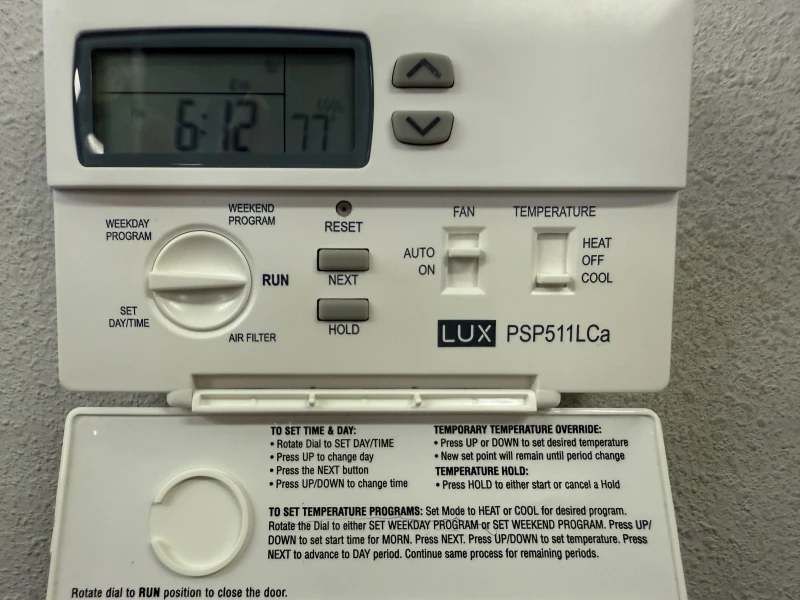

FRONT PANEL ITEMS

SOFTWARE RESET
The software reset is a small recessed push button that is located right above the
NEXT button. This button can be pushed with a pencil or the end of a paper clip. This
reset clears all of the heating and cooling programs, filter settings, and
other user changeable preferences to their default values. You should write down your
heating and cooling program times and temperatures prior to using the software reset.
MODE SWITCHES
There are two mode switches on the front, a Temperature mode switch and a Fan
mode switch. The Temperature mode switch has three positions: HEAT, OFF, and COOL.
In the winter, set the system switch to HEAT to control your heating system. In the
summer, set the switch to COOL to control your air conditioner. In the spring and fall or
when the windows are open, you can set the switch OFF. The Fan mode switch has
two positions, AUTO and ON. Setting the Fan mode switch to AUTO, automatically runs
your system's blower fan as required only during heating and cooling activation.
Setting the Fan mode switch to ON, runs your system's fan continuously, even if
heating or cooling is not needed,
including when the Temperature mode switch is in the OFF position to provide air
circulation only.
NOTE:
The Fan mode switch only works if your system provides a wire for the thermostat's
"G" wire terminal.
PUSH BUTTONS
There are four primary push buttons on the front of the thermostat: The UP and DOWN
arrow keys, the NEXT button, and the HOLD button.
OFF
ROTARY DIAL
The LUX Speed Dial
programming areas. This rotary dial has five individual positions.
OPERATING INSTRUCTIONS
SET DAY/TIME
Rotate the dial to the SET DAY/TIME position. You should see the word SET appear on
the display, along with the clock and a day of the week that is flashing. With the day
flashing, press the UP button to advance the day to the desired day. Press the NEXT
button, this should cause the time to start flashing and the day to remain on steady.
Using either the UP or DOWN buttons, adjust the clock to the desired time. The clock
digits will increment rapidly if either the UP or DOWN buttons are held in the pressed
position.
HEATING AND COOLING
Basic operation of your heating or cooling system can be obtained by ensuring that the
rotary dial is in the RUN position, and simply moving the Temperature mode switch to
either the HEAT or COOL position. Prior to being set initially with your custom
temperature program, and also after a Software Reset, the thermostat will follow the
default temperature program routines that are preset within the thermostat's memory,
as shown below.
PERIOD
MINIMUM RUN TIME DELAY
This is determined by the thermostat, and controls the minimum length of time that
the thermostat must remain with Heat or Cool either On or Off, before it will automat-
ically switch to the alternate On or Off state. This feature prevents rapid or short
cycling, and provides compressor protection for cooling equipment. The time amount
for this delay is fixed at 5 minutes between on or off load changes.
TEMPERATURE OVERRIDE
A Temperature Override occurs in Run mode, in either Heat or Cool, anytime the user
adjusts the set temperature to a value that differs from the stored program
temperature for that day and time. When the thermostat is in an Override, the word
Override will appear in the temperature area of the display. The thermostat will
maintain thermal control using this new set temperature, until the start of the next
program period time is reached. At the start of the next program period, the set
temperature will return to its programmed value. To enter an Override in either Heat or
Cool mode, push either the UP or DOWN button once and the set temperature will
begin to flash. Push either the UP or DOWN button to the new desired set temperature
value. An Override may be cancelled by rotating the dial, changing the Temperature
mode switch, or by initiating a Temperature Hold.
© 2 0 0 9 L U X P R O D U C T S C O R P O R A T I O N . A L L R I G H T S R E S E R V E D
®
or DURACELL
®
"AA" size alkaline batteries before
ELECTRIC
®
provides an easy way to quickly navigate between the different
HEAT MODE
COOL MODE
6:00 AM 70 °F (21 °C)
6:00 AM 78 °F (26 °C)
MORN
8:00 AM 62 °F (17 °C)
8:00 AM 85 °F (29 °C)
DAY
6:00 PM 70 °F (21 °C)
6:00 PM 78 °F (26 °C)
EVE
10:00 PM 62 °F (17 °C)
10:00 PM 82 °F (28 °C)
NITE

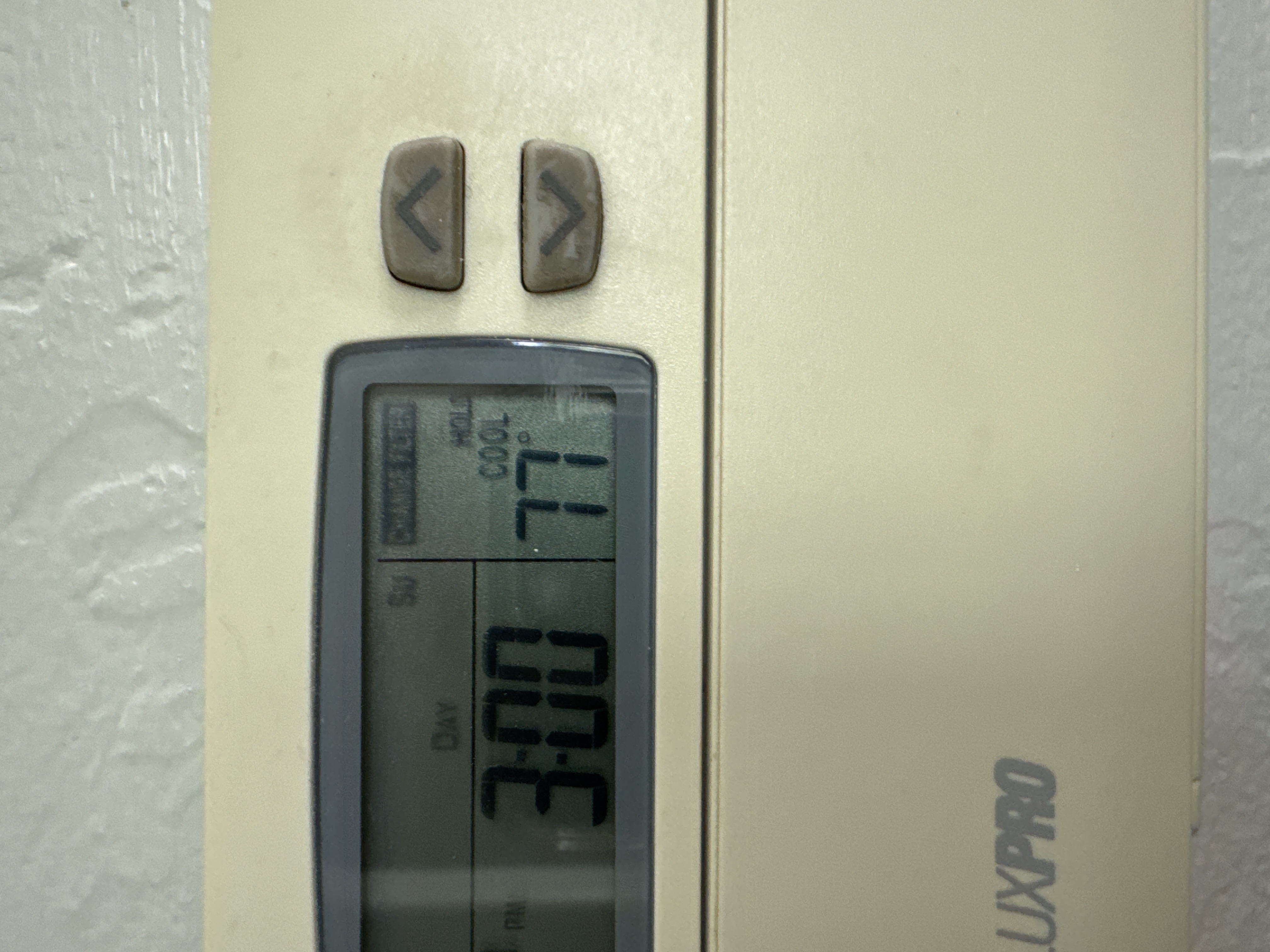

TEMPERATURE HOLD
A Temperature Hold is similar to an override, but is used for maintaining a
constant set temperature for a longer time duration. Once a Hold is initiated, the
thermostat will maintain the Hold set temperature indefinitely. A temperature
hold may be used for days, weeks, or even months at a time. To enter a Hold,
push the HOLD button once, and the word Hold will appear in the temperature
portion of the screen, along with the set temperature flashing. While the set
temperature is flashing, push either the UP or DOWN button to the new desired
set temperature value. To cancel a Hold, press and release the HOLD button once
again, rotate the dial, or change the Temperature mode switch.
AIR FILTER MONITOR
The Air Filter Monitor counts the number of days, and the amount of usage since
your furnace filter has been replaced. In Run mode, the CHANGE FILTER indicator
will appear when the remaining filter days have reached zero and the filter
should be changed. To set and use the Air Filter Monitor, turn the rotary dial to
AIR FILTER. Press NEXT and the Filter Days Left value will start flashing. Use
the UP or DOWN buttons to select the number of days of filter life that your filter
is rated for. Setting this value to OFF will disable the filter monitor. Return the
dial to the RUN position once you are finished setting the filter life. To monitor
the Filter Days Left or Filter Percent Left, turn the dial to the AIR FILTER position.
The amount of filter life remaining will be shown in the clock portion of the
display screen. Return the dial to the RUN position once you are finished viewing
the filter life remaining.
RESET FILTER COUNTER
Once you have replaced your filter, the filter life counter is reset back to its full
amount remaining value by turning the dial to AIR FILTER and pressing the UP
and DOWN buttons together at the same time. NOTE: The counter is also reset
by changing the filter setting value, as described above, to a different number of
days.

ADVANCED FEATURES

SWING SETTING
A thermostat works by turning your heating or cooling system on and off
whenever the room temperature varies from the set-point temperature. The
J P 1
amount of this variation is called the "swing." Your system should cycle on about
FA N
3 to 6 times per hour. A smaller swing number increases the number of cycles
per hour, so the room temperature is more precise and constant. A larger swing
number decreases the number of cycles per hour, but saves energy in most
cases. To change the Swing setting, turn the dial to RUN mode. Hold down the
GA S
NEXT button and push the HOLD button once, then let go of both. The words
SWING and SET will appear on the screen with a number. Use the UP/DOWN
buttons to change the number value between 1 and 9. Number 1 is the default
setting. Press the NEXT button to accept the setting and return to normal Run
mode.
TEMPERATURE CALIBRATION
The internal temperature sensor in this thermostat is accurately calibrated at the
factory. The Temperature Calibration feature allows you to manually offset the
measured temperature by as much as plus or minus 5°F (3°C) degrees from its
original value. This feature can be useful to match this thermostat to another
one or more, if multiple thermostats are used in the same home. To change the
Temperature Calibration, turn the dial to RUN mode, and place the Temperature
mode switch in the OFF position. Hold down the UP button and push the DOWN
button once, then let go of both. The words CAL and SET will appear on the
screen with a number. Use the UP/DOWN buttons to change the number value
between -5°F (-3°C) and +5°F (+3°C) degrees. 0 degrees of correction is the
default setting. Press the NEXT button to accept the setting and return to Run
mode.
KEYLOCK
To prevent tampering with any of your settings or temperatures, most of the front
panel buttons can be locked out by pressing the following four-button sequence:
NEXT, NEXT, NEXT, HOLD. This sequence of keys will lock and also unlock these
items: UP, DOWN, NEXT, HOLD, the Rotary Dial,
and the Software Reset button. Neither of the
Mode slide switches are locked out. When the
Keylock is activated, a padlock icon will be visible
in the area above the clock as shown below.
NOTE: The Keylock will be disabled if the
Hardware Reset button is pressed.
PROGRAMMING
For all of the programming areas that are described below, this thermostat
provides four independent periods per day for Heat mode and Cool mode, they
are: MORN, DAY, EVE, and NITE. Each period ends at the start time of the
following period. The programs for each Temperature mode are programmed
separately. When you perform a Software Reset, a default temperature program
routine is inserted into all of the program periods. You can use these default
programs or alter any portion of them to suit your own preferences. When setting
the program items, the value that is flashing is the item that you can change at
that time.
SET WEEKDAY PROGRAM
Select either HEAT or COOL with the Temperature mode switch. Rotate the dial to
WEEKDAY PROGRAM. You will be programming all five weekdays at the same
time. The first period is MORN. Using the UP and DOWN buttons, set the start
time for this period, and then push the NEXT button to proceed. Now set the
desired set temperature for the MORN period using the UP and DOWN buttons,
and push NEXT to proceed. Now set the start time and set temperature for the
DAY period, pushing NEXT after each to advance. Continue with these same steps
to set the start time and set temperature for the EVE, and NITE program periods.
When you are finished setting all four periods, you may continue pushing the
NEXT button through all four periods to review your entries, or turn the dial to
RUN if you are finished. These same programming steps for all four periods must
be performed in both Heat and Cool Temperature modes independently.
SET WEEKEND PROGRAM
Turn the dial to WEEKEND PROGRAM. You will be programming both Saturday and
Sunday at the same time. You will begin with the start time of the MORN period,
and use the same procedures that were performed while setting the Weekday
Program periods, using the NEXT button to advance through the values. Return
the dial to the RUN position when you are finished.

BATTERIES AND MAINTENANCE

This thermostat can be powered either by "AA" alkaline batteries, by 24VAC
system common power, or a combination of both. If you are using batteries
alone, the batteries should be replaced AT LEAST once per year, or sooner if the
LOW BAT battery symbol appears in the lower
left portion of the display screen as shown
below.
To replace the batteries in the thermostat,
remove the thermostat's body from the base
plate attached to the wall by pressing the
thumb latch at the bottom center of the unit and swinging the body towards you,
up and away from the base. Remove the used batteries from the battery tray and
discard appropriately.
Install two new Energizer
®
or DURACELL
battery tray. Observe the polarity markings shown in the battery compartment to
ensure proper installation. When finished, hang the top of the unit by the tabs at
the top corners of the base, then snap the bottom of the unit into place. Do not
use unnecessary force. If the body does not snap into place easily, remove the
body, re-hang it from the tabs and try again.

TECHNICAL ASSISTANCE

If you have any problems installing or using this thermostat, please carefully and
thoroughly review the instruction manual. If you require assistance, please
contact our Technical Assistance department at 856-234-8803 during regular
business hours between 8:00AM and 4:30PM Eastern Standard Time, Monday
through Friday. You can also receive technical assistance online anytime day or
night at http://www.luxproproducts.com. Our web site offers you answers to the
most common technical questions, and also permits you to email your questions
to our technical support staff at your convenience.
WARRANTY
Limited Warranty: If this unit fails because of defects in materials or
workmanship within three years of the date of original purchase, LUX will, at its
option, repair or replace it. This warranty does not cover damage by accident,
misuse, or failure to follow installation instructions. Implied warranties are
limited in duration to three years from the date of original purchase. Some
states do not allow limitations on how long an implied warranty lasts, so the
above limitation may not apply to you. Please return malfunctioning or defective
units to the location from which the purchase was made, along with proof of
purchase. Please refer to "TECHNICAL ASSISTANCE" before returning thermostat.
Purchaser assumes all risks and liability for incidental and consequential damage
resulting from installation and use of this unit. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may
not apply to you. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. Applicable in the U.S.A. and
Canada only.
T
U
D
AY
T
U
D
AY
5
:
36
LOW BAT
PM
LOW BAT
®
, "AA" size alkaline batteries into the

Advertisement

loading

  Related Manuals for Lux Products PSP511LCa

  Summary of Contents for Lux Products PSP511LCa

  • Page 1: Setup Options

    There are two operating push the HOLD button once, and the word Hold will appear in the temperature PSP511Ca / PSP511LCa modes based on your system type, “Furnace (Fn)” or “Heat Pump (HP)”. If you have a portion of the screen, along with the set temperature flashing.
  • Page 2: Wire Identification And Wiring Schematics

    HEATER USE "B" OR "O" tape it off and do not connect it. NOT BOTH (PSP511Ca-PSP511LCa) FRANÇAIS – IDENTIFICATION DES FILS ET SCHÉMAS DE CÂBLAGE SYSTÈMES DE CHAUFFAGE ET DE SYSTÈMES DE CHAUFFAGE SEUL SYSTÈMES DE CLIMATISATION SEULE SYSTÈMES DE CHAUFFAGE SEUL CLIMATISATION DE 24 VOLTS À...

This manual is also suitable for:

Psp511ca
