Battery Pack Removal
Prerequisite:
Base Cover Removal
1. Find the battery pack (A) in the system
2. Detach the transparent mylar (B) securing the battery cable
3. Detach the acetate tape (C) securing the battery cable to the mainboard connector
(Figure 1-6).

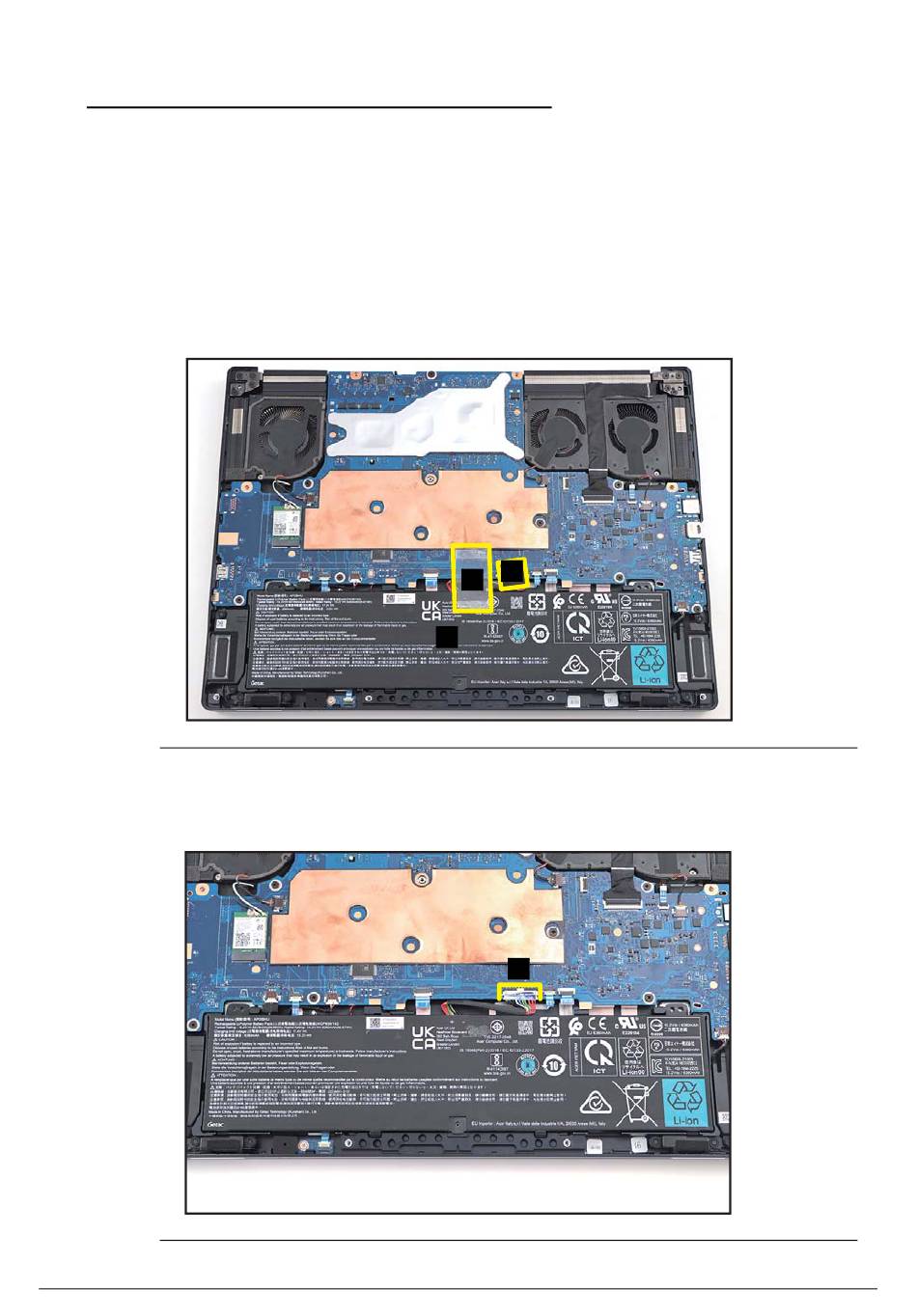

Figure 1-6. Battery Pack Removal
4. Disconnect the battery cable from the mainboard connector (D)
Figure 1-7. Battery Pack Removal
1-8
(Figure 1-6).
C
B
A
D
(Figure 1-6).
(Figure 1-7).
Disassembly Procedures
