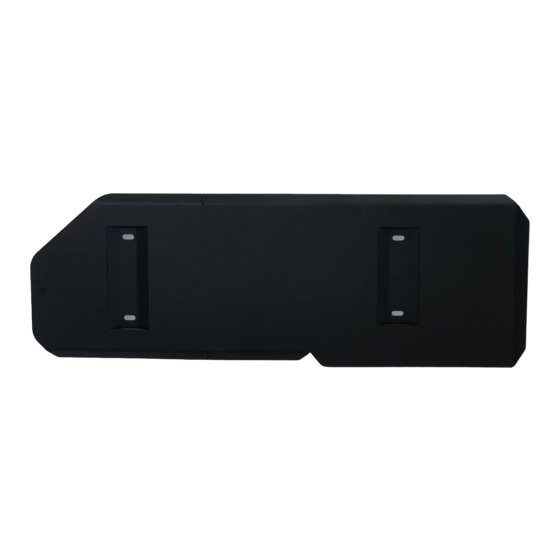

RCI 05+ TOYOTA TACOMA FUEL TANK SKID PLATE
**This install guide is applicable to our 05+ Toyota Tacoma fuel tank skid plate only**
Item
H1.
H2.
Item
C1.
**(This section is only applicable if replacement of the OEM fuel tank straps is necessary)**
Item
FS1.
FS2.
INSTALLATION GUIDE
TOOLS REQUIRED:
Description
3/8" or 1/2" Socket Wrench and Socket Set
Box-End Wrenches
Low-Profile Pliers (installation of fuel tank straps)
INCLUDED HARDWARE:
Description
M8 x 1.25 Nylon Locking Nut
5/16" Washer
INCLUDED COMPONENTS:
Description
Fuel Tank Skid Plate
MOUNTING COMPONENTS:
Description
Studded Fuel Tank Strap
Studded Fuel Tank Strap
77601-040-20
77602-040-20
Page 1 of 3
(front)
(rear)
QTY
4 ea.
4 ea.
QTY
1 ea.
QTY
1 ea.
1 ea.
