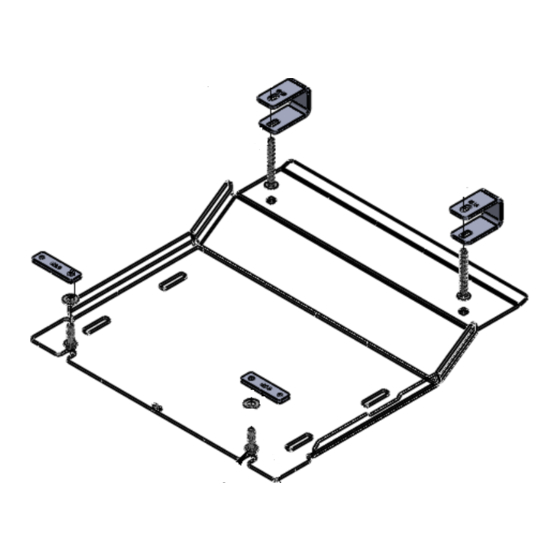

- Page 1 RCI 15+ Colorado T-Case Skid Plate Install Guide Figure 1: Assembly with hardware...
- Page 2 If applicable, remove OEM skid plates before beginning installation of RCI Skid Plates. b. If installing with the RCI Transmission Skid Plate, follow the Transmission Skid Plate Install guide completely before returning to this install guide and skip steps 2 and 3.
- Page 3 5. Route the rear T-case mounts over the tubular crossmember, between the crossmember, wire, and brake lines with the “CLO” text facing upwards as shown: 6. Secure the rear T-case mounts to the RCI T-case Skid Plate using the included pair of 3/8 x 3.5” carriage bolts, 3/8” washers, 3/8” split washer, and 3/8” hex nuts.
- Page 4 970-797-3089 Disclaimer: The products sold by RCI Metalworks are intended for off –road use only, should not be modified, and are for use only on the vehicle(s) specifically stated. RCI Metalworks makes no warranties express or implied, including of fitness for a particular purpose or merchantability. RCI Metalworks will not be liable for any damages arising out of the use or misuse of its products.
