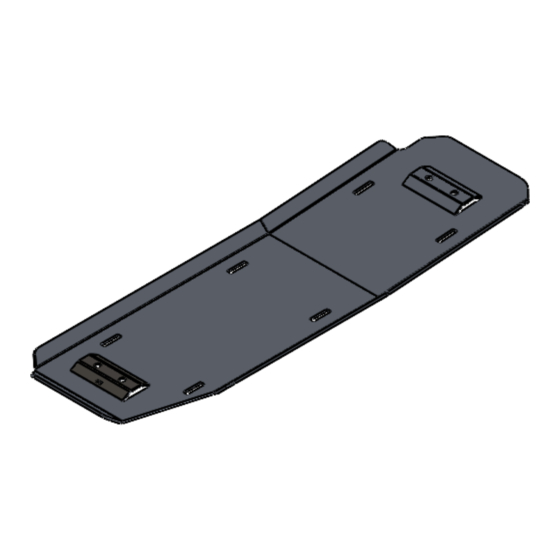

RCI 19+ Ford Ranger FUEL TANK SKID PLATE INSTALLATION
**This install guide is applicable to our Ford Ranger Fuel Tank Skid Plate ONLY**
1) Begin by unpacking and removing all components and hardware. Please verify that all
hardware, components, and mounting components are present. Please reference your
original order invoice and verify all items are accounted for.
INSTALLATION STEPS FOR VEHICLES WITH THE FX4 OFFROAD
2) Remove the four(4) M8 nuts securing the factory plastic fuel tank "skid plate" to the
factory fuel tank straps. Remove the factory plastic fuel tank "skid plate".
GUIDE
INSTALLATION STEPS:
PACKAGE:
Page 1 of 5
