Assemble Instructions
Cuppa Series
Product Code
CPA-BF153-WOK-Q

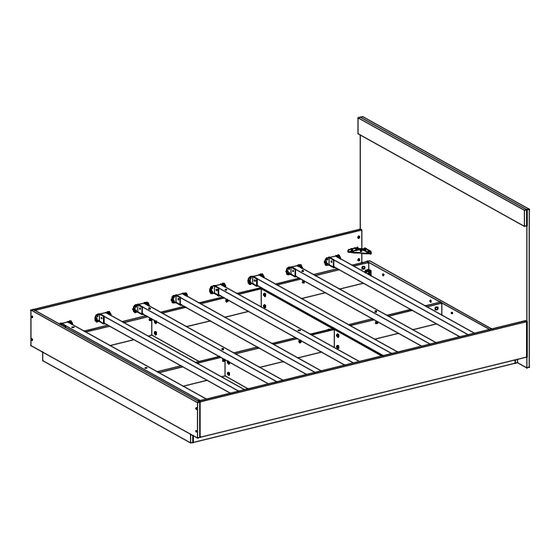

Bed Frame-Queen
Cuppa
Dimensions(W x D x H)
2080*1570*890/260mm
Important
Please read through instructions carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit:lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Cuppa CPA-BF153-WOK-Q
Summary of Contents for Lifely Cuppa CPA-BF153-WOK-Q

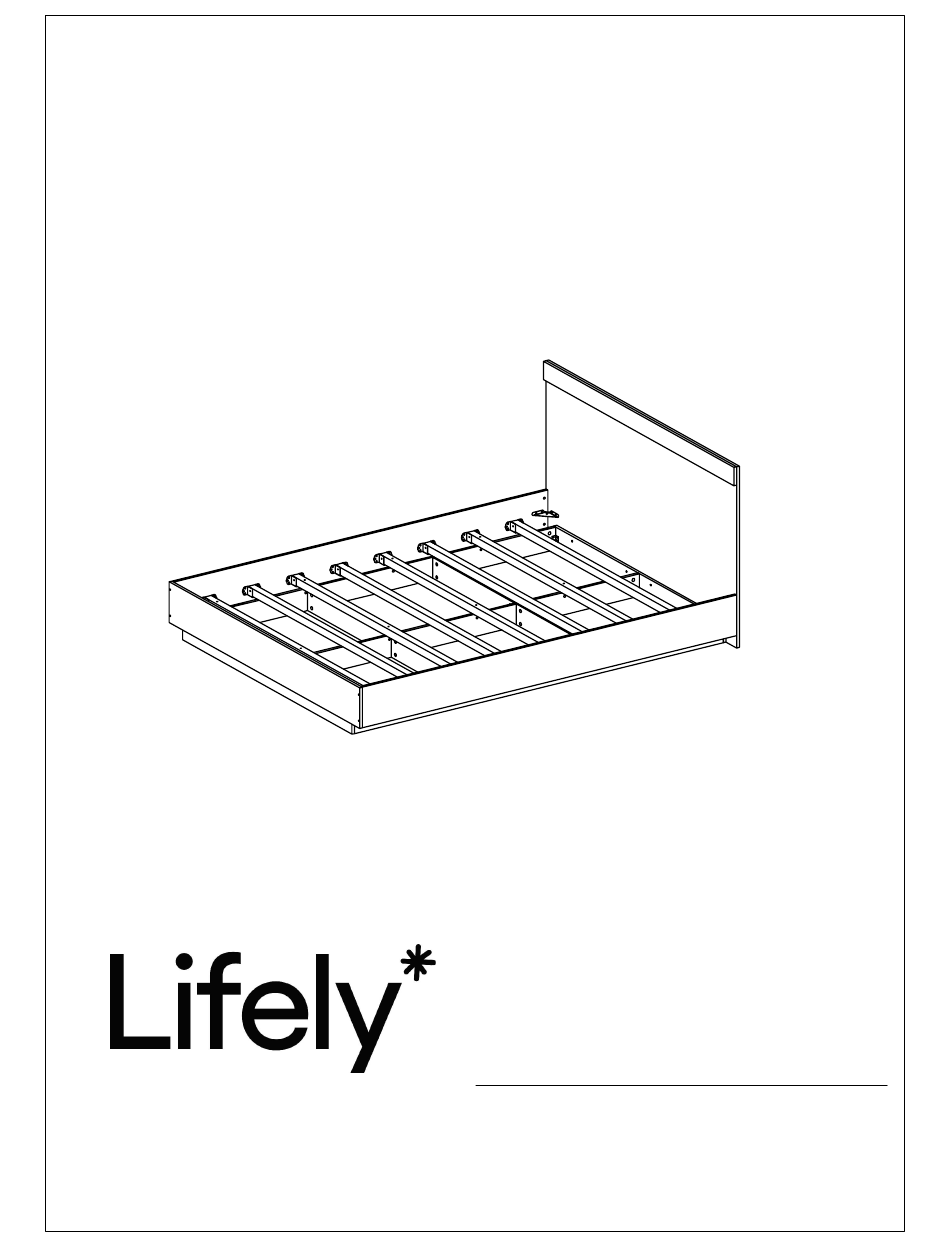

- Page 1 Assemble Instructions Cuppa Series Product Code Important CPA-BF153-WOK-Q Please read through instructions carefully Bed Frame-Queen Cuppa Before assembly and keep for future reference. Dimensions(W x D x H) For our full catalogue of assembly instructions, Visit:lifely.com.au/assembly. 2080*1570*890/260mm...
- Page 2 Important Tips and Maintenance To avoid fading,keep furniture Keep children and animals New use ammonia based Newer place liquids or anything cleaning products as it will out of direct sunlight. away from working area as damp upon furniture as it damage the finish.
- Page 3 So your relationship is strong.But is it flat-pack furniture strong?Unless you're an aerospace engineer,assembling furniture can be slightly stressful.We recommend meditating quietly,pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on,try a compliment instead .E.g."You're so good looking".
- Page 4 Components Hardware Please check you have all the fittings part or tools are listed in below. No.A No.B No.C No.D No.E Quantity:18Pcs Quantity:20Pcs Quantity:112Pcs Quantity:20Pcs Quantity:20Pcs Dowel 8*40mm Cam Bolt Screw M3.5*14mm Screw M5*50mm Plastic Countersunk Head No.F No.G No.H No.I No.J Quantity:14Pcs...
- Page 5 Components Panels & Part List Please check you have all the panels are listed below. CTN 1/2 Head board Base support-3 CTN 2/2 Head board panel CTN 1/2 Bottom panel CTN 1/2 Bed side panel x2 CTN 2/2 CTN 1/2 Bed slats-1 CTN 2/2 Base...
- Page 6 STEP1 No.A No.B Quantity:4Pcs Quantity:8Pcs Dowel Cam Bolt STEP2 No.C No.L Quantity:8Pcs Quantity:4Pcs L Angle Lron Screw M3.5*14mm CPA-BF153-WOK-Q / 6...
- Page 7 STEP3 180? No.A No.H Quantity:2Pcs Quantity:8Pcs Dowel Cam Bolt STEP4 No.B Quantity:12Pcs Cam Bolt CPA-BF153-WOK-Q / 7...
- Page 8 STEP5 No.A No.G No.I Quantity:4Pcs Quantity:2Pcs Quantity:16Pcs Cam Nut Dowel 8*40mm Dowel 8*60mm STEP6 No.C No.I Quantity:8Pcs Quantity:12Pcs Cam Nut Screw M3.5*14mm CPA-BF153-WOK-Q / 8...
- Page 9 STEP7 No.A No.C No.K Quantity:4Pcs Quantity:8Pcs Quantity:8Pcs Side Angle Iron With 2 Holes Dowel 8*40mm Screw M3.5*14mm STEP8 No.C No.J Quantity:64Pcs Quantity:16Pcs U Shape Support Part Screw M3.5*14mm CPA-BF153-WOK-Q / 9...
- Page 10 STEP9 No.F Quantity:6Pcs Screw M6*25mm STEP10 No.C No.D No.E Quantity:4Pcs Quantity:4Pcs Quantity:4Pcs Screw M3.5*14mm Screw M5*50mm Plastic Countersunk Head CPA-BF153-WOK-Q / 10...
- Page 11 STEP11 No.F Quantity:4Pcs Screw M6*25mm CPA-BF153-WOK-Q / 11...
- Page 12 STEP12 No.C No.D No.E No.F Quantity:4Pcs Quantity:4Pcs Quantity:4Pcs Quantity:4Pcs Plastic Countersunk Head Screw M6*25mm Screw M3.5*14mm Screw M5*50mm CPA-BF153-WOK-Q / 12...
- Page 13 STEP13 No.E No.C No.D Quantity:12Pcs Quantity:16Pcs Quantity:12Pcs Plastic Countersunk Head Screw M3.5*14mm Screw M5*50mm CPA-BF153-WOK-Q / 13...
- Page 14 Great Job,You're done! Don't forget to share how it looks in your space and tag us on Instagram. @lifelyhome#homewithlifely!
