Assemble Instructions

Cuppa Series

Product Code

CPA-SC1560-WOK

Doors Shoe Rack

Cuppa 6

Dimensions(W x D x H)

1150*320*1200mm

Shoes Size Suitable

（Quoted From Nike Au Official Website）

MM215;EUR035.5;USM3.5;USW5

MM235;EUR036.5;USM4.5;USW6

MM255;EUR040.5;USM7.5;USW9

Important

Please read through instructions carefully

Before assembly and keep for future reference.

For our full catalogue of assembly instructions,

Visit:lifely.com.au/assembly.

Need help?

Do you have a question about the Cuppa Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifely Cuppa Series

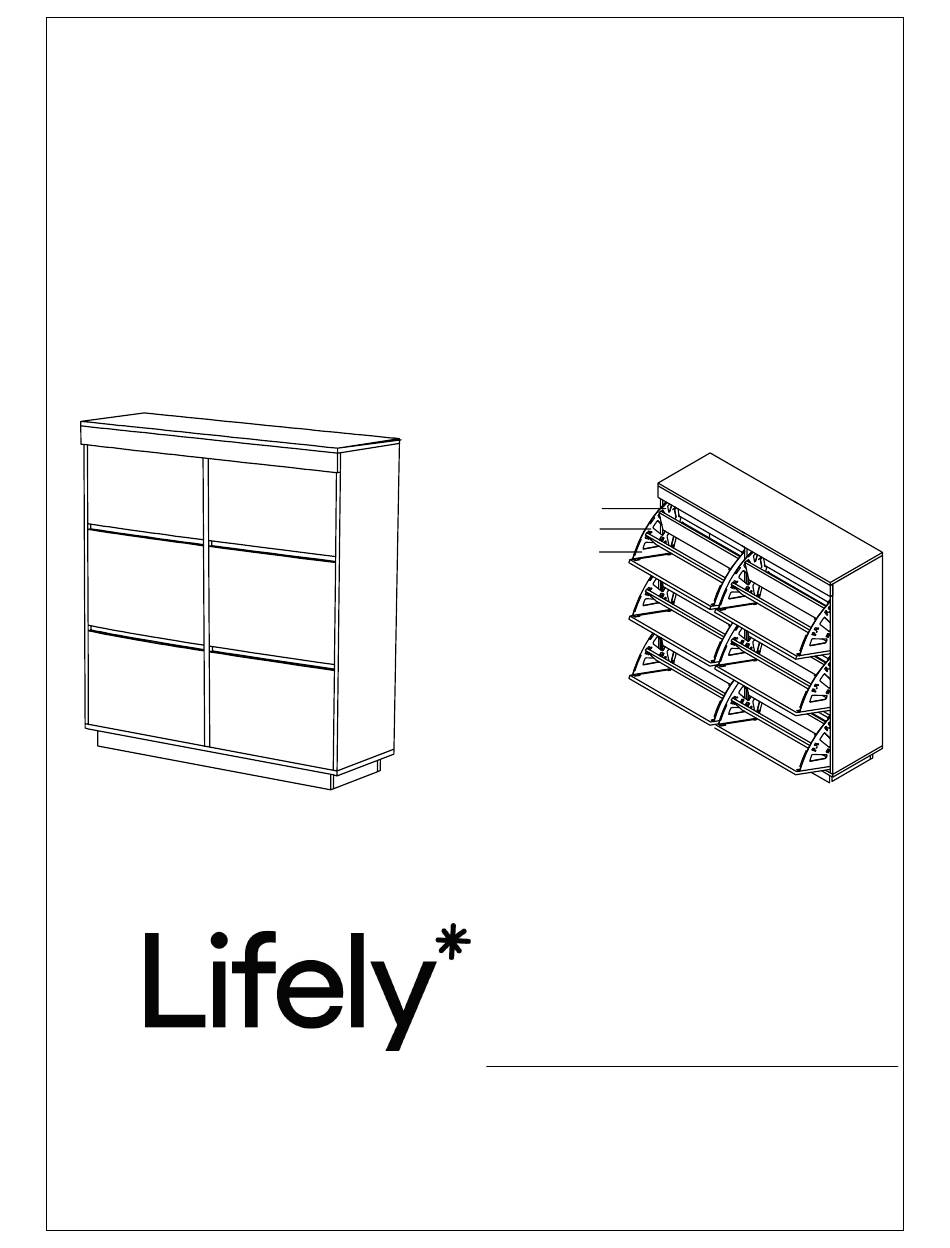

Page 1 Assemble Instructions Cuppa Series Shoes Size Suitable （Quoted From Nike Au Official Website） MM215;EUR035.5;USM3.5;USW5 MM235;EUR036.5;USM4.5;USW6 MM255;EUR040.5;USM7.5;USW9 Product Code Important CPA-SC1560-WOK Please read through instructions carefully Doors Shoe Rack Cuppa 6 Before assembly and keep for future reference. Dimensions(W x D x H) For our full catalogue of assembly instructions, Visit:lifely.com.au/assembly.
Page 2 Important Tips and Maintenance To avoid fading,keep furniture Keep children and animals New use ammonia based Newer place liquids or anything cleaning products as it will out of direct sunlight. away from working area as damp upon furniture as it damage the finish.
Page 3 So your relationship is strong.But is it flat-pack furniture strong?Unless you're an aerospace engineer,assembling furniture can be slightly stressful.We recommend meditating quietly,pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on,try a compliment instead .E.g."You're so good looking".
Page 4 Components Hardware Please check you have all the fittings part or tools are listed in below. No.A No.B No.B No.C No.D Quantity:16Pcs Quantity:37Pcs Quantity:37Pcs Quantity:102Pcs Quantity:12Pcs Dowel 8*40mm Cam Bolt Cam Nut Screw M3.5*14mm Screw M3.5*16mm No.F No.E No.G No.H No.I Quantity:12Pcs Quantity:6Pcs...
Page 5 Components Panels & Part List Please check you have all the panels are listed below. Base side CTN 1/2 CTN 2/2 CTN 2/2 CTN 1/2 Side panel-l Door Side panel-r CTN 2/2 CTN 2/2 Door-bracket-a Skitr panel CTN 1/2 CTN 2/2 Door-bracket-b Back support CTN 1/2...
Page 6 STEP1 No.A No.B Quantity:8Pcs Quantity:8Pcs Dowel Cam Bolt STEP2 No.F No.G Quantity:6Pcs Quantity:6Pcs Frame Parts Frame Parts CPA - SC1560 - WOK/ 6...
Page 7 STEP3 180? No.G No.F No.A Quantity:6Pcs Quantity:6Pcs Quantity:4Pcs Frame Parts Frame Parts Dowel CPA - SC1560 - WOK/ 7...
Page 8 STEP4 No.B Quantity:4Pcs Cam Nut STEP5 CPA - SC1560 - WOK/ 8...
Page 9 STEP6 No.L No.B Quantity:4Pcs Quantity:4Pcs Screw M3.5*35mm Cam Nut STEP7 CPA - SC1560 - WOK/ 9...
Page 10 STEP8 No.A Quantity:4Pcs Dowel STEP9 180? No.B Quantity:12Pcs Cam Bolt CPA - SC1560 - WOK/ 10...
Page 11 STEP10 No.B Quantity:6Pcs Cam Nut STEP11 No.B Quantity:6Pcs Cam Nut CPA - SC1560 - WOK/ 11...
Page 12 STEP12 No.B Quantity:3Pcs Cam Bolt STEP13 No.B Quantity:3Pcs Cam Nut CPA - SC1560 - WOK/ 12...
Page 13 STEP14 No.I No.B No.B Quantity:4Pcs Quantity:10Pcs Quantity:10Pcs Ground Nail Cam Nut Cam Bolt CPA - SC1560 - WOK/ 13...
Page 14 STEP15 No.C No.J Quantity:18Pcs Quantity:18Pcs Back Plate Clamp Screw M3.5*14mm CPA - SC1560 - WOK/ 14...
Page 15 STEP16 No.C No.E Quantity:6Pcs Quantity:60Pcs Back Plate Clamp Screw M3.5*14mm CPA - SC1560 - WOK/ 15...
Page 16 STEP17 No.H No.C No.D Quantity:12Pcs Quantity:24Pcs Quantity:12Pcs Frame Parts Screw M3.5*14mm Screw M3.5*16mm CPA - SC1560 - WOK/ 16...
Page 17 STEP18 No.K Quantity:2Pcs Anti Collapse CPA - SC1560 - WOK/ 17...
Page 18 Great Job,You're done! Don't forget to share how it looks in your space and tag us on Instagram. @lifelyhome#homewithlifely!
