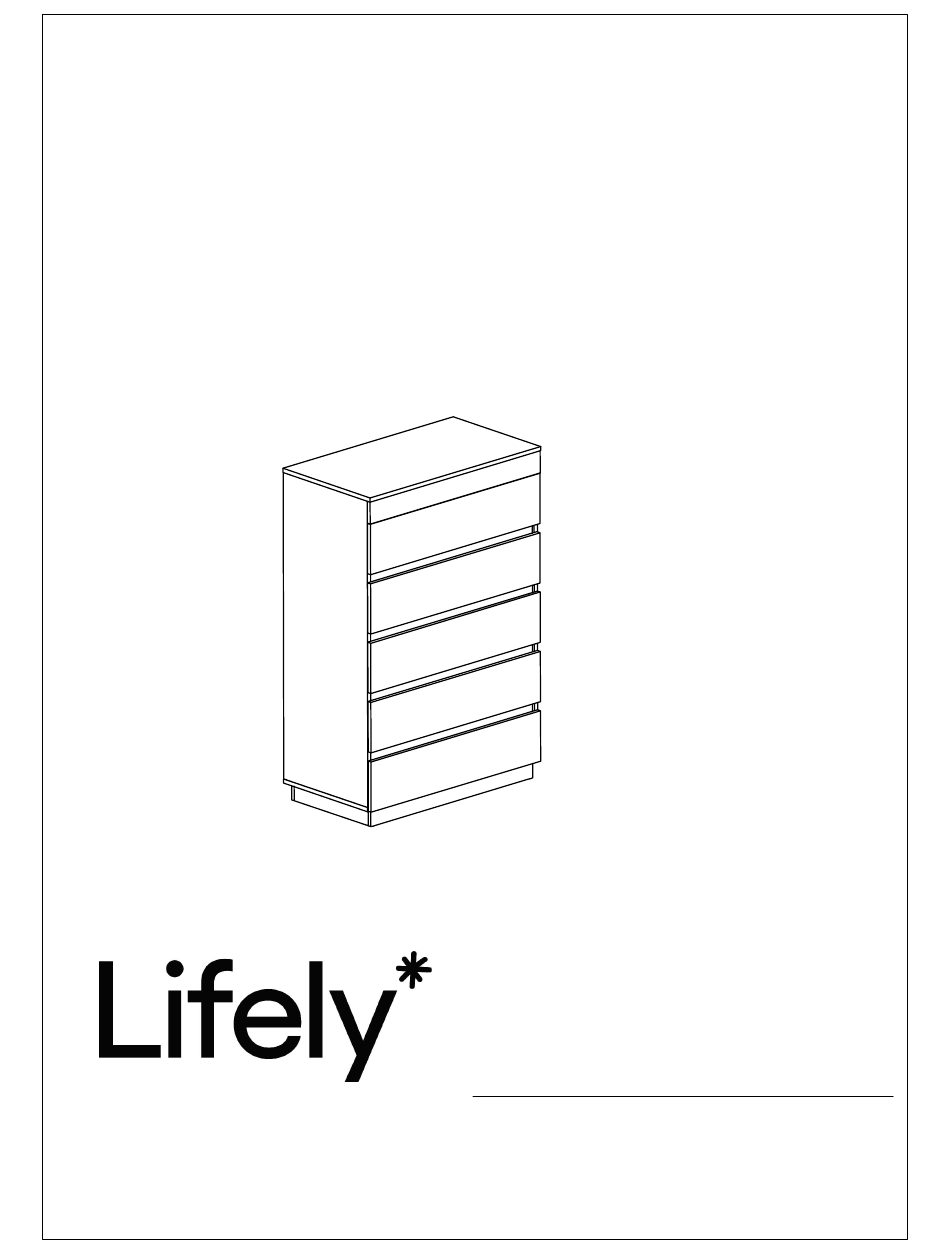

Assemble Instructions
Cuppa Series
Product Code
CPA-TB5030-WOK

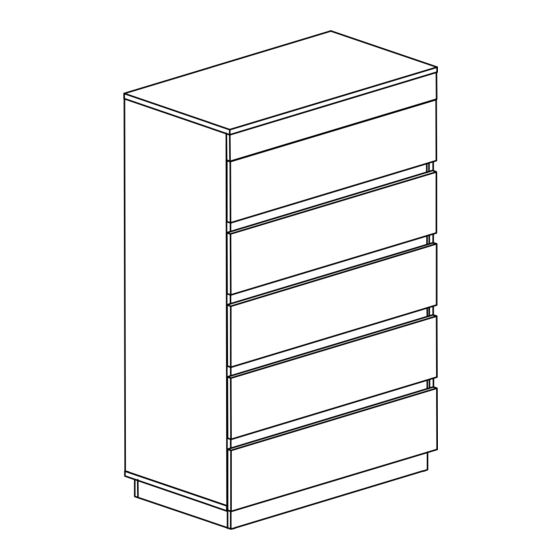

Cuppa 5 Drawer Tallboy
Dimensions(W x D x H)
800*400*1090mm
Important
Please read through instructions carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit:lifely.com.au/assembly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cuppa Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lifely Cuppa Series

Summary of Contents for Lifely Cuppa Series

  • Page 1 Assemble Instructions Cuppa Series Product Code Important CPA-TB5030-WOK Please read through instructions carefully Cuppa 5 Drawer Tallboy Before assembly and keep for future reference. Dimensions(W x D x H) For our full catalogue of assembly instructions, Visit:lifely.com.au/assembly. 800*400*1090mm...
  • Page 2 Important Tips and Maintenance Keep children and animals New use ammonia based To avoid fading,keep furniture Newer place liquids or anything cleaning products as it will out of direct sunlight. away from working area as damp upon furniture as it damage the finish.
  • Page 3 So your relationship is strong.But is it flat-pack furniture strong?Unless you're an aerospace engineer,assembling furniture can be slightly stressful.We recommend meditating quietly,pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time. If you feel a passive aggressive remark coming on,try a compliment instead .E.g."You're so good looking".
  • Page 4 Components Hardware Please check you have all the fittings part or tools are listed in below. No.A No.B No.B No.C No.D Quantity:36Pcs Quantity:53Pcs Quantity:53Pcs Quantity:50Pcs Quantity:22Pcs Dowel 8*40mm Cam Bolt Cam Nut Screw M3.5*14mm Screw M3.5*35mm No.E No.J No.H No.I Quantity:10Pcs Quantity:8Pcs Quantity:8Pcs...
  • Page 5 Components Panels & Part List Please check you have all the panels are listed below. Base CTN 2/2 CTN 1/2 Bottom panel Base side CTN 1/2 CTN 1/2 Front panel Drawer side_l CTN 2/2 CTN 1/2 Side panel_l CTN 2/2 CTN 1/2 Drawer side_r Side panel_r...
  • Page 6 STEP 1 ARROWON No.B No.A No.B LOCKING Quantity:4Pcs Quantity:4Pcs Quantity:4Pcs NUT MUST POINT Cam Nut Dowel Cam Bolt TOWARDS HOLE IN EDGE OF PANEL STEP 2 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN No.B No.A Quantity:4Pcs EDGE OF PANEL Quantity:4Pcs Cam Nut Dowel...
  • Page 7 STEP 3 STEP 4 No.B Quantity:4Pcs Cam Bolt CPA - TB5030 - WOK / 7...
  • Page 8 STEP 5 No.H Quantity:8Pcs Ground Nail STEP 6 No.B Quantity:6Pcs Cam Bolt CPA - TB5030 - WOK / 8...
  • Page 9 STEP 7 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL Second Hole Last Third Hole SCREW MUST BE INSERTED IN THE SECOND HOLE ON THE DRAWER RUNNER No.B No.A No.B No.C No.E Quantity:4Pcs Quantity:5Pcs Quantity:4Pcs Quantity:5Pcs Quantity:10Pcs Cam Bolt Drawer Runner Cam Nut...
  • Page 10 STEP 8 Second Hole Last Third Hole SCREW MUST BE INSERTED IN THE SECOND HOLE ON THE DRAWER RUNNER No.B No.A No.B No.C No.E Quantity:5Pcs Quantity:4Pcs Quantity:4Pcs Quantity:5Pcs Quantity:10Pcs Cam Bolt Drawer Runner Dowel Cam Nut Screw M3.5*14mm CPA - TB5030 - WOK / 10...
  • Page 11 ARROWON STEP 9 LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL No.B No.A Quantity:8Pcs Quantity:8Pcs Cam Nut Dowel STEP 10 No.B Quantity:4Pcs Cam Nut CPA - TB5030 - WOK / 11...
  • Page 12 STEP 11 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN No.B EDGE OF PANEL No.B Quantity:2Pcs Quantity:2Pcs Cam Nut Cam Bolt STEP 12 HARDWARE NEEDED: 6PCS No.B Quantity:6Pcs Cam Bolt CPA - TB5030 - WOK / 12...
  • Page 13 STEP 13 10 10 STEP 14 CPA - TB5030 - WOK / 13...
  • Page 14 STEP 15 11&12 STEP 16 CPA - TB5030 - WOK / 14...
  • Page 15 STEP 17 11&12 STEP 18 CPA - TB5030 - WOK / 15...
  • Page 16 STEP 19 3&4 ARROWON LOCKING NUT MUST POINT No.B TOWARDS HOLE IN Quantity:20Pcs Cam Nut EDGE OF PANEL DRAWERX5 STEP 20 DRAWERX5 3&4 No.E Third Hole Last Hole No.C Quantity:10Pcs Quantity:20Pcs Drawer Runner Screw M3.5*14mm CPA - TB5030 - WOK / 16...
  • Page 17 STEP 21 DRAWERX5 No.B Quantity:20Pcs Cam Bolt STEP 22 DRAWERX5 No.A Quantity:10Pcs Dowel CPA - TB5030 - WOK / 17...
  • Page 18 DRAWERX5 STEP 23 3&4 No.D Quantity:20Pcs Screw M3.5*35mm STEP 24 DRAWERX5 CPA - TB5030 - WOK / 18...
  • Page 19 STEP 25 DRAWERX5 STEP 26 3&4 DRAWERX5 CPA - TB5030 - WOK / 19...
  • Page 20 STEP 27 DRAWERX5 HARDWARE NEEDED: 8 PCS STEP 28 8 PCS No.J No.C Quantity:8Pcs Quantity:8Pcs Back Plate Clamp Screw M3.5*14mm CPA - TB5030 - WOK / 20...
  • Page 21 STEP 29 No.I Quantity:2Pcs Anti Collapse CPA - TB5030 - WOK / 21...
  • Page 22 Great Job,You're done! Don't forget to share how it looks in your space and tag us on Instagram. @lifelyhome#homewithlifely!
