Askey CDR9030 User Manual

Askey CDR9030 User Manual

Connected car cam+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
-User Manual -
iDVR900
CDR9030-RoHS
Connected Car Cam+
ASKEY Computer Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR9030 and is the answer not in the manual?

Questions and answers

Related Manuals for Askey CDR9030

Summary of Contents for Askey CDR9030

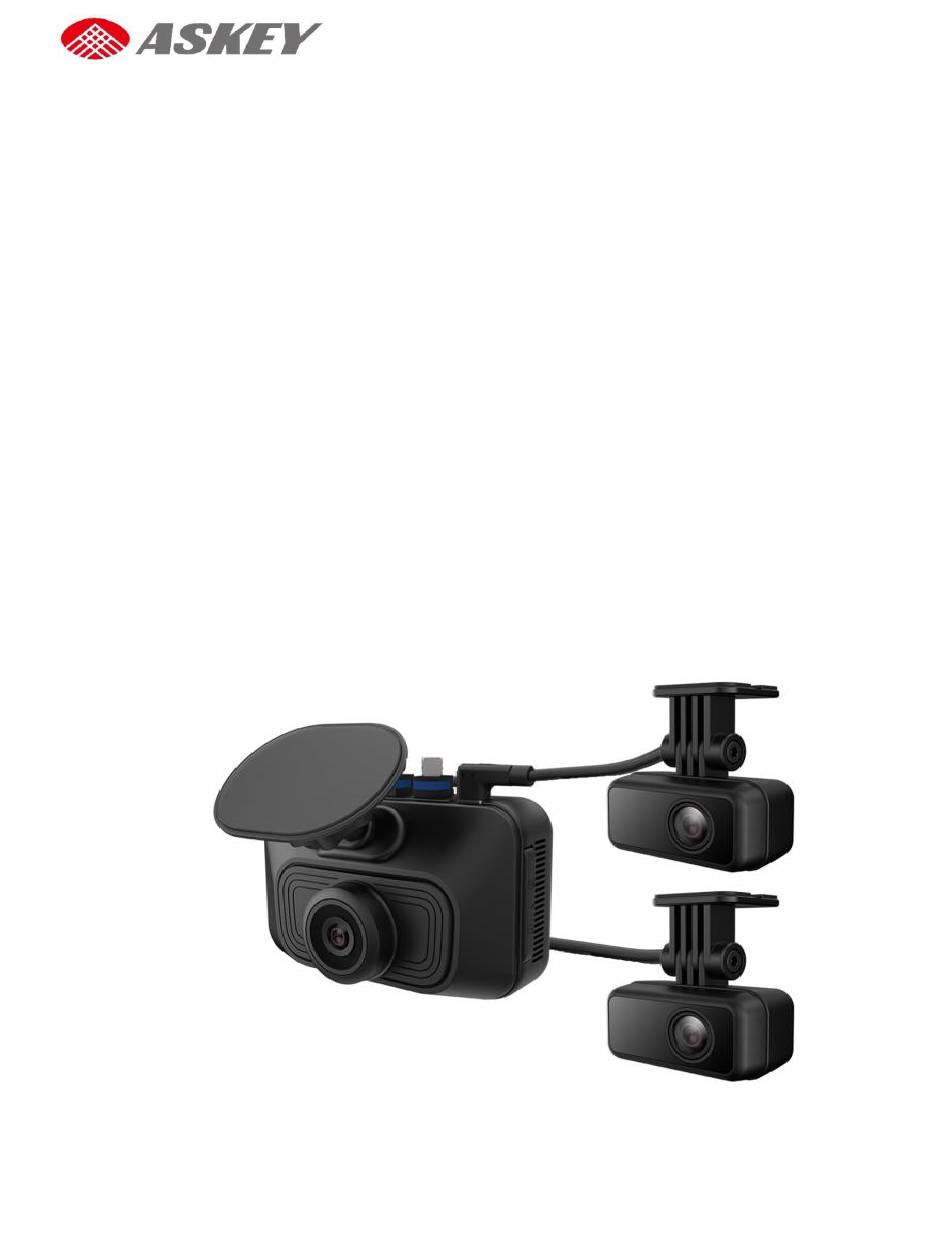

  • Page 1 -User Manual - iDVR900 CDR9030-RoHS Connected Car Cam+ ASKEY Computer Corp.
  • Page 2 Computer Corp. reserves the right to make changes to the products described in this document without notice. ASKEY Computer Corp. does not assume any liability that may occur due to the incorrect use or application of the products or circuit layouts described herein.
  • Page 3 • The product operates on a voltage of 5 V DC. The CDR9030 is powered up by connecting it to a cigarette lighter socket (or hardwired to the car’s battery) or the Driving Recorder Power Cable. Exercise caution while using either method of connection.

  • Page 4: Table Of Contents

    Table of Content 1. Introduction ....................1 1.1.Safety Instruction ....................... 1 1.2.Intended User ......................1 1.3.Features ........................1 1.4.Package Content ......................2 2. Overview ....................3 2.1.Device Overview ......................3 3. Getting Started................... 5 3.1.Installing the Mounting Bracket ................. 5 3.2.Mounting the Bracket ....................
  • Page 5 4.1.5. APN ............................22 4.2 Playback Menu ......................22 4.2.1. Event Video ..........................23 4.2.2. Continuous Video ........................24 4.3. Settings Menu ....................24 4.3.1. Driver Assist Setup........................25 4.3.2. Advanced Driver-Assistant System Alerts ................26 4.3.3. System ............................29 4.3.4.

  • Page 6: Introduction

    This device, which can be mounted on the windshield of any vehicle, enhances vehicular safety with preventive diagnostics. • The CDR9030 is equipped with a Full HD 1080p camera system with an F/2.0 aperture and a 136° wide-angle lens to facilitate real-time recording and live video streaming. •...

  • Page 7: Intended User

    1.2. Intended User This manual is intended for the user of CDR9030 as well as for service center customer support staff. 1.3. Features 1. The CDR9030 offers the following features: • Touch-screen control • 2.95-inch LCD 360 × 640 display •...

  • Page 8: Package Content

    1.4. Package Content Content Overview CDR9030 Mount Bracket USB Type C to Cigarette Car Charger Quick Start Guide Micro SD card and SD Card Adaptor...

  • Page 9: Overview

    2. Overview 2.1. Device Overview...

  • Page 10: Getting Started

    3. Getting Started 3.1. Installing the Mounting Bracket Step 1: Remove alcohol wipe from pouch. Wipe the area (of the windshield) where the mounting rack will be mounted clean of dust or grease. Windshield Wipe windshield clean Mount location Steps 2: Remove the protective film from the mounting rack adhesive.
  • Page 11 Steps 3: Mount the Mounting Bracket on the windshield. Mount Location Steps 4: Press on the suggested pressure points with your thumbs. Steps 5: Press the mounting rack evenly to push out the air bubble. Leave the mounting rack on the windshield for up to 24 hours before installing the DVR.

  • Page 12: Mounting The Bracket

    3.2. Mounting the Bracket Step 1: Mount the DVR onto the mounting bracket. Align the docking slot (on top of the device) with the docking arm (extended from the mounting bracket). Step 2: Plug in the USB Type-C connector (extended from the car charger unit) to the DVR’s USB port.

  • Page 13: Insertion Of Sd Card And Sim Card

    3.3.1 Accessory for External camera CDR9030 main device can support 2 external cameras in max. 1. Please find 2 Fakra connectors to connect 2 external cameras on Top side of CDR9030 main device. 2. Please insert fakra connector to CDR9030 main device.

  • Page 15: Activation And Battery Charge

    3.4. Activation and Battery Charge NOTE • Make sure that SD card is inserted on the CDR9030. If the SD card is not inserted, the device will show error message. For more information on insertion of SD card, refer to section 3.4.

  • Page 16: Initial Auto Calibration

     Curve lane can’t get auto calibration accurately.  Auto calibration can’t workable, when vehicle in turning status. B. CDR9030 will finish Auto Calibration in 1 to 3 minutes, when device detect scenario accurately.  Initial Auto Calibration: 3 mins  Reload device location: 3 mins ...

  • Page 17: Date And Time

     Auto Calibration Done. 3.7 Date and Time • The local date and time are automatically updated upon connection to an LTE/3G (or above) network or GPS. • The date and time display in the recorded video as shown below.

  • Page 18: Screen Icons/Buttons

    3.8 Screen Icons/Buttons Icons/Buttons/Indicato Description Icons/Buttons/Indicato Description Main menu Pause button Firmware update Battery Charge Level, available (dot on Main 25%, 50% and 75% menu) Battery Charge in Recording ON icon progress Recording error/OFF Broken cameras icon Recording event icon Impact E-Call Answer/End card...

  • Page 19: Touch Screen Operations

    Getting Started Touch Screen Operations Description Operation Example Action Swipe up to increase the volume. Swipe down to Volume Adjustment (from decrease the Default Recording Screen) volume. Swipe right to use the rear cam. Swipe left to use the Toggle between Cameras front cam.

  • Page 20: Menu Operations

    Menu Operations NOTE To access the Main menu: • Ensure the CDR9030 is activated and battery charging is in progress • Ensure the CDR9030 is registered on an LTE/3G or Wi-Fi network • Ensure the automatic video recording mode (default screen) is on.

  • Page 21: Connection Menu

    The connection menu allows user to setup (Wifi, Cellular data), APN, Bluetooth, and Hotspot connections. This section explains you on how to connect/ disconnect the CDR9030 to/ from the network (Wifi, Cellular data) APN, Bluetooth, and share Cellular data to co-passengers through Hotspot option.

  • Page 22: Bluetooth

    F. To go back to previous screens, touch the Back icon G. If you want to disconnect the CDR9030 from the Wi-Fi network, clear the WiFi check box or touch the cross icon , to disconnect the current WiFi connection.
  • Page 23 C. On selecting the Bluetooth check box , a list of Available devices is displayed on the screen. D. Select the required device from the Available devices list to pair. E. On successful pairing, paired Bluetooth device appears in the Paired devices. F.
  • Page 24 I. To go back to the previous screens, touch the Back icon J. To disconnect the CDR9030 from the connected Bluetooth device, clear the Bluetooth check box or from the default recording screen, swipe down and clear the Bluetooth icon selection.

  • Page 25: Cellular Data (Lte/3G)

    Select the Cellular data check box . • On selecting the Cellular data check box , CDR9030 connects to Cellular data and shows the Data usage for the current month. To go back to the previous screens, touch the Back icon...

  • Page 26: Hotspot

    4.1.4 Hotspot The CDR9030 acts as a Wi-Fi hotspot access point only when Cellular data is enabled. A. To activate Hotspot on the CDR9030: • Go to Menu> Hotspot screen displays on touch screen. B. Select the Hotspot check box •...

  • Page 27: Apn

    4.1.5 APN NOTE APN is a gateway from your carrier's cellular network to another network, in most cases, the Internet. • Select New APN Most case APN will be automatically programmed but some case you need to configure your cellular modem to connect your carrier. •...

  • Page 28: Event Video

    The CDR9030 interprets any unusual movement or shaking as an “Event”. The CDR9030 saves clips captured in such instances as an “Event Video”. The CDR9030 records clips for a maximum of 20 sec. To play the recorded event video clips: Go to Menu >...

  • Page 29: Continuous Video

    4.2.2 Continuous Video The CDR9030 starts recording events into the clips of up to 60 seconds as soon as it is turned on. In the normal mode of operation (e.g., absence of any abnormal movement), the CDR9030 captures 10 video clips at a time and stores them as “continuous” videos.

  • Page 30: Driver Assist Setup

    4.3.1 Driver Assist Setup To access the Driver Assist Setup option, go to Menu > Setting > Driver Assist Setup. NOTE  For accurate ADAS calibration, first mount the device and then select the Driver Assist Setup. A. Touch B. Select the type of vehicle to be driven: Sedan, SUV, or Truck. C.

  • Page 31: Advanced Driver-Assistant System Alerts

    The vehicle is too close to the moving vehicle in the front. The vehicle deviates from the original lane. NOTE If ADAS alerts are auto turned on, the CDR9030 fails to trigger an alert when the vehicle faces a risk, which will eventually lead to accidents.
  • Page 32 4.3.2.1 Forward Collision Warning System The FCWS, with the help of GPS, calculates the distance between the host vehicle and the vehicle in its front, as well as headway time. Under normal circumstances, the FCWS highlights the front vehicle in a green square wireframe with the calibrated distance and headway time on the touch screen.
  • Page 33 4.3.2.2 Lane Departure Warning System The LDWS verifies whether the host vehicle has deviated from its course with respect to the vehicle in the front. Under normal circumstances, if the host vehicle is following its predetermined lane, the system uses green lines to indicate the lane boundaries and a green wireframe to display the vehicle's headway with respect to the front vehicle.

  • Page 34: System

    4.3.3 System The System option provides a series of control. Volume 4.3.3.1 To access the Volume function, go to Menu > Settings > System > Volume. Display 4.3.3.2 Brightness To adjust the system Brightness: • Touch Menu > Settings > System > Display > Brightness. •...

  • Page 35: Recording

    The Restore factory settings, options erases all the settings and software updates introduced in the device since it purchases. • To reset the CDR9030 to factory settings, go to Menu > System > About > Restore factory settings. 4.3.4 Recording To access the Recording option, go to Menu >...
  • Page 36 4.3.4.1 Recording Audio The Recording audio option provides users with the choice between enabling and disabling audio recording while the CDR9030 records a footage. To use the recording audio feature: • Go to Menu > Settings > SD Card > Recording audio.
  • Page 37 4.3.4.3 Format SD Card NOTE The CDR9030 accepts SD cards formatted to FAT32 only. No other format is accepted. Formatting an SD card erases all the data available on it. To use the Format SD card option, go to Menu...
  • Page 38 5. Firmware Upgrade CAUTION • Before upgrading the firmware, connect the CDR9030 to the cigarette lighter socket. • Do not remove the cable or stop the vehicle engine during the firmware upgrade. Important service and support communication are sent over the network during the upgrade.
  • Page 39 Do not stop the vehicle engine or disconnect the Cigar Plug Cable as that disconnects the CDR9030 from charging. If the software update fails, the CDR9030 displays Update failed screen with Retry and OK options. If Retry does not work, the software version rolls back to the older version automatically.

  • Page 40: Network Settings

    6. Network Settings The CDR9030 equipped with LTE/3G, Wi-Fi and GPS module. Ensure the SIM card is inserted into the CDR9030 before power on. Refer to section 3.4. for instructions on insertion of a SIM card. 6.1 Frequency Band Widths Supported Check your local operator for LTE and 3G frequency band widths.

  • Page 41: Emergency Call (E-Call)

    7. Emergency Call (E-Call) When the CDR9030 detects an abnormal incident (e.g., a car crash), triggers a voice call to the service center automatically. The user receives a call from the service center for resolution. NOTE • To use E-Call feature, ensure that the CDR9030 is connected to the cloud.
  • Page 42 You can answer or decline/hang up the Emergency incoming calls received from Service center.

  • Page 43: Technical Specifications

    8. Technical Specifications Category Specification Details Length 110 mm Width 66 mm Design Height 39.45 mm Weight with Cradle 227.5 g Screen Size 2.95-inch Screen Resolution QVGA 360 × 640 pixel Display Type LED backlight TFT panel Display Brightness 200 nits Touch Screen Capacitive Touchscreen, Multi-touch Operating System...
  • Page 44 Category Specification Details 1 (2100 MHz) 3 (1800 MHz) 7 (2600 MHz) 8/19/26 (800 MHz) LTE/4G Bands 20 (800 MHz) (EU/JP/TW/APAC requirement) 28 (700 APT MHz) 38 (TD 2600) 40 (TD 2300) 41 (TD 2500) 2 (1900 MHz) 4 (1700 MHz) LTE/4G Bands 5 (850 MHz) (NA (US) requirement)
  • Page 45 Coovachilli, frontend www server for Wi-Fi user HSPA+ DL: 42Mbps, UL: 5.76 Mbps, LTE Cat4 DL: 150Mbps, UL: 50Mbps 2x2MIMO WWAN WWAN The CDR9030 shall support 2 WWAN skus. LTE: B1, B3, B7, B8, B20, B28, B38, B40, B41 WCDMA: B1, B5, B8, B19...
  • Page 46 • Environmental Conditions Condition Range Operation -10 to 40 °C Mechanical -10 to 85 °C Storage -20 to 85 °C Humidity 95 % at 50 °C • Input Parameters Condition Range Voltage Low: 12 VDC Max: 24 VDC Current 1.5 RMS max at low line input and DC output at full load Protection 3A Fuse •...
  • Page 47 SD card is inserted and recording Green light video • Certifications Description Certification CDR9030: NCC (Taiwan), JRF/JPA (Japan), CE (EU) Radio Act CDR8011: FCC (NA) Conducted Immunity e/E/CE CI_ISO7637-2 Mark Conducted Emission e/E/CE Mark CE_ISO7637-2 Radiated Emission e/E/CE Mark...

  • Page 48: Troubleshooting

    9. Troubleshooting Description Sample Screen Rectification No SD Card Insert SD card SD Card Error Remove SD card Impact Detected Retry format again or replace Format Incomplete card with another SD card System Unknown Reset the device Error...

  • Page 49: Contact Us

    Still Images Camera Error Contact Us Contact us if you have any questions or cannot use the CDR9030 normally. Contact Number: +886.2.2228.7588 E-mail: sales@askey.com.tw Manufactured by Askey Computer Corporation 10F, No.119, Jiankang Road., Zhonghe Dist., New Taipei City 23585, Taiwan...
