Askey CDR8011 Series Quick Start Manual

Askey CDR8011 Series Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CDR8011 Series Manual
iDVR800
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR8011 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Askey CDR8011 Series

Summary of Contents for Askey CDR8011 Series

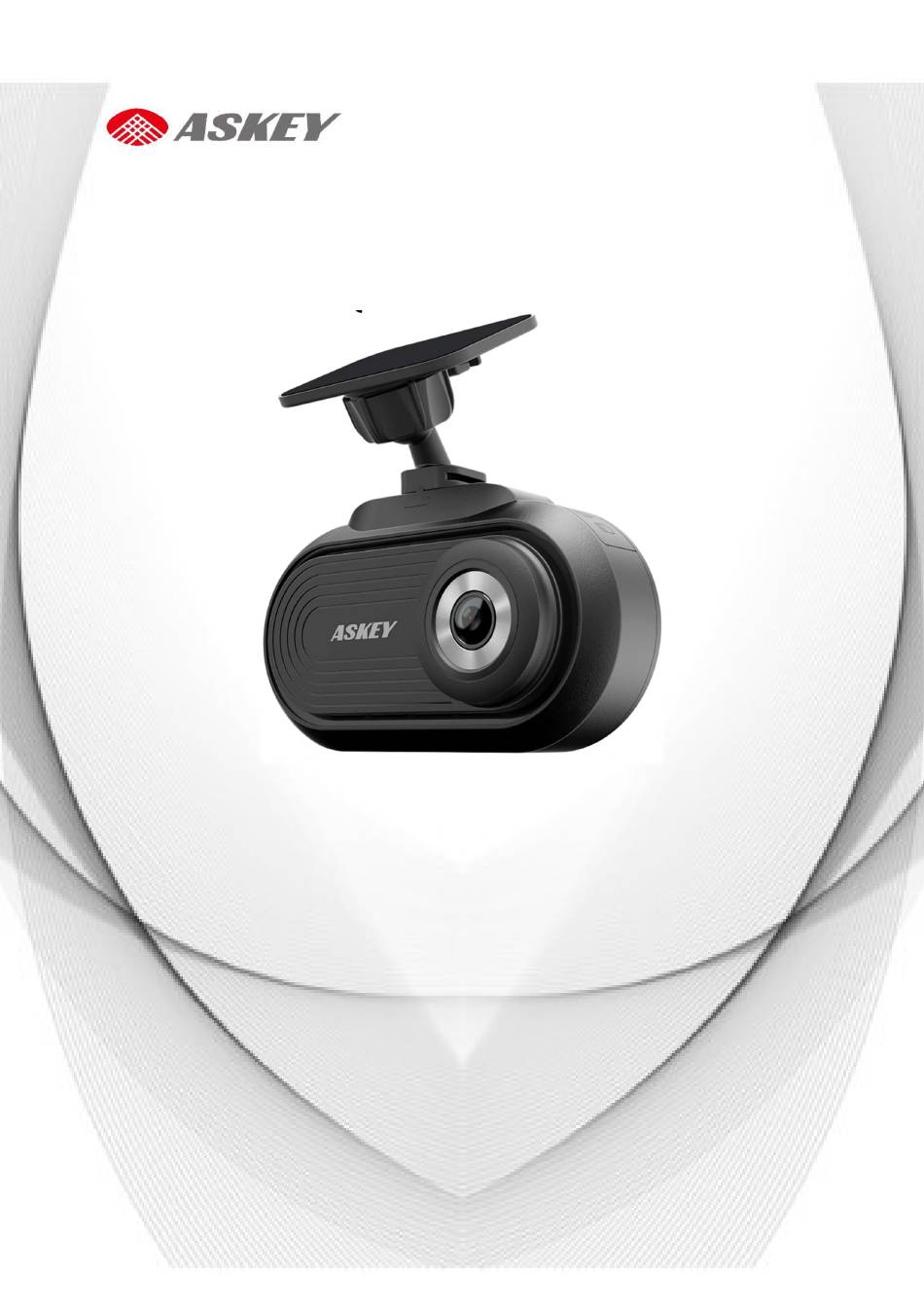

  • Page 1 CDR8011 Series Manual iDVR800 Quick Start Guide...
  • Page 2 Important Notes to Read Before Use  The CDR8011 operates on a voltage of 5 V DC. To power up the product, connect it to a cigarette lighter socket.  The CDR8011 accepts SD cards formatted to FAT32 only. For optimum results, format the SD card before initial use with the CDR8010.

  • Page 3: Package Contents

    Safety Instructions For users’ attention, scenario-specific safety instructions are provided in the following three boxes throughout the document. Following these instructions will help prevent untoward incidents in the use of the CDR8011. CAUTION WARNING NOTE Failure to follow the instructions Failure to follow the instructions Instructions provided under provided under “Caution”...
  • Page 4 Overview Device Overview Description Description Bracket Rear Camera Front Camera Status Light Metal Decoration Microphone 3 Front Housing Rear Housing E-Call Light Guide Power Button Microphone 1 USB Type C-Port E-Call Button SD Card Cover Microphone 2 Speaker Opening Alexa Light Guide Mute Button Touch Panel Film...

  • Page 5: Mounting Instructions

    Getting Started Mounting Instructions Step 1: Clean the windshield area properly using a soft cloth. Apply a glass cleaner liquid to the cloth, if required. Step 2: Lock the mounting bracket into the mounting slot of the device.
  • Page 6 Step 3: Peel off the film from the upper surface of the mounting bracket. Step 4: Position the mounting bracket on the windshield; press the bracket with your thumb to against the windshield. CDR8010 – Quick Start Guide...
  • Page 7 Insertion of SD Card and SIM Card NOTES  The CDR8011 does not function without SD card.  The CDR8011 supports only Nano sim cards (LTE/3G). To insert the SIM card (1)/ SD card (2): 1. Open the SD card cover. 2.

  • Page 8: Manual Power Off

    Activation and Battery Charge NOTES  Make sure that SD card is inserted into the CDR8011. If the SD card is not inserted, you cannot activate the CDR8011.  Always use the attached car charger to activate and charge the CDR8011. To activate and charge the CDR8011: 1.
  • Page 9 Screen Icons/Buttons Icons/Buttons/ Icons/Buttons/ Description Description Indicators Indicators Main menu Impact Firmware update available (dot on Main E-call Answer/End buttons menu) Wi-Fi connection status with Recording ON icon signal strength Recording error/OFF Bluetooth on/off icon Recording event icon Hotspot on/off No SIM card Front cam recording icon No GPS signal...
  • Page 10 Touch Screen Operations Description Operation Example Action Swipe up to increase the Volume Adjustment volume. (from Default Swipe down to decrease the Recording Screen) volume. Toggle between Cameras (from Swipe right to use the rear cam. Default Recording Swipe left to use the front cam. Screen) Forward or Rewind Swipe right to forward.
  • Page 11 Menu Operations NOTES To access the Main menu:  Ensure the CDR8011 is activated and battery charging is in progress  Ensure the CDR8011 is registered on an LTE/3G or Wi-Fi network  Ensure the automatic video recording mode (default screen) is on. 1.

  • Page 12: Connection Menu

    Connection Menu  The Connection menu allows user to set up (Wi-Fi, cellular data), Bluetooth and hotspot connections. This section explains you on how to connect/disconnect the CDR8011 to/from the network (Wi- Fi/Cellular data), Bluetooth, and share Cellular data to co-passengers through Hotspot option. ...
  • Page 13 4. Select the required network from the Available networks list and enter the password to connect to the network if required. 5. To go back to previous screens, touch the Back icon 6. If you want to disconnect the CDR8011 from the Wi-Fi network, clear the WiFi check box or touch the cross icon , to disconnect the current WiFi connection.
  • Page 14 4. Select the required device from the Available devices list to pair. 5. On successful pairing, paired Bluetooth device appears in the Paired devices. 6. If your Bluetooth device is already available in Paired devices list, you can skip previous step. 7.
  • Page 15 10. To disconnect the CDR8011 from the connected Bluetooth device, clear the Bluetooth check box or from the default recording screen, swipe down and clear the Bluetooth icon selection. Bluetooth ON Bluetooth OFF...
  • Page 16 Cellular Data (LTE/3G) NOTE  To enable Cellular Data, make sure that SIM card is inserted and working fine. To use Cellular Data on the CDR8011: 1. Go to Menu > Connection > Cellular data.  Cellular data screen displays on touch screen. 2.
  • Page 17 Hotspot NOTE  The CDR8010 acts as a Wi-Fi hotspot access point only when Cellular data is enabled. To activate Hotspot on the CDR8011: 1. Go to Menu > Connection > Hotspot.  Hotspot screen displays on touch screen. 2. Select the Hotspot check box ...

  • Page 18: Playback Menu

    Playback Menu The Playback provides access to all the Event and Continuous Videos and to view Still images stored on SD card or CDR8011 internal memory.  To access the Playback menu, go to Menu > Playback on the default recording screen. NOTE ...

  • Page 19: Settings Menu

    Settings Menu To access the Settings menu, go to Menu > Settings. Device Setup To access the Device Setup option, go to Menu > Setting > Device Setup. NOTE  For accurate ADAS calibration, first mount the device and then select the device setup. 1.
  • Page 20 4. Adjust the Horizon line and the hood to arrive at an appropriate field of view. Touch Next Adjust the vertical line along the center of the lane. Touch Done . CDR8010 – Quick Start Guide...
  • Page 21 Advanced Driver-Assistant System Alerts The ADAS helps detect dangerous driving conditions such as a Forward Collision and Lane Departure. In slow- moving traffic and tailbacks conditions, the Stop & Go function examines the distance between the host vehicle and other vehicles in the front, and triggers an alert for the driver to move carefully with the traffic. The ADAS generates a voice alert if: ...
  • Page 22 Technical Specifications Category Specification Details Length 124 mm Width 69.4 mm Design Height 29.5 mm Weight with Cradle 229 g Screen Size 2.7-inch Screen Resolution QVGA 320 × 240 pixel Display Display Type LED backlight TFT panel Brightness 200 nits Touch Screen Capacitive Touchscreen, Multi-touch Operating System...

  • Page 23: Environmental Conditions

    Environmental Conditions Condition Range Operation -10 to 60 °C Mechanical -10 to 85 °C Storage -40 to 85 °C Humidity 95 % at 60 °C Input Parameters Condition Range Low: 12 VDC Car Charger Voltage Max: 24 VDC Charger Current 1.5 RMS max at low line input and DC output at full load Protection 3A Fuse...
  • Page 24 Troubleshooting Description Sample Screen Rectification No SD Card Insert SD card SD Card Error Remove SD card Impact Detected Format Retry format again or replace SD card Incomplete with another SD card System Unknown Reset the device Error Unable to Play Videos Unable to View Still Images...
  • Page 25 Camera Error...

  • Page 26: Federal Communication Commission Interference Statement

    LTE and 3G Frequency Bands Please make sure the LTE frequency bands with your operator in local before you insert the SIM card into the device. Support LTE Band • FCC requirement: 2 (1900 MHz) 4(1700 MHz) 5(850 MHz) 12(700 MHz) 13(700 MHz) 17(700 MHz) 26(850 MHz)

  • Page 27: Radiation Exposure Statement

    FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
