Toshiba Satellite A60 Specifications

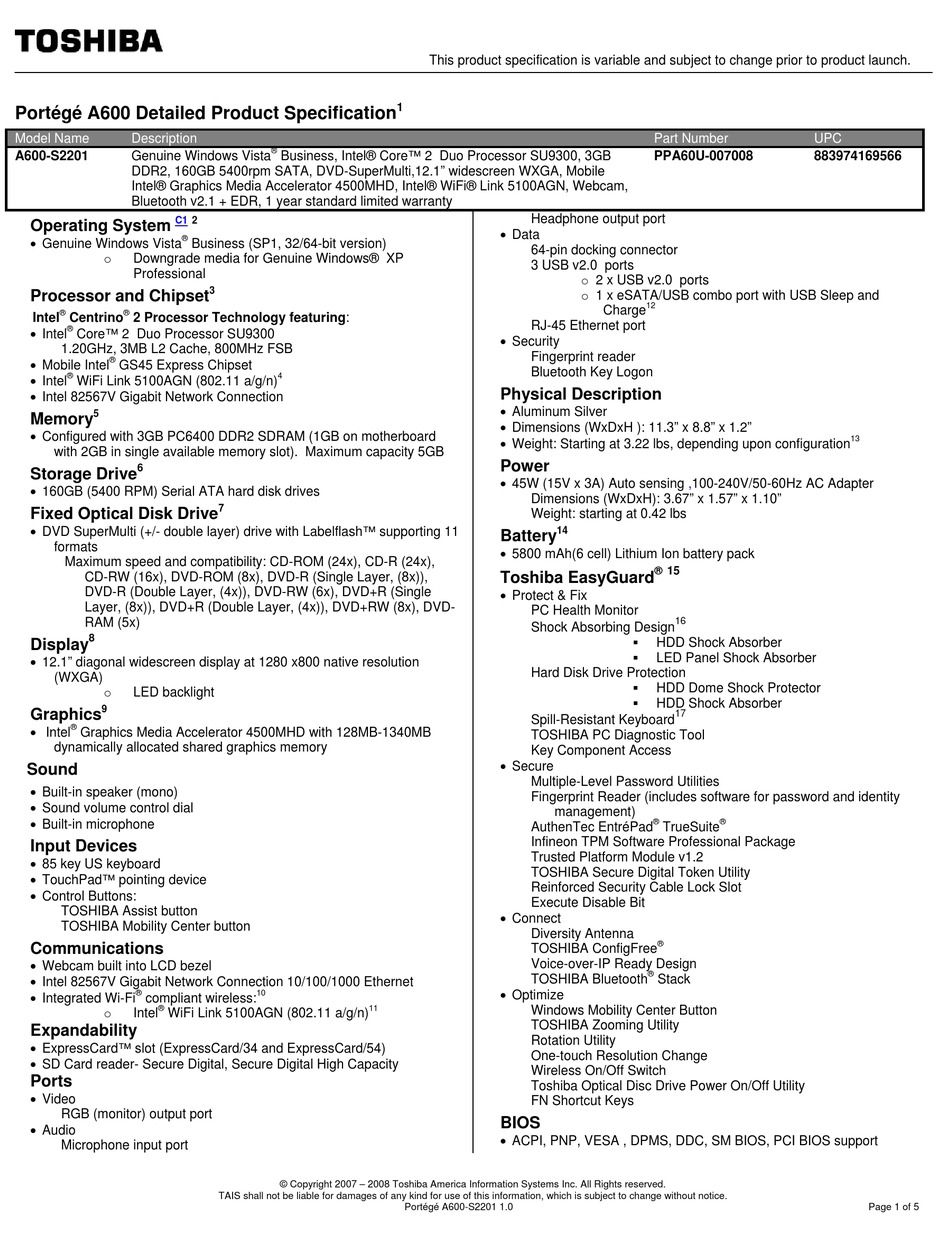

Portégé A600 Detailed Product Specification
Model Name Description
A600-S2201 Genuine Windows Vista
DDR2, 160GB 5400rpm SATA, DVD-SuperMulti,12.1" widescreen WXGA, Mobile
Intel® Graphics Media Accelerator 4500MHD, Intel® WiFi® Link 5100AGN, Webcam,
Bluetooth v2.1 + EDR, 1 year standard limited warranty
C1 2
Operating System
 Genuine Windows Vista ®
Business (SP1, 32/64-bit version)
Downgrade media for Genuine Windows® XP
o
Professional
Processor and Chipset
® ®
Intel Centrino 2 Processor Technology featuring:
 Intel
®
Core™ 2 Duo Processor SU9300
1.20GHz, 3MB L2 Cache, 800MHz FSB
 Mobile Intel ®
GS45 Express Chipset
 Intel ®
WiFi Link 5100AGN (802.11 a/g/n)
 Intel 82567V Gigabit Network Connection
5
Memory
 Configured with 3GB PC6400 DDR2 SDRAM (1GB on motherboard
with 2GB in single available memory slot). Maximum capacity 5GB
6
Storage Drive
 160GB (5400 RPM) Serial ATA hard disk drives
Fixed Optical Disk Drive
 DVD SuperMulti (+/- double layer) drive with Labelflash™ supporting 11
formats
Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (16x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (4x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (4x)), DVD+RW (8x), DVD-
RAM (5x)
8
Display
 12.1" diagonal widescreen display at 1280 x800 native resolution
(WXGA)
LED backlight
o
9
Graphics
 Intel ®
Graphics Media Accelerator 4500MHD with 128MB-1340MB
dynamically allocated shared graphics memory
Sound
 Built-in speaker (mono)
 Sound volume control dial
 Built-in microphone
Input Devices
 85 key US keyboard
 TouchPad™ pointing device
 Control Buttons:
TOSHIBA Assist button
TOSHIBA Mobility Center button
Communications
 Webcam built into LCD bezel
 Intel 82567V Gigabit Network Connection 10/100/1000 Ethernet
 Integrated Wi-Fi ®
compliant wireless:
®
Intel WiFi Link 5100AGN (802.11 a/g/n)
o
Expandability
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 SD Card reader- Secure Digital, Secure Digital High Capacity
Ports
 Video
RGB (monitor) output port
 Audio
Microphone input port
®
Business, Intel® Core™ 2 Duo Processor SU9300, 3GB
3
4
7
10
11
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
Headphone output port
 Data
64-pin docking connector
3 USB v2.0 ports
RJ-45 Ethernet port
 Security
Fingerprint reader
Bluetooth Key Logon
Physical Description
 Aluminum Silver
 Dimensions (WxDxH ): 11.3" x 8.8" x 1.2"
 Weight: Starting at 3.22 lbs, depending upon configuration
Power
 45W (15V x 3A) Auto sensing ,100-240V/50-60Hz AC Adapter
Dimensions (WxDxH): 3.67" x 1.57" x 1.10"
Weight: starting at 0.42 lbs
14
Battery
 5800 mAh(6 cell) Lithium Ion battery pack
Toshiba EasyGuard
 Protect & Fix
PC Health Monitor
Shock Absorbing Design
Hard Disk Drive Protection
Spill-Resistant Keyboard
TOSHIBA PC Diagnostic Tool
Key Component Access
 Secure
Multiple-Level Password Utilities
Fingerprint Reader (includes software for password and identity
management)
AuthenTec EntréPad
Infineon TPM Software Professional Package
Trusted Platform Module v1.2
TOSHIBA Secure Digital Token Utility
Reinforced Security Cable Lock Slot
Execute Disable Bit
 Connect
Diversity Antenna
TOSHIBA ConfigFree
Voice-over-IP Ready Design
TOSHIBA Bluetooth
 Optimize
Windows Mobility Center Button
TOSHIBA Zooming Utility
Rotation Utility
One-touch Resolution Change
Wireless On/Off Switch
Toshiba Optical Disc Drive Power On/Off Utility
FN Shortcut Keys
BIOS
 ACPI, PNP, VESA , DPMS, DDC, SM BIOS, PCI BIOS support
Portégé A600-S2201 1.0
Part Number
PPA60U-007008
o 2 x USB v2.0 ports
o 1 x eSATA/USB combo port with USB Sleep and
12
Charge
® 15
16

HDD Shock Absorber

LED Panel Shock Absorber

HDD Dome Shock Protector

HDD Shock Absorber
17
® ®
TrueSuite
®
®
Stack
UPC
883974169566
13
Page 1 of 5
