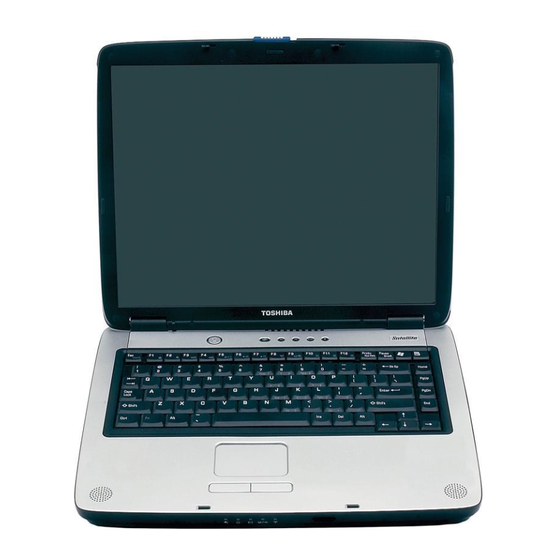

Toshiba Satellite A60 User Manual

Portable personal computer
Hide thumbs Also See for Satellite A60:
Table of Contents

Advertisement

Quick Links

See also: Maintenance Manual
TOSHIBA Satellite A60
Portable Personal Computer
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Toshiba Satellite A60

Summary of Contents for Toshiba Satellite A60

  • Page 1 TOSHIBA Satellite A60 Portable Personal Computer User’s Manual...
  • Page 2 © 2004 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 3: Fcc Information

    WARNING: Only peripherals complying with the FCC class B limits may be attached to this equipment. Operation with non-compliant peripher- als or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s external monitor port,...
  • Page 4 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Contact Address: TOSHIBA America Information Systems, Inc. 9740 Irvine Boulevard Irvine, California 92618-1697 Telephone: (949) 583-3000...
  • Page 5 TOSHIBA declares, that the product: PSA60* conforms to the following Standards: Supplementary Information: This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe, Hammfelddamm 8, 41460 Neuss, Germany. VCCI Class B Information...
  • Page 6 Network Compatibility Statement This product is designed to work with, and is compatible with the following networks. It has been tested to and found to conform with the additional require- ments conditional in EG 201 121. Germany Greece Portugal Spain Switzerland All other countries/regions ATAAB AN003,004 Specific switch settings or software setup are required for each network, please refer...
  • Page 7 Pursuant to FCC CFR 47, Part 68: When you are ready to install or use the modem, call your local telephone company and give them the following information: The telephone number of the line to which you will connect the modem The registration number that is located on the device The FCC registration number of the modem will be found on either the device which is to be installed, or, if already installed, on the bottom of the computer...
  • Page 8 FCC. In the event repairs are ever needed on your modem, they should be performed by TOSHIBA Corporation or an authorized representative of TOSHIBA Corporation.
  • Page 9 The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations. Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
  • Page 10 Notes for Users in Australia and New Zealand Modem warning notice for Australia Modems connected to the Australian telecoms network must have a valid Austel permit. This modem has been designed to specifically configure to ensure compli- ance with Austel standards when the country/region selection is set to Australia. The use of other country/region setting while the modem is attached to the Australian PSTN would result in you modem being operated in a non-compliant manner.
  • Page 11 Some parameters required for compliance with Telecom’s PTC Specifications are dependent on the equipment (PC) associated with this modem. The associated equipment shall be set to operate within the following limits for compliance with Telecom Specifications: There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual call initiation, and The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next.
  • Page 12 The transmit level from this device is set at a fixed level and because of this there may be circumstances where the performance is less than optimal. Before reporting such occurrences as faults, please check the line with a standard Telepermitted telephone, and only report a fault if the phone performance is impaired.
  • Page 13 Optical disc drive standards TOSHIBA Satellite A60 series computer is shipped with one of the following drives preinstalled : DVD-ROM, CD-RW/DVD-ROM, DVD-R/-RW , DVD+-R/+-RW or DVD Super Multi drive. The drive has one of the following labels : CLASS 1 LASER PRODUCT...
  • Page 14 3. To prevent direct exposure to the laser beam, do not try to open the enclosure. Toshiba Samsung SD-C2612 Location of the required label Location of the required label PRODUCT IS CERTIFIED BY THE...
  • Page 15 3. To prevent direct exposure to the laser beam, do not try to open the enclosure. Toshiba Samsung SD-R6332 Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY...
  • Page 16 Matsushita UJ-811BTJA-A Location of the required label Pioneer DVR-K13TBA Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: Manufactured by Panasonic Communications Co., LTD 1-62, 4-Chome,Minoshima, Hakata-ku, Fukuoka, JAPAN COMPLIES WITHFDA RADIATION...
  • Page 17 CD-RW/DVD-ROM drive safety in- structions CAUTIONS:1. The drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location. 2.
  • Page 18 Toshiba Samsung SD-R2512 Location of the required label TEAC DW-224E Location of the required label PRODUCT IS CERTIFIED BY THE MANUFACTURER TO COMPLY WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT THE DATE OF MANUFACTURE. MANUFACTURED: TOSHIBA SAMSUNG STORAGE...
  • Page 19 DVD +-R/+-RW drive safety instruc- tions CAUTIONS:1. The drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location. 2.
  • Page 20 HLDS GWA-4040N Location of the required label HLDS GCC-4243N Location of the required label COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS,21 CFR SUBCHAPTER J. MANUFACTURED: Hitachi-LG Data Storage, Inc. 20, YOIDO-DONG, YOUNG- DUNGPO-GU, SEOUL, KOREA COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS,21 CFR SUBCHAPTER J.
  • Page 21 DVD Super Multi drive safety instruc- tions CAUTIONS:1. The drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference. Should the unit ever require maintenance, contact an authorized service location.
  • Page 22 TEAC DV-W24E Location of the required label CERTIFICATION TISH PRODUCT COMPLIES WITH DHHS RULES 21 CFR CHAPTER 1, SUBCHAPTER J APPLI- CABLE DATE OF MANUFACTURE MANUFACTURED: TEAC CORPORATION 3-7-3 NAKA-CHO, MUSASHINO-SHI, TOKYO, JAPAN...
  • Page 23 CLASS 1 LASER PRODUCT LASERSCHUTZKLASSE 1 PRODUKT TO EN60825 ADVERSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAF-BRYDER ER UDE AF FUNKTION. UNDGÅ UDSÆTTELSE FOR STRÅLING CAUTION: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference.
  • Page 24 OBS! Apparaten innehåller laserkomponent som avger laserstråining överstigande gränsen för laserklass 1. VAROITUS. Suojakoteloa si saa avata. Laite sisältää laserdiodin, joka lähetää näkymätöntä silmilie vaarallista lasersäteilyä. CAUTION: USE OF CONTROLS OR ADJUST- MENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARD- OUS RADIATION EXPOSURE.

  • Page 25: Table Of Contents

    Table of Contents Preface Manual contents ... xx Conventions ... xxi Abbreviations ... xxi Icons ... xxi Keys ... xxi Key operation ... xxii Display ... xxii Messages ... xxii General Precautions Stress injury ... xxiii Heat injury ... xxiii Pressure or impact damage ...
  • Page 26 USB diskette drive ... 2-11 Optical Media drive ... 2-12 Region codes for DVD drive and media ... 2-12 Writable discs ... 2-12 CD-RW/DVD-ROM drive ... 2-13 DVD-R/-RW drive ... 2-14 DVD+-R/+-RW drive ... 2-14 DVD Super Multi drive ... 2-15 AC adaptor ...
  • Page 27 Important message(DVD Super Multi drive) ... 4-16 Before writing or rewiting ... 4-16 When writing or rewiting ... 4-18 Disclaimer(DVD Super Multi drive) ... 4-19 RecordNow! Basic for TOSHIBA ... 4-19 Data Verification ... 4-20 DLA for TOSHIBA ... 4-20 Video ... 4-21 When WinDVD Creator 2 Platinum is used ...
  • Page 28 Cleaning the computer ... 4-32 Moving the computer ... 4-33 Heat dispersal ... 4-33 Chapter 5 The Keyboard Typewriter keys ... 5-1 F1 … F12 function keys ... 5-2 Soft keys: Fn key combinations ... 5-2 Emulating keys on enhanced keyboard ... 5-2 Hotkeys ...
  • Page 29 Windows utilites ... 6-16 Hotkeys ... 6-16 Panel power off ... 6-16 System Auto Off ... 6-16 Chapter 7 HW Setup and Passwords HW Setup ... 7-1 Accessing HW Setup ... 7-1 HW Setup window ... 7-2 Chapter 8 Optional Devices PC cards ...
  • Page 30 USB ... 9-23 Modem ... 9-23 Standby/Hibernation ... 9-25 LAN ... 9-25 Wireless LAN ... 9-26 i.LINK(IEEE1394) ... 9-26 TOSHIBA support ... 9-26 Before you call ... 9-26 Where to write ... 9-26 Appendixes Appendix A Specifications ... A-1 Appendix B Display Controller and Modes ...B-1...
  • Page 31 Appendix F Wireless LAN ... F-1 Appendix G Power Cord and Connectors ... G-1 Appendix H Internal Modem Guide ...H-1 Appendix I Parts Numbers ... I-1 Glossary Index xxxi...

  • Page 32: Preface

    This powerful, lightweight notebook computer is designed to provide years of reliable, high-performance computing. This manual tells how to set up and begin using your Satellite A60 series computer. It also provides detailed information on configuring your computer, basic opera- tions and care, using optional devices and troubleshooting.

  • Page 33: Conventions

    Chapter 6, Power and Power-Up Modes, gives details on the computer’s power resources and battery save modes. Chapter 7, HW Setup and Passwords, explains how to configure the computer using the HW Setup program. It also tells how to set a password. Chapter 8, Optional Devices, describes the optional hardware available.

  • Page 34: Key Operation

    Key operation Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, Ctrl + C means you must hold down Ctrl and at the same time press C. If three keys are used, hold down the first two and at the same time press the third.

  • Page 35: General Precautions

    General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury, damage to the computer or impaired performance. Be certain to read the general precautions below and to note the cautions included in the text of the manual.

  • Page 36: Pc Card Overheating

    For optimum performance, use your computer product only under recommended conditions. Read additional restrictions in bundled documents. Contact TOSHIBA Service and Support for more information. xxxvi...

  • Page 37: Chapter 1 Introduction

    Carefully unpack your computer. Save the box and packing materials for future use. Hardware Check to make sure you have all the following items: Satellite A60 series Portable Personal Computer Universal AC adaptor and power cord USB diskette drive (Provided with some models)
  • Page 38 • TOSHIBA Power Saver • TOSHIBA user's manual • TOSHIBA Console • TOSHIBA ConfigFree • TOSHIBA Touch and Launch • TOSHIBA Touch Pad and On/Off Utility • TOSHIBA PC Diagnostic Tool • TOSHIBA Zooming Utility Documentation: • Satellite A60 User's manual •...

  • Page 39: Features

    Features The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Comple- mentary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits: Processor Intel Mobile Intel...
  • Page 40 User's Manual Diskette drive 3 1/2" 1.44-megabyte or 720-kilobyte connects to the USB port. (Windows® XP does not support 720-kilobyte diskettes.) DVD-ROM drive Some models are equipped with a full-size, DVD-ROM drive module that lets you run either 12cm (4.72") or 8 cm (3.15") CDs or 12 cm (4.72") DVDs without using an adaptor.
  • Page 41 DVD-R/-RW drive Some models are equipped with a full-size DVD-R/-RW drive module that lets you record data to rewriteable CD/ DVDs as well as run either 12cm (4.72") or 8cm (3.15") CDs/ 12cm (4.72") DVDs without using an adaptor. It reads DVD- ROMs at maximum 8 speed and CD-ROMs at maximum 24 speed.
  • Page 42 User's Manual • Enhanced CD(CD-EXTRA) • CD-G (Audio CD only) • Addressing Method 2 DVD Super Multi Some models are equipped with a full-size DVD Super drive Multi drive module that lets you record data to rewritable CD/DVDs as well as run either 12cm(4.72") or 8cm(3.15") CD/DVDs without using an adaptor.
  • Page 43 Keyboard Built-in 85 keys , compatible with IBM enhanced keyboard, embedded numeric overlay, dedicated cursor control, details. Power Battery pack The computer is powered by one rechargeable lithium-ion battery pack. RTC battery The internal RTC battery backs up the Real Time Clock (RTC) and calendar.
  • Page 44 User's Manual Slots PC card A PC card slot accommodates: One Type II Refer to Chapter 8, 3 - IN - 1 Memory This slot lets you easily transfer data from devices, such Card slot as digital cameras and Personal Digital Assistants, that use (SD card/MultiMediaCard/Memory Stick) flash- memory.

  • Page 45: Special Features

    Special features The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use. Hotkeys Key combinations let you quickly modify the system configuration directly from the keyboard without running a system configuration program.
  • Page 46 You can specify the setting in the When I close the lid item of the Setup Action tab in TOSHIBA Power Saver. Low battery automatic When battery power is exhausted to the point that...

  • Page 47: Utilities

    To start the utility, click the Windows Start button and click Control Panel. In the Control Panel, select the TOSHIBA HW Setup icon. Fn-esse This Windows program lets you define your own “shortcut”...
  • Page 48 TOSHIBA Touch and TOSHIBA Touch and Launch is a tool that allows you to Launch perform various tasks easily using Touch pad. TOSHIBA Touch and Launch is useful in the following conditions.

  • Page 49: Options

    Favorites menu. • To display the list of currently open windows and change the active window. Also TOSHIBA Touch and Launch provides the following functions by customizing the settings. • To open a file stored in a predefined folder. • To quickly launch your frequently used applications which have been registered.

  • Page 50: Chapter 2 The Grand Tour

    The Grand Tour This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer. Front with the display closed Figure 2-1 shows the computer’s front with its display panel in the closed position. Figure 2-1 Front of the computer with display closed Display latch This latch secures the LCD panel in its closed position.

  • Page 51: Left Side

    User's Manual Left side Figure 2-2 shows the computer’s left side. PC C ARD SLOT 3-IN-1 M 3-IN-1 M EMORY NDICATOR Figure 2-2 The left side of the computer 3-IN-1 Memory This LED glows green when the computer is accessing the Card Indicator SD card/MultiMediaCard/Memory Stick Slot.

  • Page 52: Right Side

    Right side Figure 2-3 shows the computer’s right side. OLUME CONTROL Figure 2-3 The right side of the computer Hard Disk Provides access to read and write. Volume control Use this dial to adjust the volume of the system speaker and headphones.

  • Page 53: Back Side

    User's Manual Universal The Universal Serial Bus (USB) port comply with USB2.0 Serial Bus standards, which enables data transfer speeds 40 times port faster than the USB1.1 standards. (The port also support USB1.1.) CAUTION: Keep foreign objects out of the USB connectors. A pin or similar object can damage the computer’s circuitry.
  • Page 54 TV OUT Plug a 4 pin S-Video connector into this jack. Modem jack In areas where an internal modem is installed as standard equipment, there is a modem jack that lets you use a modular cable to connect the modem directly to a tele- phone line.

  • Page 55: Underside

    User's Manual Parallel port This Centronics-compatible, 25-pin parallel port is used to connect a parallel printer or other parallel device. This port supports Extended Capabilities Port (ECP) standard. i.LINK (IEEE1394) Connect an external device, such as a digital video camera port to this port for high-speed data transfer.

  • Page 56: Front With The Display Open

    The Battery section in Chapter 6, Power and Power-Up battery pack. Additional battery packs can be purchased from your TOSHIBA dealer to extend the computer’s battery operating time. Battery pack Slide this latch to release or the battery pack.
  • Page 57 When you open the panel the computer starts in Hibernation mode. Use the TOSHIBA Power Saver Utility to enable or disable this feature. The default is "enabled". Refer to the TOSHIBA Power Saver Utility and Panel Power Off/On items in Chapter 1, Introduction, for details on settings.

  • Page 58: System Indicators

    System indicators Figure 2-7 shows the system indicators, which light when various computer operations are in progress. DC IN OWER AIN BATTERY Figure 2-7 System indicators Power source/system indicators DC IN The DC IN indicator glows green when DC power is supplied from the AC power adaptor.
  • Page 59 User's Manual The figures below show the positions of the keypad overlay indicators and the CapsLock indicator. When the F10 key indicator glows the keypad overlay lets you enter numbers. When the F11 key indicator glows the keypad overlay lets you control the cursor. UMERIC MODE RROW MODE Figure 2-8 Keypad overlay indicators...

  • Page 60: Usb Diskette Drive

    Caps Lock This indicator glows green when the alphabet keys are locked in uppercase. USB diskette drive A 3 1/2" diskette drive accommodates 1.44-megabyte or 720-kilobyte diskettes. It connects to the USB port. NDICATOR ISKETTE SLOT JECT BUTTON Figure 2-10 USB diskette drive Disk-In-Use This indicator lights when the diskette is being accessed.

  • Page 61: Optical Media Drive

    Use RecordNow! Basic for TOSHIBA to write compact discs. Refer to Chapter 4, Operating Basics. CD-R discs can be written only once. The recorded data cannot be erased or changed.

  • Page 62: Cd-Rw/Dvd-Rom Drive

    DVDs DVD-R, DVD+R discs can be written only once. The recorded data cannot be erased or changed. DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than once. Formats The drives support the following formats: • DVD-ROM • CD-DA • Photo CD (single/multi-session) •...

  • Page 63: Dvd-R/-Rw Drive

    User's Manual DVD-R/-RW drive The full- size DVD-R/-RW drive module lets you record data to rewritable CD/ DVDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. NOTE: The read speed is slower at the center of a disc and faster at the outer edge.

  • Page 64: Dvd Super Multi Drive

    DVD Super Multi drive The full-size DVD Super Multi drive module lets you record data to s as rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor. NOTE: The read speed is slower at the center of a disc and faster at the outer edge.
  • Page 65 User's Manual CAUTION: Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. The output rating for the computer is 19 volts DC. CAUTION: Please use only the AC Adapter supplied with the computer or an AC Adapter certified by TOSHIBA.

  • Page 66: Chapter 3 Getting Started

    Getting Started This chapter provides basic information to get you started using your computer. It covers the following topics: Setting up your work space — for your health and safety NOTE: Be sure also to read Instruction Manual for Safety & Comfort. This guide, which is included with the computer, explains product liability.

  • Page 67: Setting Up Your Work Space

    User's Manual Setting up your work space Establishing a comfortable work site is important for you and your computer. A poor work environment or stressful work habits can result in discomfort or serious injury from repetitive strain to your hands, wrists or other joints. Proper ambient conditions should also be maintained for the computer’s operation.

  • Page 68: Seating And Posture

    Set the computer on a flat surface at a comfortable height and distance. The display should be no higher than eye level to avoid eye strain. Place the computer so that it is directly in front of you when you work and make sure you have adequate space to easily operate other devices.

  • Page 69: Lighting

    User's Manual Lighting Proper lighting can improve legibility of the display and reduce eye strain. Position the computer so that sunlight or bright indoor lighting does not reflect off the screen. Use tinted windows, shades or other screen to eliminate sun glare.

  • Page 70: Connecting The Ac Adaptor

    Power and Power-Up CAUTION: Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. The output rating for the computer is 19 volts DC. 1. Connect the power cord to the AC adaptor.

  • Page 71: Opening The Display

    User's Manual 3. Plug the power cord into a live wall outlet. The Battery and DC IN indicator on the front of the computer should glow. Opening the display The display panel can be rotated in a wide range of angles for optimal viewing. 1.

  • Page 72: Starting Up For The First Time

    Figure 3-5 Turning on the power Starting up for the first time When you first turn on the power, the computer’s initial screen is the Microsoft ® Windows XP Professional or Windows Follow the on-screen directions. Turning off the power The power can be turned off in one of the following modes: Shut down (Boot), Hibernation or Standby mode.

  • Page 73: Hibernation Mode

    NOTE: For the computer to shut down in hibernation mode, the hiberna- tion feature must be enabled in two places the Hibernation tab Power Options and Setup Action tab in TOSHIBA Power Saver. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby will be lost.
  • Page 74 3. Select the Hibernate windowin the Power Options Properties, select the Enable Hibernate check box and click the Apply button. 4. Open TOSHIBA Power Save. 5. Select the Setup Action window. 6. Enable the desired Hibernation settings for When I slide the power button and When I close the lid.

  • Page 75: Standby Mode

    Standby. 4. To prevent the computer from automatically entering Standby mode, disable Standby in TOSHIBA Power Saver. That action, however, will nullify the computer’s Energy Star compliance. NOTES: 1. Before entering Standby mode, be sure to save your data.
  • Page 76 3. Press the power button. This feature must be enabled. Refer to the Setup Action tab in TOSHIBA Power Saver Utility described in the Control Panel. . When you turn the power back on, you can continue where you left when you shut down the computer.

  • Page 77: Restarting The Computer

    2. Hold down the F12 key and turn on the power. When In Touch with Tomorrow TOSHIBA appears, release the F12 key. 3. Use the left or right cursor key to select the CD-ROM/DVD-ROM icon in the display menu.

  • Page 78: Chapter 4 Operating Basics

    Operating Basics This chapter gives information on basic operations including using , USB diskette drive, optical media drives, the internal modem, wireless communication, and LAN. It also provides tips on caring for your computer, diskettes and CD/DVDs. Using the Touch Pad To use the Touch Pad, simply touch and move your finger tip across it in the direction you want the on-screen pointer to go.

  • Page 79: Using The Usb Diskette Drive

    User’s manual Using the USB diskette drive A 3 1/2" diskette drive connects to the computer’s USB port. It accommodates 1.44- megabyte or 720-kilobyte diskettes. Refer to Chapter 2, information. Connecting 3 1/2" diskette drive To connect the drive, plug the diskette drive connector into a USB port. Refer to Figure 4-1.

  • Page 80: Disconnecting 3 1/2" Diskette Drive

    Disconnecting 3 1/2" diskette drive When you have finished using the diskette drive, follow the procedures below to disconnect it : 1. Wait for the indicator light to go out to make sure all diskette activity has stopped. CAUTION: If you disconnect the diskette drive or turn off the power while the computer is accessing the drive you may lose data or damage the diskette or the drive.

  • Page 81: Loading Discs

    User’s manual Loading discs To load CD/DVDs, follow the steps below and refer to figures 4-2 to 4-6. 1. a. When the power is on, press the DVD-ROM eject button to open the drawer slightly. Figure 4-2 Pressing the DVD-ROM eject button b.
  • Page 82 Using optical media drives 2. Grasp the drawer gently and pull until it is fully opened. Figure 4-4 Pulling the drawer open 3. Lay the CD/DVD, label side up, in the drawer. Figure 4-5 Inserting a CD/DVD...
  • Page 83 User’s manual NOTE: When the drawer is fully opened, the edge of the computer will extend slightly over the CD/DVD tray. Therefore, you will need to turn the CD/DVD at an angle when you place it in the tray. After seating the CD/DVD, however, make sure it lies flat, as shown in figure 4-5.

  • Page 84: Removing Discs

    Removing discs To remove the CD/DVD, follow the steps below and refer to figure 4-7. CAUTION: Do not press the eject button while the computer is accessing the DVD-ROM drive. Wait for the optical media drive indicator to go out before you open the drawer.

  • Page 85: Audio/Video Controls

    User’s manual Audio/Video controls This section describes how to use the audio/video control buttons. Next and Previous buttons A single button on a rocker controls the Next and Previous functions. Press on the icon to select the desired function. Next Press the or data.

  • Page 86: Before Writing Or Rewiting

    MITSUBISHI CHEMICAL CORPORATION, RICOH Co., Ltd. Ultra-Speed CD-RW: MITSUBISHI CHEMICAL CORPORATION TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufac- turers above. Operation of other media cannot be guaranteed. CD-RW can generally be rewritten about 1,000 times. However, the actual number of rewrites is affected by the quality of the media and the way it is used.

  • Page 87: When Writing Or Rewiting

    Keep mobile phones and other wireless communication devices away from the computer. Disclaimer (CD-RW/DVD-ROM drive) TOSHIBA does not bear responsibility for the following: Damage to any CD-R/RW or CD-RW/DVD-ROM disc that may be caused by writing or rewriting with this product.

  • Page 88: Writing Cd/Dvds On Dvd-R/-Rw Drive

    Base on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R, CD-RW, DVD-R, DVD-RW disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.

  • Page 89: When Writing Or Rewiting

    User’s manual Other DVD-ROM drives for computers or other DVD players may not be able to read DVD-R/-RW discs. Data written to a CD-R/DVD-R disc cannot be deleted either in whole or in part. Data deleted (erased) from a CD-RW and DVD-RW disc cannot be recovered. Check the content of the disc carefully before you delete it.

  • Page 90: Disclaimer(Dvd-R/-Rw Drive)

    Base on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R/RW and DVD-R/+R/-RW/+RW disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.
  • Page 91 User’s manual CD-RW:(High-Speed, MITSUBISHI CHEMICAL CORPORATION Multi-Speed) RICOH Co., Ltd. DVD-R: DVD Specifications for Recordable Disc for General Version 2.0 TAIYOYUDENCO.,LTD. PIONEER VIDEO CORPORATION Matsushita Electric Industrial Co.,Ltd. DVD+R: MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. DVD-RW: DVD Specifications for Re-recordable Disc for Version 1.1 VICTOR COMPANY OF JAPAN, LIMITED MITSUBISH CHEMICAL CORPORATION...
  • Page 92 Writing CD/DVDs on DVD+-R/+-RW drive 4-15...

  • Page 93: Writing Cd/Dvds On Dvd Super Multi Drive

    Base on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R/RW and DVD-R/+R/-RW/+RW/-RAM disc. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.
  • Page 94 Writing CD/DVDs on DVD Super Multi drive DVD-RW: DVD Specifications for Re-recordable Disc for Version 1.1 VICTOR COMPANY OF JAPAN, LIMITED MITSUBISH CHEMICAL CORPORATION DVD+RW: MITSUBISHI CHEMICAL CORPORATION RICOH Co., Ltd. DVD-RAM: DVD Specifications for DVD-RAM Disc for Version 2.0 or Version 2.1 Matsushita Electric Industrial Co., Ltd.

  • Page 95: When Writing Or Rewiting

    User’s manual Be sure to connect the universal AC adaptor before you write or rewrite. Before you enter standby/hibernation mode, be sure to finish DVD-RAM writing. Writing is finished if you can eject DVD-RAM media. Be sure to close all other software programs except the writing software. Do not run software such as a screen saver, which can put a heavy load on the CPU.

  • Page 96: Disclaimer(Dvd Super Multi Drive)

    The original data will be lost if there is a write error. Disclaimer (DVD Super Multi drive) TOSHIBA does not bear responsibility for the following: Damage to any CD-R/RW or DVD-R/-RW/+R/+RW/-RAM disc that may be caused by writing or rewriting with this product.

  • Page 97: Data Verification

    3. Mark the Verify data written to the disc after burning check box in the Data Options. 4. Click the OK button. DLA for TOSHIBA Note the following limitations when you use DLA: This software supports only rewritable discs (DVD+RW, DVD-RW, and CD- RW).

  • Page 98: Video

    Writing CD/DVDs on DVD Super Multi drive Do not use any discs that have been formatted with packet writing software other than DLA. Similarly, do not use any discs that have been formatted with DLA with any packet writing software other than DLA. When using a disc you are not familiar with, format it by selecting “Full Format”...

  • Page 99: Installing Intervideo Windvd Creator

    User’s manual 3. Click the System icon in the Performance and Maintenance window. 4. Click the Advanced tab in the System Properties window. 5. Click the Settings icon in the "Performance" section. 6. Click the Advanced tab in the Performance Options window. 7.
  • Page 100 Writing CD/DVDs on DVD Super Multi drive How to learn more about InterVideo WinDVD Creator Please refer to the on-line Help for additional InterVideo WinDVD Creator information. Important information for use Note the following limitations when you write video DVD: 1.

  • Page 101: Media Care

    User’s manual • Use the Mode control button and Audio/Video control button to repro duce music or voice. • Open the DVD drive. • Install, remove or connect external devices, including the following: PC card, SD card/MultiMediaCard/Memory Stick, USB devices, external display, i.LINK.

  • Page 102: Cd/Dvds

    CD/DVDs 1. Store your CD/DVDs in the container they came in to protect them and keep them clean. 2. Do not bend the CD/DVD. 3. Do not write on, apply a sticker to, or otherwise mar the surface of the CD/DVD that contains data.

  • Page 103: Modem

    To select a region, follow the steps below. 1. In Windows XP, click start, point to All Programs, point to TOSHIBA, point to Networking and click Modem Region Select. NOTE: Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available.

  • Page 104: Properties Menu

    • When you click a region it becomes the modem’s region selection, and the New Location for telephony will be set automatically. • When you select a telephony location, the corresponding region is auto matically selected and it becomes the modem’s current region setting. Properties menu Click the icon with the secondary mouse button to display the following menu.

  • Page 105: Connecting

    CAUTION: If modem speed is low or communication is interrupted when you are using modem, please check and set CPU speed to Maximum by TOSHIBA Power Management Utility. NOTE: If you use a storage device such as a DVD-ROM drive,...

  • Page 106: Disconnecting

    Disconnecting To disconnect the internal modem cable, follow the steps below. 1. Pinch the lever on the connector in the telephone jack and pull out the connector. 2. Disconnect the cable from the computer in the same manner. Wireless communications The computer’s wireless communication function supports Wireless LAN and devices.

  • Page 107: Wireless Communication Switch

    User’s manual Security Two advanced security mechanisms ensure a high level of security: Authentication prevents access to critical data and makes it impossible to falsify the origin of a message. Encryption prevents eavesdropping and maintains link privacy. Wireless communication switch You can enable or disable Wireless LAN functions, with the on/off switch.

  • Page 108: Lan

    The computer has built-in support for Fast Ethernet LAN (100 megabits per second, 100BASE-Tx). This section describes how to connect/disconnect to a LAN. CAUTION: Do not install or remove an optional memory module while Wake-up on LAN is enabled. NOTE: The Wake-up on LAN function consumes power even when the system is off.

  • Page 109: Disconnecting Lan Cable

    User’s manual 3. Plug the other end of the cable into a LAN hub connector. Check with your LAN administrator before connecting to a hub. NOTE: When the computer is exchanging data with the LAN, the LAN active indicator glows orange. When the computer is connected to a LAN hub but is not exchanging data, the Link indicator glows green.

  • Page 110: Moving The Computer

    CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Basic Setup tab in TOSHIBA Power Saver. Maximum...

  • Page 111: Chapter 5 The Keyboard

    The Keyboard The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/102-key keyboard functions can be executed on the computer. The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with.

  • Page 112: F1 ... F12 Function Keys

    Soft keys: Fn key combinations The Fn (function) is unique to Toshiba computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.
  • Page 113 Soft keys: Fn key combinations The keyboard is designed to provide all the features of the 101-key enhanced keyboard, shown in figure 5-1. The 101/102-key enhanced keyboard has a numeric keypad and scroll lock key. It also has additional Enter, Ctrl and Alt keys to the right of the main keyboard.

  • Page 114: Hotkeys

    Continue holding down Fn and press F2 again to change the setting. You can also change this setting through the profile item in TOSHIBA Power Saver. Standby: When you press Fn + F3, the computer can enter Standby. To avoid entering Standby unexpectedly, a dialog box appears for verification.
  • Page 115 When you press these hotkeys, the current setting will be displayed for two seconds by an icon. You can also change this setting through the Screen brightness item of the Basic Setup tab in TOSHIBA Power Saver. Display Brightness: Pressing Fn + F7 increases the display brightness in increments.
  • Page 116 From the current resolution (the original resolution) to 1024X768, from 1024X768 to 800X600, from 800X600 to the original resolution. TOSHIBA Zooming Utility(reduce): To reduce the icon size on the desktop or the application window, press the 1 key while holding down the Fn key.

  • Page 117: Fn Sticky Key

    Windows special keys Fn Sticky key You can use the Toshiba Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and they press an “F number” key. To start the Toshiba Accessibility Utility, click start, point to All Programs (Windows 2000 only, point to Programs), point to TOSHIBA, point to Utilities and click Accessibility.
  • Page 118 User's Manual Arrow mode To turn on the Arrow mode, press Fn + F10. The Arrow mode indicator lights. Now try cursor and page control using the keys shown in figure 5-2. Press Fn + F10 again to turn off the overlay. Numeric mode To turn on the Numeric mode, press Fn + F11.

  • Page 119: Temporarily Using Normal Keyboard (Overlay On)

    Temporarily using normal keyboard (overlay While using the overlay, you can temporarily access the normal keyboard without turning off the overlay: 1. Hold Fn and press any other key. All keys will operate as if the overlay were off. 2. Type uppercase characters by holding Fn + Shift and pressing a character key.

  • Page 120: Generating Ascii Characters

    User's Manual Generating ASCII characters Not all ASCII characters can be generated using normal keyboard operation. But, you can generate these characters using their ASCII codes. With the overlay on: 1. Hold down Alt. 2. Using the overlay keys, type the ASCII code. 3.

  • Page 121: Chapter 6 Power And Power-Up Modes

    Chapter 6 Power and Power-Up Modes The computer’s power resources include the AC adaptor and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes.
  • Page 122 User's Manual Table 6-1 Power conditions Power on Battery • Operates adaptor fully • No charge connected charged • LED: Battery green Battery • Operates partially • Charge charged • LED: Battery Amber or no charge • Operates main battery •...

  • Page 123: Power Indicators

    Power indicators The Battery, DC IN and Power indicators on the system indicator panel alert you to the computer’s operating capability and battery charge status. Battery indicator Check the Battery indicator to determine the status of the battery. The following indicator lights indicate the battery status: Flashing amber The battery charge is low.

  • Page 124: Power Indicator

    Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements. The battery recharges the RTC batteries. The battery maintains the state of the computer when you enable Resume.

  • Page 125: Real Time Clock Battery

    Check system. Then press [F1] key ..CAUTION: The computer’s RTC battery is a lithium ion battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed of.
  • Page 126 User's Manual Caution : Indicates a potentially hazardous situation, Which if not avoided, may result in moderate or minor injury or property damage. Note : Provides important information. Danger 1. Never try to dispose of the battery pack by burning or expose it to a heating device such as a microwave oven.
  • Page 127 : offensive or unusual odor, excessive heat, discoloration or deformation. Never use the computer again until it has been checked by a TOSHIBA service provider. It might generate smoke or fire, or the battery pack might rupture.

  • Page 128: Charging The Batteries

    Hibernation mode (so you don't lose data) and automatically turns off. NOTES :The computer enters Hibernate mode only if Hibernation is enabled in two places : the Hibernate tab in Power Options and Setup Action tab in TOSHIBA Power Saver. You must recharge a battery pack when it becomes discharged.
  • Page 129 The Battery indicator glows amber when the battery is being charged. CAUTION: Use only the computer connected to an AC power source or the optional TOSHIBA Battery charger to charge the battery pack. Do not attempt to charge the battery pack with any other charger.

  • Page 130: Monitoring Battery Capacity

    Monitoring battery capacity Remaining battery power can be monitored in TOSHIBA Power Saver. NOTES: 1. Wait at least 16 seconds after turning on the computer before trying to monitor the remaining operating time. The com- puter needs this time to check the battery’s remaining...

  • Page 131: Maximizing Battery Operating Time

    How you configure the computer (for example, whether you enable battery- power saving options). The computer provides a battery save mode, which can be set in TOSHIBA Power Saver, to conserve battery power. This mode has the following options: • CPU Precessing speed •...

  • Page 132: Retaining Data With Power Off

    User's Manual Retaining data with power off When you turn off your computer with fully charged batteries, the batteries retain data for the following approximate time periods: Battery pack (8 cell) Battery pack (12 cell) RTC battery Extending battery life To maximize the life of your battery pack: At least once a month, disconnect the computer from a power source and operate it on battery power until the battery pack fully discharges.

  • Page 133: Replacing The Battery Pack

    Replacing the battery pack When the battery pack reaches the end of its operating life you will need to install a new one. If the Battery indicator flashes amber shortly after fully recharging the battery, the battery pack needs to be replaced. You might also replace a discharged battery pack with a charged spare when you are operating your computer away from an AC power source.
  • Page 134 Figure 6-2 Removing the battery pack 7. Pull the battery pack forward to remove it. CAUTION: For environmental reasons, do not throw away a spent battery pack. Please return spent battery pack to your TOSHIBA dealer. 6-14 ATTERY AFTY...

  • Page 135: Installing The Battery Pack

    Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements. 1. Be sure the computer’s power is off and all cables are disconnected.

  • Page 136: Power-Up Modes

    NOTE: Refer also to the sections Turning on the power and Turning off the power in Chapter 3, Windows utilities You can specify the setting in TOSHIBA Power Saver. Hotkeys You can use hotkeys Fn + F3 to enter Standby mode and Fn + F4 to enter Hibernation.

  • Page 137: Chapter 7 Hw Setup And Passwords

    HW Setup and Passwords This chapter explains how to use TOSHIBA HW Setup program to configure your computer and how to set passwords. HW Setup TOSHIBA HW Setup lets you configure settings for display, CPU, boot priority, keyboard, USB, LAN, general, password, parallel/printer.

  • Page 138: Hw Setup Window

    User’s Manual HW Setup window The HW Setup window contains the following tabs: Display, CPU, Boot Priority, Keyboard, USB, LAN, General, Password, Parallel/Printer. There are also three buttons: OK, Cancel and Apply. Accepts your changes and closes the HW Setup window. Closes the window without accepting your changes.
  • Page 139 NOTE: If you click the OK button before entering the password, Not registered will appear on the display. 3. Click the OK button. The following message appears, allowing you to verify the password. Verify Password: 4. If character strings match, the password is registered click OK button. If they do not match, the following message appears.
  • Page 140 User’s Manual Parallel/Printer This tab lets you set the Printer Port Type. Use the Windows Device Manager to make settings for the Parallel port. Parallel Port Mode The options in this tab are ECP and Standard Bidirectional. Sets the port type to Extended Capabilities Port (ECP). For most printers, the port should be set to ECP.
  • Page 141 Always Low HT Technology Enabled with PM Enabled without PM Disabled Boot Priority Boot Priority Options This option sets the priority for booting the computer. Select from the following settings: CD-ROM -> LAN The computer looks for bootable files in CD-ROM ->...
  • Page 142 User’s Manual You can override the settings and manually select a boot device by pressing one of the following keys while the computer is booting: Selects the USB diskette drive. Selects the Network. Selects the primary HDD. Selects the CD-ROM*. This procedure does not affect the settings.
  • Page 143 USB KB/Mouse Legacy Emulation Use this option to enable or disable USB KB/Mouse Legacy Emulation. If your operating system does not support USB, you can still use a USB mouse and keyboard by setting the USB KB/Mouse Legacy Emulation item to Enabled.

  • Page 144: Chapter 8 Optional Devices

    Optional Devices Optional devices can expand the computer’s capabilities and its versatility. The following optional devices are available from your TOSHIBA dealer: Cards / I/O PC cards SD card / MultiMediaCard / Memory Stick Memory expansion Power devices Additional battery pack (12 cell)

  • Page 145: Pc Cards

    The computer is equipped with a PC card expansion slot that can accommodate one 5 mm Type II card. Any PC card that meets industry standards (manufactured by TOSHIBA or other vendor) can be installed. The slots support 16-bit PC cards, including PC card 16’s multifunction card and CardBus PC cards.

  • Page 146: Removing A Pc Card

    3. Check the configuration in the HW Setup window to make sure it is appropri- ate for your card. Removing a PC card To remove the PC card, follow the steps below. 1. Open the Safety Remove Hardware icon on the system tray and disable the PC card.

  • Page 147: Sd Card/Multimediacard/Memory Stick

    User’s Manual SD card/MultiMediaCard/Memory Stick The computer is equipped with a SD card/MultiMediaCard/Memory Stick slot that can accommodate Secure Digital flash memory cards with capacities of 8MB, 16M, 32MB, 64MB, 128MB, 256MB and 512MB. MultiMediaCard 8MB, 16M, 32MB, 64MB, 128MB. Memory Stick 8MB, 16M, 32MB, 64MB, 128MB SD card/ MultiMediaCard/Memory Stick let you easily transfer data from devices, such as digital cameras and Personal Digital Assistants, that use SD card/MultiMediaCard/ Memory Stick flash-memory.

  • Page 148: Removing An Sd Card/Multimediacard/Memory Stick

    CAUTION: Make sure the SD card/MultiMediaCard/Memory Stick is oriented properly before you insert it. NOTE: If Windows fail to read the SD card/MultiMediaCard,/Memory Stick remove it then reinsert it. Removing an SD card/MultiMediaCard/Memory Stick To remove an SD card/MultiMediaCard/Memory Stick, follow the steps below. 1.

  • Page 149: Memory Expansion

    User’s Manual 2. Please do not remove the SD card/MultiMediaCard/ Memory Stick from the SD card/MultiMediaCard/ Memory Stick slot while in Standby or in Hibernation state. If you do, PC may become unstable or the data in SD card/MultiMediaCard/Memory Stick may be lost. 3.
  • Page 150 2. Remove all cables connected to the computer. 3. Turn the computer upside down and remove the battery pack (refer to Chapter Power and Power-Up 4. Remove one screw securing the memory module cover. 5. Lift off the cover. NOTE: Use a point size 0 Flippest screwdriver. Figure 8-5 Removing the cover 6.

  • Page 151: Removing Memory Module

    User’s Manual 8. Seat the cover and secure it with one screw. 9. When you turn the computer on, it should automatically recognize the total memory capacity. Use the HW Setup program to verify that the added memory is recognized. If it is not recognized, check the module’s connection. Removing memory module To remove the memory module, make sure the computer is in boot mode then: 1.

  • Page 152: Additional Battery Pack(12Cell)

    Additional battery pack Figure 8-7 Removing the memory module 7. Seat the cover and secure it with one screw. Additional battery pack 12 Cell You can increase the portability of the computer with additional battery packs (12 cell : PA3382). If you’re away from an AC power source, you can replace a low battery with a fully charged one.

  • Page 153: Parallel Printer

    7. Turn on the computer. 8. Start the Hardware Setup program. Refer to Chapter 7 Passwords. 9. Select the Parallel/Printer tab from the TOSHIBA HW Setup window. 10. Set the Parallel Port Mode and press OK. 11. Choose Reboot for the change to take effect.

  • Page 154: Television

    NOTE: The Resume feature can be used with an external monitor. Simply enable Resume and the computer will maintain the data as it is displayed on the external monitor. 1. Connect the monitor to the external monitor port. 2. Turn the monitor’s power on. When you turn on the power, the computer automatically recognizes the monitor and determines whether it is color or monochrome.

  • Page 155: Security Lock

    User’s Manual Figure 8-8 Connecting a television 3. Turn the television on. 4. Turn the computer on. Security lock A security lock enables you to anchor your computer to a desk or other heavy object to help prevent unauthorized removal of the computer. Attach one end of a cable to the desk and the other end to the security lock slot on the left side of the computer.

  • Page 156: Chapter 9 Troubleshooting

    Troubleshooting TOSHIBA designed the computer for durability. However, should problems occur, following the procedures in this chapter can help to determine the cause. All readers should become familiar with this chapter. Knowing what might go wrong can help prevent problems from occurring.

  • Page 157: Analyzing The Problem

    User's Manual Check that your diskette is correctly inserted and that the diskette’s write protect tab is correctly set. Make notes of your observations and keep them in a permanent error log. This will help you describe your problems to your dealer. If a problem recurs, the log will help you identify the problem faster.

  • Page 158: Hardware And System Checklist

    Hardware and system checklist This section discusses problems caused by your computer’s hardware or attached peripherals. Basic problems may occur in the following areas: System start-up Self test Power Password Keyboard LCD panel Hard disk drive DVD-ROM drive CD-RW/DVD-ROM drive DVD-R/RW drive DVD +-R/+-RW drive DVD Super Multi drive...

  • Page 159: Self Test

    When the computer starts up, the self-test will be run automatically, and the following will be displayed: In Touch with Tomorrow TOSHIBA This message remains on the screen for a few seconds. If the self test is successful, the computer tries to load the operating system.

  • Page 160: Ac Power

    Problem Procedure Computer shuts down Leave the computer off until the DC IN indicator and DC IN indicator stops blinking. blinks amber NOTE: It is recommended to leave the computer off until the its interior reaches room temperature even though the DC IN indicator stops blinking. If the computer has reached room temperature and still does not start, or if it starts but shuts down quickly contact your dealer.

  • Page 161: Battery

    User's Manual Battery If you suspect a problem with the battery, check the DC IN and battery indicators. For information on indicators and battery operation see Chapter 6, Power-Up Modes. Problem Procedure Battery doesn’t The battery may be discharged. Connect the AC power the computer adaptor to charge the battery.

  • Page 162: Password

    If you do not think the battery is at the end of its operating life, see your dealer. Battery doesn’t If you frequently recharge a partially charged power the computer battery, the battery might not charge to its full as long as expected potential.

  • Page 163: Lcd Panel

    User's Manual LCD panel Apparent LCD problems may be related to the computer’s setup. Refer to Chapter 7, HW Setup and Passwords, for more information. Problem Procedure No display Press hotkeys Fn + F5 to change the display priority, to make sure it is not set for an external monitor.

  • Page 164: Dvd-Rom Drive

    Slow performance Your files may be fragmented. Run SCANDISK and defragmenter to check the condition of your files and disk. Refer to your OS documentation or online HELP for information on running SCANDISK and the defragmenter. As a last resort, reformat the hard disk. Then, reload the operating system and other files.

  • Page 165: Cd-Rw/Dvd-Rom Drive

    User's Manual Some CD/DVDs The software or hardware configuration may be run correctly, but causing a problem. Make sure the hardware others do not configuration matches your software’s needs. Check the CD/DVD's documentation. Check the type of CD/DVD you are using. The drive supports: DVD-ROM: CD-ROM:...
  • Page 166 Mode 1, Mode 2, CD-ROMXA Mode 2 (Form1,Form2), Enhanced CD(CD- EXTRA),CD-G(Audio CD only), Addressing Method 2 The Grand Tour Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.

  • Page 167: Dvd-R/-Rw Drive

    User's Manual • DVD-R/-RW drive For more information, refer to Chapter 4, Problem Procedure You cannot access Make sure the drive’s drawer is securely closed. a CD/DVD in the Press gently until it clicks into place. drive Open the drawer and make sure the CD/DVD is properly seated.

  • Page 168: Dvd+-R/+-Rw Drive

    Mode 2, CD-ROMXA Mode 2 (Form1, Form2), Enhanced CD(CD-EXTRA), CD-G(Audio CD only), Addressing Method 2 Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.
  • Page 169 Mode 2, CD-ROMXA Mode 2 (Form1,Form2), Enhanced CD(CD- EXTRA),CD-G(Audio CD only), Addressing Method 2 The Grand Tour Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.

  • Page 170: Dvd Super Multi Drive

    • DVD Super Multi drive For more information, refer to Chapter 4, Problem Procedure You cannot access Make sure the drive’s drawer is securely closed. a CD/DVD in the Press gently until it clicks into place. drive Open the drawer and make sure the CD/DVD is properly seated.

  • Page 171: Diskette Drive

    Mode 2, CD-ROMXA Mode 2 (Form1,Form2), Enhanced CD(CD- EXTRA),CD-G(Audio CD only), Addressing Method 2 The Grand Tour Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.

  • Page 172: Infrared Port

    You cannot access Try another diskette. If you can access the the external diskette, the original diskette (not the drive) is 3 1/2" diskette drive probably causing the problem. If problems persist, contact your dealer. Infrared port Refer also to the documentation for your IrDA compatible device and related software.

  • Page 173: Pointing Device

    User's Manual Inspect the cable connecting the printer to the computer for damage. Make sure it is securely connected. a serial printer to the serial port. Make sure the ports are configured correctly. Make sure your software is configured to recog- nize the printer.
  • Page 174 The mouse pointer Try changing the speed setting in the mouse moves too fast or control utility. too slow When the reaction of Adjust the touch Sensitivity. Touch pad is sensitive 1. Open the Control Panel. too slow 2. Click the Printers icon and then the Other 3.

  • Page 175: Usb Mouse

    User's Manual USB mouse This section applies only with Windows Problem Procedure On-screen pointer The system might be busy. If the pointer is does not respond to shaped as an hourglass, wait for it to resume mouse operation Make sure the mouse is properly connected to the USB port.

  • Page 176: Pc Card

    PC card Refer also to Chapter 8, Optional Devices. Problem Procedure PC card Reset the PC card to make sure it is firmly error occurs connected. Make sure the connection between the external device and the card is firm. Check the card’s documentation. If problems persist, contact your dealer.

  • Page 177: Sound System

    User's Manual Sound system Problem Procedure No sound is heard Adjust the volume control dial. Check the software volume settings. Make sure the headphone connection is secure. Check Windows Device Manager. Make sure the sound function is enabled and that settings for I/ O address, Interrupt level and DMA are correct for your software and do not conflict with other hardware devices that you may have connected...

  • Page 178: Usb

    NOTE: If you turn the computer off in Resume mode while the display is on TV, the computer will select either the internal LCD or an external computer CRT as the display device. If problems persist, contact your dealer. Refer also to your USB device’s documentation. Problem Procedure USB device does...
  • Page 179 User's Manual You can hear a dial If the call is going through a PBX machine, make tone but can't make sure the communication application’s tone dial a call detection feature is disabled. You can also use the ATX command. Refer to the chapter on AT commands in online help files for Appendix C, AT Commands.

  • Page 180: Standby/Hibernation

    You cannot receive Check the rings before auto answer setting in an incoming call You can also use the ATS0 command. Refer to the chapter on S-registers in online help files for Appendix D, S-registers. If problems persist, contact your dealer. Standby/Hibernation Problem Procedure...

  • Page 181: Wireless Lan

    User's Manual Wireless LAN If the following procedures do not restore LAN access, consult your LAN administrator. For more information on wireless communication, refer to Chapter 4, Operating Basics. Problem Procedure Cannot access Make sure the computer’s wireless Wireless LAN communication switch is set to on.

  • Page 182: Toshiba Support

    TOSHIBA support If you require any additional help using your computer or if you are having prob- lems operating the computer, you may need to contact TOSHIBA for additional technical assistance. Before you call Some problems you experience may be related to software or the operating system, it is important to investigate other sources of assistance first.
  • Page 183 User's Manual Outside of Europe Australia TOSHIBA Australia Pty. Ltd. Information Systems Division 84-92 Talavera Road North Ryde N.S.W. 2113 Sydney Canada TOSHIBA of Canada Ltd. 191 McNabb Street, Markham, Ontario L3R 8H2 China TOSHIBA Computer Systems (Shanghai)Co. Ltd. Bldg.33,No.351,Jinzang Road, Pudong...

  • Page 184: Appendixes

    Appendixes Appendix A Specifications ... A-1 Appendix B Display Controller and Modes ...B-1 Appendix C AT Commands ...C-1 Appendix D S-registers ... D-1 Appendix E V.90 ... E-1 Appendix F Wireless LAN ... F-1 Appendix G AC Power Cord and Connectors ... G-1 Appendix H Internal Modem Guide ...H-1 Appendix I...

  • Page 185: Appendix A Specifications

    Specifications This appendix summarizes the computer’s technical specifications. Physical Dimensions Size With TFT display 343 (w) x 282(d) x 37.5(front) /49 (rear) millimeters (does not include the thicker part of the bottom of the computer) Weight(typical*) 3.54kilograms(Approximate), configured with :15"XGA display, fixed DVD-ROM drive, 256MB memory, 40GB(4200rpm) HDD, and 8 cells or 12 cells battery.
  • Page 186 User's Manual Built-in Modem Network control unit (NCU) Type of NCU Type of line Telephone line (analog only) Type of dialing Pulse Tone Control command AT commands EIA-578 commands Monitor function Computer’s speaker Communication specifications Communication Data: system Fax: Communication Data protocol ITU-T-Rec...

  • Page 187: Display Controller And Modes

    Display Controller and Modes Display controller The display controller interprets software commands into hardware commands that turn particular pels on or off. The controller is an advanced Video Graphics Array (VGA) that provides Super VGA (SVGA) and Extended Graphics Array (XGA) support for the internal LCD and external monitors.

  • Page 188: Video Modes

    User's Manual Video Modes The computer supports video modes defined in the tables below. If your application offers a selection of mode numbers that do not match the numbers on the table, select a mode based on, resolution, number of colors and refresh rates. CRT Display Resolution 800*600...

  • Page 189: At Commands

    AT Commands In most cases, you will not need to type AT commands manually. However, there might be some occasions when you will need to do so. This chapter describes AT commands for data mode. Fax and voice commands are taken care of by application software. The format for entering AT commands is: ATXn where X is the AT command, and n is the specific value for that command.
  • Page 190 User's Manual Answer command This command instructs the modem to go off-hook and answer an incoming call. Bn Communication standard setting This command determines the communication standard CCITT or Bell. Selects CCITT V.22 mode when the modem is at 1200 bps. Selects Bell 212A when the modem is at 1200 bps (default).
  • Page 191 Return to command mode. Causes the modem to return to command mode after dialing a number, without disconnecting the call. Dial a telephone number previously stored using the &Zn=X command (See &Zn=X command for more information). The range is 0-3. En Echo command This command controls whether or not the characters entered from your computer keyboard are displayed on your monitor (echoed) while...
  • Page 192 User's Manual Ln Monitor speaker volume This command sets speaker volume to low, medium, or high. Low volume. Low volume. (Same as L0) Medium volume (default). High volume. Result Codes: n=0,1,2,3 ERROR Otherwise Mn Monitor speaker mode This command turns the speaker on or off. The speaker is off.
  • Page 193 Result Codes: n=0,1 ERROR Otherwise On Return on-line to data mode Instructs the modem to exit on-line command mode and return to data mode (see AT escape sequence, +++). This command issues a retrain before returning to on-line data mode. This command issues a rate renegotiation before returning to on-line data mode.
  • Page 194 User's Manual Select tone dialing This command instructs the modem to send DTMF tones while dialing. Dialed digits are tone dialed until a P command or dial modifier is received. This is the default setting. Vn DCE response format This command controls whether result codes (including call progress and negotiation progress messages) are displayed as words or their numeric equivalents.
  • Page 195 Enable Enable Dial tone detect Disabled: The modem dials a call regardless of whether it detects a dial tone. Enabled: The modem dials only upon detection of a dial tone, and disconnects the call if the dial tone is not detected within 10 seconds.
  • Page 196 User's Manual &C0 The state of the carrier from the remote modem is ignored. DCD circuit is always on. &C1 DCD turns on when the remote modem’s carrier signal is detected, and off when the carrier signal is not detected (default).
  • Page 197 &Gn V.22bis guard tone control This command determines which guard tone, if any, to transmit while transmitting in the high band (answer mode). This command is only used in V.22 and V.22bis mode. This option is not used in North America and is for international use only.
  • Page 198 User's Manual &T0 Abort. Stops any test in progress. &T1 Local analog loop. This test verifies modem operation, as well as the connection between the modem and computer. Any data entered at the local DTE is modulated, then demodulated, and returned to the local DTE. To work properly, the modem must be off-line.
  • Page 199 \Nn Error control mode selection This command determines the type of error control used by the modem when sending or receiving data. Buffer mode. No error control. Direct mode. MNP or disconnect mode. The modem attempts to connect using MNP2-4 error control procedures. If this fails, the modem disconnects.
  • Page 200 User's Manual \Vn Protocol result code Disable protocol result code appended to DCE speed. Enable protocol result code appended to DCE speed (default). Result Codes: n=0,1 ERROR Otherwise %B View numbers in blacklist If blacklisting is in effect, this command displays the numbers for which the last call attempted in the past two hours failed.

  • Page 201: Appendix D S-Registers

    S-registers S-registers contain the settings that determine how a number of functions of the internal modem operate. For example, how many times to let the telephone ring before the modem answers and how long to wait before it hangs up if a connec- tion fails.
  • Page 202 User's Manual S0 Auto answer ring number This register determines the number of rings the modem will count before automatically answering a call. Enter 0 (zero) if you do not want the modem to automatically answer at all. When disabled, the modem can only answer with an ATA command.
  • Page 203 S4 Response formatting character (user defined) This register determines the ASCII value used as the line feed character. The modem uses a line feed character in command mode when it responds to the computer. Range: 0-127, ASCII decimal Default: 10 (line feed) Units: ASCII S5 Command line editing character (user defined)
  • Page 204 User's Manual S7 Connection completion time-out This register sets the time, in seconds, that the modem must wait before hanging up because carrier is not detected. The timer is started when the modem finishes dialing (originate), or goes off-hook (answer). In originate mode, the timer is reset upon detection of an answer tone if allowed by county restriction.
  • Page 205 S37 Dial line rate S37 = 0 (default) S37 = 1 S37 = 2 S37 = 3 S37 = 4 S37 = 5 S37 = 6 S37 = 7 S37 = 8 S37 = 9 S37 = 10 S37 = 11 S37 = 12 S37 = 13 S37 = 14...
  • Page 206 User's Manual AT command set result codes The following table shows the result codes. The result code summary Result Code CONNECT RING NO CARRIER ERROR CONNECT 1200 EC* NO DIAL TONE BUSY NO ANSWER CONNECT 2400 EC* CONNECT 4800 EC* CONNECT 9600 EC* CONNECT 14400 EC* CONNECT 19200 EC*...
  • Page 207 Result Code DELAYED* BLACKLISTED* BLACKLIST FULL* *1: EC only appears when the Extended Result Codes configuration option is enabled. EC is replaced by one of the following symbols, depending upon the error control method used: V.42bis - V.42 error control and V.42bis data compression. V.42 - V.42 error control only.
  • Page 208 V.90 The TOSHIBA internal modem uses V.90 technology. The modem is capable of downstream speeds of 56Kbps (kilobits per second) when connected to an Internet service provider that supports V.90. As with any modem, the actual throughput (speed of data transfer) depends on analog telephone line conditions, which can vary considerably.
  • Page 209 User's Manual Table E-1 Result codes for a V.90 connection No. Result code CONNECT 32000 EC* CONNECT 36000 EC* CONNECT 40000 EC* CONNECT 44000 EC* CONNECT 48000 EC* CONNECT 52000 EC* CONNECT 56000 EC* 100 CONNECT 28000 EC* 101 CONNECT 29333 EC* 102 CONNECT 30666 EC* 103 CONNECT 33333 EC* 104 CONNECT 34666 EC*...
  • Page 210 AT Command -V90=* V.90 Dial Line Rate -V90 sets the maximum V.90 downstream that the modem attempts to connect. -V90=0 V.90 disabled -V90=1 V.90 enabled: automatic speed selection - maximum modem speed (default) Appendix E...

  • Page 211: Radio Characteristics

    Wireless LAN This appendix is intended to help you get your Wireless LAN network up and running, with a minimum of parameters. Card specifications Form Factor Mini PCI TypeIII Capability IEEE 802.11g,11a/g Standard for Wireless LANS (DSSS) Wi-Fi (Wireless Fidelity) certified by the Wireless Ethernet Compatibility Alliance (WECA) Network Microsoft Windows®...
  • Page 212 Subject to the radio regulations that apply in your country/region, your Wireless LAN card may support a different set of 5 GHz/2.4 GHz channels. Consult your Authorized Wireless LAN or TOSHIBA Sales office for information about the radio regulations that apply in your country/region.
  • Page 213 When installing Wireless LAN cards, the channel configuration is managed as follows: For wireless clients that operate in a Wireless LAN Infrastructure, the Wireless LAN card will automatically start operation at the channel identified by the Wireless LAN Access Point. When roaming between different access points the station can dynamically switch to another channel if required.
  • Page 214 User’s Manual Wireless Channels Sets (Turbo Mode) Frequency Range Channel ID * Available Area: US (USA, CANADA) only A peer-to-peer mode is available under the following condition: A Wireless LAN card receives a “US county/region code” beacon of the standard IEEE 802.11 (Revision D) from a Wireless LAN Access Point.

  • Page 215: Appendix G

    Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Length: Wire size: Current rating:...
  • Page 216 User's Manual The following illustrations show the plug shapes for the U.S.A. and Canada, the United Kingdom, Australia and Europe. USA and Canada UL approved CSA approved Australia AS approved United Kingdom BS approved Europe Approved by the appropriate agency...

  • Page 217: Appendix H

    Internal Modem Guide This appendix describes how to install and the remove the internal modem. CAUTION: Do not disassemble the computer beyond the steps described in this instruction or touch any components not specifically described. Installing the modem board NOTE: The internal modem is preinstalled. The following is for informa- tion only.
  • Page 218 User’s Manual Removing the modem board To remove the internal modem. 1. Save your data, quit Windows and turn off the power. 2. Disconnect the AC adaptor and any other peripheral devices. 3. Turn the computer upside down and remove the battery pack. 4.

  • Page 219: Appendix I

    Appendix I Parts Numbers The computer configuration and parts numbers, printed on a label on the bottom of the computer, indicate the CPU, LCD, memory, HDD, ODD modules and communi- cation devices.
  • Page 220 Glossary The terms in this glossary cover the topics discussed in this manual. Alternate naming is included for reference. Abbreviations AC: alternating current AGP: accelerated graphics port ANSI: American National Standards Institute APM: advanced power manager ASCII: American Standard Code for Information Interchange BIOS: basic input output system CMOS: complementary metal-oxide...
  • Page 221 AccuPoint (Abbreviations continued) SO-DIMM: small-outline dual in-line memory module SVGA: super video graphics array SDRAM: synchronized dynamic random access memory TFT: thin-film transistor UART: universal asynchronous receiver/transmitter USB: Universal Serial Bus VESA: Video Electronic Standards Association VGA: video graphics array VRM: video ready modem VRT: voltage reduction technology adapter: A device that provides an...
  • Page 222 asynchronous: Lacking regular time relationship. As applied to computer communications, asynchronous refers to the method of transmitting data that does not require a steady stream of bits to be transmitted at regular time intervals. AUTOEXEC.BAT: A batch file that executes a series of MS-DOS commands and programs each time you start the computer.
  • Page 223 cache memory cache memory: High speed memory which stores data that increases processor speed and data transfer rate. When the CPU reads data from main memory, it stores a copy of this data in cache memory. The next time the CPU needs that same data, it looks for it in the cache memory rather than the main memory, which saves time.
  • Page 224 compatibility: 1) The ability of one computer to accept and process data in the same manner as another computer without modifying the data or the media upon which it is being transferred. 2) the ability of one device to connect to or communicate with another system or component.
  • Page 225 device driver device driver: A program that controls communication between a specific peripheral device and the computer. The CONFIG.SYS file contains device drivers that MS-DOS loads when you turn the computer on. dialog box: A window that accepts user input to make system settings or record other information.
  • Page 226 See hard disk. floppy disk: See diskette. floppy disk drive (FDD): See diskette drive. Fn-esse: A TOSHIBA utility that lets you assign functions to hotkeys. format: The process of readying a blank disk for its first use. Formatting estab-...
  • Page 227 Fn, can be used to set system parameters, such as speaker volume. HW Setup: A TOSHIBA utility that lets you set the parameters for various hardware components. icon: A small graphic image displayed on the screen or in the indicator panel.
  • Page 228 keyboard: An input device containing switches that are activated by manually pressing marked keys. Each keystroke activates a switch that transmits a specific code to the computer. For each key, the transmitted code is, in turn, representative of the (ASCII) character marked on the key.
  • Page 229 monitor monitor: A device that uses rows and columns of pixels to display alphanu- meric characters or graphic images. See CRT. motherboard: A name sometimes used to refer to the main printed circuit board in processing equipment. It usually contains integrated circuits that perform the processor’s basic functions and provides connectors for adding other boards that perform special functions.
  • Page 230 A Class A device is sufficient for office use. Class B provides a more stringent classification for home equipment use. TOSHIBA portable computers comply with Class B computing device regulations. Random Access Memory (RAM): High speed memory within the computer circuitry that can be read or written to.
  • Page 231 restart restart: Resetting a computer without turning it off (also called ‘warm boot’ or ‘soft reset’). To restart the computer, press Ctrl + Alt + Del while the computer is on. See also boot. RCA jack: A single-pin connector that carries composite video signals, which include both contrast and color information.
  • Page 232 S-video: This connection provides separate lines for contrast and color, which produces a video image superior to that produced by a composite connection. See also RCA jack. synchronous: Having a constant time interval between successive bits, characters or events. system disk: A disk that has been formatted with an operating system.
  • Page 233 Index AC adaptor 1-7, 2-5 DC IN 19V port 2-5, 2-9 additional 1-13, 8-9 connecting 3-5 ASCII characters 5-10 Auto power on, See Power Battery, See also Battery pack charging 6-8 extending life 6-12 indicator 2-9, 6-3 monitoring capacity 6-10 real time clock 1-7, 6-5 safety precautions 6-5 save mode 1-10...
  • Page 234 User's Manual Fn key emulation 5-7 Fn + Alt (enhanced keyboard simulation) 5-3 Fn + Ctrl (enhanced keyboard simulation) 5-3 Fn + Enter 5-3 Fn + Esc (sound mute) 5-4 Fn-esse 1-11 Fn + F1 (instant security) 5-4 Fn + F2 (power save mode) 5-4 Fn + F3 (standby) 5-4 Fn + F4 (hibernation) 5-5 Fn + F5 (display selection) 5-5...
  • Page 235 LAN, See also Wireless LAN 1-8 cable types 4-31 connecting 4-31 disconnecting 4-32 problems 9-25 using 4-30 LCD, See Display, Video modes, Monitor external Level 2 cache, See Cache memory Lock, security, See Security lock Main battery, See Battery pack Memory 1-3 expansion 1-13, 8-6 installing 8-6...
  • Page 236 Pointing device 9-18 power 9-4 preliminary checklist 9-1 printer 9-17 self test 9-4 sound system 9-22 standby/hibernation 9-25 support from TOSHIBA 9-27 system start-up 9-3 TV output signal 9-22 USB 9-23 Wireless LAN 9-26 Processor 1-3 Real time clock battery, See Battery...
