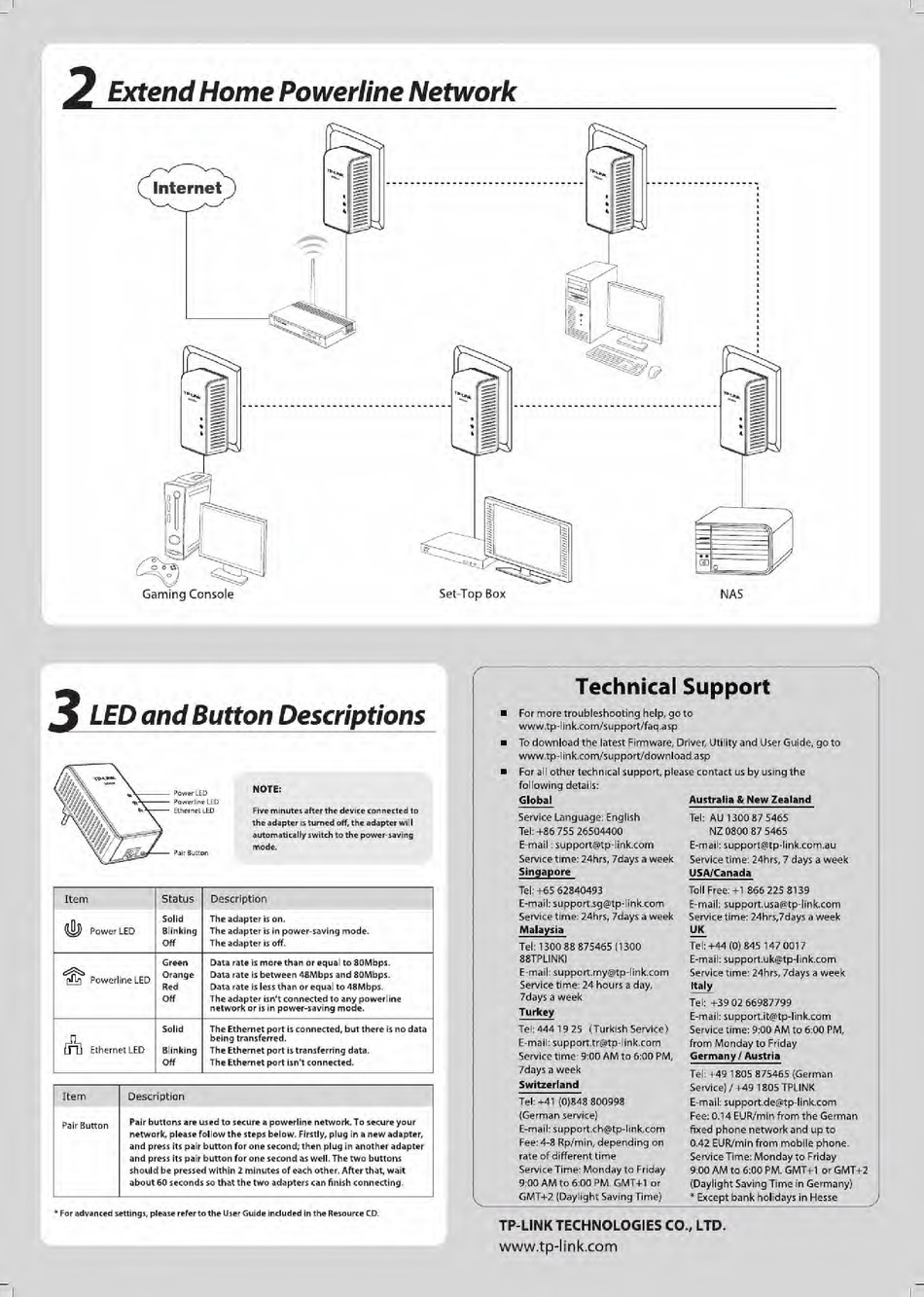

TP-Link AV500 Quick Installation Manual page 2

2
Extend Home Powerline Network
Gaming Console Set-Top Box NAS
LED and Button Descriptions
Power LED
Powcrlinc LED
Ethernet LED
Pair Button
NOTE:
Five minutes after the device connected to
the adapter is turned off, the adapter will
automatically switch to the power-saving
mode.
Item Status Description
) Power LED
Solid
Blinking
Off
The adapter is on.
The adapter is in power-saving mode.
The adapter is off.
Powerline LED
Green
Orange
Red
Off
Data rate is more than or equal to 80Mbps.
Data rate is between 48Mbps and 80Mbps.
Data rate is less than or equal to 48Mbps.
The adapter isn't connected to any powerline
network or is in power-saving mode.
CrD Ethernet LED
Solid
Blinking
Off
The Ethernet port is connected, but there is no data
being transferred.
The Ethernet port is transferring data.
The Ethernet port isn't connected.
Item Description
Pair Button
Pair buttons are used to secure a powerline network. To secure your
network, please follow the steps below. Firstly, plug in a new adapter,
and press its pair button for one second; then plug in another adapter
and press its pair button for one second as well. The two buttons
should be pressed within 2 minutes of each other. After that, wait
about 60 seconds so that the two adapters can finish connecting.
* For advanced settings, please refer to the User Guide included in the Resource CD.
f
\
Technical Support
■
For more troubleshooting help, go to
www.tp-link.com/support/faq.asp
■
To download the latest Firmware, Driver, Utility and User Guide, go to
www.tp-link.com/support/download.asp
■
For all other technical support, please contact us by using the
following details:
Global
Service Language: English
Tel: +86 755 26504400
E-mail: support@tp-link.com
Service time: 24hrs, 7days a week
Singapore
Tel: +65 62840493
E-mail: support.sg@tp-link.com
Service time: 24hrs, 7days a week
Malaysia
Tel: 1300 88 875465(1300
88TPLINK)
E-mail: support.my@tp-link.com
Service time: 24 hours a day,
7days a week
Turkey
Tel: 444 19 25 (Turkish Service)
E-mail: support.tr@tp-link.com
Service time: 9:00 AM to 6:00 PM,
7days a week
Switzerland
Tel: +41 (0)848 800998
(German service)
E-mail: support.ch@tp-link.com
Fee: 4-8 Rp/min, depending on
rate of different time
Service Time: Monday to Friday
9:00 AM to 6:00 PM. GMT+1 or
GMT+2 (Daylight Saving Time)
Australia & New Zealand
Tel: AU 1300 87 5465
NZ 0800 87 5465
E-mail: support@tp-link.com.au
Service time: 24hrs, 7 days a week
USA/Canada
Toll Free: +1 866 225 8139
E-mail: support.usa@tp-link.com
Service time: 24hrs,7days a week
UK
Tel:+44(0) 845 1470017
E-mail: support.uk@tp-link.com
Service time: 24hrs, 7days a week
Italy
Tel: +39 02 66987799
E-mail: support.it@tp-link.com
Service time: 9:00 AM to 6:00 PM,
from Monday to Friday
Germany/Austria
Tel: +49 1805 875465 (German
Service)/+49 1805TPLINK
E-mail: support.de@tp-link.com
Fee: 0.14 EUR/min from the German
fixed phone network and up to
0.42 EUR/min from mobile phone.
Service Time: Monday to Friday
9:00 AM to 6:00 PM. GMT+1 or GMT+2
(Daylight Saving Time in Germany)
* Except bank holidays in Hesse
