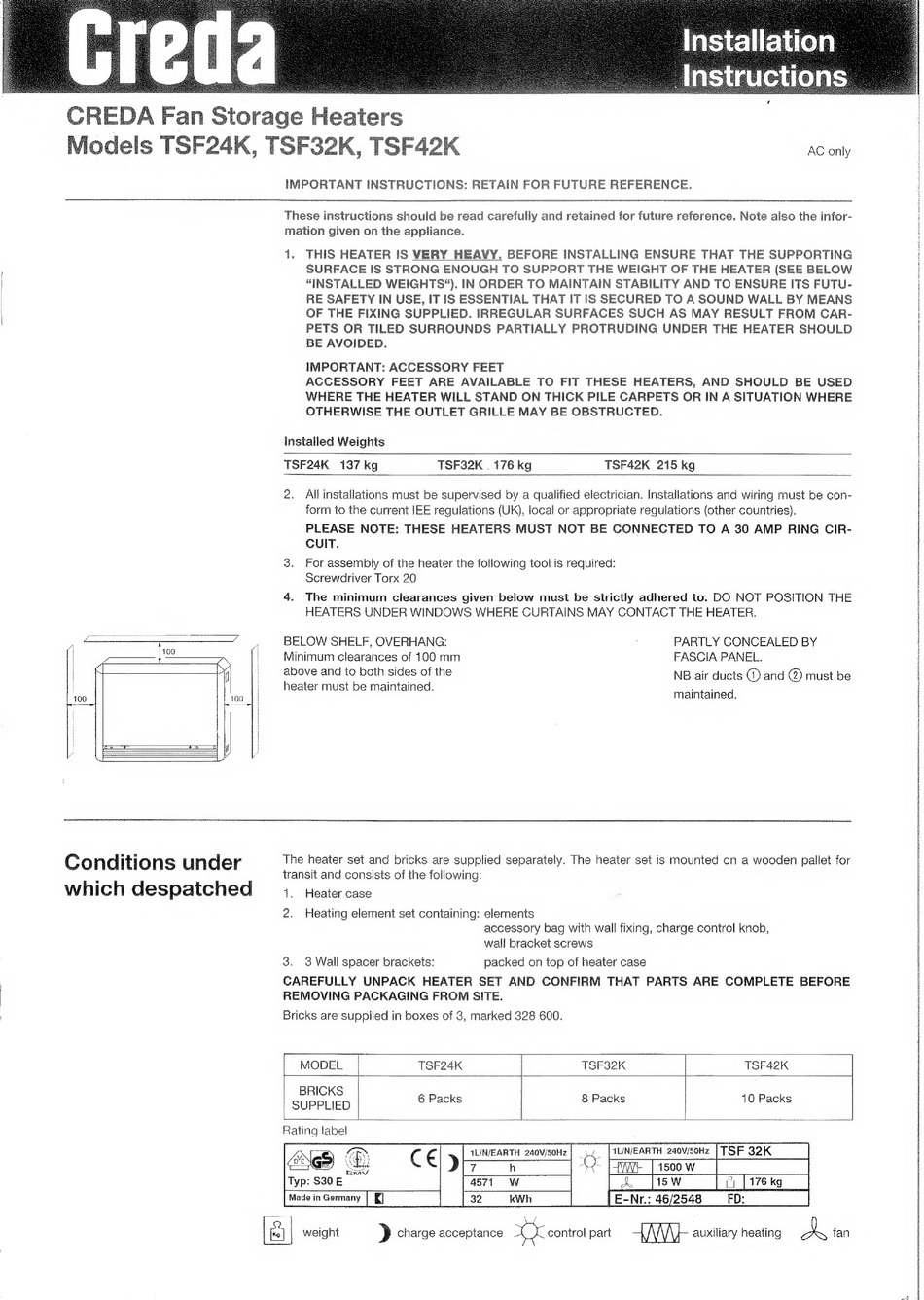

CREDA Fan Storage Heaters |
stallation
tructions
Models TSF24K, TSF32K, TSF42K AC only
IMPORTANT INSTRUCTIONS: RETAIN FOR FUTURE REFERENCE.
C
Conditions under
which despatched
These instructions should be read carefully and retained for future reference. Note also the infor-
mation given on the appliance.
1. THIS HEATER IS VERY HEAVY, BEFORE INSTALLING ENSURE THAT THE SUPPORTING
SURFACE IS STRONG ENOUGH TO SUPPORT THE WEIGHT OF THE HEATER (SEE BELOW
"INSTALLED WEIGHTS"). IN ORDER TO MAINTAIN STABILITY AND TO ENSURE ITS FUTU-
RE SAFETY IN USE, IT IS ESSENTIAL THAT IT IS SECURED TO A SOUND WALL BY MEANS
OF THE FIXING SUPPLIED. IRREGULAR SURFACES SUCH AS MAY RESULT FROM CAR-
PETS OR TILED SURROUNDS PARTIALLY PROTRUDING UNDER THE HEATER SHOULD
BE AVOIDED.
IMPORTANT: ACCESSORY FEET
ACCESSORY FEET ARE AVAILABLE TO FIT THESE HEATERS, AND SHOULD BE USED
WHERE THE HEATER WILL STAND ON THICK PILE CARPETS OR IN A SITUATION WHERE
OTHERWISE THE OUTLET GRILLE MAY BE OBSTRUCTED.
Installed Weights
TSF24K 137 kg TSF32K . 176 kg TSF42K 215 kg
2. All installations must be supervised by a qualified electrician. Installations and wiring must be con-
form to the current IEE regulations (UK), local or appropriate regulations (other countries).
PLEASE NOTE: THESE HEATERS MUST NOT BE CONNECTED TO A 30 AMP RING CIR-
CUIT.
3. For assembly of the heater the following tool is required:
Screwdriver Torx 20
4. The minimum clearances given below must be strictly adhered to. DO NOT POSITION THE
HEATERS UNDER WINDOWS WHERE CURTAINS MAY CONTACT THE HEATER.
BELOW SHELF, OVERHANG: PARTLY CONCEALED BY
Minimum clearances of 100 mm FASCIA PANEL.
above and to both sides of the NB air ducts qa and @ must be
heater must be maintained. NE
maintained.
The heater set and bricks are supplied separately. The heater set is mounted on a wooden pallet for
transit and consists of the following:
1. Heater case
2. Heating element set containing: elements
accessory bag with wall fixing, charge control knob,
wall bracket screws
3. 3 Wall spacer brackets: packed on top of heater case
CAREFULLY UNPACK HEATER SET AND CONFIRM THAT PARTS ARE COMPLETE BEFORE
REMOVING PACKAGING FROM SITE.
Bricks are supplied in boxes of 3, marked 328 600.
MODEL TSF24K | TSF32K TSF42K
BRICKS
SUPPLIED 6 Packs | 8 Packs 10 Packs
Rating label
TLIN/EARTH 240V/50Hz IL/N/EARTH 240V/50Hz | TSF 32K
: 7 h | Lo; AW [1500w |
Typ: S30 E 4571 W | A 15W & |176 kg
Made in Germany 32 kWh | E-Nr.: 46/2548 FD:
A weight ) charge acceptance XK control part Ab auxiliary heating a fan
